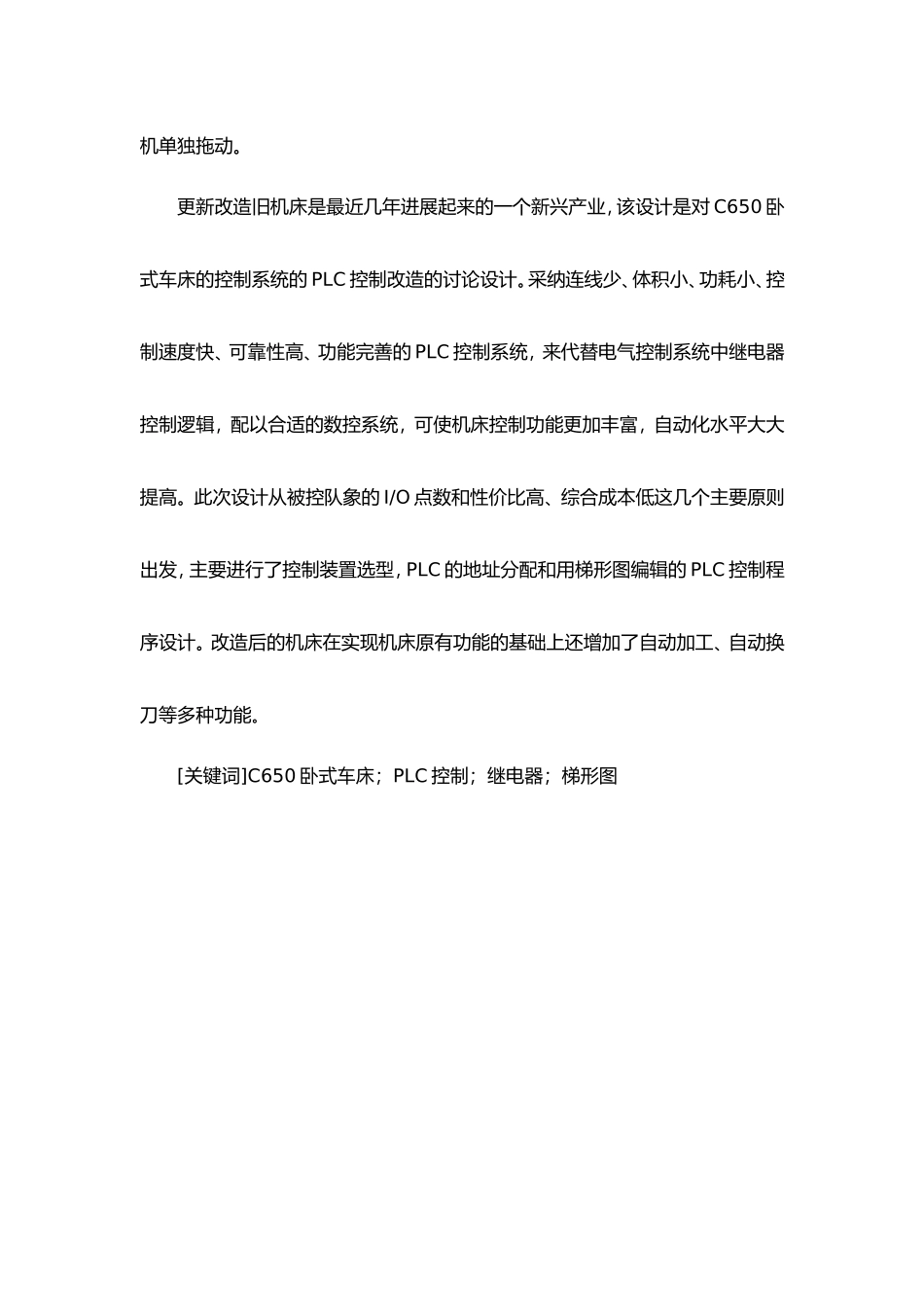

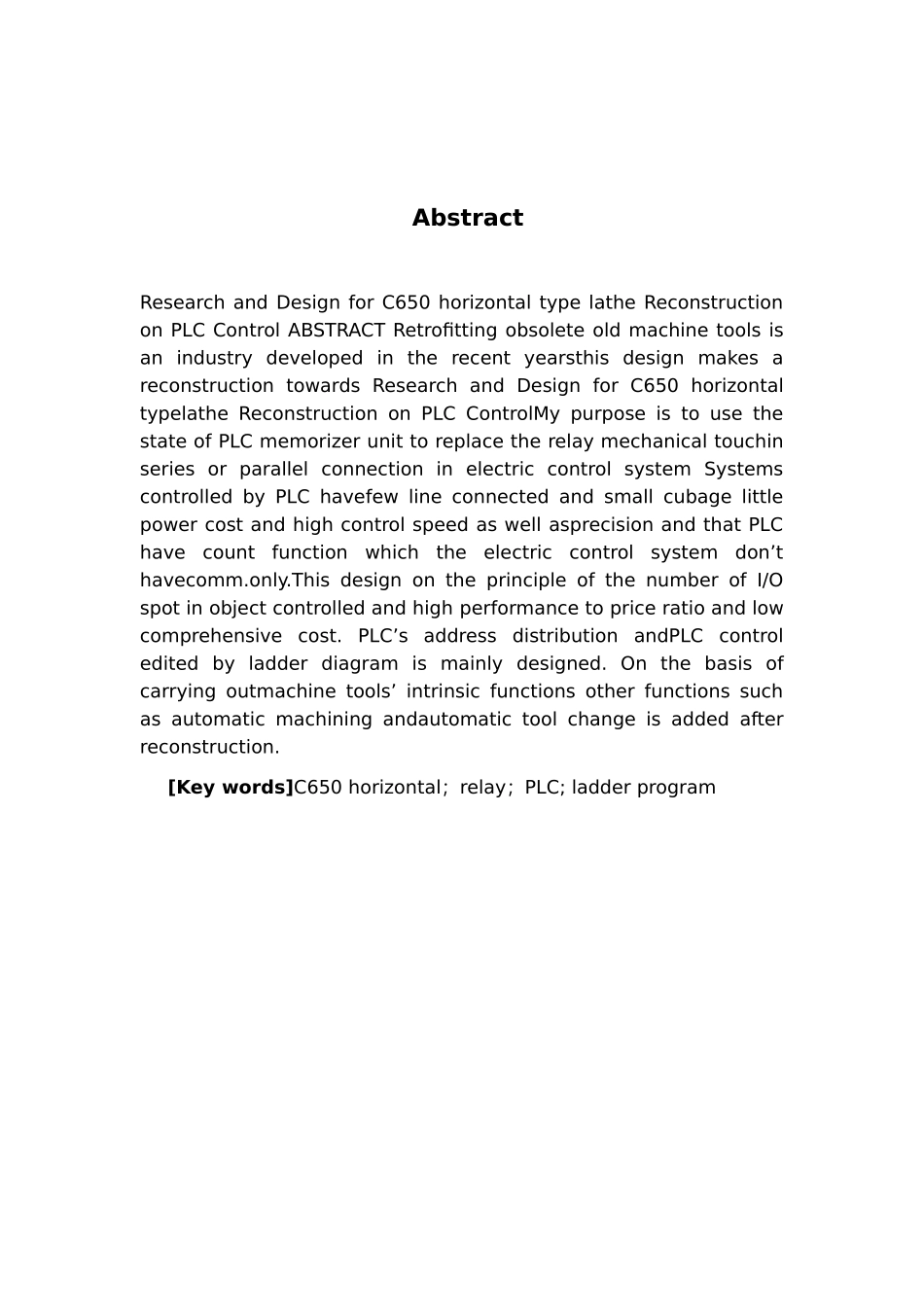

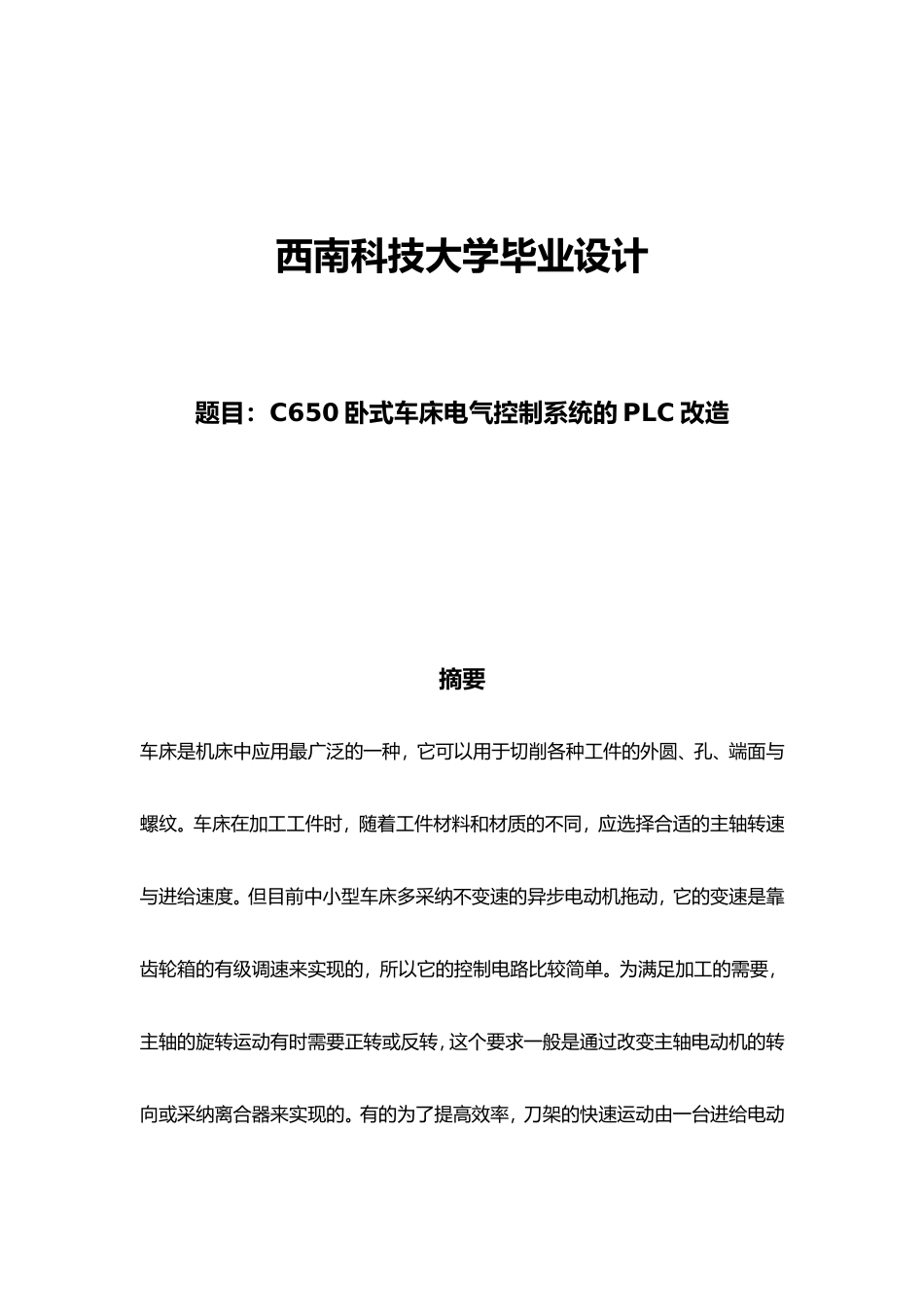

西南科技大学毕业设计题目:C650 卧式车床电气控制系统的 PLC 改造摘要车床是机床中应用最广泛的一种,它可以用于切削各种工件的外圆、孔、端面与螺纹。车床在加工工件时,随着工件材料和材质的不同,应选择合适的主轴转速与进给速度。但目前中小型车床多采纳不变速的异步电动机拖动,它的变速是靠齿轮箱的有级调速来实现的,所以它的控制电路比较简单。为满足加工的需要,主轴的旋转运动有时需要正转或反转,这个要求一般是通过改变主轴电动机的转向或采纳离合器来实现的。有的为了提高效率,刀架的快速运动由一台进给电动机单独拖动。更新改造旧机床是最近几年进展起来的一个新兴产业,该设计是对 C650 卧式车床的控制系统的 PLC 控制改造的讨论设计。采纳连线少、体积小、功耗小、控制速度快、可靠性高、功能完善的 PLC 控制系统,来代替电气控制系统中继电器控制逻辑,配以合适的数控系统,可使机床控制功能更加丰富,自动化水平大大提高。此次设计从被控队象的 I/O 点数和性价比高、综合成本低这几个主要原则出发,主要进行了控制装置选型,PLC 的地址分配和用梯形图编辑的 PLC 控制程序设计。改造后的机床在实现机床原有功能的基础上还增加了自动加工、自动换刀等多种功能。[关键词]C650 卧式车床;PLC 控制;继电器;梯形图AbstractResearch and Design for C650 horizontal type lathe Reconstruction on PLC Control ABSTRACT Retrofitting obsolete old machine tools is an industry developed in the recent yearsthis design makes a reconstruction towards Research and Design for C650 horizontal typelathe Reconstruction on PLC ControlMy purpose is to use the state of PLC memorizer unit to replace the relay mechanical touchin series or parallel connection in electric control system Systems controlled by PLC havefew line connected and small cubage little power cost and high control speed as well asprecision and that PLC have count function which the electric control system don’t havecomm.only.This design on the principle of the number of I/O spot in object controlled and high performance to price ratio and low comprehensive cost....
