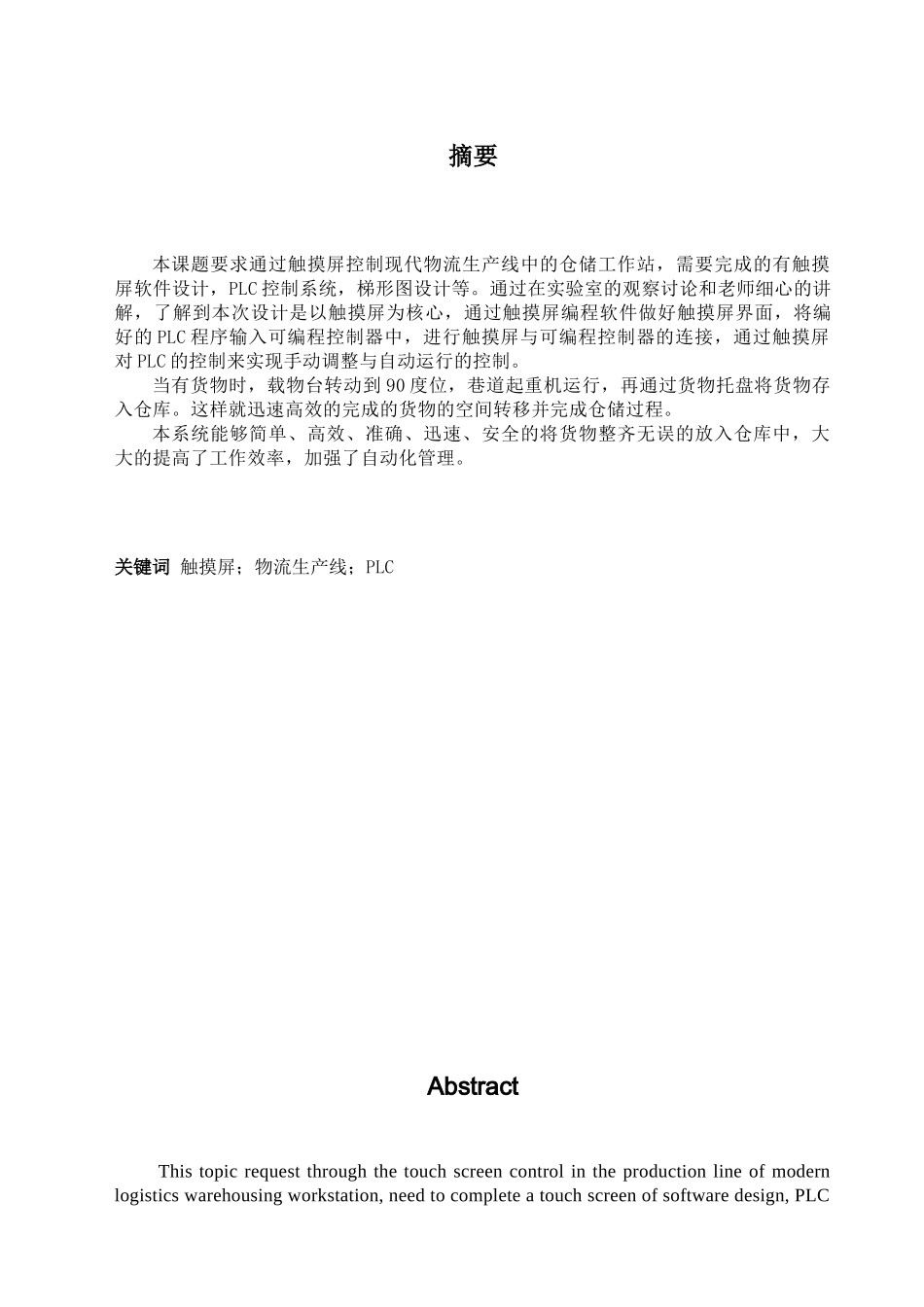

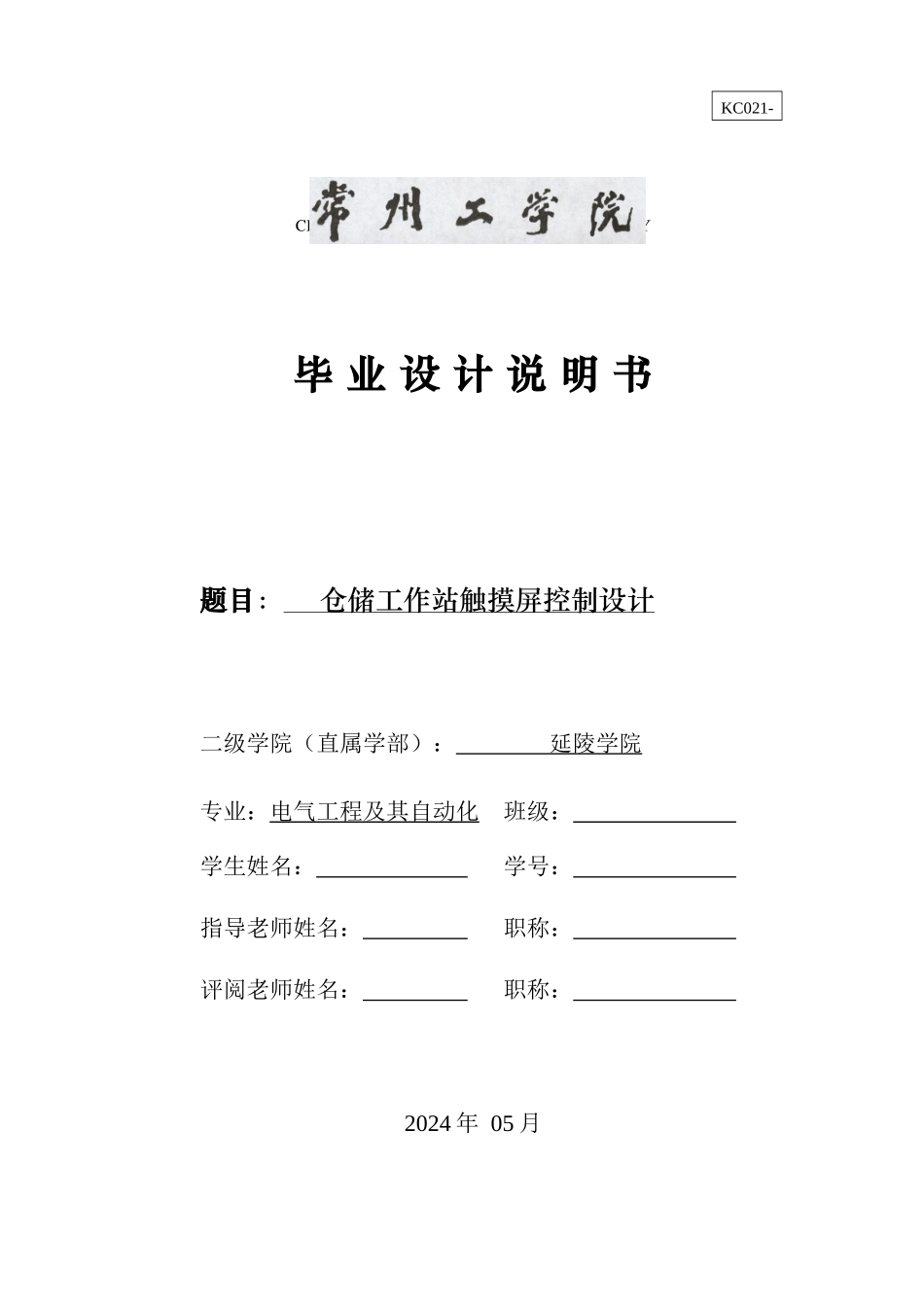

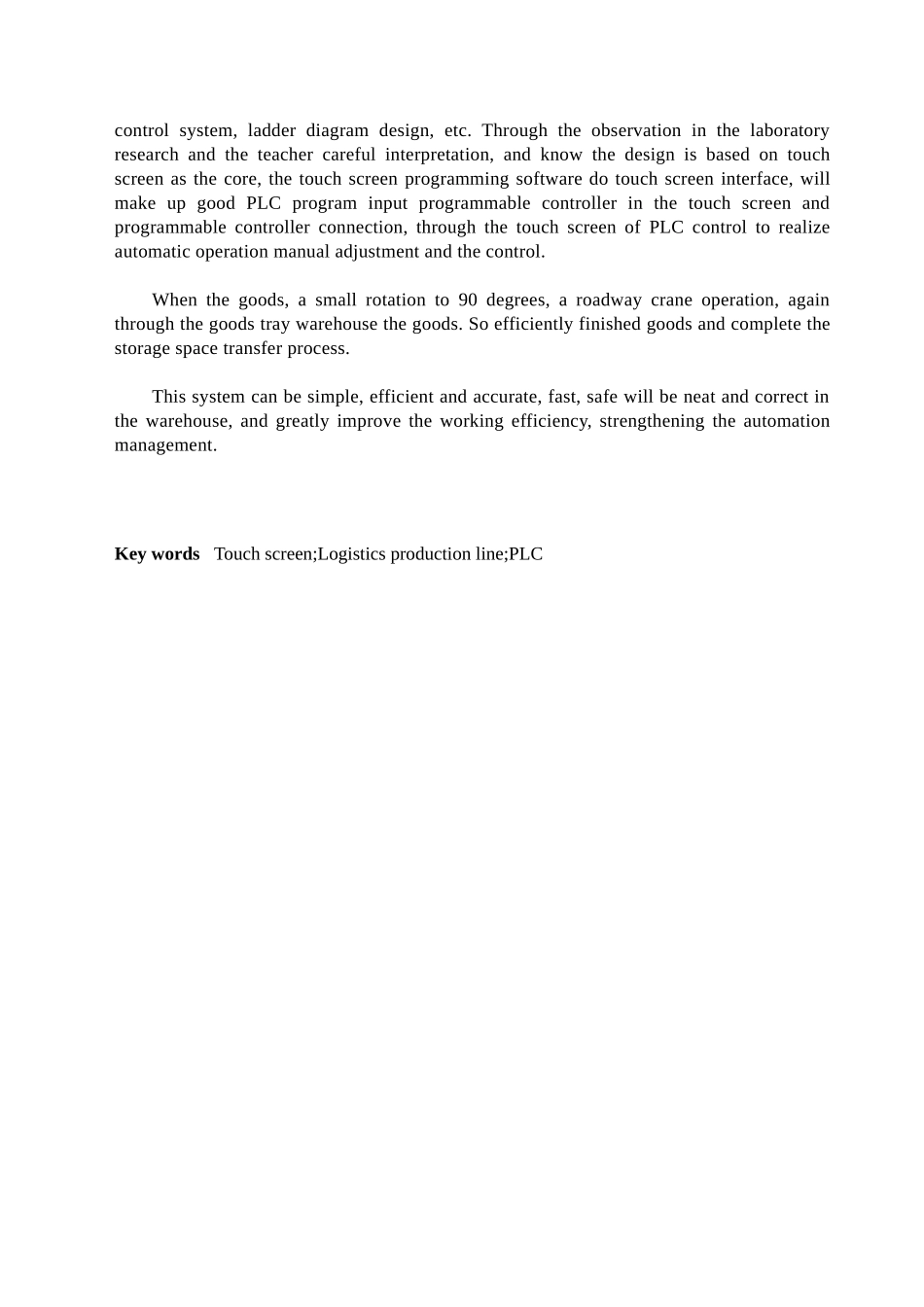

CHANGZHOU INSTITUTE OF TECHNOLOGY毕 业 设 计 说 明 书题目： 仓储工作站触摸屏控制设计 二级学院（直属学部）： 延陵学院 专业：电气工程及其自动化 班级： 学生姓名： 学号： 指导老师姓名： 职称： 评阅老师姓名： 职称： 2024 年 05 月KC021-摘要本课题要求通过触摸屏控制现代物流生产线中的仓储工作站，需要完成的有触摸屏软件设计，PLC 控制系统，梯形图设计等。通过在实验室的观察讨论和老师细心的讲解，了解到本次设计是以触摸屏为核心，通过触摸屏编程软件做好触摸屏界面，将编好的 PLC 程序输入可编程控制器中，进行触摸屏与可编程控制器的连接，通过触摸屏对 PLC 的控制来实现手动调整与自动运行的控制。当有货物时，载物台转动到 90 度位，巷道起重机运行，再通过货物托盘将货物存入仓库。这样就迅速高效的完成的货物的空间转移并完成仓储过程。本系统能够简单、高效、准确、迅速、安全的将货物整齐无误的放入仓库中，大大的提高了工作效率，加强了自动化管理。关键词 触摸屏；物流生产线；PLCAbstract This topic request through the touch screen control in the production line of modern logistics warehousing workstation, need to complete a touch screen of software design, PLC control system, ladder diagram design, etc. Through the observation in the laboratory research and the teacher careful interpretation, and know the design is based on touch screen as the core, the touch screen programming software do touch screen interface, will make up good PLC program input programmable controller in the touch screen and programmable controller connection, through the touch screen of PLC control to realize automatic operation manual adjustment and the control. When the goods, a small rotation to 90 degrees, a roadway crane operation, again through the goods tray warehouse the goods. So efficiently finished goods and complete the storage space transfer process. This system can be simple, efficient and accurate, fast, safe will be neat and correct in the wareh...
