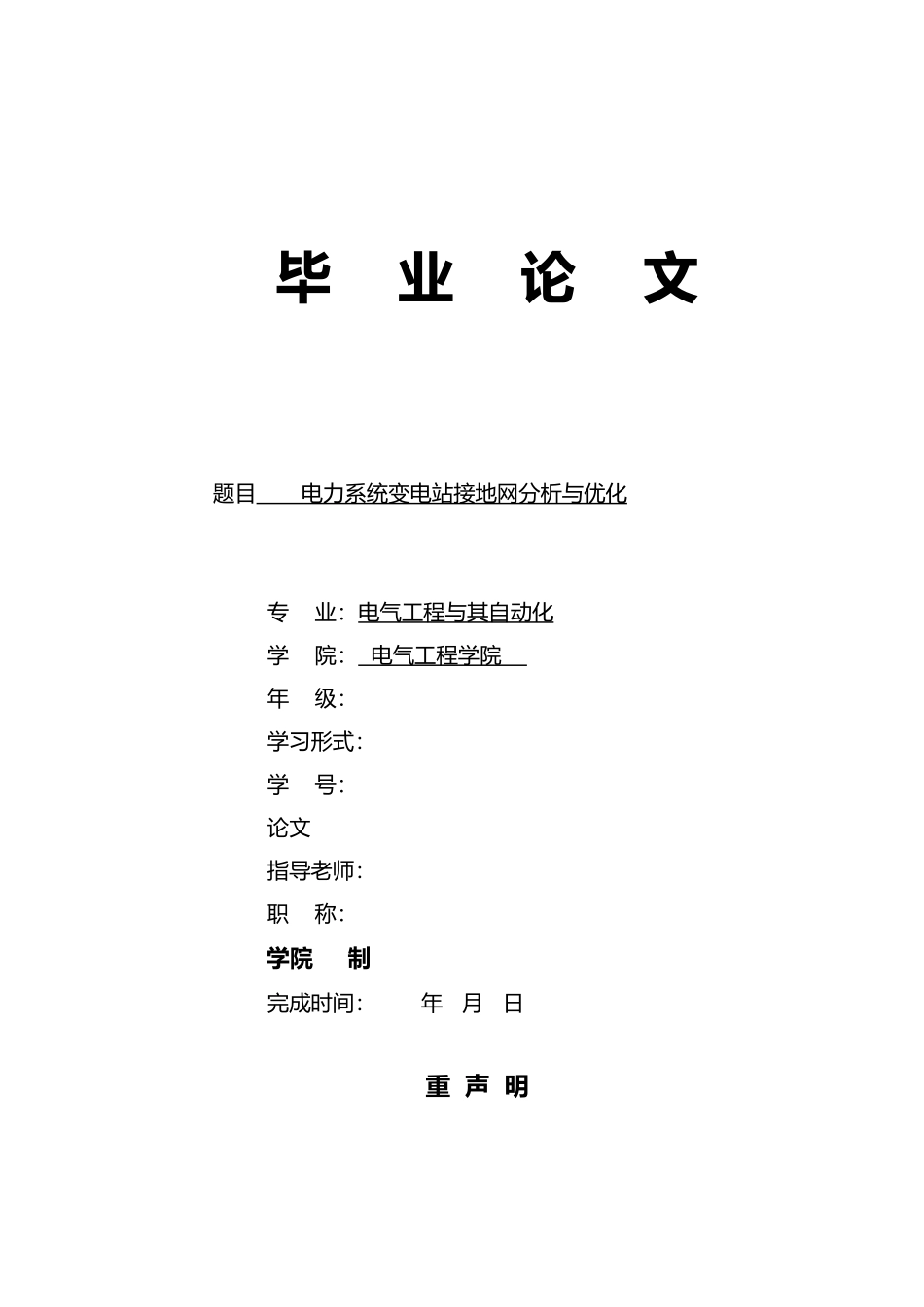

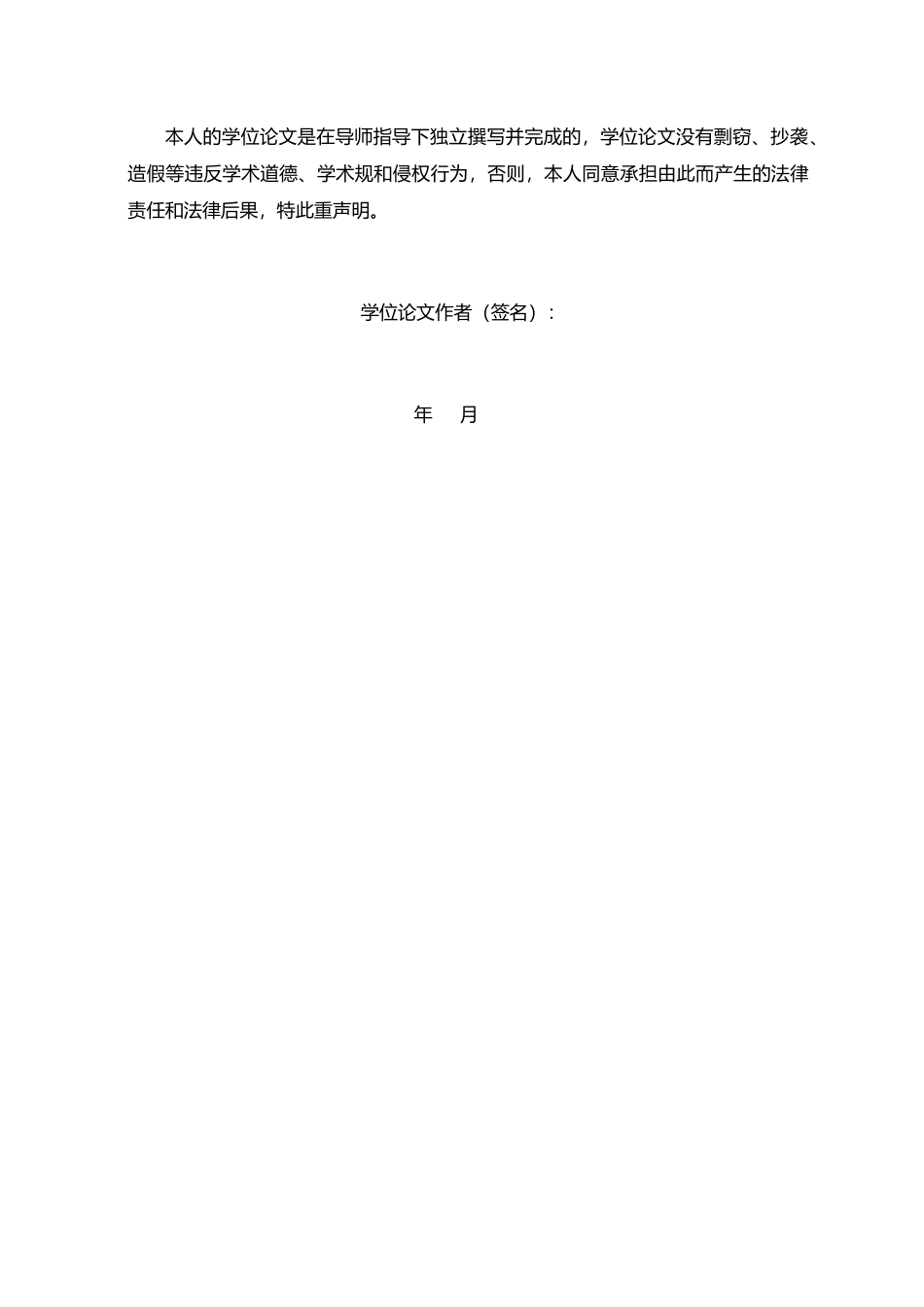

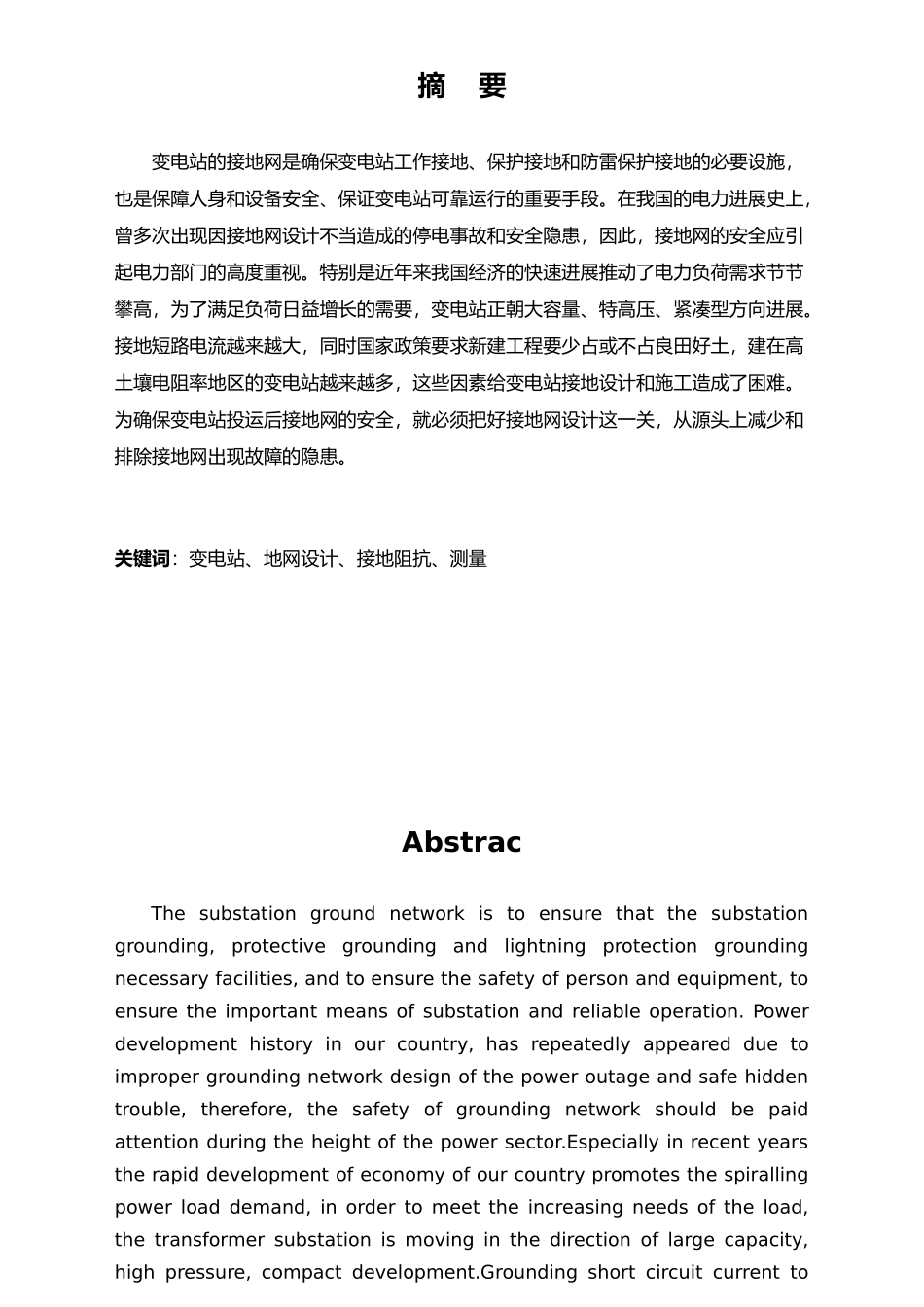

毕 业 论 文题目 电力系统变电站接地网分析与优化专 业:电气工程与其自动化学 院: 电气工程学院 年 级:学习形式:学 号:论文 指导老师:职 称:学院 制完成时间: 年 月 日 重 声 明本人的学位论文是在导师指导下独立撰写并完成的,学位论文没有剽窃、抄袭、造假等违反学术道德、学术规和侵权行为,否则,本人同意承担由此而产生的法律责任和法律后果,特此重声明。 学位论文作者(签名): 年 月 摘 要变电站的接地网是确保变电站工作接地、保护接地和防雷保护接地的必要设施,也是保障人身和设备安全、保证变电站可靠运行的重要手段。在我国的电力进展史上,曾多次出现因接地网设计不当造成的停电事故和安全隐患,因此,接地网的安全应引起电力部门的高度重视。特别是近年来我国经济的快速进展推动了电力负荷需求节节攀高,为了满足负荷日益增长的需要,变电站正朝大容量、特高压、紧凑型方向进展。接地短路电流越来越大,同时国家政策要求新建工程要少占或不占良田好土,建在高土壤电阻率地区的变电站越来越多,这些因素给变电站接地设计和施工造成了困难。为确保变电站投运后接地网的安全,就必须把好接地网设计这一关,从源头上减少和排除接地网出现故障的隐患。关键词:变电站、地网设计、接地阻抗、测量AbstracThe substation ground network is to ensure that the substation grounding, protective grounding and lightning protection grounding necessary facilities, and to ensure the safety of person and equipment, to ensure the important means of substation and reliable operation. Power development history in our country, has repeatedly appeared due to improper grounding network design of the power outage and safe hidden trouble, therefore, the safety of grounding network should be paid attention during the height of the power sector.Especially in recent years the rapid development of economy of our country promotes the spiralling power load demand, in order to meet the increasing needs of the load, the transformer substation is moving in the direction of large capacity, high pressure, compact development.Ground...
