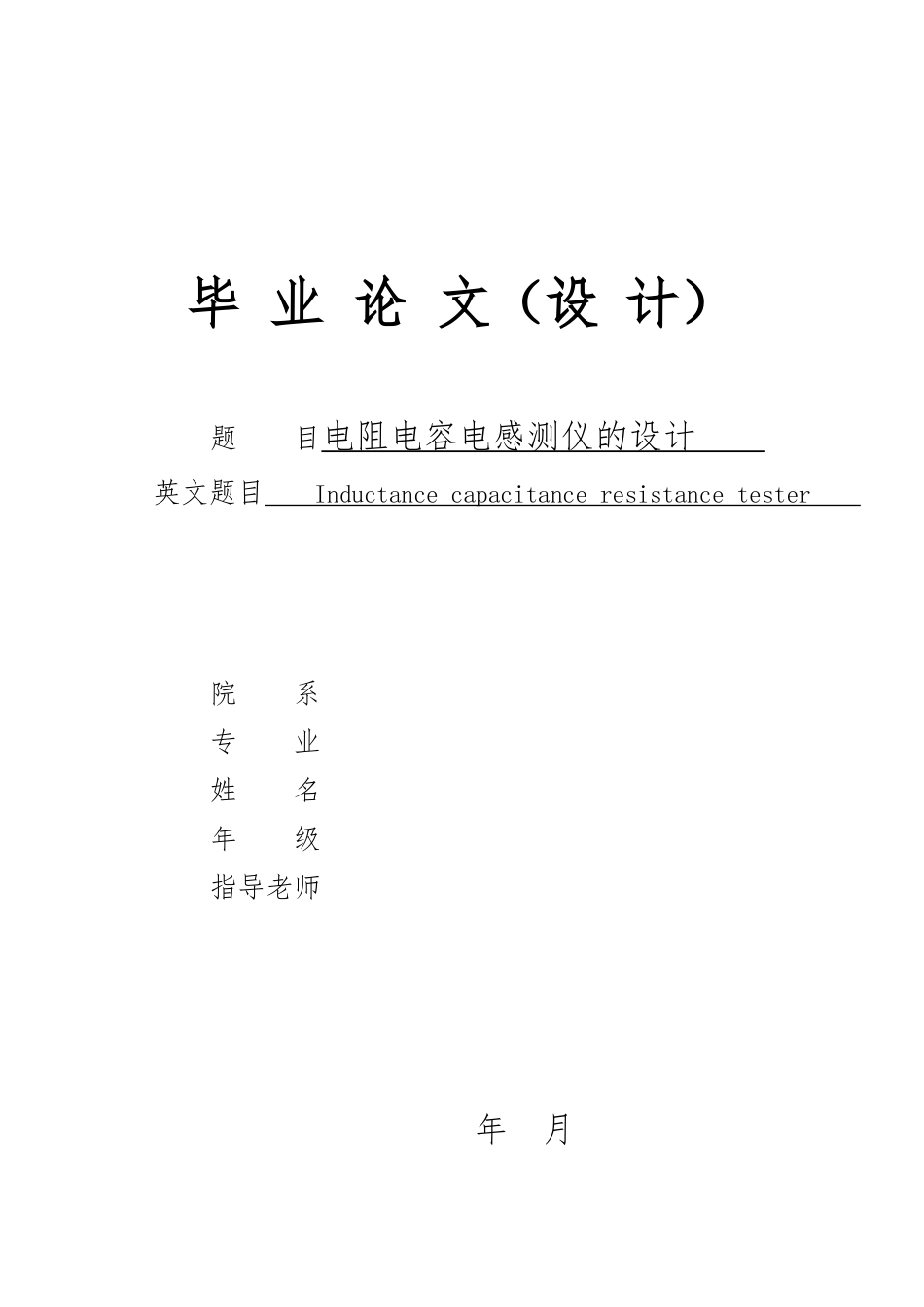

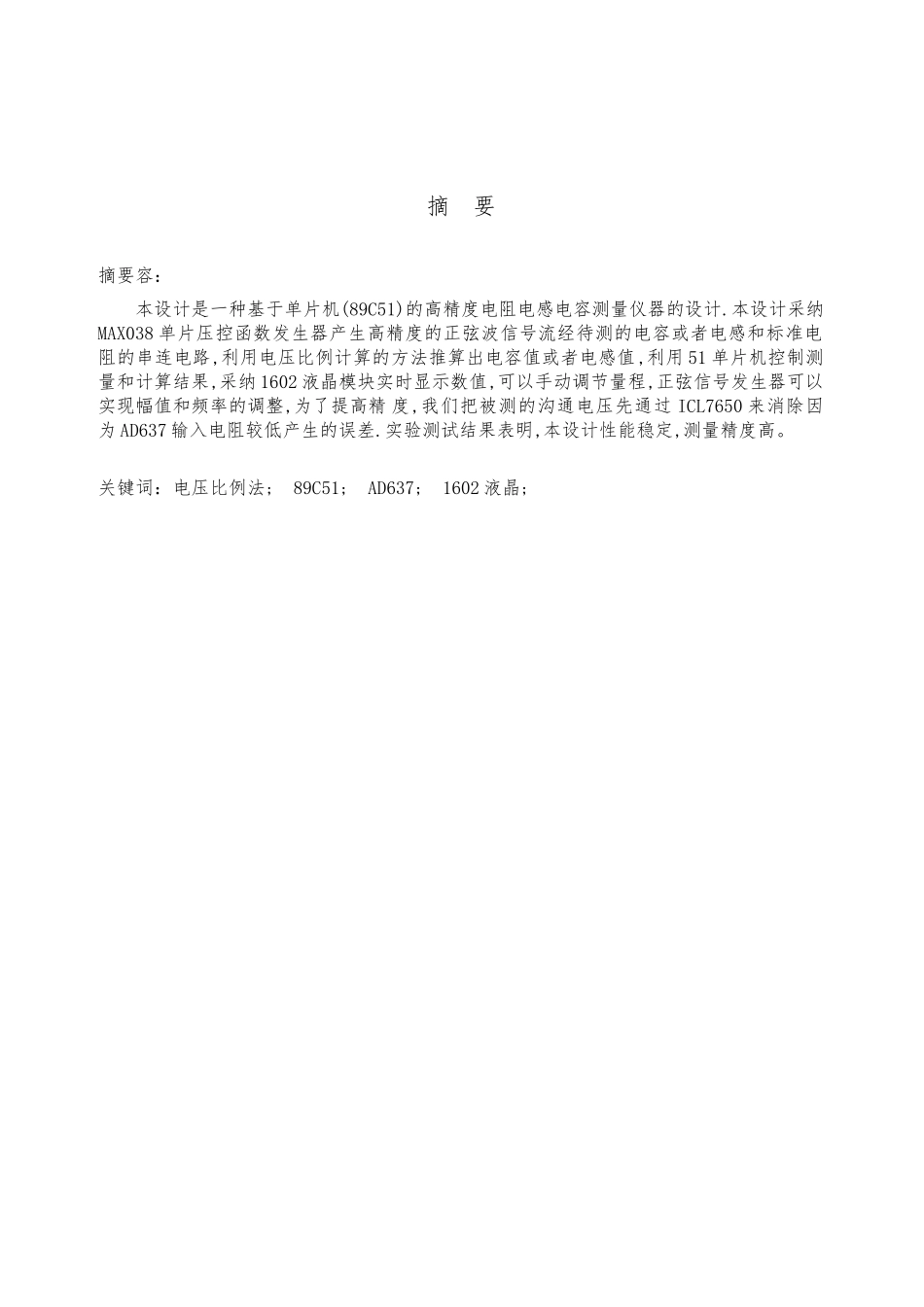

毕 业 论 文(设 计) 题 目电阻电容电感测仪的设计 英文题目 Inductance capacitance resistance tester 院 系 专 业 姓 名 年 级 指导老师 年 月摘 要摘要容:本设计是一种基于单片机(89C51)的高精度电阻电感电容测量仪器的设计.本设计采纳MAX038 单片压控函数发生器产生高精度的正弦波信号流经待测的电容或者电感和标准电阻的串连电路,利用电压比例计算的方法推算出电容值或者电感值,利用 51 单片机控制测量和计算结果,采纳 1602 液晶模块实时显示数值,可以手动调节量程,正弦信号发生器可以实现幅值和频率的调整,为了提高精 度,我们把被测的沟通电压先通过 ICL7650 来消除因为 AD637 输入电阻较低产生的误差.实验测试结果表明,本设计性能稳定,测量精度高。关键词:电压比例法; 89C51; AD637; 1602 液晶;Design of inductance capacitance resistance testerABSTRACTAbstract content:The design is the design of a high-precision instrument for RLC measurement based on microcontroller(89C51).This design adopted MAX038 monolithic voltage-controlled function generator to produce high accuracy sine wave signal,which passed through the series circuit of the capacity or inductance and standard resistance,and then measured the respective voltage of the capacity or the inductance and the standard resistance.Using the voltage proportion method calculated the capacitance values or inductance values.The design used 51 microcontroller to control the measurement and calculation results,used 1602 LCD to show the result. The range can be adjusted manually, sine signal generator can adjust amplitude and frequency to improve accuracy, we measured the AC voltage through the ICL7650 to eliminate the error caused by the lower input resistance of AD637. Experimental results show that the performance of this design is stable and of high measurement accuracy.Key words: Voltage proportion method; 89C51; AD637; 1602 LCD;目录第一章 引言 1第二章 电压比例法测量原理 ...
