运用CATIA管路模块进行汽车管路设计课件VIP免费

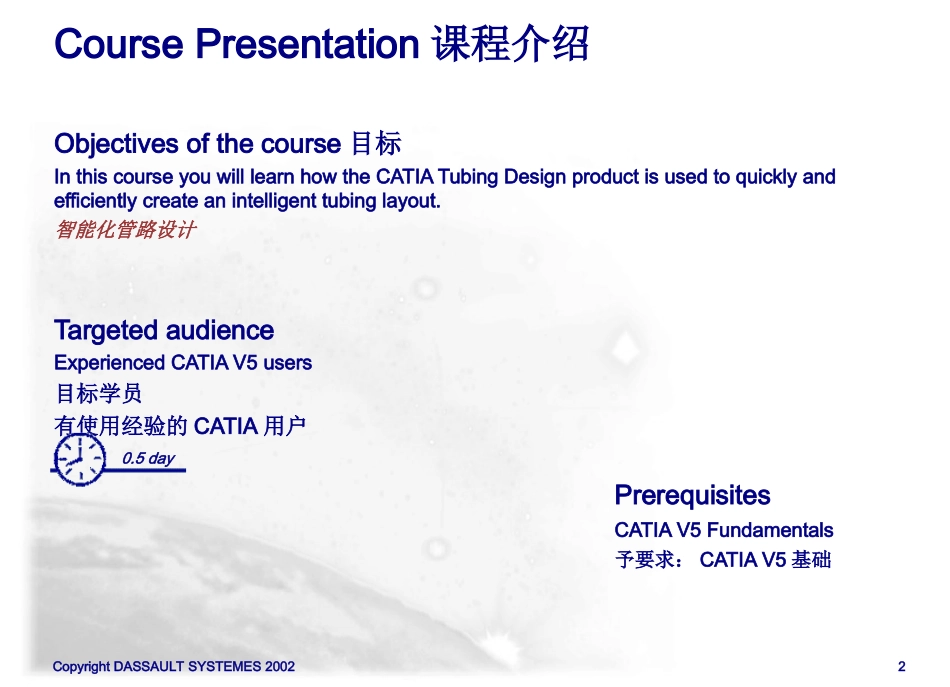

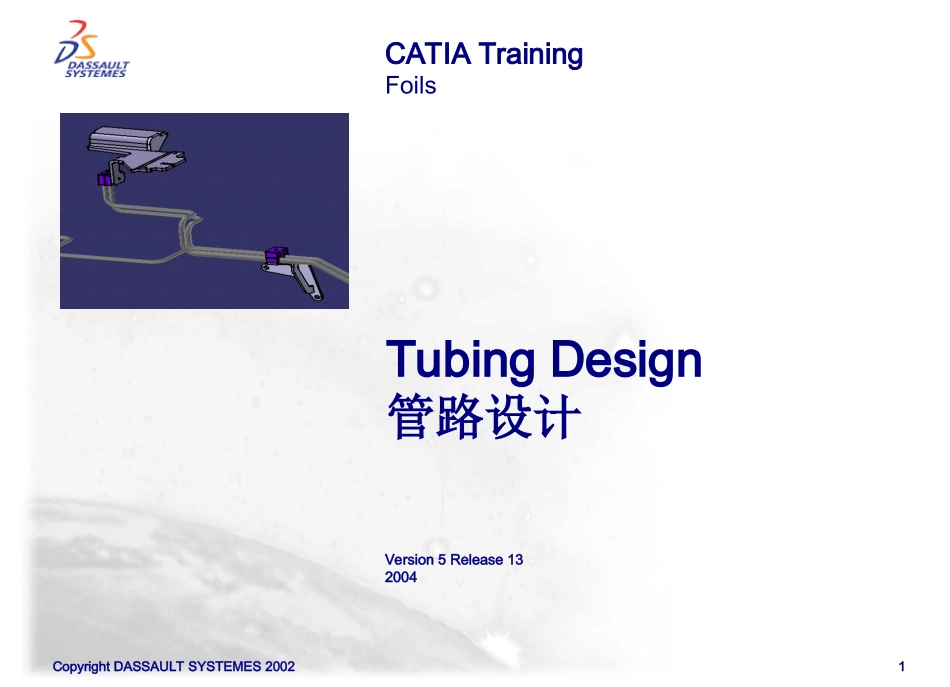

CopyrightDASSAULTSYSTEMES20021TubingDesign管路设计CATIATrainingFoilsVersion5Release132004CopyrightDASSAULTSYSTEMES20022CoursePresentation课程介绍Objectivesofthecourse目标InthiscourseyouwilllearnhowtheCATIATubingDesignproductisusedtoquicklyandefficientlycreateanintelligenttubinglayout.智能化管路设计TargetedaudienceExperiencedCATIAV5users目标学员有使用经验的CATIA用户PrerequisitesCATIAV5Fundamentals予要求：CATIAV5基础0.5dayCopyrightDASSAULTSYSTEMES20023TableofContents目录1.IntroductiontoTubingDesignFundamentalsp.4Accessingtheworkbench模块介绍p.5UserInterface:TubingDesignIcons界面介绍p.62.CreatingLineID’s生成管线ID码p.93.RoutingaRun生成管线p.104.ModifyingaRun修改管线p.145.ImplementingTurnRules管路拐弯p.196.PlacingPartsonaRun管路定义功能p.227.GeneratingReports生成管路拐点坐标p.24CopyrightDASSAULTSYSTEMES20024Accessingtheworkbench进入模块ToaccesstheTubingDesignWorkbench…进入模块1.SelecttheStartMenu3.ClickonTubingDesign2.SelectEquipment&SystemsTubingDesignWorkbenchicon选择Start菜单选择设备和系统方案选择管路设计模块图标CopyrightDASSAULTSYSTEMES20025UserInterface:TubingDesignIcons(1/2)LineID:Select/Query,Create,Transfer,Rename,Delete,Merge,Import管路ID码编辑RouteaRun生成管路UpdatePart,FlipPartPosition,EditPartParameters刷新功能、参数PlaceTubingPart插入接头OffsetRoute,RoutefromSpline,Routethruapathway偏距管路等Connect/DisconnectPart/Run,Createanoffsetsegmentcon.连接Managegraficrepresentation几何显示Manageflows流量管理Createweldassembly管路焊接BuildTubingPart新建功能AlignSide,AlignCenter,RotatetoAlign,Distribute,AligntwoPlanes移动RenameID重新命名IDSnap,Snapthreepoints,Snapcenterofpolygon,snapSurface捕捉CopyrightDASSAULTSYSTEMES20026UserInterface:TubingDesignIcons(2/2)AxisGridStepSnap:TocurrentAxis当前坐标轴TolastPosition最后位置ToXYPlaneXY面ToallPlane所有平面ToElevationPlane抬高平面ToDraftingElements平面元素SnapToolOptions捕捉工具OffsetPlanesAdvancedOffsetPlanesToggleDimmingModeToggleAnalysisMode坐标轴网格距离生成平面显示模式CopyrightDASSAULTSYSTEMES20027RoutingaRun(1/4)生成管路PlaceOffsetPlane生成起始面SelecttheOffsetPlaneIcon选择图标OffsetPlanescanbeplacedatanytimeduringthecreationofRuns.此图标可以在生成管路时随时使用OffsetPlane图标CopyrightDASSAULTSYSTEMES20028RoutingaRun(2/4)生成管路SelecttheLineID选择管线ID码DependingonwhatLineIDischoosen,CATIAletsyouselectapredefinedTurnRadius.InthiscaseisjustoneTurnRadiusforthe3/8indiameterdefined,whichmeansthatyouwon´tgetaselectionpanel.根据选择的管线ID码，可以选择拐弯半径CopyrightDASSAULTSYSTEMES20029RoutingaRun(3/4)生成管路Clickwhenthegreenarrowpopsup.Stopwhenthevaluereaches2in.Point-To-Point-ModeCreatetheRun生成管路MakesurethattheGridStepissetto0.5in.确认步长为0.5inRouteaRun图标当绿箭头出现时点击鼠标当到达一定长度时停CopyrightDASSAULTSYSTEMES200210RoutingaRun(4/4)生成管路CreateaRunfromPoint-To-Point点到点方式生成管路Clickthethenexttwoconnectors.TheRunwillbecreated.点击两个支座，生成管路CopyrightDASSAULTSYSTEMES200211ModifyingaRun(1/5)修改管路ModifytheRun修改管路AnewRunshallbecreatedandafterwardsbeingmodified.先生成后修改ThereforeyoucreateanewRunusingtheorthogonalmodeasshowninthepicture.使用对角线方式生成管路AfterthatyouwillmodifytheRun.然后修改RouteaRunOrthogonalCreatetheRun生成管路对角线方式产生管路CopyrightDASSAULTSYSTEMES200212ModifyingaRun(2/5)修改管路ManipulationHandlesModifytheRun修改管路Runscanbeeditedbyrightclickingandchoosin...
