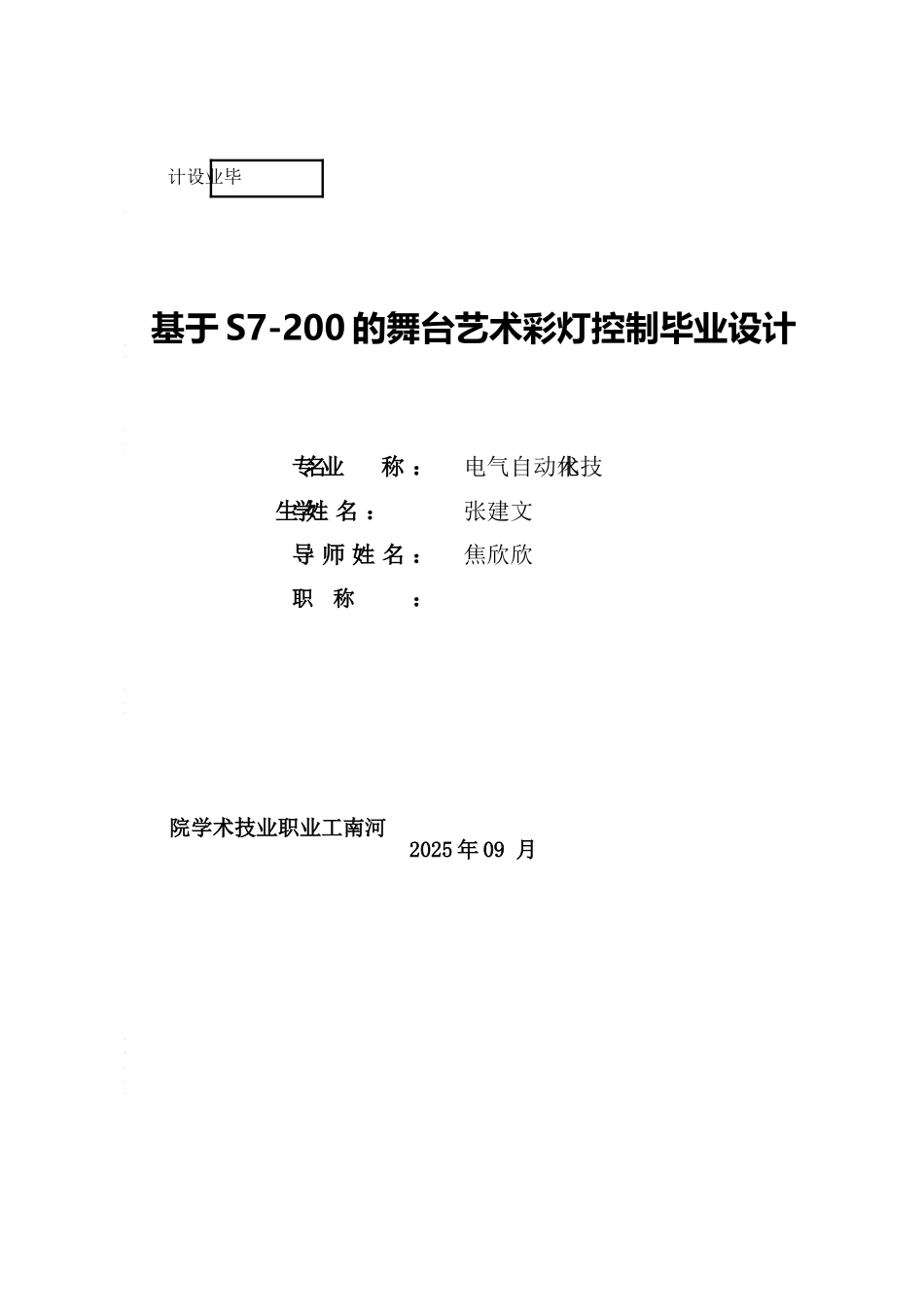

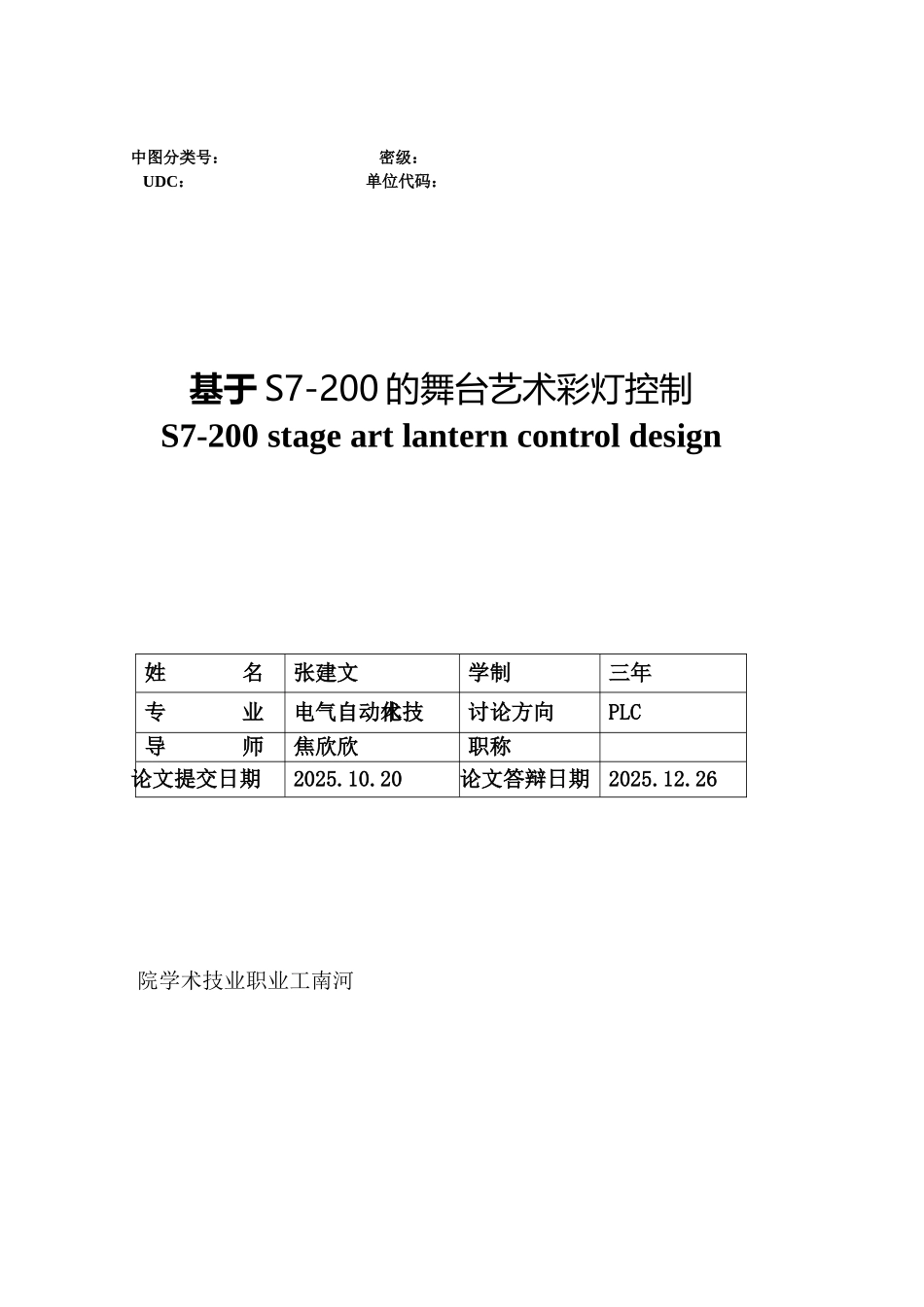

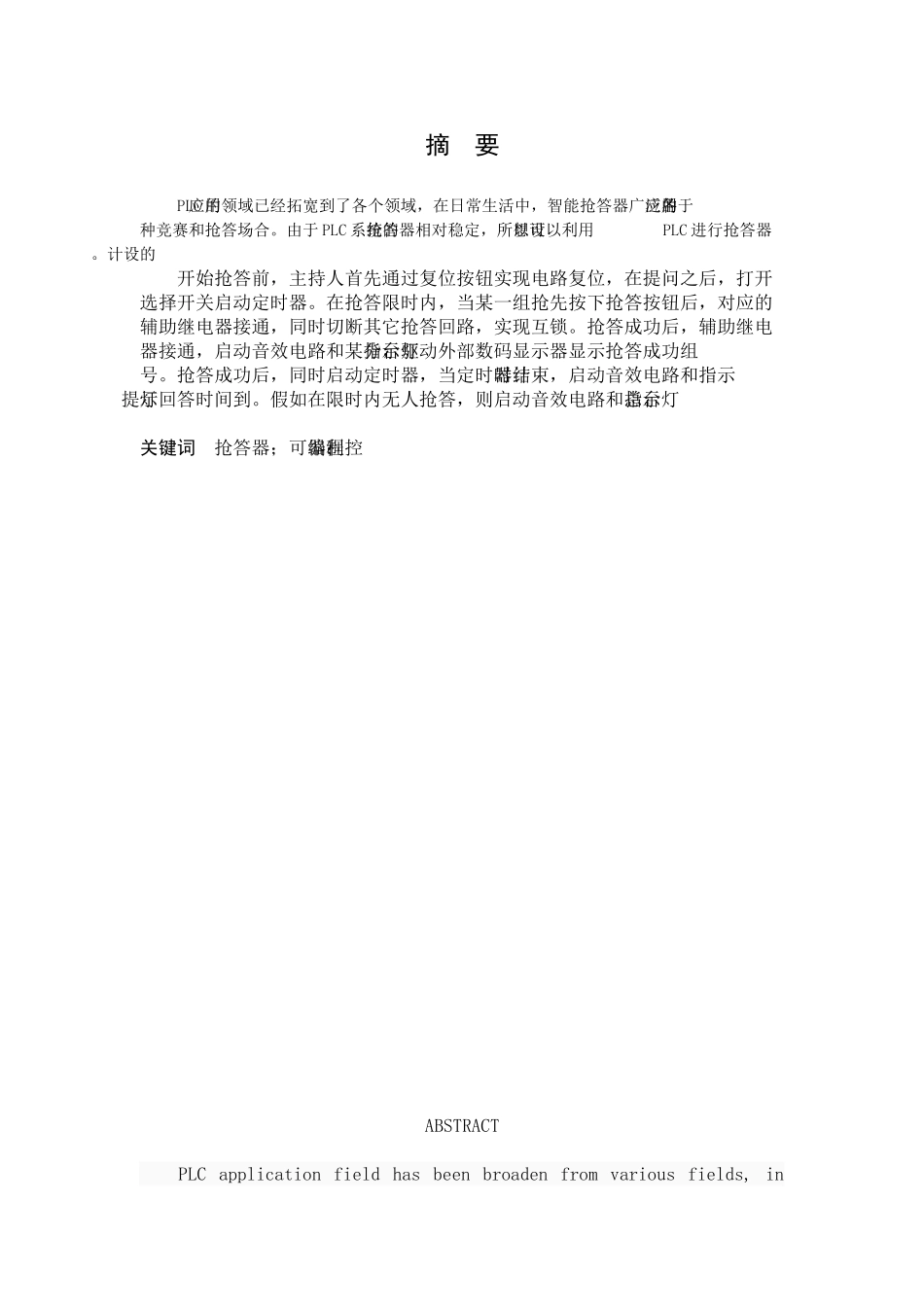

基于S7-200的舞台艺术彩灯控制毕业设计 杜胜杰 河南工业职业技术学院 基于 S7-200 的舞台艺术彩灯控制毕业设计专 业名称 :电气自动化技术学生 姓 名 :张建文导 师 姓 名 :焦欣欣职 称:河南工业职业技术学院2025 年 09 月毕业设计 中图分类号: 密级: UDC: 单位代码:基于 S7-200 的舞台艺术彩灯控制S7-200 stage art lantern control design 河南工业职业技术学院姓 名张建文学 制三年专 业电气自动化技术讨论方向PLC导 师焦欣欣职 称论文提交日期2025.10.20论文答辩日期2025.12.26摘 要PLC 的应用领域已经拓宽到了各个领域,在日常生活中,智能抢答器广泛的应用于各种竞赛和抢答场合。由于 PLC 系统的抢答器相对稳定,所以设想可以利用PLC 进行抢答器的设计。 开始抢答前,主持人首先通过复位按钮实现电路复位,在提问之后,打开选择开关启动定时器。在抢答限时内,当某一组抢先按下抢答按钮后,对应的辅助继电器接通,同时切断其它抢答回路,实现互锁。抢答成功后,辅助继电器接通,启动音效电路和某分台指示灯,驱动外部数码显示器显示抢答成功组号。抢答成功后,同时启动定时器,当定时器计时结束,启动音效电路和指示灯提示回答时间到。假如在限时内无人抢答,则启动音效电路和总台指示灯。关键词 抢答器;可编程控制器; ABSTRACT PLC application field has been broaden from various fields, in daily life, intelligent vies to answer first device widely used in various competitions and vies to answer first occasion. Due to the PLC system responder relative stability, so imagine can use PLC for the design of the responder. Before start vies to answer first, the first through the reset button realize circuit reset, the questions later, open the selector switch start timer. In vies to answer first time, when a group of preemptive press vies to answer first button, the corresponding auxiliary relay on, at the same time cut off other vies to answer first circuit, realize interlock. Vies to answer first after the success of the auxiliary relay on, start sound circuit and some points table...
