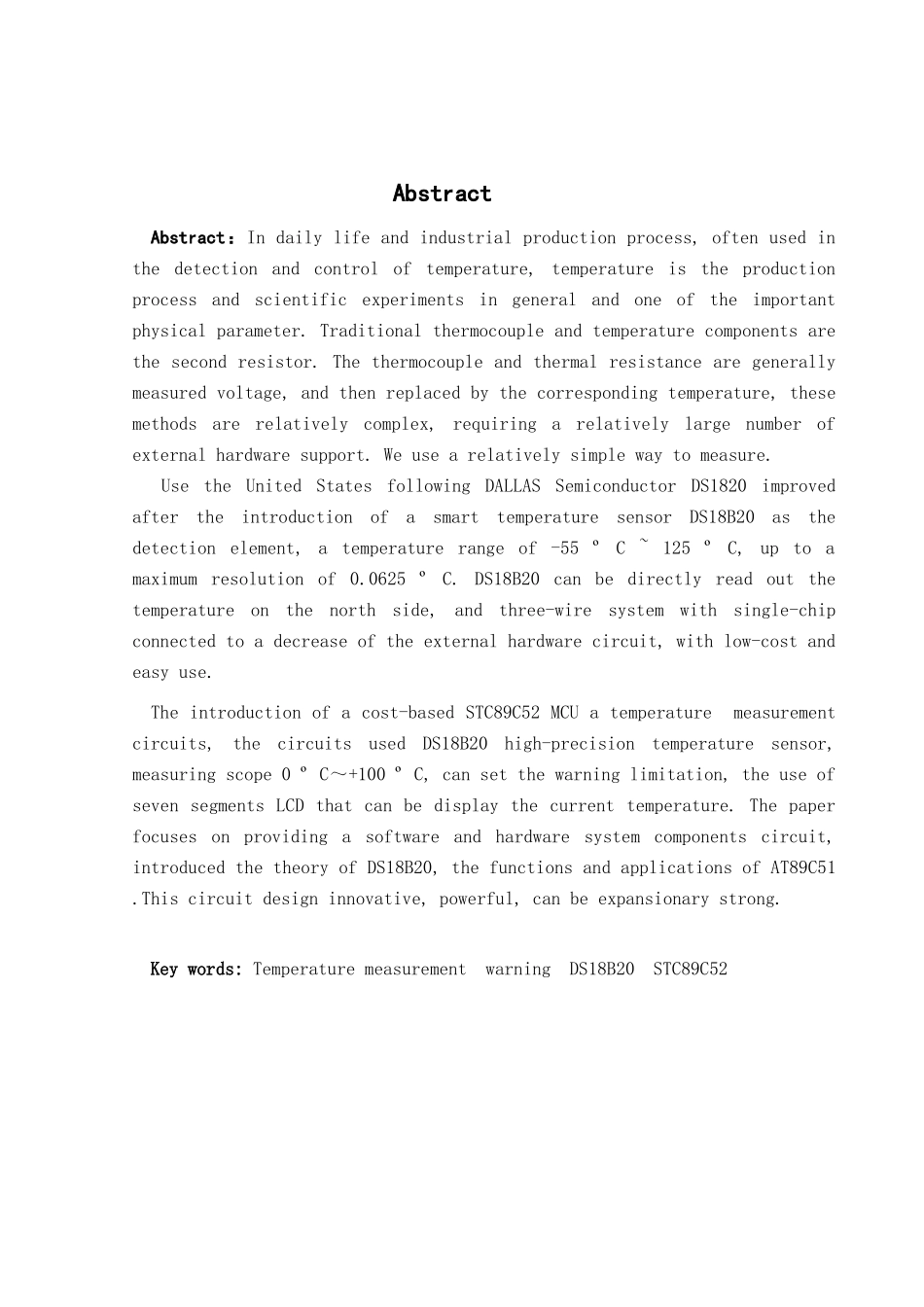

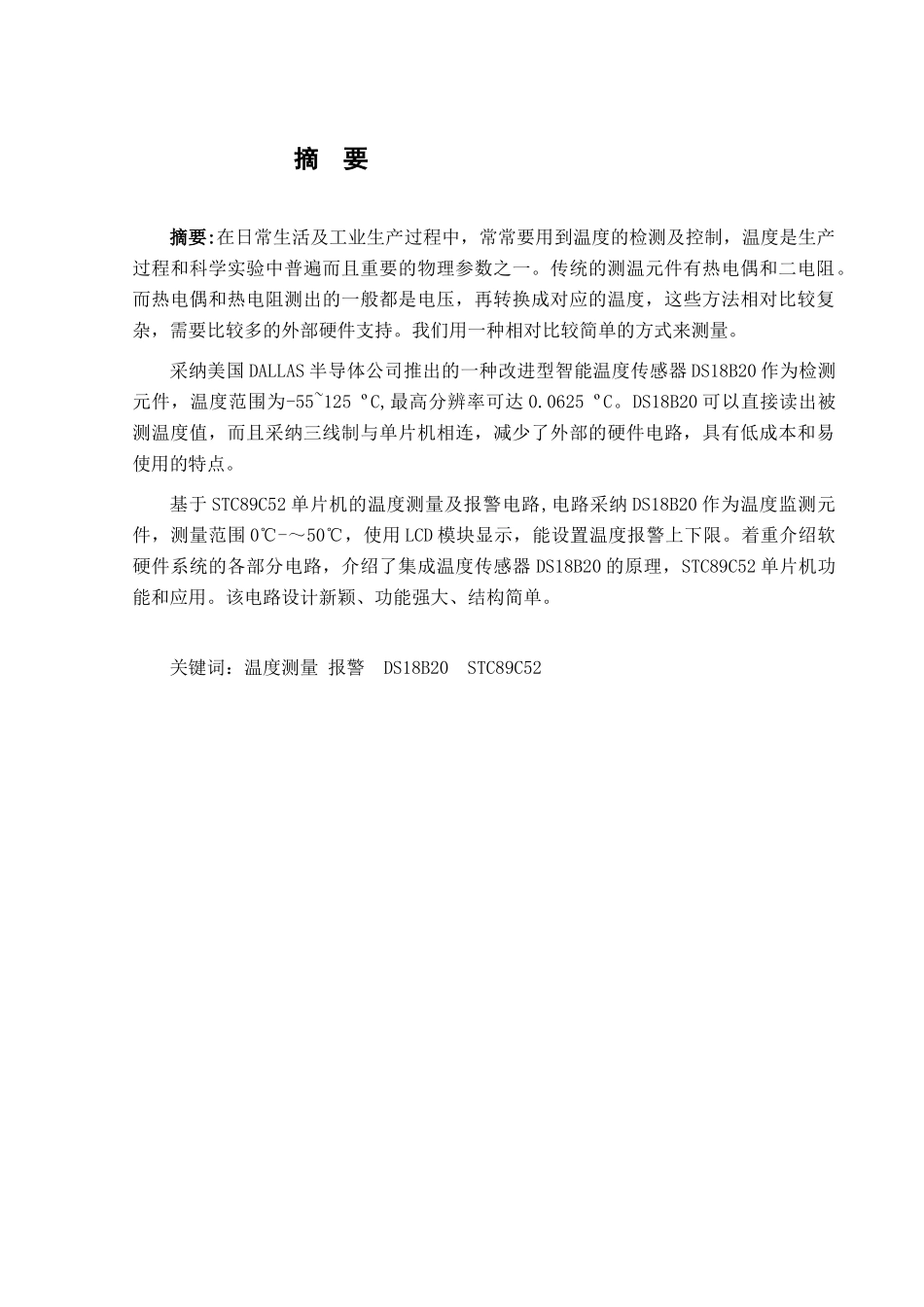

摘 要摘要:在日常生活及工业生产过程中，常常要用到温度的检测及控制，温度是生产过程和科学实验中普遍而且重要的物理参数之一。传统的测温元件有热电偶和二电阻。而热电偶和热电阻测出的一般都是电压，再转换成对应的温度，这些方法相对比较复杂，需要比较多的外部硬件支持。我们用一种相对比较简单的方式来测量。采纳美国 DALLAS 半导体公司推出的一种改进型智能温度传感器 DS18B20 作为检测元件，温度范围为-55~125 ºC,最高分辨率可达 0.0625 ºC。DS18B20 可以直接读出被测温度值，而且采纳三线制与单片机相连，减少了外部的硬件电路，具有低成本和易使用的特点。基于 STC89C52 单片机的温度测量及报警电路,电路采纳 DS18B20 作为温度监测元件，测量范围 0℃-～50℃，使用 LCD 模块显示，能设置温度报警上下限。着重介绍软硬件系统的各部分电路，介绍了集成温度传感器 DS18B20 的原理，STC89C52 单片机功能和应用。该电路设计新颖、功能强大、结构简单。关键词：温度测量 报警 DS18B20 STC89C52 AbstractAbstract：In daily life and industrial production process, often used in the detection and control of temperature, temperature is the production process and scientific experiments in general and one of the important physical parameter. Traditional thermocouple and temperature components are the second resistor. The thermocouple and thermal resistance are generally measured voltage, and then replaced by the corresponding temperature, these methods are relatively complex, requiring a relatively large number of external hardware support. We use a relatively simple way to measure. Use the United States following DALLAS Semiconductor DS1820 improved after the introduction of a smart temperature sensor DS18B20 as the detection element, a temperature range of -55 º C ~ 125 º C, up to a maximum resolution of 0.0625 º C. DS18B20 can be directly read out the temperature on the north side, and three-wire system with single-chip connected to a decrease of the external hardware...
