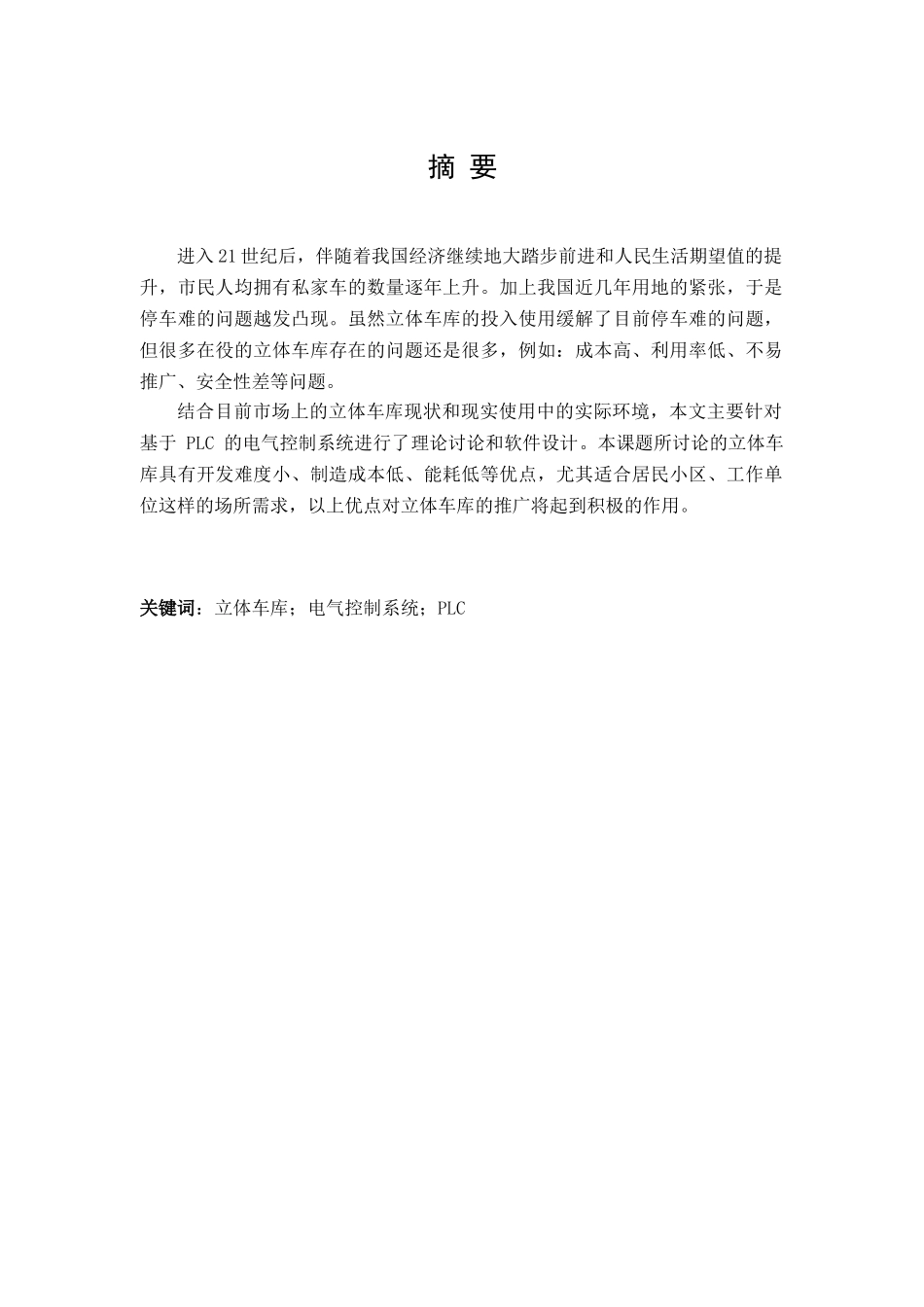

河北联合大学轻工学院QINGGONG COLLEGE, HEBEI UNITED UNIVERSITY毕业设计说明书设计题目：巷道式立体车库电气系统软件设计学生姓名： 学 号：20251专业班级：10 电气 8 班 学 部：信息科学与技术部指导老师：副教授 2025 年 6 月 3 日摘 要进入 21 世纪后，伴随着我国经济继续地大踏步前进和人民生活期望值的提升，市民人均拥有私家车的数量逐年上升。加上我国近几年用地的紧张，于是停车难的问题越发凸现。虽然立体车库的投入使用缓解了目前停车难的问题，但很多在役的立体车库存在的问题还是很多，例如：成本高、利用率低、不易推广、安全性差等问题。结合目前市场上的立体车库现状和现实使用中的实际环境，本文主要针对基于 PLC 的电气控制系统进行了理论讨论和软件设计。本课题所讨论的立体车库具有开发难度小、制造成本低、能耗低等优点，尤其适合居民小区、工作单位这样的场所需求，以上优点对立体车库的推广将起到积极的作用。关键词：立体车库；电气控制系统；PLCAbstractAfter entering the 21st century, the amount of the civil private car per capita is increasing year by year along with the rapid development of our nation’s economy and the improvement of the civil life expectation value. Adding the stress of our nation’s land in recent years, the problem of the parking difficulty is all the more protruding. Although the employment of the stereo garage relieve the recent problem of the parking difficulty, the in-service stereo garages have many problems, for example, high cost, low utilization ratio, not easy to popularize, low safety and so on. Combined with the stereo garage’s status in the market presently and practical environment in the realistic use, the thesis mainly does the design and the theory research that are aimed at electrical control system based on the PLC. The stereo garage researched by this issue has the advantages that are easy to develop, low manufacturing cost, low energy consumption and so on, which especially fits the d...
