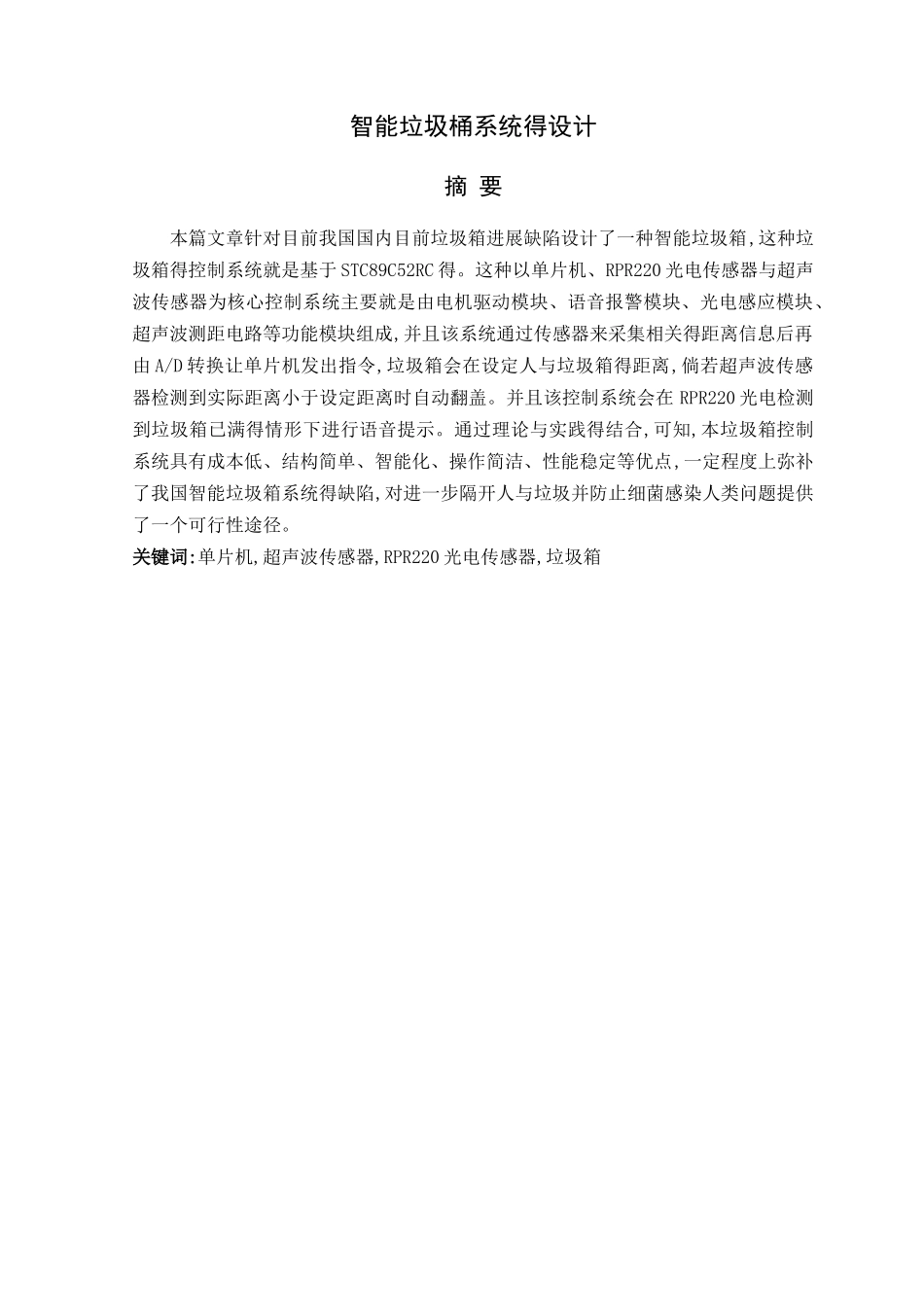

智能垃圾桶系统得设计摘 要本篇文章针对目前我国国内目前垃圾箱进展缺陷设计了一种智能垃圾箱,这种垃圾箱得控制系统就是基于 STC89C52RC 得。这种以单片机、RPR220 光电传感器与超声波传感器为核心控制系统主要就是由电机驱动模块、语音报警模块、光电感应模块、超声波测距电路等功能模块组成,并且该系统通过传感器来采集相关得距离信息后再由 A/D 转换让单片机发出指令,垃圾箱会在设定人与垃圾箱得距离,倘若超声波传感器检测到实际距离小于设定距离时自动翻盖。并且该控制系统会在 RPR220 光电检测到垃圾箱已满得情形下进行语音提示。通过理论与实践得结合,可知,本垃圾箱控制系统具有成本低、结构简单、智能化、操作简洁、性能稳定等优点,一定程度上弥补了我国智能垃圾箱系统得缺陷,对进一步隔开人与垃圾并防止细菌感染人类问题提供了一个可行性途径。关键词:单片机,超声波传感器,RPR220 光电传感器,垃圾箱A Project of Intelligent Bin SystemABSTRACT This article in view of the present defects at present designs a kind of intelligent bin based on STC89C52RC 、 The system is with the single chip processor,RPR220 photoelectric sensor and ultrasonic sensors as the core control system 、 It consists of power circuit, sensor circuit, clock circuit and voice alarm module, etc 、 Using the sensor to collect distance information, then the information is controlled by A/D conversion to issue mands、, causes the SCM issues an instruction 、 If the ultrasonic sensor to detect the actual distance is less than the setting distance, dustbin lid would open automatically、The system would issue a voice message if RPR220 photoelectric detects that dustbin is chock-full 、 Through the bination of theory and practice,we know that this system has advantages of low cost, simple structure ,intelligent, simple operation and stable performance 、 In a way, it makes up defects of the intelligent bin control system in China、 It is a feasible method to pletely isolate people and r...
