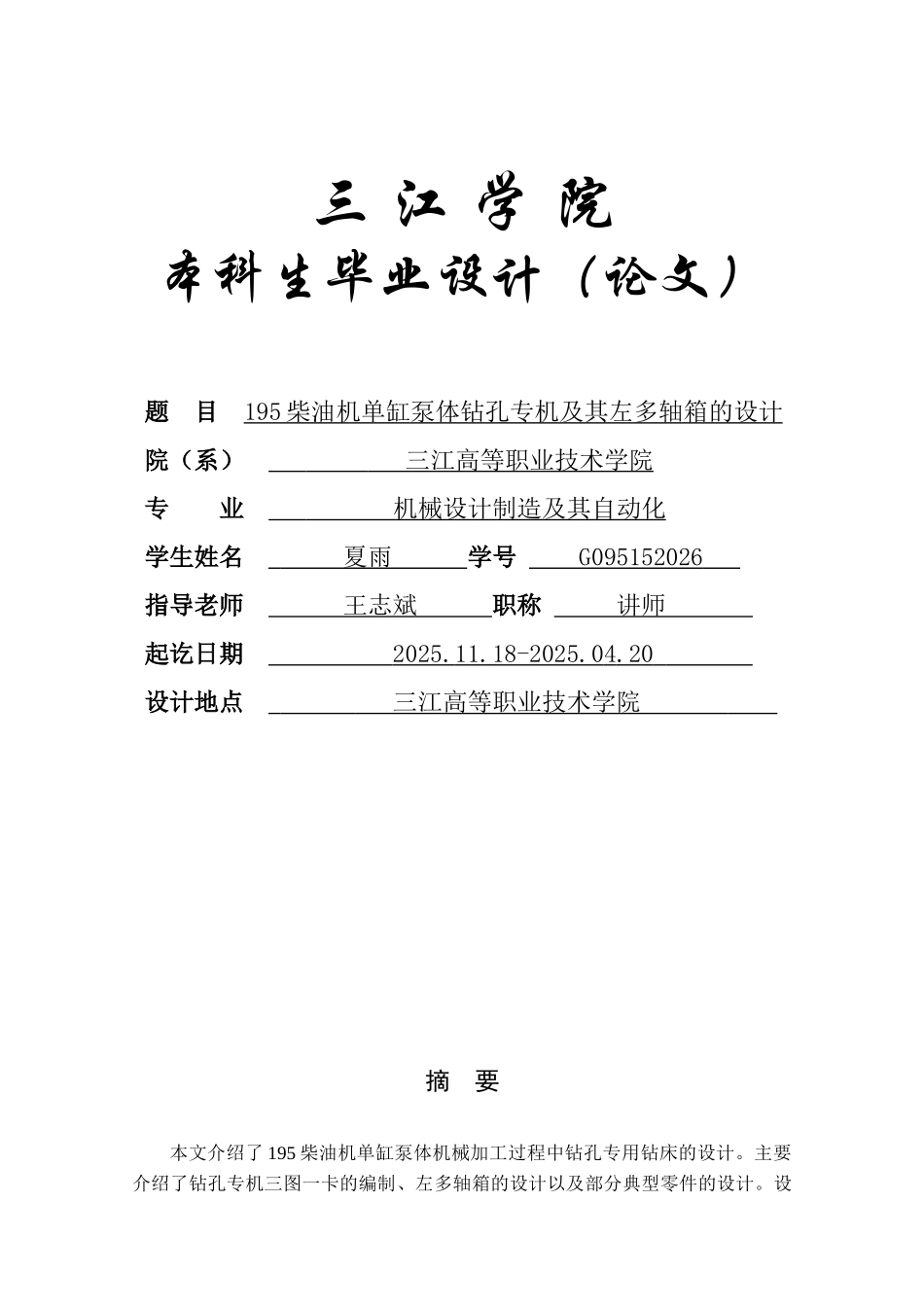

三 江 学 院本科生毕业设计（论文） 题 目 195 柴油机单缸 泵体钻孔专机及其左多轴箱的设计 院（系） 三江高等职业技术学院 专 业 机械设计制造及其自动化 学生姓名 夏雨 学号 G095152026 指导老师 王志斌 职称 讲师 起讫日期 2025. 11 .18-2025.0 4 .2 0 设计地点 三江高等职业技术学院 摘 要本文介绍了 195 柴油机单缸泵体机械加工过程中钻孔专用钻床的设计。主要介绍了钻孔专机三图一卡的编制、左多轴箱的设计以及部分典型零件的设计。设计中采纳了组合机床的设计原则，以通用部件为基础，并根据主轴的分布要求进行了多轴箱的总体设计，同时配以按工件特定外形和加工工艺设计的专用部件和夹具，组成相应的专用机床。这种专机的设计在保证加工精度要求的前提下降低了成本，减轻了劳动强度，提高了机床生产率，配置也更加的灵活。关键词：195 柴油机单缸泵体；专用钻床；多轴箱；总体设计；ABSTRACTThis article introduced a machine tool of double surface coarse drilling in machining diesel engine’s oil pump. The article introduced the weaving of the drilling special mechanical machining card, the design of the axis boxes, the design of the jig and the design of the principal axis; Machine tool design using the design principles, based on the generic parts, and the distribution according to the requirements of the spindle axle of the overall design of many, while accompanied by a specific shape of the workpiece and processing parts and fixtures specifically designed to form the corresponding Dedicated machine.The design of the special machine not only can ensure the precision of the machining but also can reduce the cost, ease the worker’s intenstity, advance the productivity, the collocation is flexible. Key words：Oil Pump；Special drill; multi axle; overall design;目 录前言 ………………………………………………………………………………1第一章 加工方案拟定 ………………………………………………………21.1 零件分析 ………………………………………………………...
