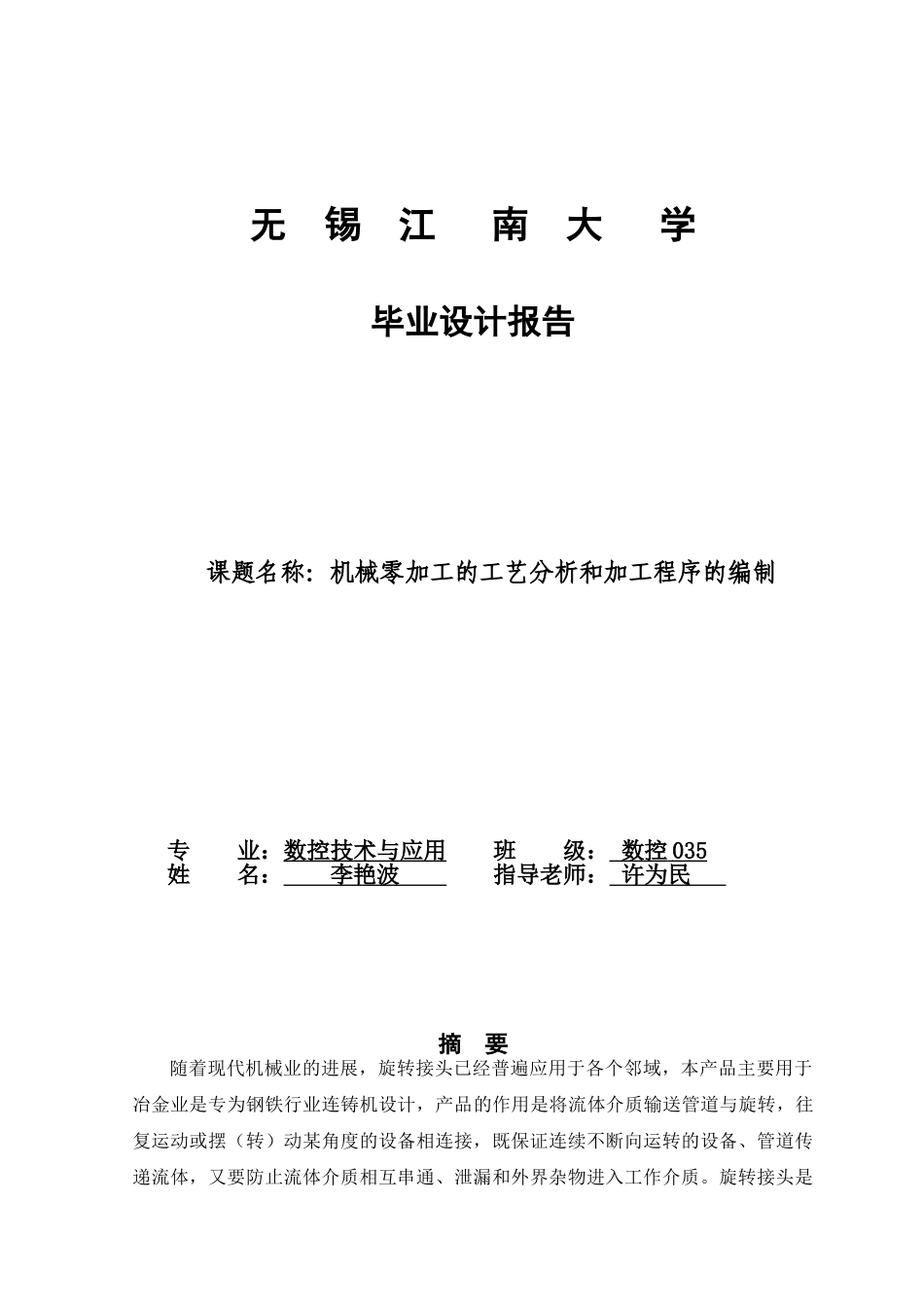

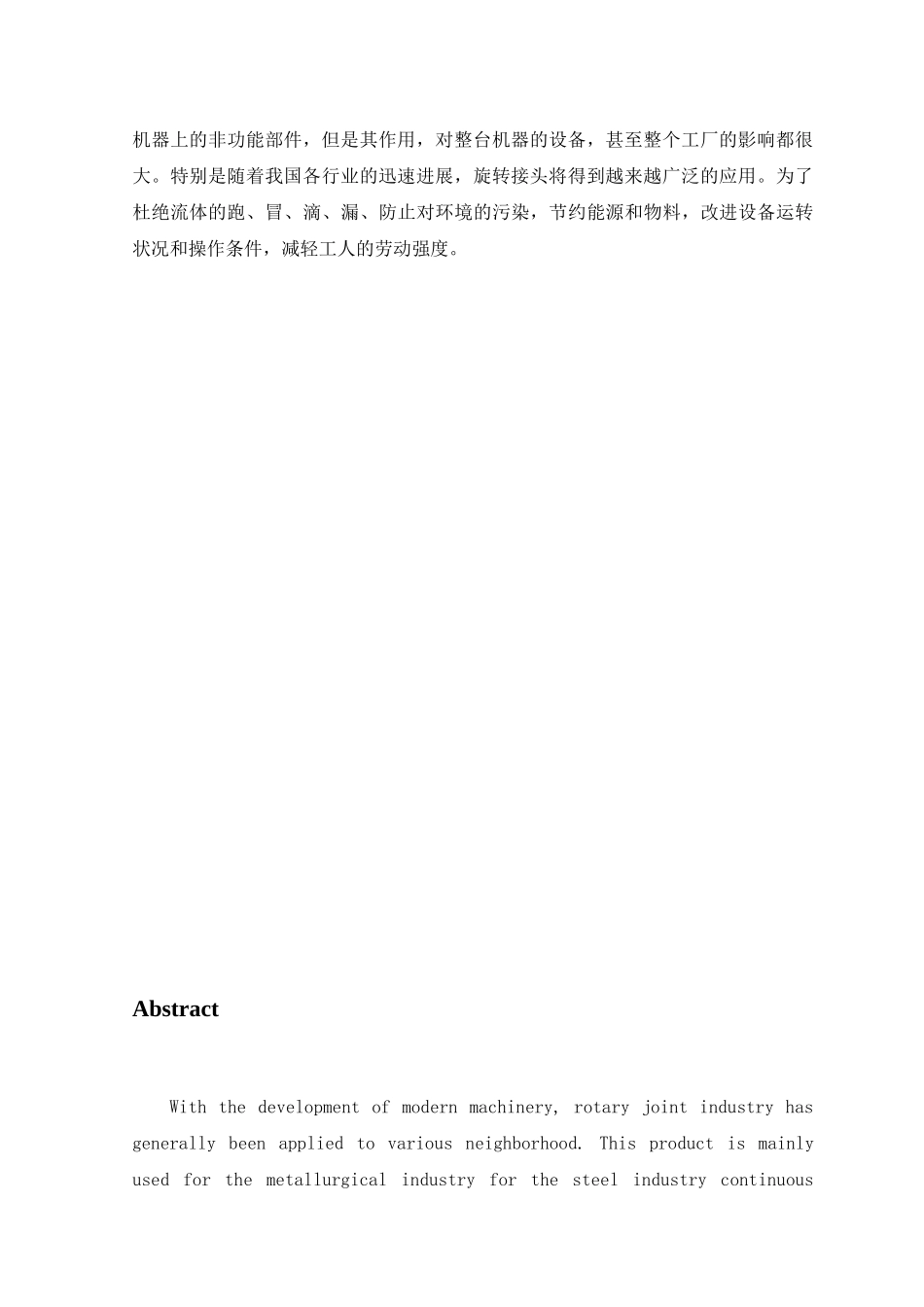

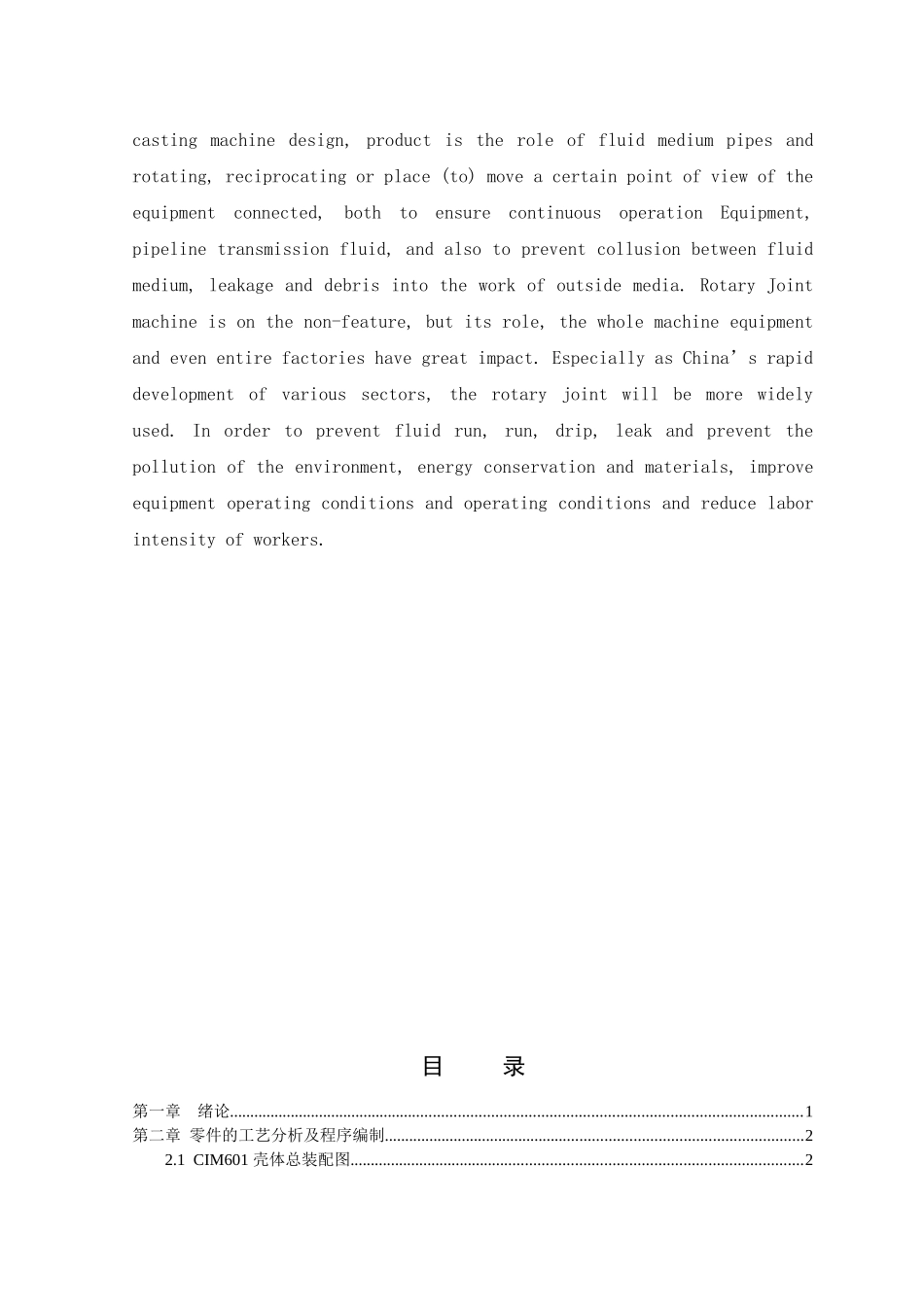

无 锡 江 南 大 学毕业设计报告课题名称：机械零加工的工艺分析和加工程序的编制专 业：数控技术与应用 班 级： 数控 035 姓 名： 李艳波 指导老师： 许为民 摘 要随着现代机械业的进展，旋转接头已经普遍应用于各个邻域，本产品主要用于冶金业是专为钢铁行业连铸机设计，产品的作用是将流体介质输送管道与旋转，往复运动或摆（转）动某角度的设备相连接，既保证连续不断向运转的设备、管道传递流体，又要防止流体介质相互串通、泄漏和外界杂物进入工作介质。旋转接头是机器上的非功能部件，但是其作用，对整台机器的设备，甚至整个工厂的影响都很大。特别是随着我国各行业的迅速进展，旋转接头将得到越来越广泛的应用。为了杜绝流体的跑、冒、滴、漏、防止对环境的污染，节约能源和物料，改进设备运转状况和操作条件，减轻工人的劳动强度。AbstractWith the development of modern machinery, rotary joint industry has generally been applied to various neighborhood. This product is mainly used for the metallurgical industry for the steel industry continuous casting machine design, product is the role of fluid medium pipes and rotating, reciprocating or place (to) move a certain point of view of the equipment connected, both to ensure continuous operation Equipment, pipeline transmission fluid, and also to prevent collusion between fluid medium, leakage and debris into the work of outside media. Rotary Joint machine is on the non-feature, but its role, the whole machine equipment and even entire factories have great impact. Especially as China’s rapid development of various sectors, the rotary joint will be more widely used. In order to prevent fluid run, run, drip, leak and prevent the pollution of the environment, energy conservation and materials, improve equipment operating conditions and operating conditions and reduce labor intensity of workers.目 录第一章 绪论...................................................................................................
