自动外圆磨床自动上料系统设计大学毕设论文

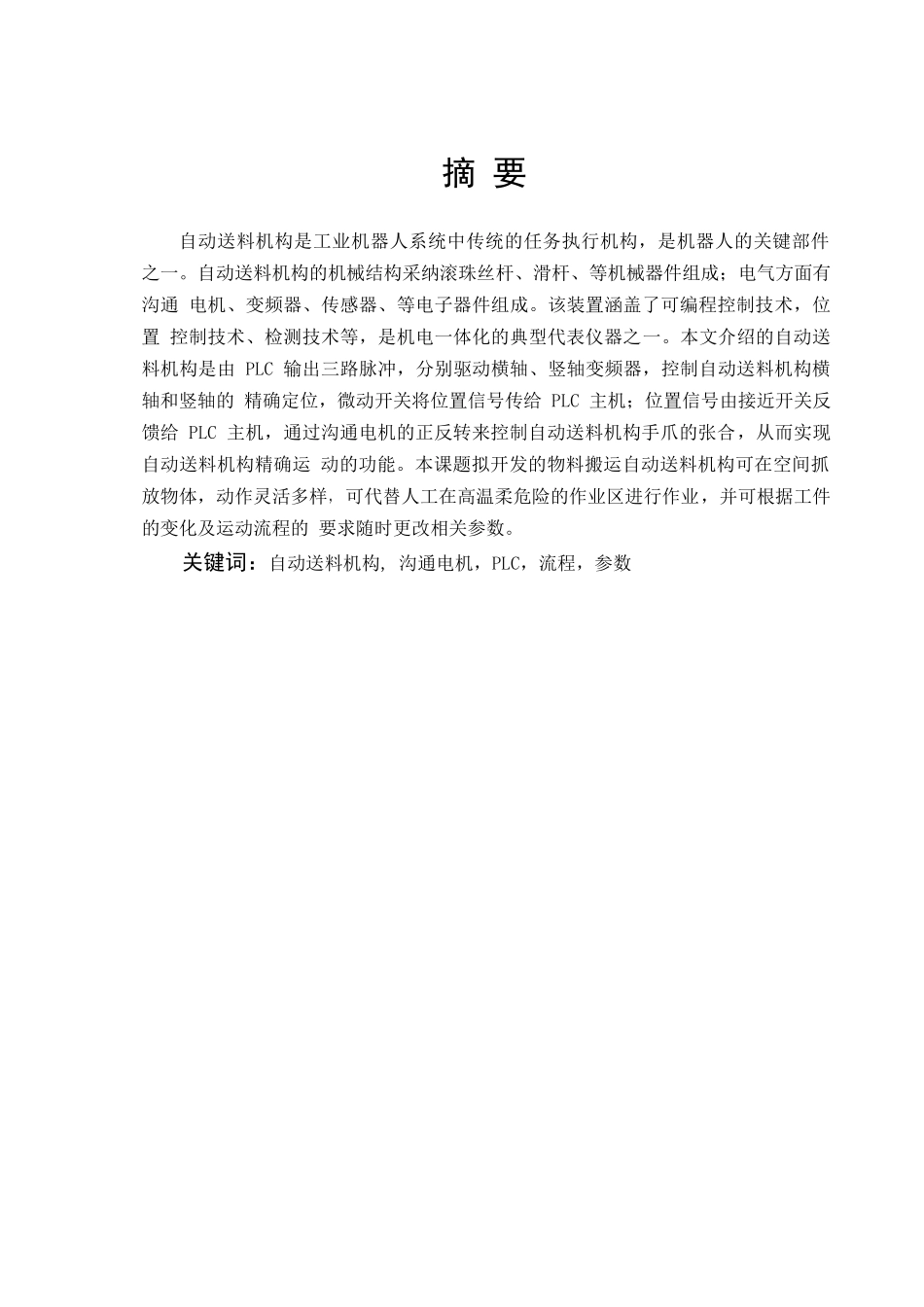

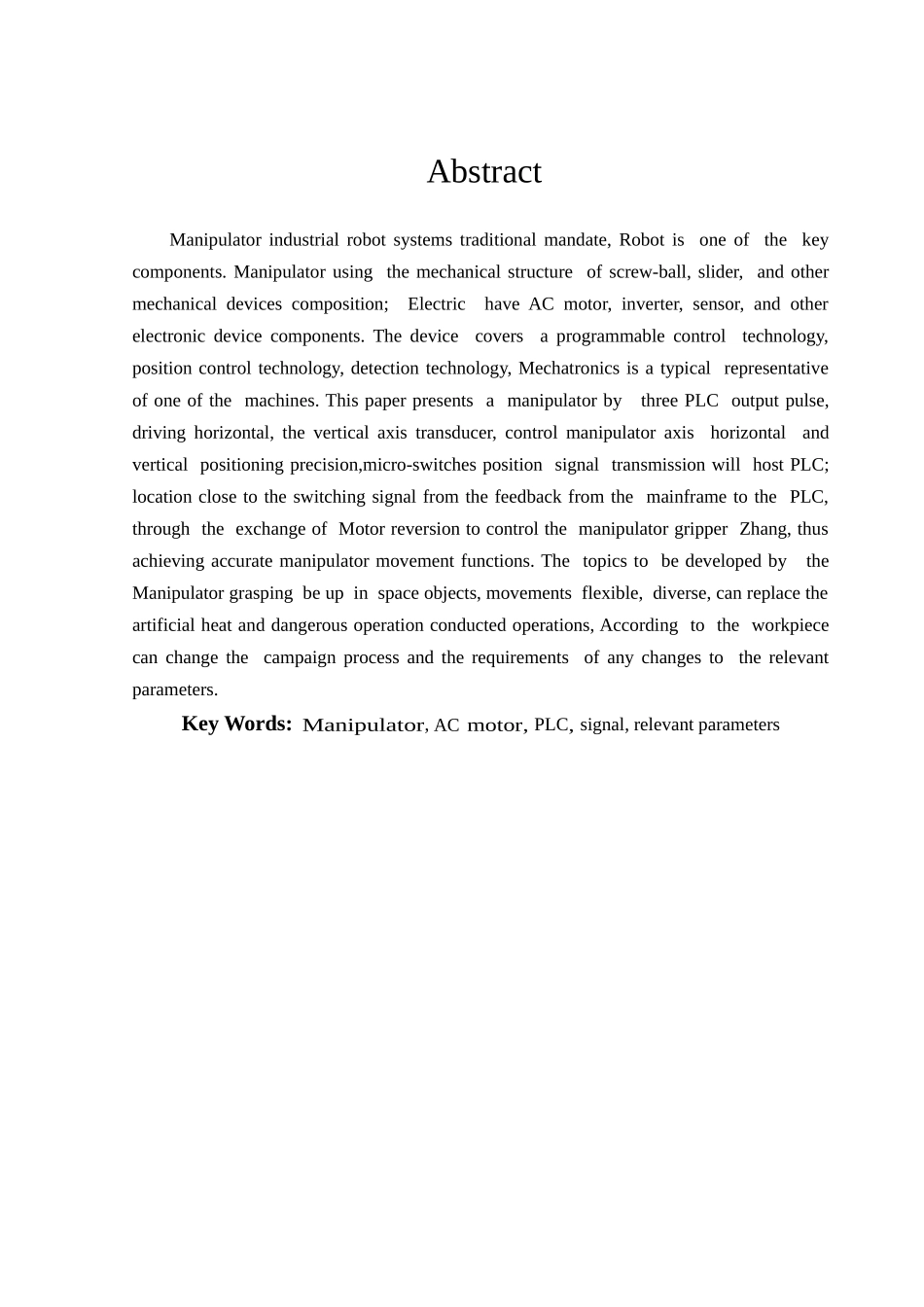

毕业设计(论文)自动外圆磨床自动上料系统设计 摘 要自动送料机构是工业机器人系统中传统的任务执行机构，是机器人的关键部件之一。自动送料机构的机械结构采纳滚珠丝杆、滑杆、等机械器件组成；电气方面有沟通 电机、变频器、传感器、等电子器件组成。该装置涵盖了可编程控制技术，位置 控制技术、检测技术等，是机电一体化的典型代表仪器之一。本文介绍的自动送料机构是由 PLC 输出三路脉冲，分别驱动横轴、竖轴变频器，控制自动送料机构横轴和竖轴的 精确定位，微动开关将位置信号传给 PLC 主机；位置信号由接近开关反馈给 PLC 主机，通过沟通电机的正反转来控制自动送料机构手爪的张合，从而实现自动送料机构精确运 动的功能。本课题拟开发的物料搬运自动送料机构可在空间抓放物体，动作灵活多样， 可代替人工在高温柔危险的作业区进行作业，并可根据工件的变化及运动流程的 要求随时更改相关参数。关键词：自动送料机构, 沟通电机，PLC，流程，参数AbstractManipulator industrial robot systems traditional mandate, Robot is one of the key components. Manipulator using the mechanical structure of screw-ball, slider, and other mechanical devices composition; Electric have AC motor, inverter, sensor, and other electronic device components. The device covers a programmable control technology, position control technology, detection technology, Mechatronics is a typical representative of one of the machines. This paper presents a manipulator by three PLC output pulse, driving horizontal, the vertical axis transducer, control manipulator axis horizontal and vertical positioning precision,micro-switches position signal transmission will host PLC; location close to the switching signal from the feedback from the mainframe to the PLC, through the exchange of Motor reversion to control the manipulator gripper Zhang, thus achieving accurate manipulator movement functions. The topics to be developed by the Manipulator grasping be up in space objects, movements flexible, diverse, can replace t...
