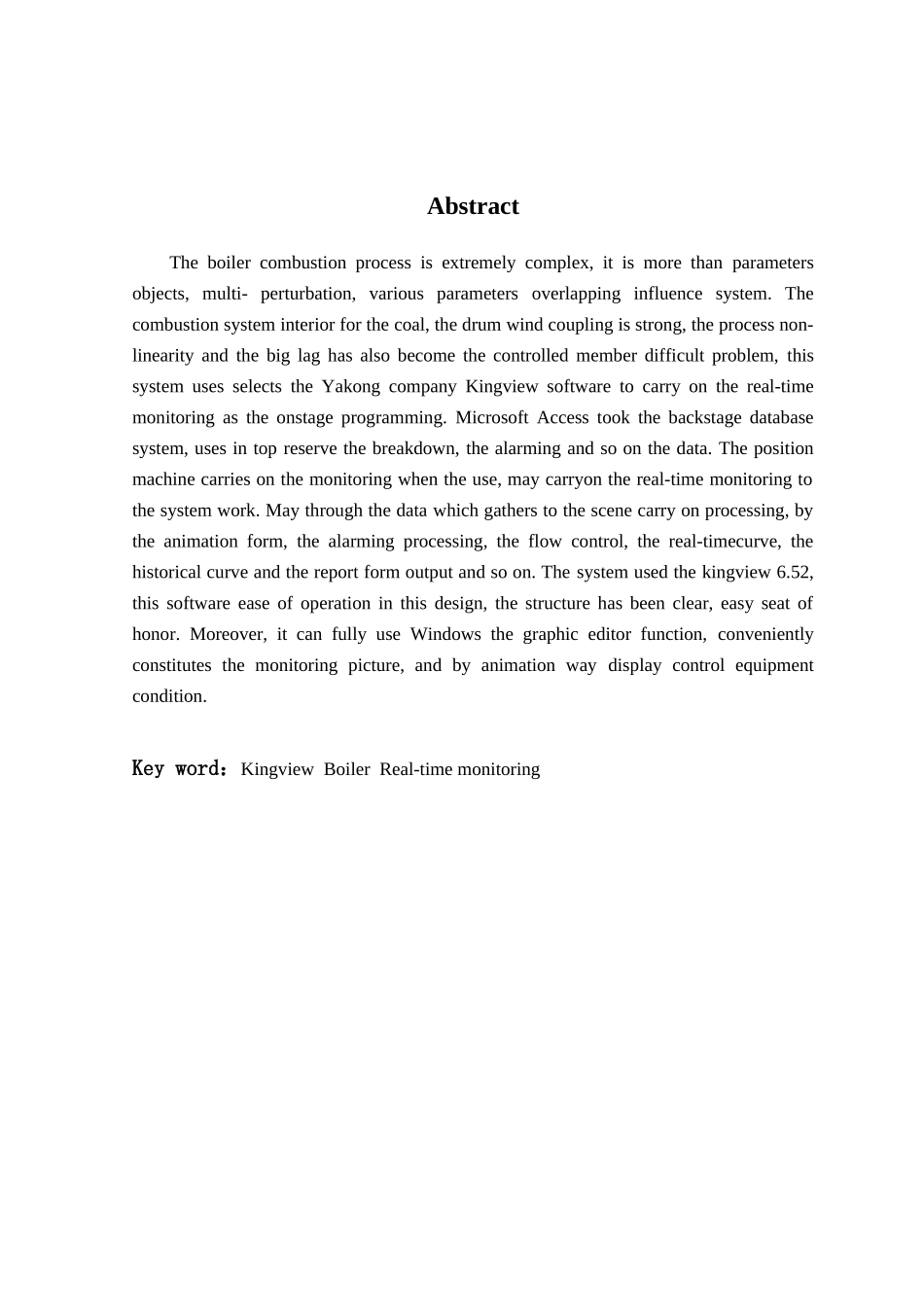

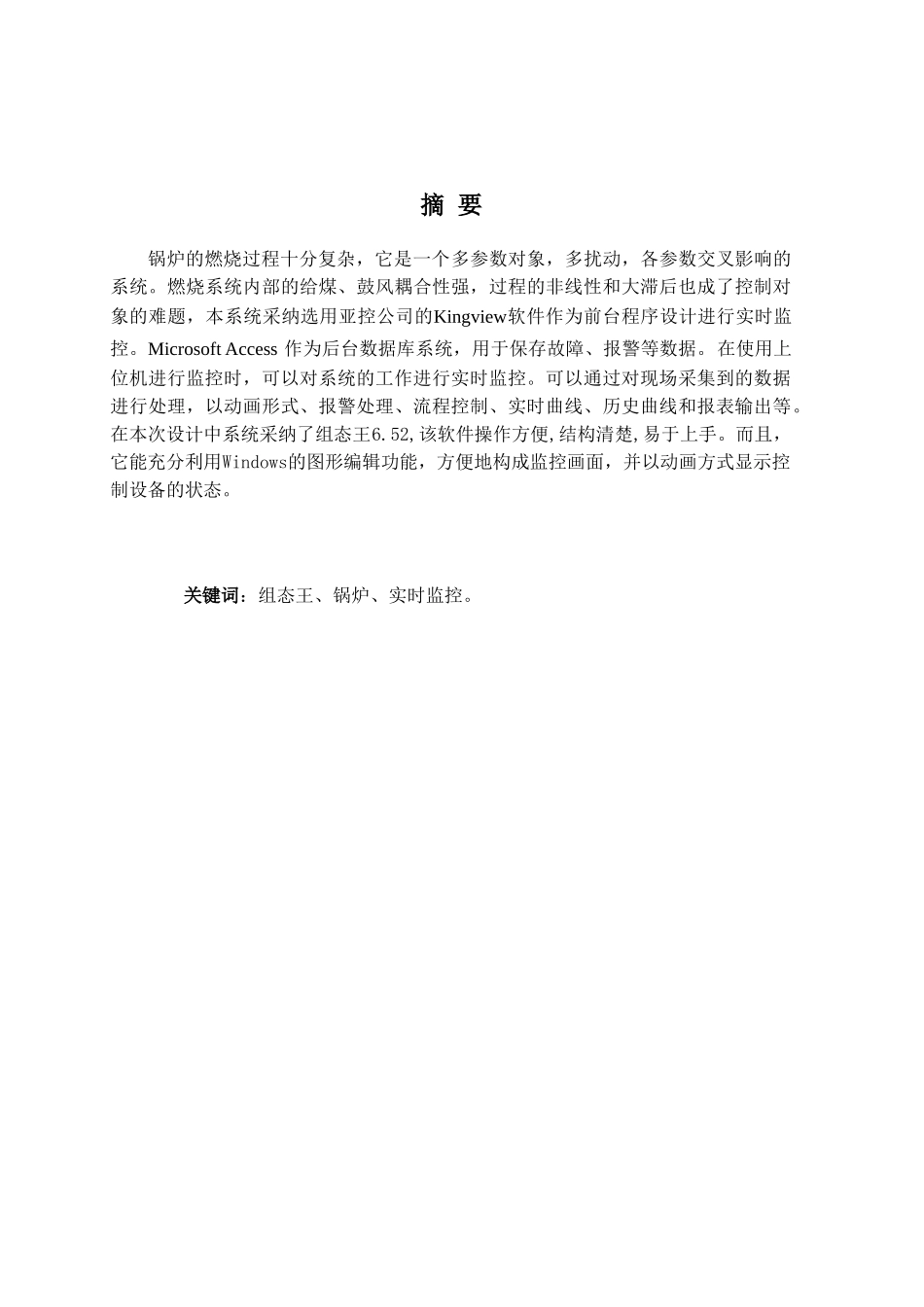

锅炉自控系统工控软件监控设计摘 要 锅炉的燃烧过程十分复杂，它是一个多参数对象，多扰动，各参数交叉影响的系统。燃烧系统内部的给煤、鼓风耦合性强，过程的非线性和大滞后也成了控制对象的难题，本系统采纳选用亚控公司的Kingview软件作为前台程序设计进行实时监控。Microsoft Access 作为后台数据库系统，用于保存故障、报警等数据。在使用上位机进行监控时，可以对系统的工作进行实时监控。可以通过对现场采集到的数据进行处理，以动画形式、报警处理、流程控制、实时曲线、历史曲线和报表输出等。在本次设计中系统采纳了组态王6.52,该软件操作方便,结构清楚,易于上手。而且，它能充分利用Windows的图形编辑功能，方便地构成监控画面，并以动画方式显示控制设备的状态。 关键词：组态王、锅炉、实时监控。AbstractThe boiler combustion process is extremely complex, it is more than parameters objects, multi- perturbation, various parameters overlapping influence system. The combustion system interior for the coal, the drum wind coupling is strong, the process non-linearity and the big lag has also become the controlled member difficult problem, this system uses selects the Yakong company Kingview software to carry on the real-time monitoring as the onstage programming. Microsoft Access took the backstage database system, uses in top reserve the breakdown, the alarming and so on the data. The position machine carries on the monitoring when the use, may carryon the real-time monitoring to the system work. May through the data which gathers to the scene carry on processing, by the animation form, the alarming processing, the flow control, the real-timecurve, the historical curve and the report form output and so on. The system used the kingview 6.52, this software ease of operation in this design, the structure has been clear, easy seat of honor. Moreover, it can fully use Windows the graphic editor function, conveniently constitutes the monit...
