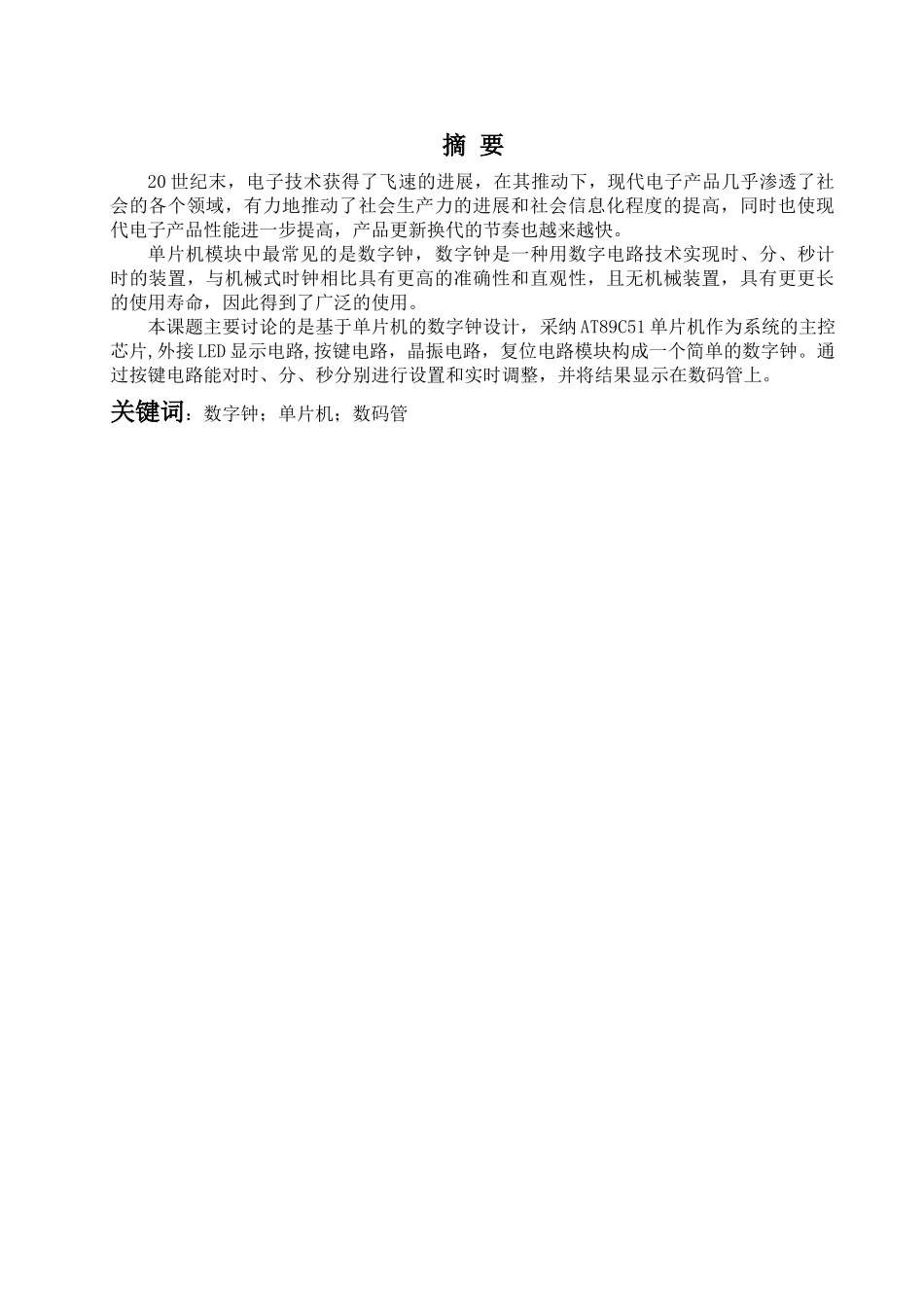

摘 要20 世纪末，电子技术获得了飞速的进展，在其推动下，现代电子产品几乎渗透了社会的各个领域，有力地推动了社会生产力的进展和社会信息化程度的提高，同时也使现代电子产品性能进一步提高，产品更新换代的节奏也越来越快。 单片机模块中最常见的是数字钟，数字钟是一种用数字电路技术实现时、分、秒计时的装置，与机械式时钟相比具有更高的准确性和直观性，且无机械装置，具有更更长的使用寿命，因此得到了广泛的使用。本课题主要讨论的是基于单片机的数字钟设计，采纳 AT89C51 单片机作为系统的主控芯片,外接 LED 显示电路,按键电路，晶振电路，复位电路模块构成一个简单的数字钟。通过按键电路能对时、分、秒分别进行设置和实时调整，并将结果显示在数码管上。关键词：数字钟；单片机；数码管AbstractElectronic technology has been developed rapidly in the 20 century,with its modern electronic products, pushed by almost permeated every area of society has vigorously promoted social productive forces development and improvement of social informatization level, also make modern electronic product performance further improved, and the rhythm of upgrade its products is becoming more and more quickly. The most common SCM module is a digital clock, a digital clock is a kind of digital circuit technology implementation, minutes and seconds, the timing device with mechanical clock compared with higher accuracy and intuitive and no mechanical device, has more longer service life, so it has been widely used. This topic research is the digital clock design based on SCM, AT89C51 SCM as the main control chip system, external LED display circuit, key circuits, crystals circuit, reset circuit module constitute a simple digital clock. Through the key circuits can respectively the diffculties, minutes and seconds setting and real-time adjustment, and the result showed that in the digital tube.Key words: digital clock; SCM ; digital 目 录 1 引 言 ..........
