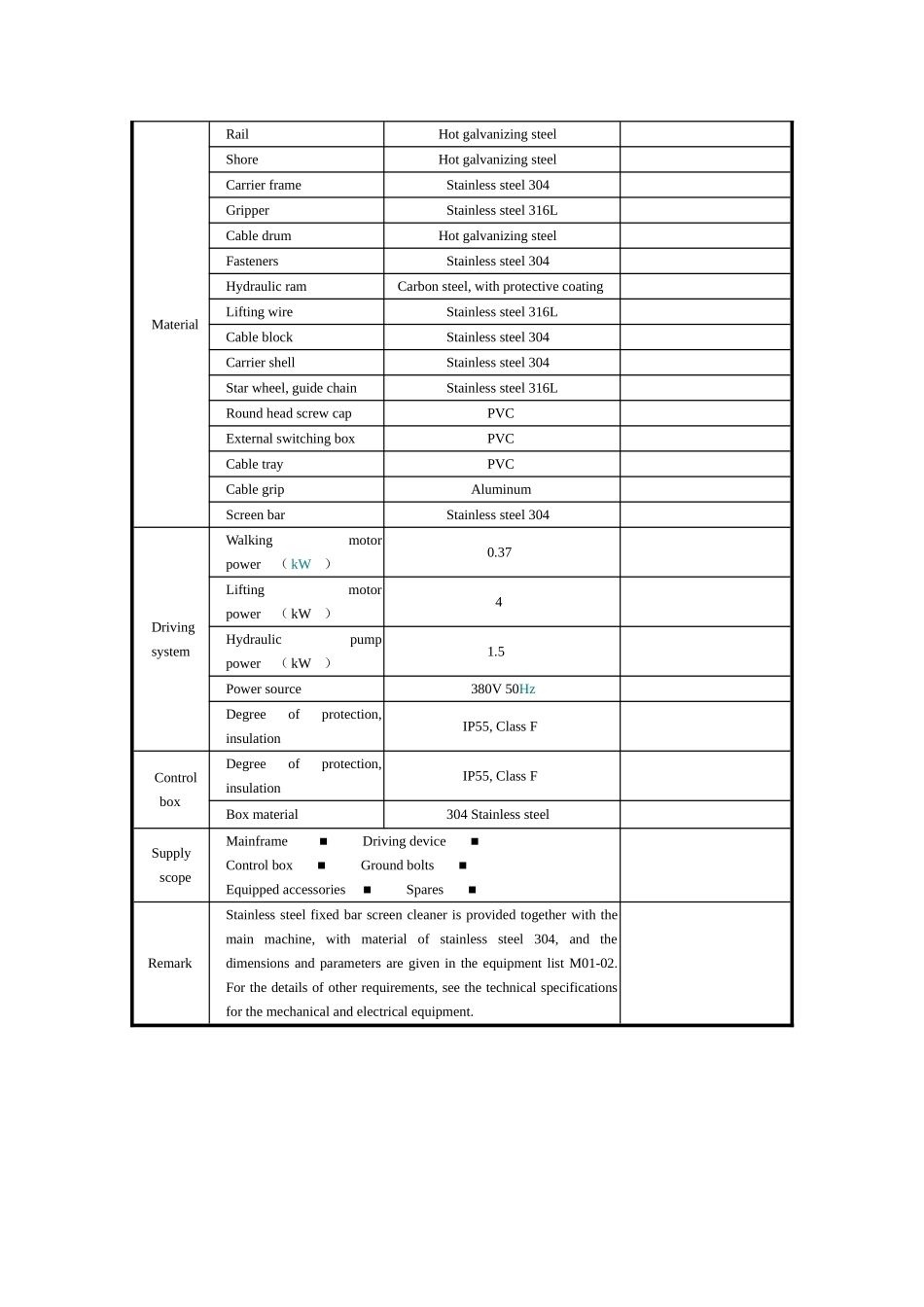

Technical Data Sheet for Mechanical Equipment1.Serial Number: M01- 01Name of Equipment: Gripper-type hydraulic moveable cleanerEquipment Location No.: Location of Use: Coarse screen chamberQuantity（ set） : 1Manufacturer: Reference Model: DescriptionTechnological Parameter RequiredParameter by the ContractorMediaNameUrban domestic sewageMain componentSuspension, organic contaminants and sundriesTemperature （ ℃ ）Normal temperatureDensity （ kg/m3）≤1050pH5~10Performance parameterChannel width（ mm ）1700Channel depth（ mm ）12280Channel nos. (set)3Bar space （ mm ）20Obliquity75Unloading height（ mm ）1200Passing flowrate （ m/s）≤1.0Head loss （ mm ）≤300Gripper width （ mm ）1500Gripper lifting speed（ m/s）≤ 19m/minTrolley walking speed（ m/s）≤ 20m/minGripper open-close time12sHydraulic pressure120 barBar vertical height（ mm ）3000Bar section（ mm ）10mm×80mmConstructionGripper constructional typeHydraulicBar screen construction Integral assemblyMaterialRailHot galvanizing steelShoreHot galvanizing steelCarrier frameStainless steel 304GripperStainless steel 316LCable drumHot galvanizing steelFastenersStainless steel 304Hydraulic ramCarbon steel, with protective coatingLifting wireStainless steel 316LCable blockStainless steel 304Carrier shellStainless steel 304Star wheel, guide chainStainless steel 316LRound head screw capPVCExternal switching boxPVCCable trayPVCCable gripAluminumScreen barStainless steel 304DrivingsystemWalking motor power（ kW）0.37Lifting motor power（ kW）4Hydraulic pump power（ kW）1.5Power source380V 50HzDegree of protection, insulationIP55, Class FControl boxDegree of protection, insulationIP55, Class FBox material304 Stainless steel SupplyscopeMainframe ■ Driving device ■Control box ■ Ground bolts ■Equipped accessories ■ Spares ■ RemarkSta...
