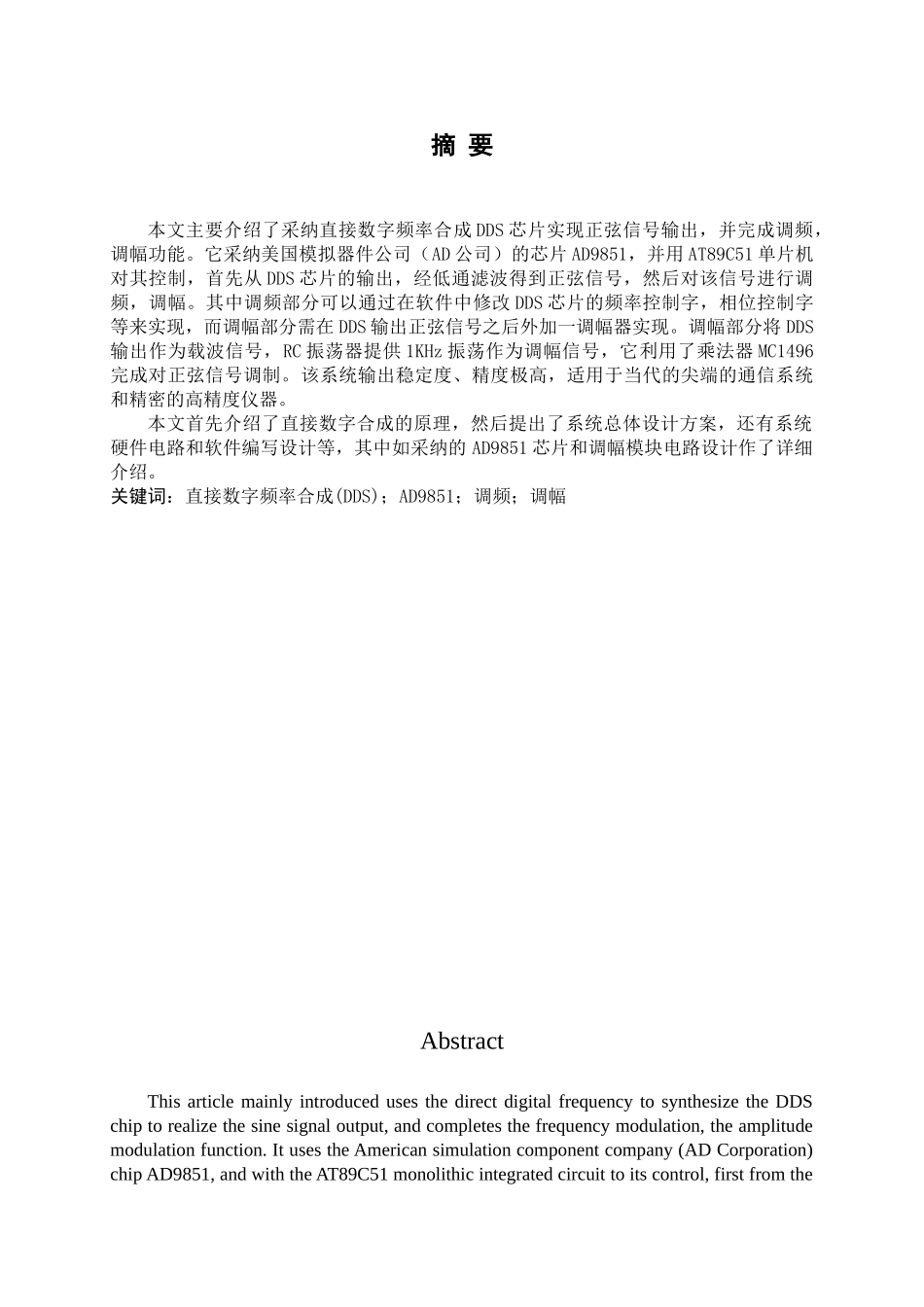

摘 要本文主要介绍了采纳直接数字频率合成 DDS 芯片实现正弦信号输出，并完成调频，调幅功能。它采纳美国模拟器件公司（AD 公司）的芯片 AD9851，并用 AT89C51 单片机对其控制，首先从 DDS 芯片的输出，经低通滤波得到正弦信号，然后对该信号进行调频，调幅。其中调频部分可以通过在软件中修改 DDS 芯片的频率控制字，相位控制字等来实现，而调幅部分需在 DDS 输出正弦信号之后外加一调幅器实现。调幅部分将 DDS输出作为载波信号，RC 振荡器提供 1KHz 振荡作为调幅信号，它利用了乘法器 MC1496完成对正弦信号调制。该系统输出稳定度、精度极高，适用于当代的尖端的通信系统和精密的高精度仪器。本文首先介绍了直接数字合成的原理，然后提出了系统总体设计方案，还有系统硬件电路和软件编写设计等，其中如采纳的 AD9851 芯片和调幅模块电路设计作了详细介绍。关键词：直接数字频率合成(DDS)；AD9851；调频；调幅AbstractThis article mainly introduced uses the direct digital frequency to synthesize the DDS chip to realize the sine signal output, and completes the frequency modulation, the amplitude modulation function. It uses the American simulation component company (AD Corporation) chip AD9851, and with the AT89C51 monolithic integrated circuit to its control, first from the DDS chip output, obtains the sine signal after the low pass filter, then carries on the frequency modulation to this signal, the amplitude modulation. Frequency modulation partial may through revise the DDS chip in software the frequency control word, the phase control word and so on realizes, but the amplitude modulation are partial must after the DDS output sine signal sur- amplitude modulator realization. The amplitude modulation partially the DDS output took the intelligence signal, the RC oscillator provides the 1KHz vibration to take the amplititude-modulated signal, it used multiplier MC1496 to complete to the sine signal modulation. This system output stability, the precision ar...
