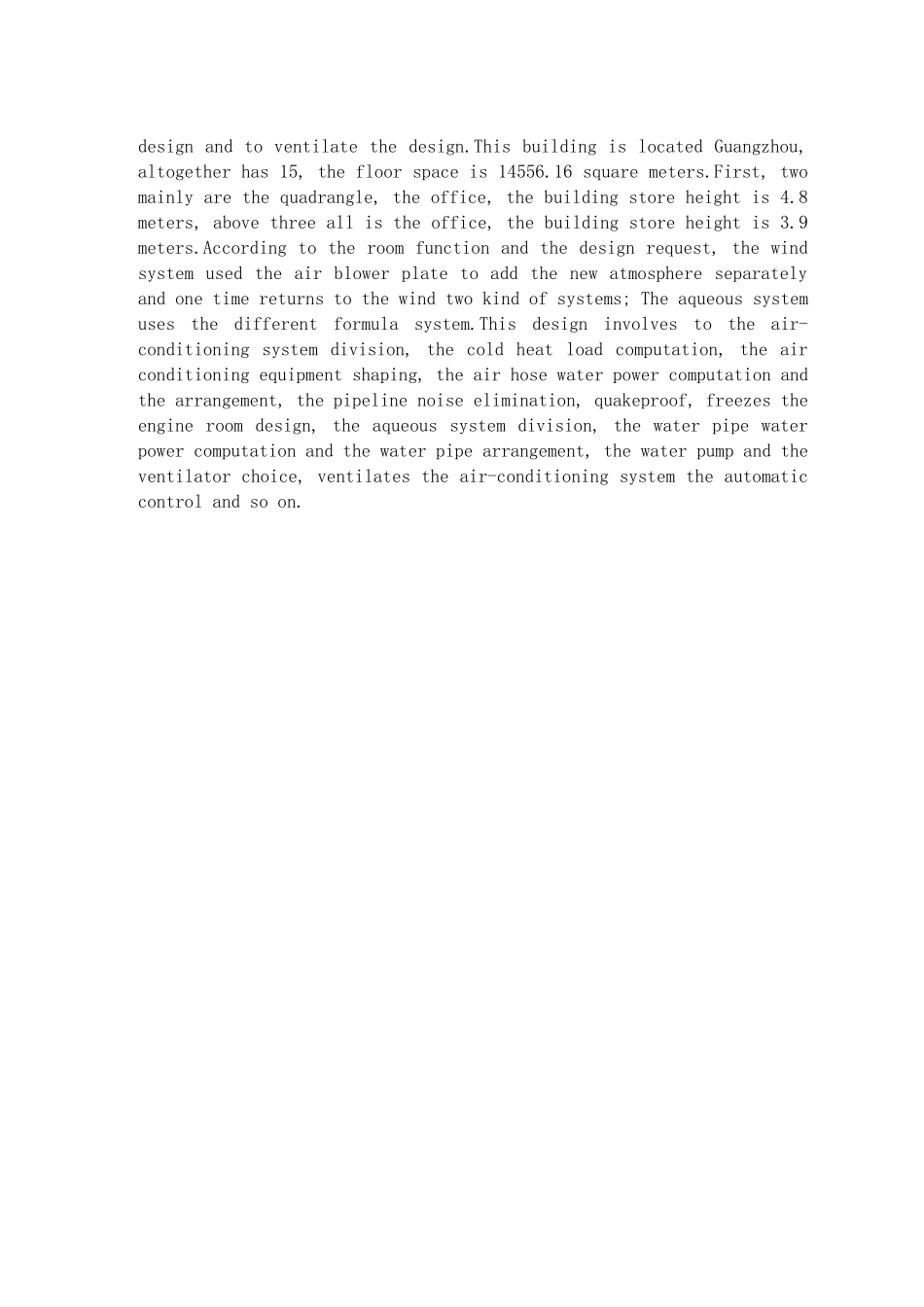

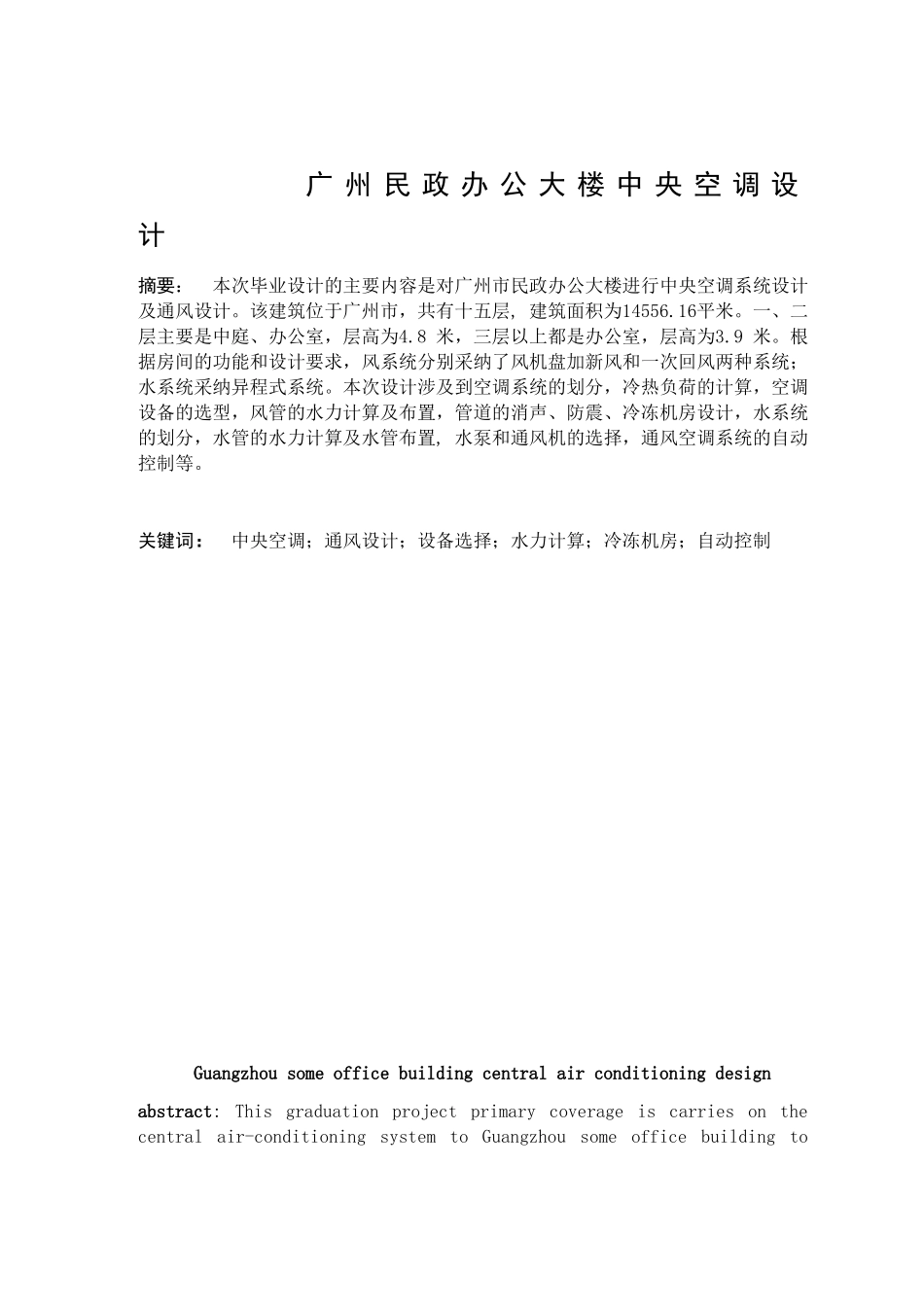

广 州 民 政 办 公 大 楼 中 央 空 调 设计摘要： 本次毕业设计的主要内容是对广州市民政办公大楼进行中央空调系统设计及通风设计。该建筑位于广州市，共有十五层, 建筑面积为14556.16平米。一、二层主要是中庭、办公室，层高为4.8 米，三层以上都是办公室，层高为3.9 米。根据房间的功能和设计要求，风系统分别采纳了风机盘加新风和一次回风两种系统；水系统采纳异程式系统。本次设计涉及到空调系统的划分，冷热负荷的计算，空调设备的选型，风管的水力计算及布置，管道的消声、防震、冷冻机房设计，水系统的划分，水管的水力计算及水管布置, 水泵和通风机的选择，通风空调系统的自动控制等。关键词：中央空调；通风设计；设备选择；水力计算；冷冻机房；自动控制Guangzhou some office building central air conditioning design abstract: This graduation project primary coverage is carries on the central air-conditioning system to Guangzhou some office building to design and to ventilate the design.This building is located Guangzhou, altogether has 15, the floor space is 14556.16 square meters.First, two mainly are the quadrangle, the office, the building store height is 4.8 meters, above three all is the office, the building store height is 3.9 meters.According to the room function and the design request, the wind system used the air blower plate to add the new atmosphere separately and one time returns to the wind two kind of systems; The aqueous system uses the different formula system.This design involves to the air-conditioning system division, the cold heat load computation, the air conditioning equipment shaping, the air hose water power computation and the arrangement, the pipeline noise elimination, quakeproof, freezes the engine room design, the aqueous system division, the water pipe water power computation and the water pipe arrangement, the water pump and the ventilator choice, ventilates the air-conditioning system t...
