河南某高校优秀建筑给排水毕业设计

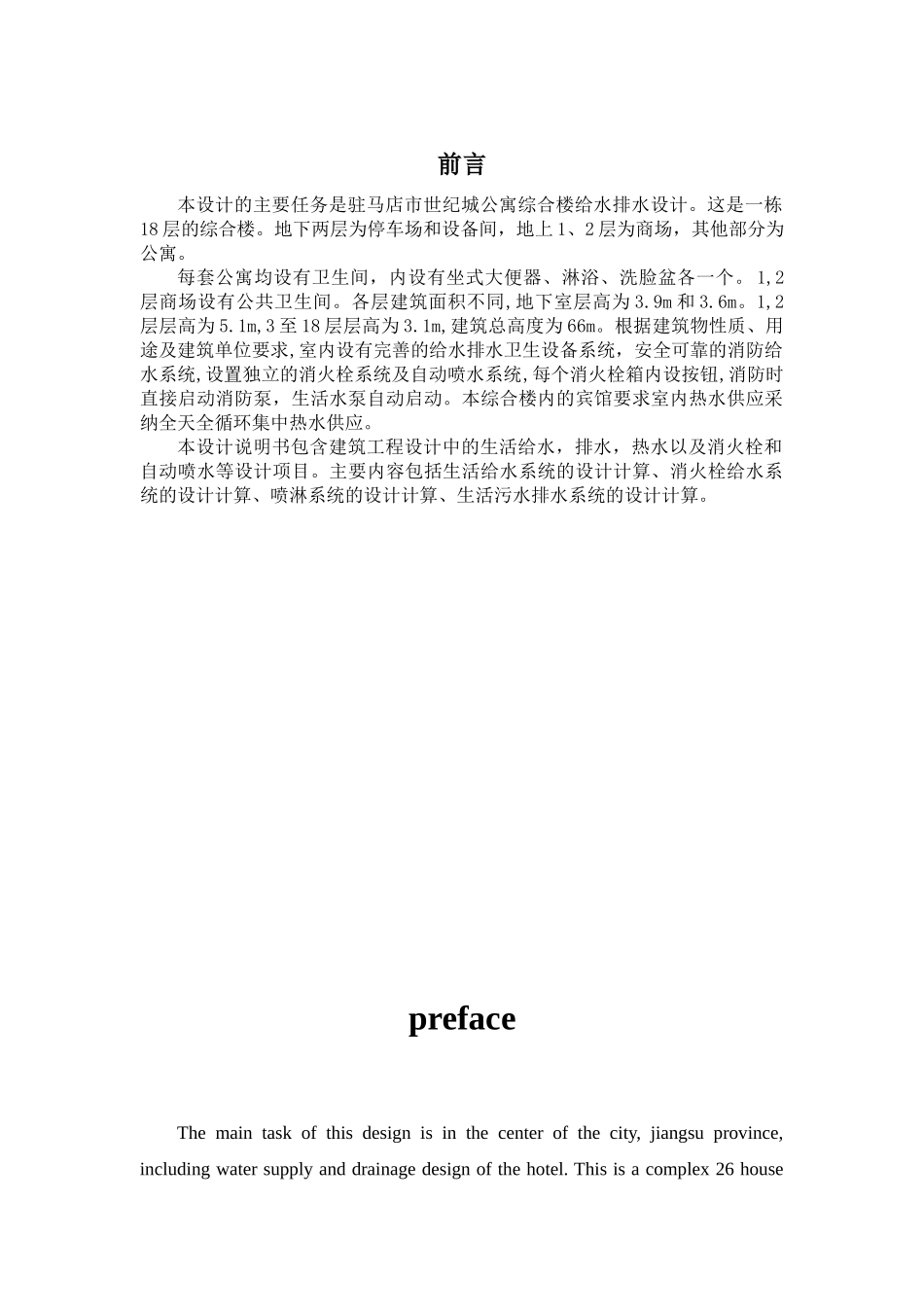

前言本设计的主要任务是驻马店市世纪城公寓综合楼给水排水设计。这是一栋18 层的综合楼。地下两层为停车场和设备间，地上 1、2 层为商场，其他部分为公寓。每套公寓均设有卫生间，内设有坐式大便器、淋浴、洗脸盆各一个。 1,2层商场设有公共卫生间。各层建筑面积不同,地下室层高为 3.9m 和 3.6m。1,2层层高为 5.1m,3 至 18 层层高为 3.1m,建筑总高度为 66m。根据建筑物性质、用途及建筑单位要求,室内设有完善的给水排水卫生设备系统，安全可靠的消防给水系统,设置独立的消火栓系统及自动喷水系统,每个消火栓箱内设按钮,消防时直接启动消防泵，生活水泵自动启动。本综合楼内的宾馆要求室内热水供应采纳全天全循环集中热水供应。本设计说明书包含建筑工程设计中的生活给水，排水，热水以及消火栓和自动喷水等设计项目。主要内容包括生活给水系统的设计计算、消火栓给水系统的设计计算、喷淋系统的设计计算、生活污水排水系统的设计计算。prefaceThe main task of this design is in the center of the city, jiangsu province, including water supply and drainage design of the hotel. This is a complex 26 house floor. 1 to 3 layers for the complex building subsidiary recreation, 4 to 26 floors for hotel guest rooms. The rooms and suites are equipped with toilet, ther are seated toilets, bathtubs, sinks in each one. Layer construction area is different, the basement height is 4.50 m, the layers of high of 4.50 m, 2 to 3 layers of high of 3.90 m, 4 to 26 layers of high of 3.30 m, building a total height of 88.20 m. Requirements according to the nature of the building, use and construction units, indoor sanitary equipment is equipped with perfect water supply and drainage system, safe and reliable fire protection water supply system, set up independent fire hydrant system and automatic sprinkler system, set button each fire hydrant boxes, fire when directly start the fire pump, water pump automatic start of life. The hotel requirements of this complex indoor ho...
