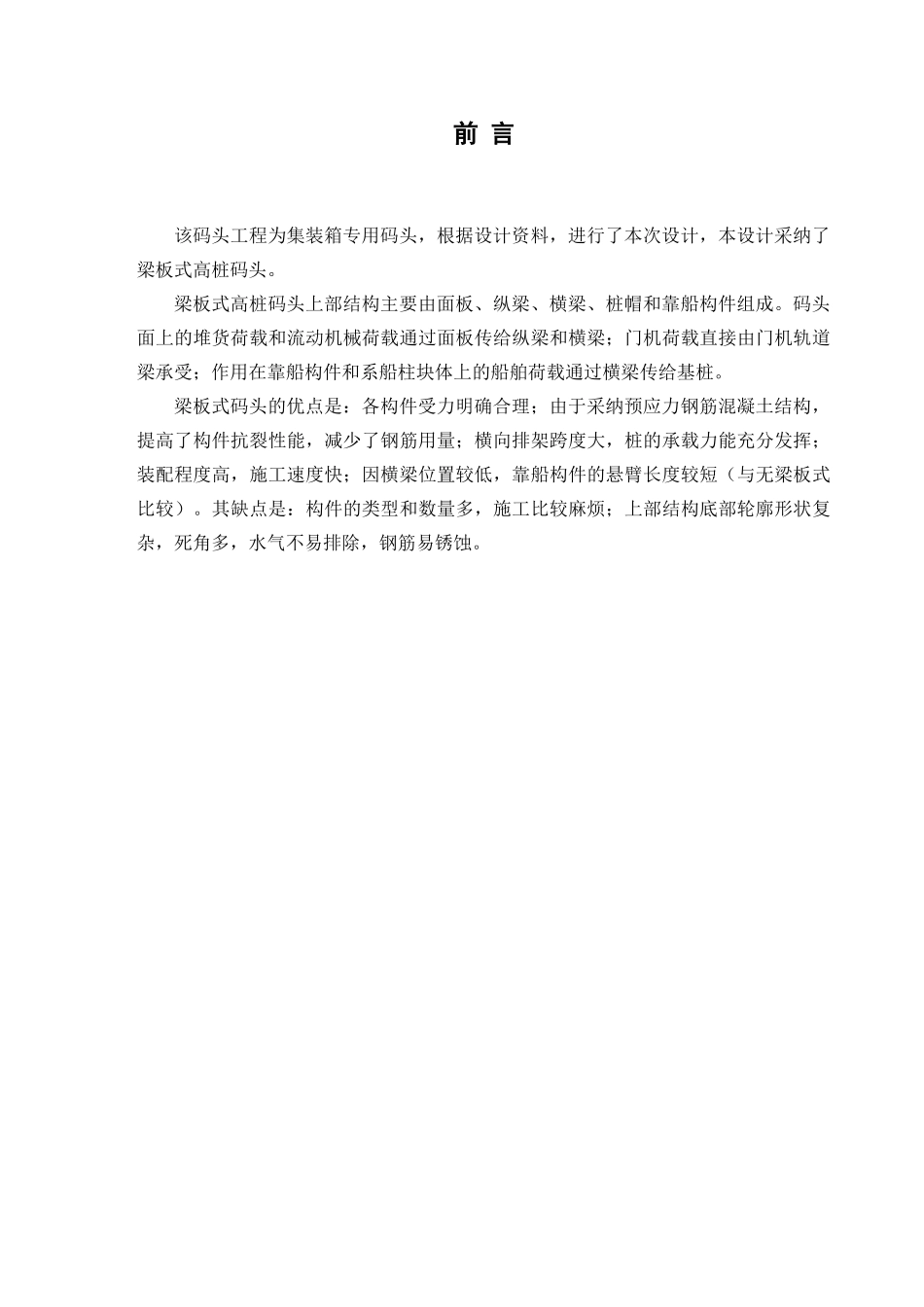

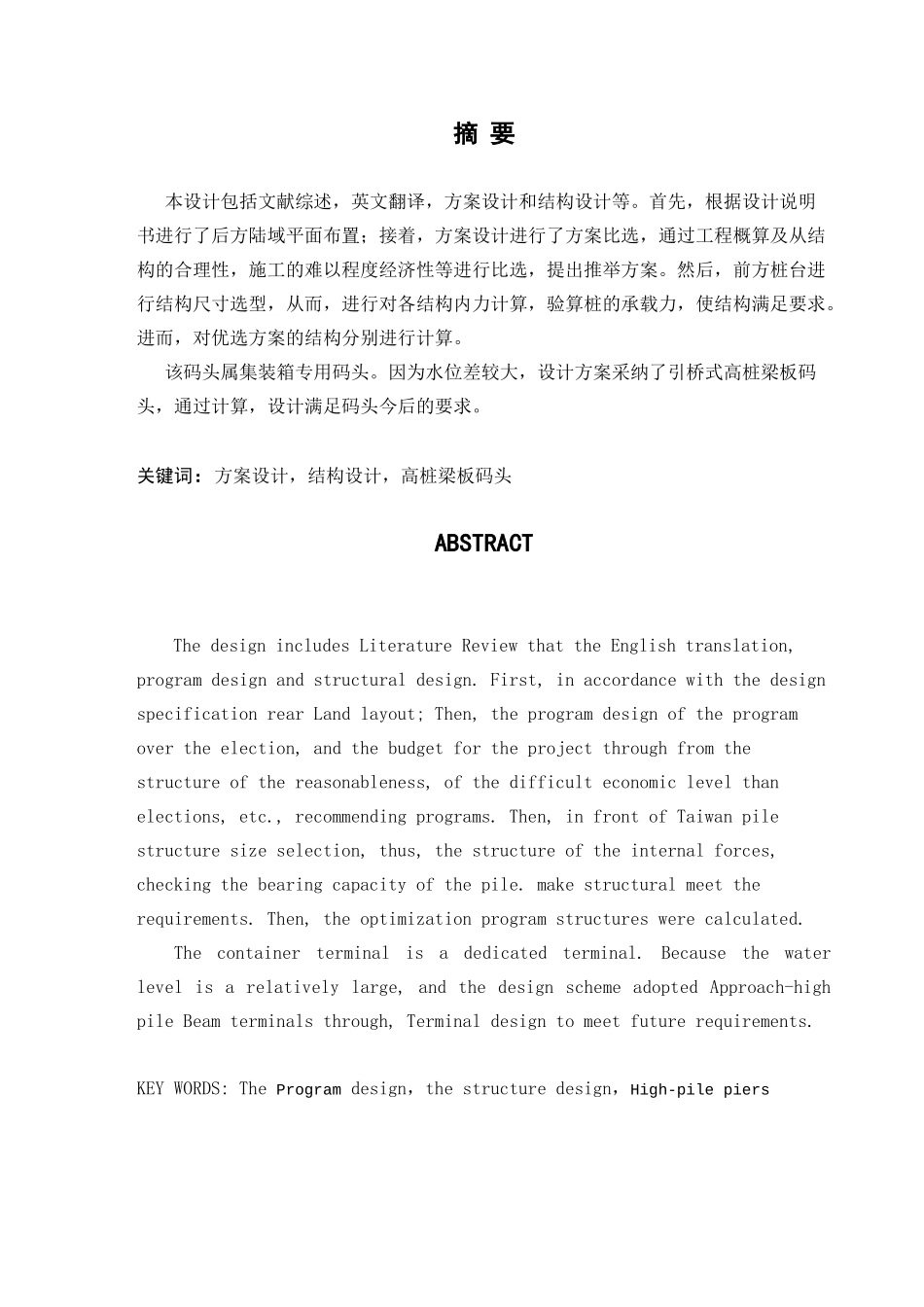

前 言该码头工程为集装箱专用码头，根据设计资料，进行了本次设计，本设计采纳了梁板式高桩码头。梁板式高桩码头上部结构主要由面板、纵梁、横梁、桩帽和靠船构件组成。码头面上的堆货荷载和流动机械荷载通过面板传给纵梁和横梁；门机荷载直接由门机轨道梁承受；作用在靠船构件和系船柱块体上的船舶荷载通过横梁传给基桩。梁板式码头的优点是：各构件受力明确合理；由于采纳预应力钢筋混凝土结构，提高了构件抗裂性能，减少了钢筋用量；横向排架跨度大，桩的承载力能充分发挥；装配程度高，施工速度快；因横梁位置较低，靠船构件的悬臂长度较短（与无梁板式比较）。其缺点是：构件的类型和数量多，施工比较麻烦；上部结构底部轮廓形状复杂，死角多，水气不易排除，钢筋易锈蚀。摘 要本设计包括文献综述，英文翻译，方案设计和结构设计等。首先，根据设计说明书进行了后方陆域平面布置；接着，方案设计进行了方案比选，通过工程概算及从结构的合理性，施工的难以程度经济性等进行比选，提出推举方案。然后，前方桩台进行结构尺寸选型，从而，进行对各结构内力计算，验算桩的承载力，使结构满足要求。进而，对优选方案的结构分别进行计算。该码头属集装箱专用码头。因为水位差较大，设计方案采纳了引桥式高桩梁板码头，通过计算，设计满足码头今后的要求。关键词：方案设计，结构设计，高桩梁板码头ABSTRACTThe design includes Literature Review that the English translation, program design and structural design. First, in accordance with the design specification rear Land layout; Then, the program design of the program over the election, and the budget for the project through from the structure of the reasonableness, of the difficult economic level than elections, etc., recommending programs. Then, in front of Taiwan pile structure size selection, thus, the structure of the internal forces, checking the bearing capacity of the pile. make structural meet the requirements. Then, the optimization program structures were calculated. The container terminal is a dedicated terminal. Because the water level is a relatively large, and the design scheme adopted Appro...
