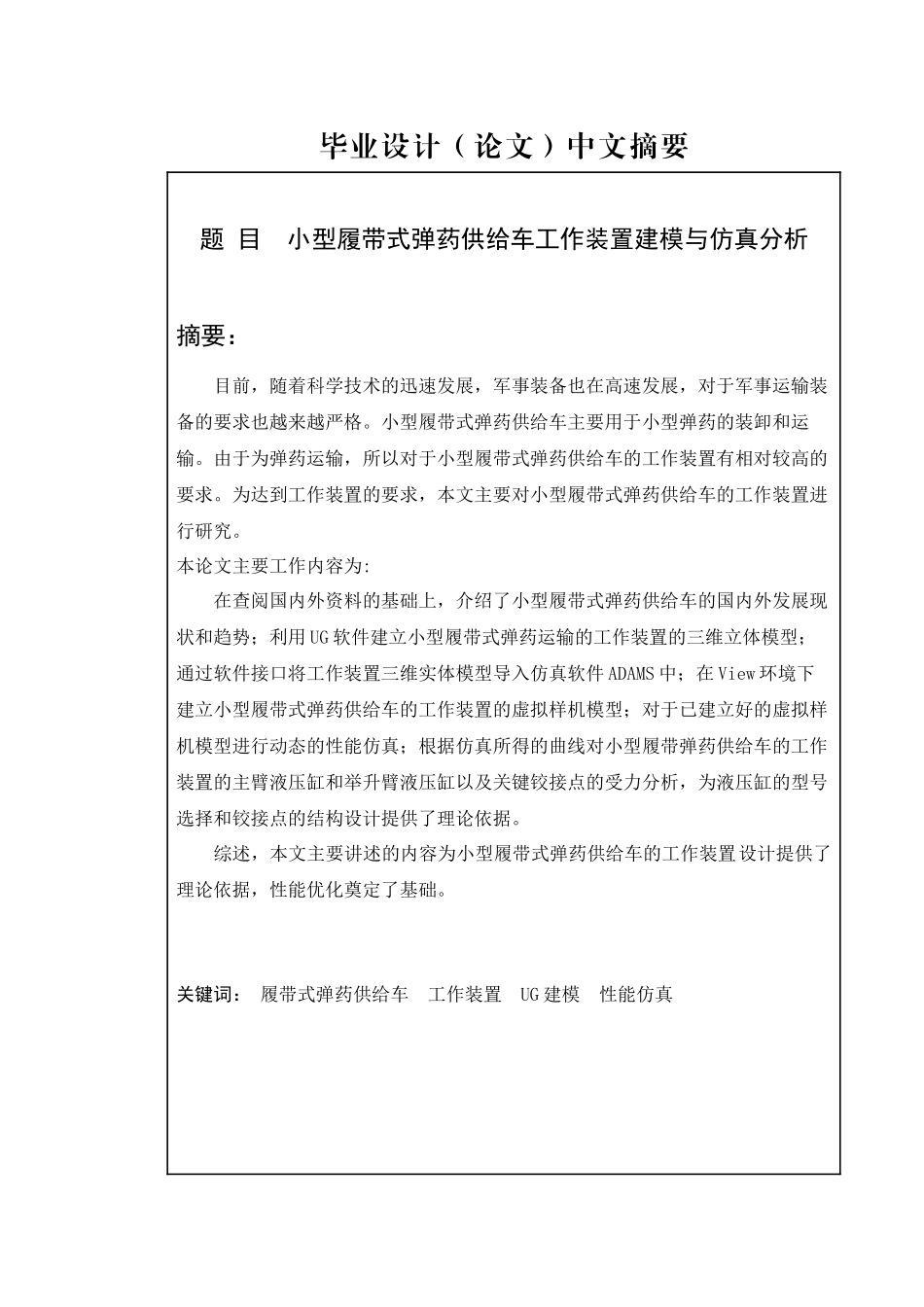

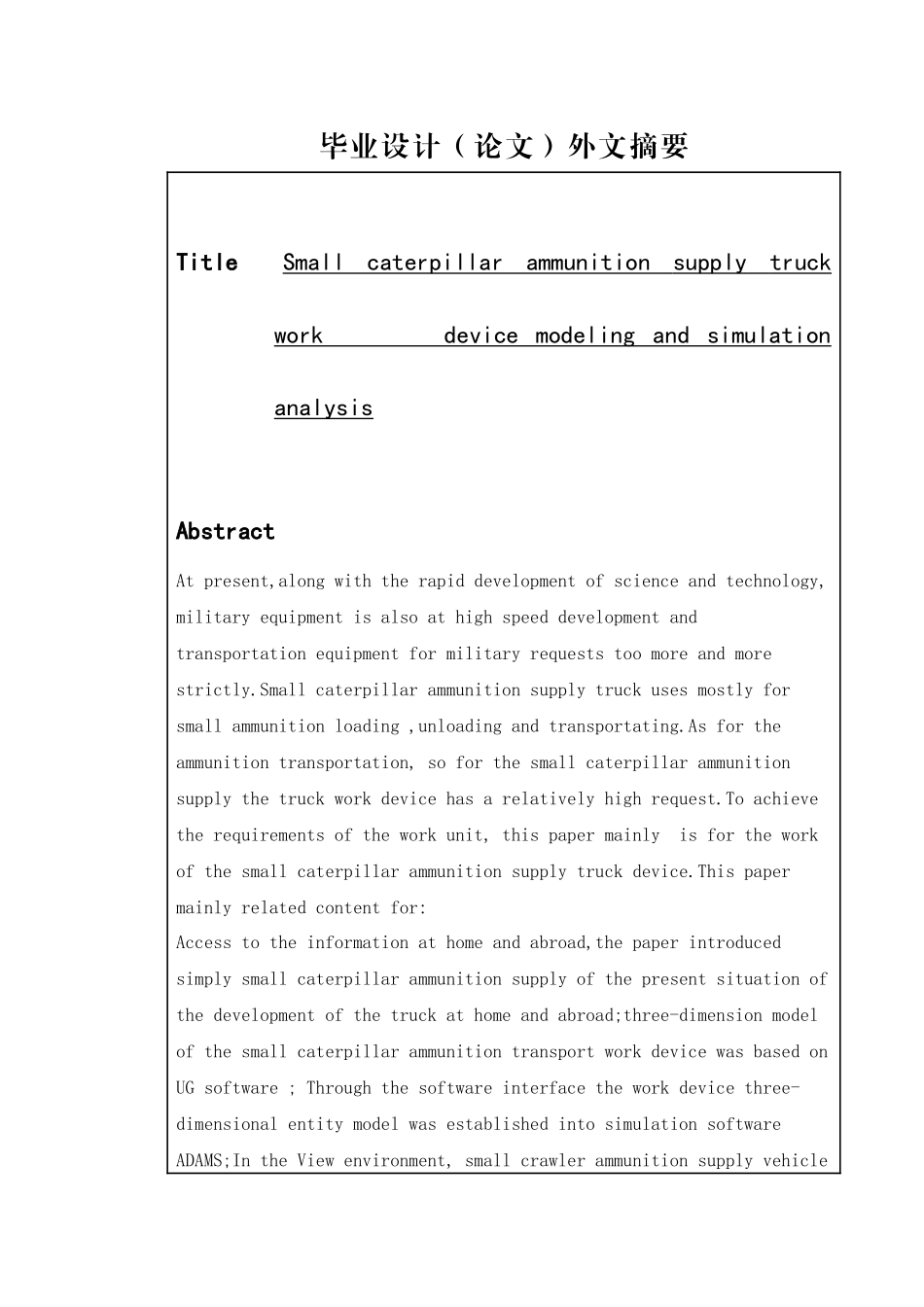

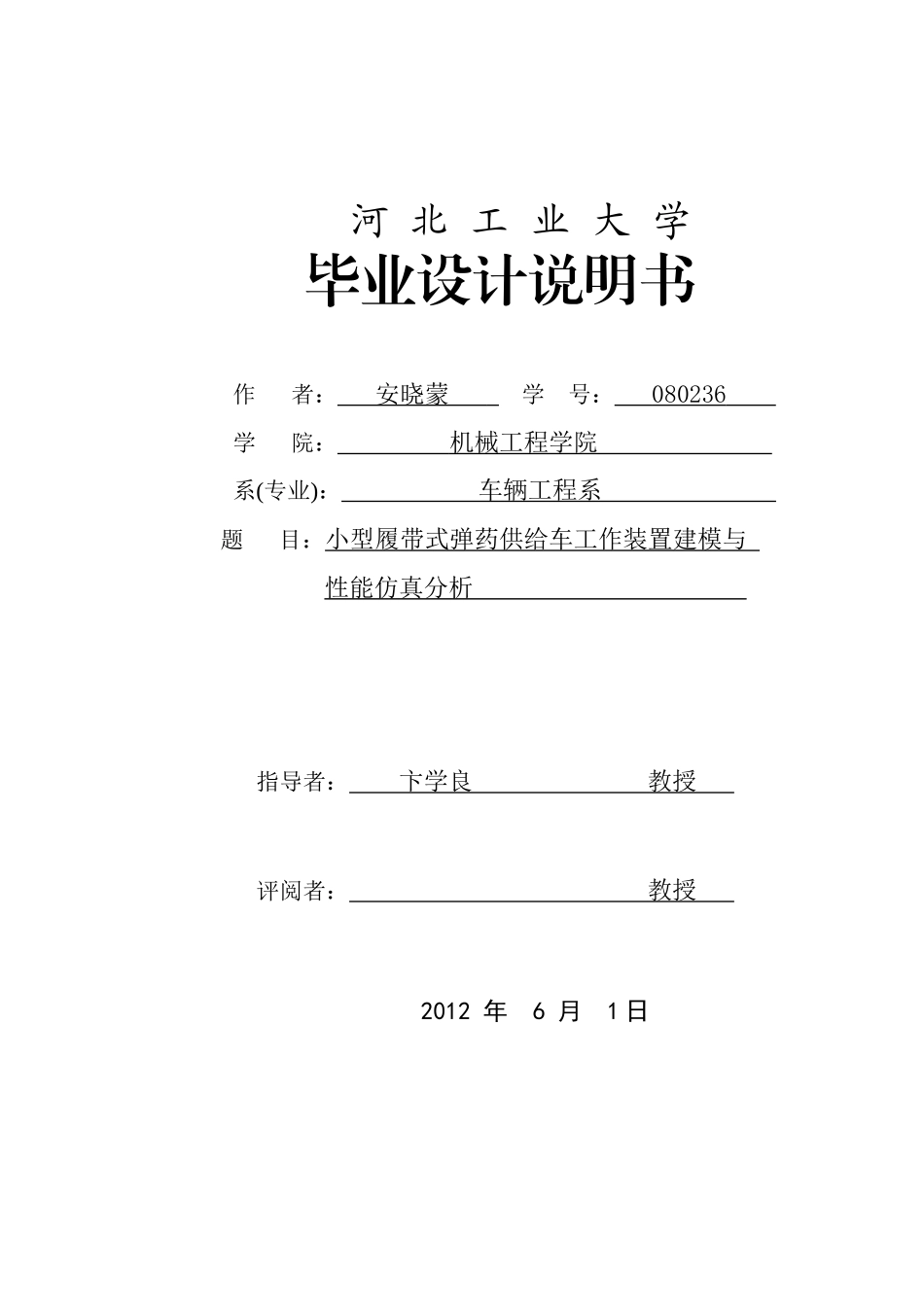

河北工业大学毕业设计说明书作者：安晓蒙学号：080236学院：机械工程学院系(专业)：车辆工程系题目：小型履带式弹药供给车工作装置建模与性能仿真分析指导者：卞学良教授评阅者：教授2012年6月1日毕业设计（论文）中文摘要题目小型履带式弹药供给车工作装置建模与仿真分析摘要：目前，随着科学技术的迅速发展，军事装备也在高速发展，对于军事运输装备的要求也越来越严格。小型履带式弹药供给车主要用于小型弹药的装卸和运输。由于为弹药运输，所以对于小型履带式弹药供给车的工作装置有相对较高的要求。为达到工作装置的要求，本文主要对小型履带式弹药供给车的工作装置进行研究。本论文主要工作内容为:在查阅国内外资料的基础上，介绍了小型履带式弹药供给车的国内外发展现状和趋势；利用UG软件建立小型履带式弹药运输的工作装置的三维立体模型；通过软件接口将工作装置三维实体模型导入仿真软件ADAMS中；在View环境下建立小型履带式弹药供给车的工作装置的虚拟样机模型；对于已建立好的虚拟样机模型进行动态的性能仿真；根据仿真所得的曲线对小型履带弹药供给车的工作装置的主臂液压缸和举升臂液压缸以及关键铰接点的受力分析，为液压缸的型号选择和铰接点的结构设计提供了理论依据。综述，本文主要讲述的内容为小型履带式弹药供给车的工作装置设计提供了理论依据，性能优化奠定了基础。关键词：履带式弹药供给车工作装置UG建模性能仿真毕业设计（论文）外文摘要TitleSmallcaterpillarammunitionsupplytruckworkdevicemodelingandsimulationanalysisAbstractAtpresent,alongwiththerapiddevelopmentofscienceandtechnology,militaryequipmentisalsoathighspeeddevelopmentandtransportationequipmentformilitaryrequeststoomoreandmorestrictly.Smallcaterpillarammunitionsupplytruckusesmostlyforsmallammunitionloading,unloadingandtransportating.Asfortheammunitiontransportation,soforthesmallcaterpillarammunitionsupplythetruckworkdevicehasarelativelyhighrequest.Toachievetherequirementsoftheworkunit,thispapermainlyisfortheworkofthesmallcaterpillarammunitionsupplytruckdevice.Thispapermainlyrelatedcontentfor:Accesstotheinformationathomeandabroad,thepaperintroducedsimplysmallcaterpillarammunitionsupplyofthepresentsituationofthedevelopmentofthetruckathomeandabroad;three-dimensionmodelofthesmallcaterpillarammunitiontransportworkdevicewasbasedonUGsoftware;Throughthesoftwareinterfacetheworkdevicethree-dimensionalentitymodelwasestablishedintosimulationsoftwareADAMS;IntheViewenvironment,smallcrawlerammunitionsupplyvehicleworkingdeviceofthevirtualprototypemodelwasbuilded;Establishedvirtualprototypemodelisfordynamicperformancesimulation;AccordingtothesimulationofthecurveofsmallcrawlerammunitionsupplytheworkoftheLordofthedevicetruck,armhydrauliccylinder,liftingarmhydrauliccylinder,keypointsofthehingedforcewasanalysised,andthsesprovidestheorybasisforhydrauliccylinderofformodelselectionanddesignofthestructureofhingedpoint.Review,thisarticlefocusesonthecontentsforsmallcrawlerammunitionsupplyvehicleworkingdevicetoprovideatheoreticalbasisforthedesignandlayafoundationforperformanceoptimization.Keywords：crawlertransporterammunitionTruckworkdeviceUGmodelingPerformancesimulation目录1引言.................................................................11．1叉车国外发展现状..................................................11.2叉车国内发展现状...................................................41.3研究的内容，目的，意义.............................................52小型履带式弹药供给车工作装置的建模...................................72.1建模工具简介.......................................................72.2零部件建模..............
