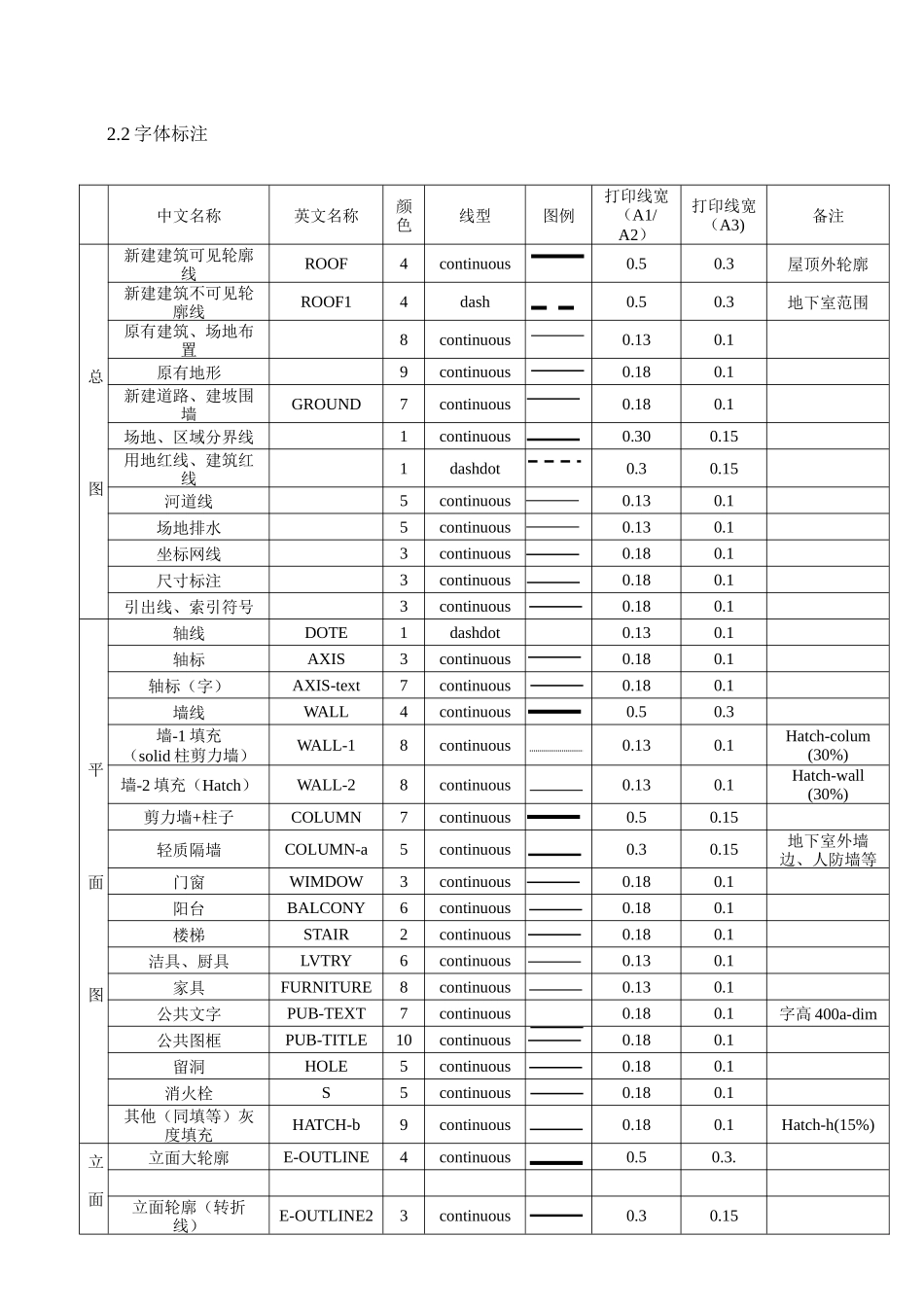

2、建筑专业2.1图层线型2.2字体标注中文名称英文名称颜色线型图例打印线宽（A1/A2）打印线宽（A3)备注总图新建建筑可见轮廓线ROOF4continuous0.50.3屋顶外轮廓新建建筑不可见轮廓线ROOF14dash0.50.3地下室范围原有建筑、场地布置8continuous0.130.1原有地形9continuous0.180.1新建道路、建坡围墙GROUND7continuous0.180.1场地、区域分界线1continuous0.300.15用地红线、建筑红线1dashdot0.30.15河道线5continuous0.130.1场地排水5continuous0.130.1坐标网线3continuous0.180.1尺寸标注3continuous0.180.1引出线、索引符号3continuous0.180.1平面图轴线DOTE1dashdot0.130.1轴标AXIS3continuous0.180.1轴标（字）AXIS-text7continuous0.180.1墙线WALL4continuous0.50.3墙-1填充（solid柱剪力墙）WALL-18continuous0.130.1Hatch-colum(30%)墙-2填充（Hatch）WALL-28continuous0.130.1Hatch-wall(30%)剪力墙+柱子COLUMN7continuous0.50.15轻质隔墙COLUMN-a5continuous0.30.15地下室外墙边、人防墙等门窗WIMDOW3continuous0.180.1阳台BALCONY6continuous0.180.1楼梯STAIR2continuous0.180.1洁具、厨具LVTRY6continuous0.130.1家具FURNITURE8continuous0.130.1公共文字PUB-TEXT7continuous0.180.1字高400a-dim公共图框PUB-TITLE10continuous0.180.1留洞HOLE5continuous0.180.1消火栓S5continuous0.180.1其他（同填等）灰度填充HATCH-b9continuous0.180.1Hatch-h(15%)立面立面大轮廓E-OUTLINE4continuous0.50.3.立面轮廓（转折线）E-OUTLINE23continuous0.30.152.2字体标注专业用途字型（字体）字高（mm）高宽比所有专业①图名文字中文黑体（truetype字体）黑体汉字10.00.7②详图名称中文黑体（truetype字体）黑体汉字6.06.50.7③说明文字标题中文黑体（truetype字体）黑体汉字6.010.00.7④说明、标注文字中文汉字单线（矢量字库）（hztxt.shx，simplex.shx）汉字单线4.04.50.7⑤施工说明中文汉字单线（矢量字库）（hztxt.shx，simplex.shx）汉字单线5.05.50.7⑥图框图名中文汉字单线（矢量字库）（仿宋_GB2312）汉字单线5.03.00.7⑦标注尺寸西文西文单线（矢量字库）（simplex.shx）14.6003.0（2.0）因图面限制时可局部使用2.00.7结构专业⑧构件代号西文西文单线（矢量字库）（simplex.shx）14.6003.5（3.0）0.7⑨钢筋标注中文汉字单线（矢量字库）（hztxt.shx，simplex.shx）14.6003.0（2.5）0.7电气专业⑩回路/配电设备编号西文西文单线（矢量字库）（simplex.shx）14.6004.00.72.3比例图名常用比例可用比例平、立、剖面图1：1001：501：501：200详图1：201：301：501：251：601：752.4门窗编号名称编号备注木门MABA—洞宽B—洞宽例：洞宽1500门洞宽2100门编号为M1521铝合金门LMAB（乙级）防火门FHMAB（乙）防火卷帘门FJMAB幕墙MQAB中文名称英文名称颜色线型图例打印线宽（A1/A2）打印线宽（A3)备注图立面门窗E-WINDOW3continuous0.180.1立面阳台E-BALCONY6continuous0.180.1其他OTHER8continuous0.180.1铝合金窗LCAB凸窗、飘窗TCAB木窗CAB防盗门DMAB3、结构专业3.1图层线型中文名称英文名称颜色线型图例打印线宽（A1/A2）打印线宽（A3）轴线dote1center0.130.1轴标axis3continuous0.130.1轴标（字）axis-text7Continuous0.180.1剪力墙线jlq4continuous,dash0.250.15剪力墙柱填充jlq-tch8continuoushatch-h(50%)hatch-h(50%)地下室填充wq-tch9continuous图例示意图例示意柱Zhu7continuous,dash0.180.1洞口及浇板、高侧板、降板填充dong-tch9continuoushatch-h(20%)hatch-h(20%)看线（投影线）kang7continuous0.180.1梁L2continuous,dash0.250.15钢筋线gj6continuous0.500.4钢筋圈gjq7continuous0.180.1墙柱编号qzhu-txt7continuous0.180.1梁编号l-txt7continuous0.180.1模板文字mb-txt7continuous0.180.1梁配筋文字lpj-txt7continuous0.180.1梁配筋引出线7continuous0.180.1板配筋文字bpj-txt2continuous0.180.1预埋设备套管线sheb10continuous1.00.7预埋设备套管引出线sheb-line7continuous0.180.1预埋设备套管说明sheb-txt7continuous0.180.1公共标注pub-dim尺寸线红（字7）continuou...
