挤压模-建筑铝合金型材(窗用)的模具设计VIP免费

挤压模-建筑铝合金型材(窗用)的模具设计_第1页
1/39
挤压模-建筑铝合金型材(窗用)的模具设计_第2页
2/39
挤压模-建筑铝合金型材(窗用)的模具设计_第3页
3/39

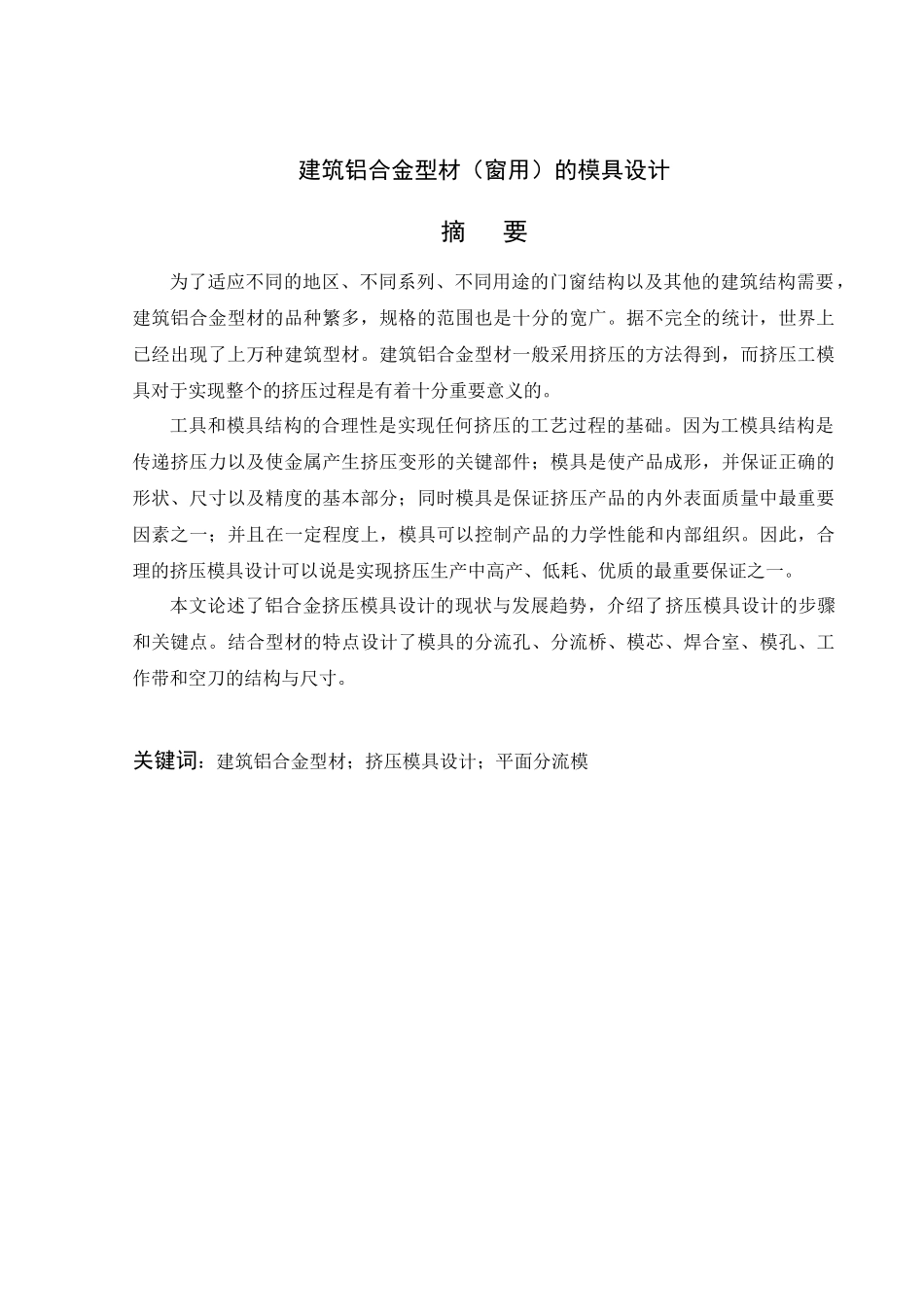

建筑铝合金型材(窗用)的模具设计摘要为了适应不同的地区、不同系列、不同用途的门窗结构以及其他的建筑结构需要,建筑铝合金型材的品种繁多,规格的范围也是十分的宽广。据不完全的统计,世界上已经出现了上万种建筑型材。建筑铝合金型材一般采用挤压的方法得到,而挤压工模具对于实现整个的挤压过程是有着十分重要意义的。工具和模具结构的合理性是实现任何挤压的工艺过程的基础。因为工模具结构是传递挤压力以及使金属产生挤压变形的关键部件;模具是使产品成形,并保证正确的形状、尺寸以及精度的基本部分;同时模具是保证挤压产品的内外表面质量中最重要因素之一;并且在一定程度上,模具可以控制产品的力学性能和内部组织。因此,合理的挤压模具设计可以说是实现挤压生产中高产、低耗、优质的最重要保证之一。本文论述了铝合金挤压模具设计的现状与发展趋势,介绍了挤压模具设计的步骤和关键点。结合型材的特点设计了模具的分流孔、分流桥、模芯、焊合室、模孔、工作带和空刀的结构与尺寸。关键词:建筑铝合金型材;挤压模具设计;平面分流模DesignofextrusiondieforaluminumalloysectionforwindowsofbuildingsAbstractInordertoadapttodifferentregions,differentseriesanddifferentusesofdoors,windowsandotherarchitecturalstructures’needs,architecturalaluminumprofilesandtherangeofspecificationsisverywide.Accordingtoincompletestatistics,theworldhasbeenoutofthetensofthousandskindofbuildingprofiles.Architecturalaluminumprofilesgenerallyareusedbyextrusion,andextrusiontoolingisgreatsignificancetothewholeofextrusionprocess.Theconsistencyoftoolanddiestructureisthebasisofachievinganyfoundationextrusionprocess.Becausethediestructureisthekeycomponentsofpassingextrusionpressureandproducingmetalextrusion;Moldistheessentialpartofensuringproduct’scorrectshape,sizeandprecision;Thesametime,moldisthemostimportantfactorstoensurethesurfacequalityoftheinnerandouterofextrusionproduct;Themoldcancontrolthemechanicalpropertiesandinternalorganization.Therefore,reasonableextrusiondiedesignisoneofthemostimportantassuranceofachievingextrusionproductionhighyield,lowcostandhighquality.Thispaperdiscussesthesituationanddevelopmenttrendofaluminumextrusiondiedesign,andintroducesthestepsandkeypointsofextrusiondiedesign.Thepaperdesignthestructureandsizeofmoldsections’diversionhole,splitbridge,moldcores,weldingchamber,thediehole,workingpartandemptyknife.KeyWords:Architecturalaluminumprofile;Designofextrusiondie;Planarportholedie目录摘要.......................................................................................................................................IAbstract......................................................................................................................................II第一章绪论...............................................................................................................................11.1概述................................................................................................................................11.2模具在铝合金挤压生产中的重要作用与特殊地位....................................................11.3国内外铝合金挤压模具技术的现状与发展趋势........................................................21.3.1铝合金挤压模具设计的现状..............................................................................21.3.2铝合金挤压模具技术的发展与趋势.........................................................................31.3.3国内外模具设计水平比较.............................................................................
