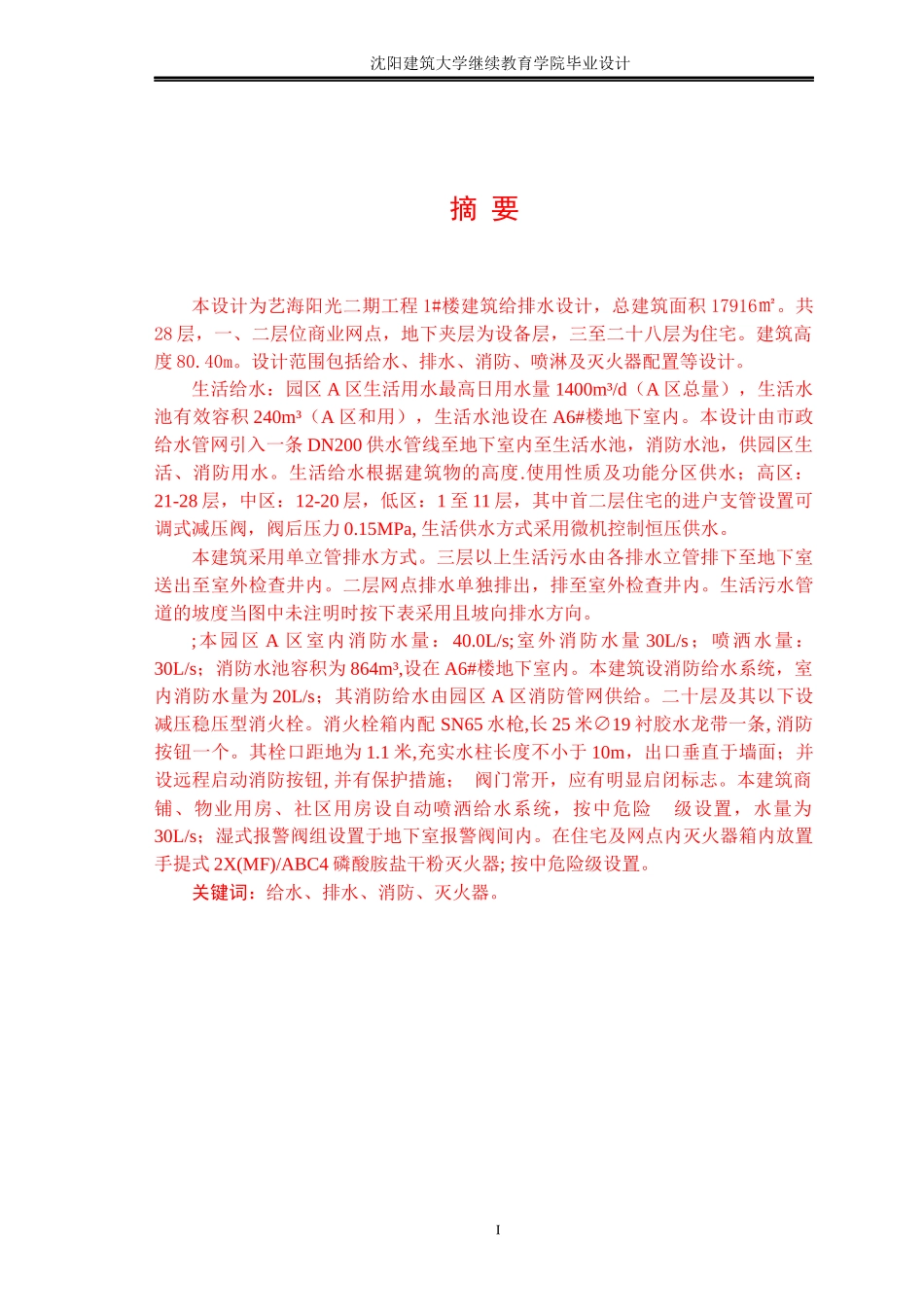

沈阳建筑大学继续教育学院毕业设计摘要本设计为艺海阳光二期工程1#楼建筑给排水设计，总建筑面积17916㎡。共28层，一、二层位商业网点，地下夹层为设备层，三至二十八层为住宅。建筑高度80.40m。设计范围包括给水、排水、消防、喷淋及灭火器配置等设计。生活给水：园区A区生活用水最高日用水量1400m³/d（A区总量），生活水池有效容积240m³（A区和用），生活水池设在A6#楼地下室内。本设计由市政给水管网引入一条DN200供水管线至地下室内至生活水池，消防水池，供园区生活、消防用水。生活给水根据建筑物的高度.使用性质及功能分区供水；高区：21-28层，中区：12-20层，低区：1至11层，其中首二层住宅的进户支管设置可调式减压阀，阀后压力0.15MPa,生活供水方式采用微机控制恒压供水。本建筑采用单立管排水方式。三层以上生活污水由各排水立管排下至地下室送出至室外检查井内。二层网点排水单独排出，排至室外检查井内。生活污水管道的坡度当图中未注明时按下表采用且坡向排水方向。;本园区A区室内消防水量：40.0L/s;室外消防水量30L/s；喷洒水量：30L/s；消防水池容积为864m³,设在A6#楼地下室内。本建筑设消防给水系统，室内消防水量为20L/s；其消防给水由园区A区消防管网供给。二十层及其以下设减压稳压型消火栓。消火栓箱内配SN65水枪,长25米∅19衬胶水龙带一条,消防按钮一个。其栓口距地为1.1米,充实水柱长度不小于10m，出口垂直于墙面；并设远程启动消防按钮,并有保护措施；阀门常开，应有明显启闭标志。本建筑商铺、物业用房、社区用房设自动喷洒给水系统，按中危险级设置，水量为30L/s；湿式报警阀组设置于地下室报警阀间内。在住宅及网点内灭火器箱内放置手提式2X(MF)/ABC4磷酸胺盐干粉灭火器;按中危险级设置。关键词：给水、排水、消防、灭火器。I沈阳建筑大学继续教育学院毕业设计AbstractThedesignfortheArtsandtheseafloor,SunshineBuilding#1,PhaseIIdrainagedesign,withatotalconstructionareaof17,916squaremeters.Atotalof28layers,one,two-bitcommercialnetworks,undergroundmezzaninefortheequipmentlevel,threetotwentyeight-storyresidential.Buildingheight80.40m.Designincludewatersupply,drainage,fireprotection,sprinklerandfireextinguisherconfigurationdesign.LivingWater:ParkA,maximumdailywaterconsumption1400m³/d(Atotalarea),pondlife,effectivevolume240m³(Aareaanduse),livinginA6#poolbasementfloor.ThedesignbythemunicipalwatersupplynetworktointroduceaDN200watersupplypipelinetothebasementtothelivingpond,firewatertankforthelifeofthepark,firewater.Domesticwatersupplyaccordingtotheheightofthebuilding.Useofthenatureandfunctionsofdistrictwatersupply;higharea:21-28level,thedistrict:12-20level,lowarea:1to11layers,ofwhichthefirsttwo-storyhousesettobranchintothefamilytuningvalve,thevalvepressure0.15MPa,domesticwatersupplymeansusingcomputercontrolconstantpressurewatersupply.Theconstructionusesasingleverticalpipedrainagepatterns.Bymorethanthreesewagedrainagetothebasementoftheriserarrangedforthechecksenttotheoutsidewells.Separatetwo-storywaterdischargeoutlets,exhausttotheoutdoorinspectionwells.Sewagepipeslopedoesnotindicatewhenthemapusedinthetableandpressingtheslopedraindirection.firewatersupplypumphouse;theParkADistrictfireservicewater:40.0L/s;outdoorfirewater30L/s;spraywater:30L/s;firewatervolumeof864m³,locatedinA6#floorbasement.Thebuildingsetfirewatersupplysystem,indoorfirewater20L/s;theFireWaterParkAFirebythesupplypipenetwork.Twenty-layerandbelowthefirehydrantlocatedvacuumregulatortype.WithSN65gunfirehydrantbox,25meterslongand19arubberlinedhose,afirebutton.Theboltfor∅the1.1m-pitch,fullwatercolumnlengthisnotlessthan10m,theexportperpendiculartothewall;andlettheremotestartthefirebutton,andprotectivemeasures;valvenormal...
