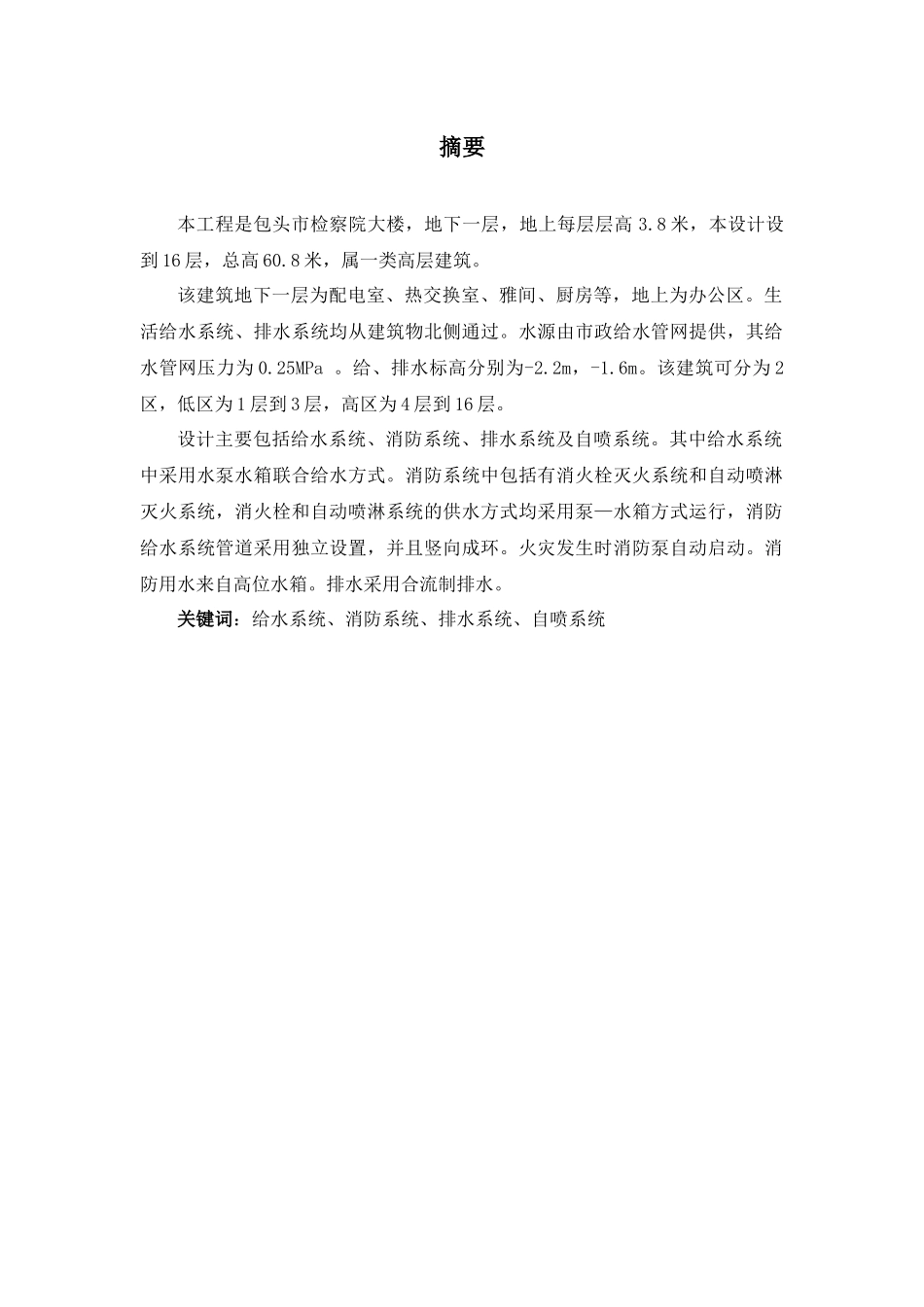

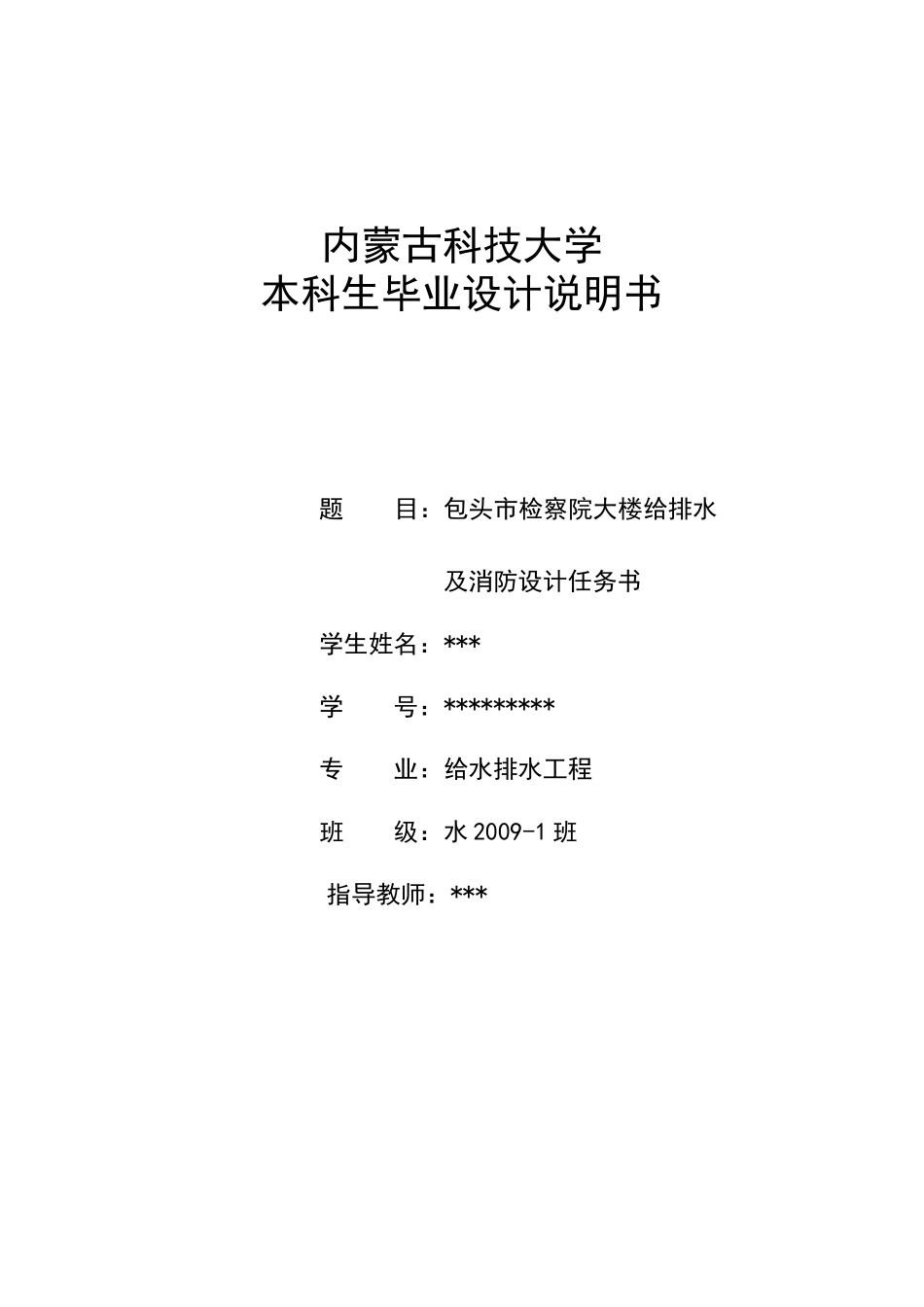

内蒙古科技大学本科生毕业设计说明书题目:包头市检察院大楼给排水及消防设计任务书学生姓名:***学号:*********专业:给水排水工程班级:水2009-1班指导教师:***摘要本工程是包头市检察院大楼,地下一层,地上每层层高3.8米,本设计设到16层,总高60.8米,属一类高层建筑。该建筑地下一层为配电室、热交换室、雅间、厨房等,地上为办公区。生活给水系统、排水系统均从建筑物北侧通过。水源由市政给水管网提供,其给水管网压力为0.25MPa。给、排水标高分别为-2.2m,-1.6m。该建筑可分为2区,低区为1层到3层,高区为4层到16层。设计主要包括给水系统、消防系统、排水系统及自喷系统。其中给水系统中采用水泵水箱联合给水方式。消防系统中包括有消火栓灭火系统和自动喷淋灭火系统,消火栓和自动喷淋系统的供水方式均采用泵—水箱方式运行,消防给水系统管道采用独立设置,并且竖向成环。火灾发生时消防泵自动启动。消防用水来自高位水箱。排水采用合流制排水。关键词:给水系统、消防系统、排水系统、自喷系统AbstractThisprojectbelongstothebuildingoftheCityProcuratorateofBaotou.Thisbuildinghasonefloorundergroundandeveryfloorovergroundhasastoryheightof3.8meters.Thisbuildingwillbedesignedas16floorsbuildingwithatotalheightof60.8meters,anditbelongstothefirstclasshigh-risebuildings.Thebasementofthisbuildingwillhaveapowerdistributionroom,aheatexchangechamber,aprivateroomandakitchen.Theovergroundpartofbuildingwillbeofficearea.Thewatersupplysystemandthedrainagesystemwillallbethroughbythenorthsideofthebuilding.Thesourceofwaterwillcomefrommunicipaladministration’swaterlinenetwork.Andthepressureofthiswaterlinenetworkis0.25MPa.Thewatersupplysystem’slevelis-2.2m,whereasthedrainagesystem’slevelis-1.6m.Thisbuildingcouldbedividedintotwoparts.Thelowpartofitisfirstfloortothethirdfloor,andthehighpartisfromfourthfloortosixteenthfloor.Thisdesignwillmainlyincludethewatersupplysystem,fireextinguishingsystem,drainagesystemandautomaticsprinklersystem.Amongthem,thewatersupplysystemusesawayofthecombinationofthewaterpumpandwatertanktosupplywater.Thefireextinguishingsystemincludesthefirehydrantsystemandautomaticsprinklersystem,andthewayofthesupplywaterofbothsystemsjustmentionedisthecombinedwaterpumpandtank.Thewatersupplysystemoffireextinguishingsystemisstettedseparately,andhasaverticalringformation.Thefirepumpwillbelaunchedautomaticallywhenfirehappened.Andthewaterforitisfromthehighcistern.Also,thedrainageusesthecombinedsewersystem.KeyWords:watersupplysystem,fireextinguishingsystem,drainagesystem,automaticsprinklersystem.前言随着我国国民经济的增强,人民生活水平的提高,人民对于给水排水方式都提出了越来越高的要求,从而也促进了给水排水的各方面都日趋完善,特别是改革开放以来的20年间,建筑给水排水面临蓬勃发展的大好时机,特别是小区和高层建筑的不断兴起,使建筑给水排水的各个领域都得到了不断的拓宽和深化。还有近年来乡镇企业的不断发展,农村生活质量的大大改善,使得建筑给水排水的应用越来越广,同时也对建筑给水排水提出了新的要求。毕业设计是给水排水专业的学生在完成本科教学计划中必不可少的环节,本科规定的完成全部课程后必须进行的实践性教育,学生通过毕业设计,综合运用和深化所学的基本理论、基本技能,培养学生独立分析和解决问题的能力,通过毕业设计能使学生具有一下几方面的能力:1.调查研究,收集资料及一定的阅读中外文献的能力,掌握查阅规范、标准设计图籍,产品目录的方法,提高计算、绘图和编写设计说明的水平,作好一个工程师的基本训练。2.方案的技术经济环境,社会等诸方面的综合分析,论证能力。3.熟悉高层建筑室内、外给水、排水及消防系统的详细计算和培养一定的理论分析和设计的能力。4.培养计算机操作和应用能力随着...
