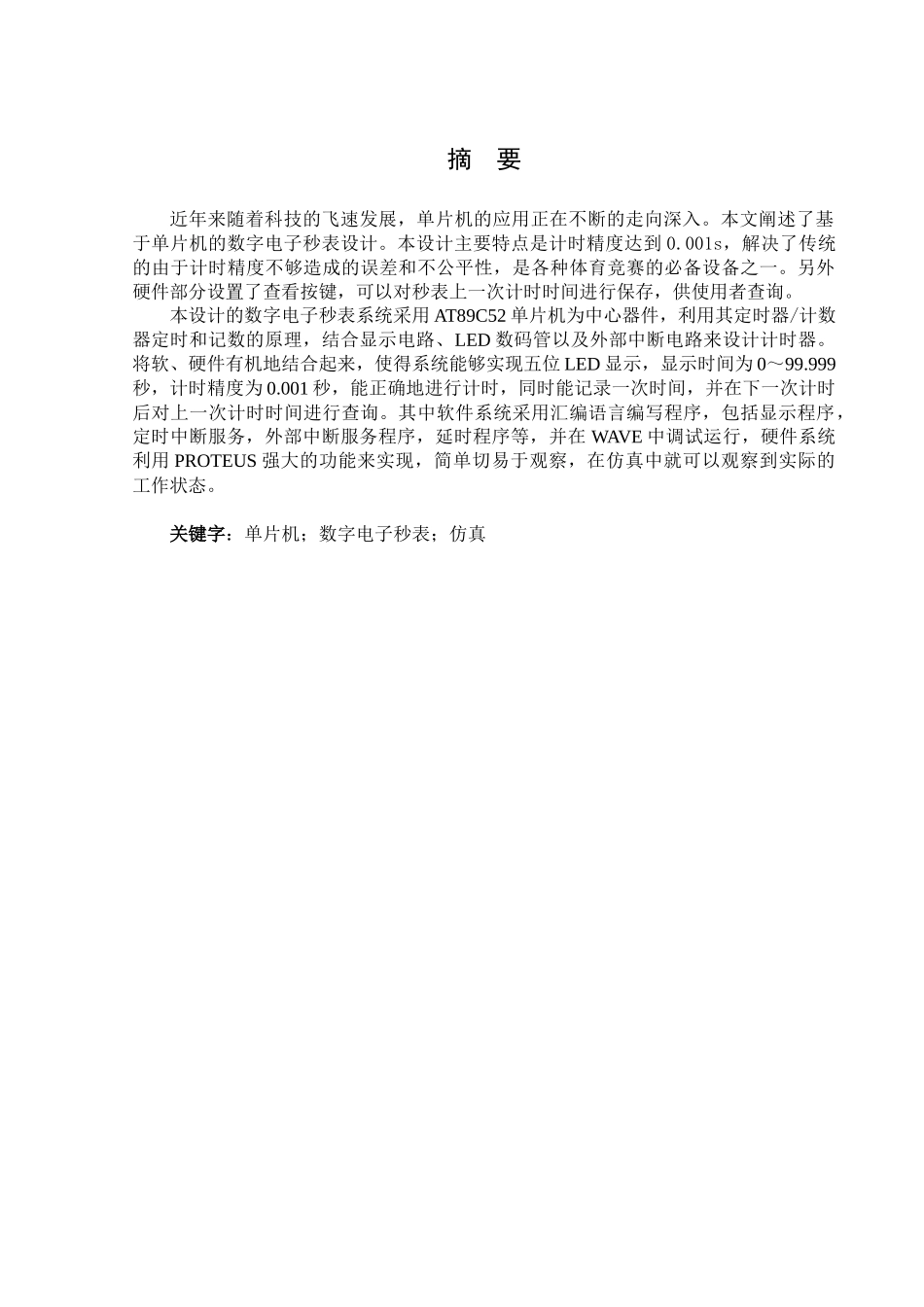

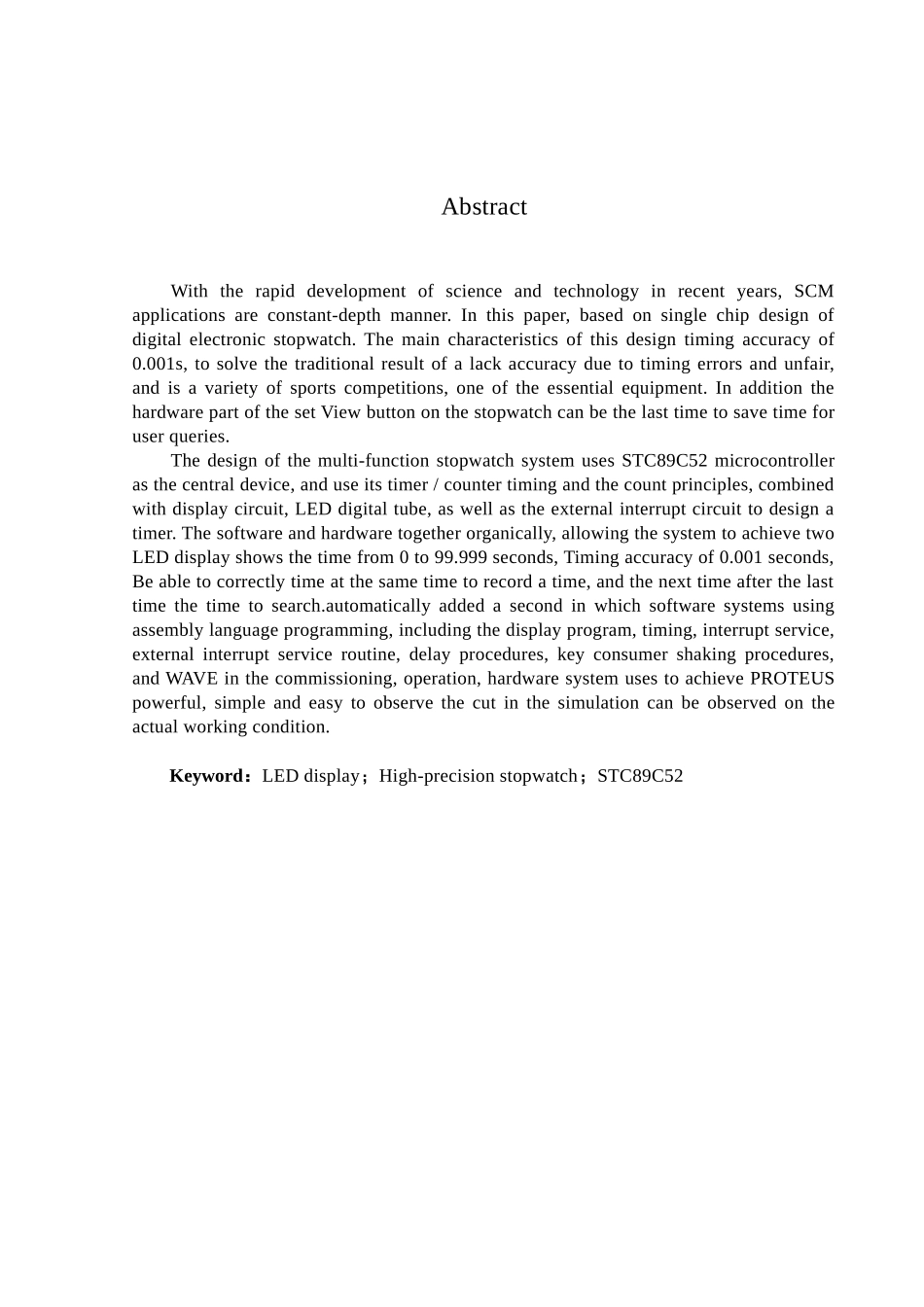

沈阳理工大学应用技术学院毕业设计（论文）题目：基于单片机的数字电子秒表的设计与实现系别：信息工程系专业：自动化学生姓名：胡培指导教师：唐朝仁年月日摘要近年来随着科技的飞速发展，单片机的应用正在不断的走向深入。本文阐述了基于单片机的数字电子秒表设计。本设计主要特点是计时精度达到0.001s，解决了传统的由于计时精度不够造成的误差和不公平性，是各种体育竞赛的必备设备之一。另外硬件部分设置了查看按键，可以对秒表上一次计时时间进行保存，供使用者查询。本设计的数字电子秒表系统采用AT89C52单片机为中心器件，利用其定时器/计数器定时和记数的原理，结合显示电路、LED数码管以及外部中断电路来设计计时器。将软、硬件有机地结合起来，使得系统能够实现五位LED显示，显示时间为0～99.999秒，计时精度为0.001秒，能正确地进行计时，同时能记录一次时间，并在下一次计时后对上一次计时时间进行查询。其中软件系统采用汇编语言编写程序，包括显示程序，定时中断服务，外部中断服务程序，延时程序等，并在WAVE中调试运行，硬件系统利用PROTEUS强大的功能来实现，简单切易于观察，在仿真中就可以观察到实际的工作状态。关键字：单片机；数字电子秒表；仿真AbstractWiththerapiddevelopmentofscienceandtechnologyinrecentyears,SCMapplicationsareconstant-depthmanner.Inthispaper,basedonsinglechipdesignofdigitalelectronicstopwatch.Themaincharacteristicsofthisdesigntimingaccuracyof0.001s,tosolvethetraditionalresultofalackaccuracyduetotimingerrorsandunfair,andisavarietyofsportscompetitions,oneoftheessentialequipment.InadditionthehardwarepartofthesetViewbuttononthestopwatchcanbethelasttimetosavetimeforuserqueries.Thedesignofthemulti-functionstopwatchsystemusesSTC89C52microcontrollerasthecentraldevice,anduseitstimer/countertimingandthecountprinciples,combinedwithdisplaycircuit,LEDdigitaltube,aswellastheexternalinterruptcircuittodesignatimer.Thesoftwareandhardwaretogetherorganically,allowingthesystemtoachievetwoLEDdisplayshowsthetimefrom0to99.999seconds,Timingaccuracyof0.001seconds,Beabletocorrectlytimeatthesametimetorecordatime,andthenexttimeafterthelasttimethetimetosearch.automaticallyaddedasecondinwhichsoftwaresystemsusingassemblylanguageprogramming,includingthedisplayprogram,timing,interruptservice,externalinterruptserviceroutine,delayprocedures,keyconsumershakingprocedures,andWAVEinthecommissioning,operation,hardwaresystemusestoachievePROTEUSpowerful,simpleandeasytoobservethecutinthesimulationcanbeobservedontheactualworkingcondition.Keyword：LEDdisplay；High-precisionstopwatch；STC89C52目录绪论..............................................................................................................................11硬件设计.........................................................................................................................41.1总体方案的设计..................................................................................................41.2单片机的选择......................................................................................................51.3显示电路的选择与设计......................................................................................81.4按键电路的选择与设计....................................................................................111.5时钟电路的选择与设计....................................................................................121.6复位电路的选择与设计....................................................................................141.7系统总电路的设计..................................
