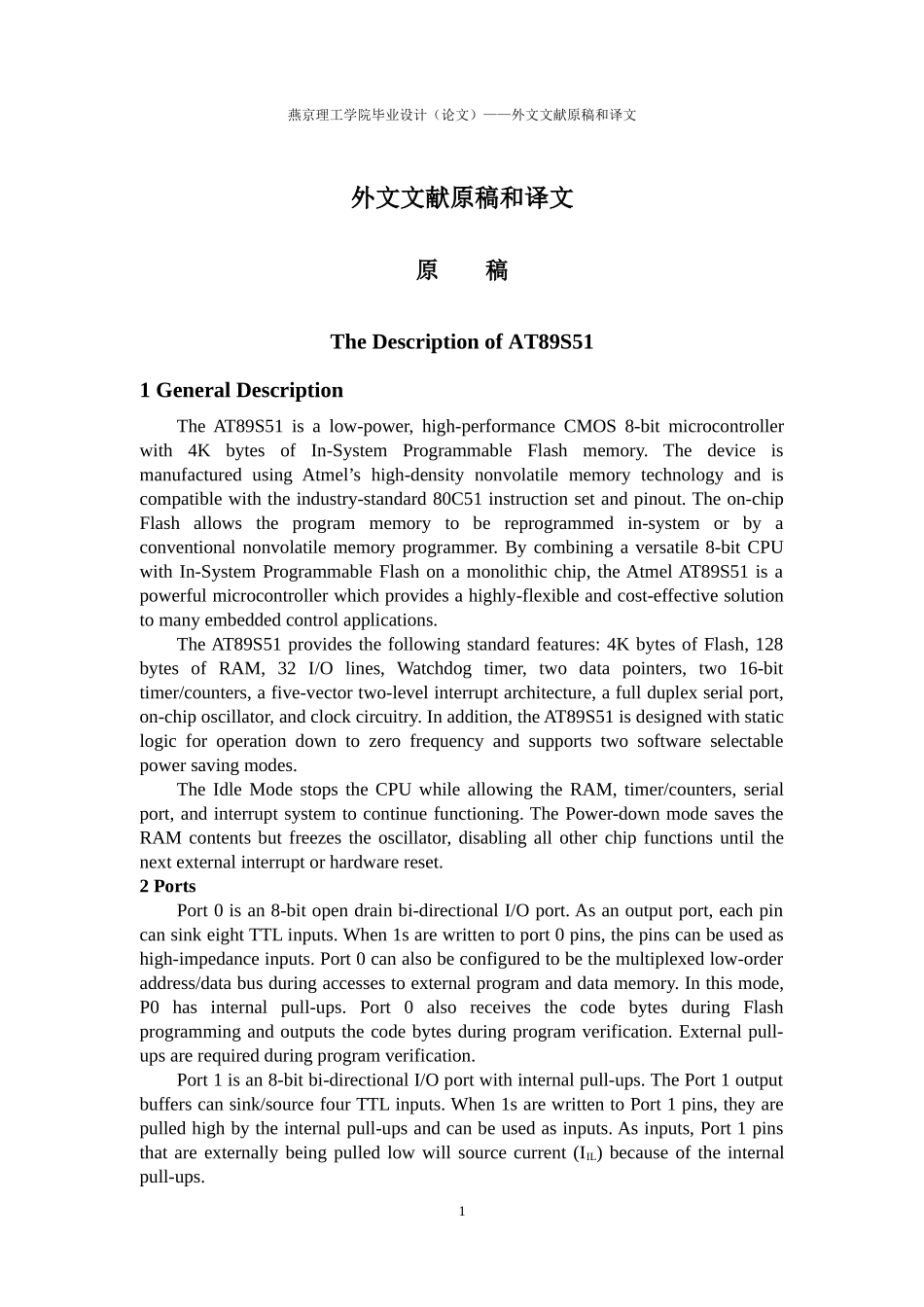

燕京理工学院毕业设计（论文）——外文文献原稿和译文外文文献原稿和译文原稿TheDescriptionofAT89S511GeneralDescriptionTheAT89S51isalow-power,high-performanceCMOS8-bitmicrocontrollerwith4KbytesofIn-SystemProgrammableFlashmemory.ThedeviceismanufacturedusingAtmel’shigh-densitynonvolatilememorytechnologyandiscompatiblewiththeindustry-standard80C51instructionsetandpinout.Theon-chipFlashallowstheprogrammemorytobereprogrammedin-systemorbyaconventionalnonvolatilememoryprogrammer.Bycombiningaversatile8-bitCPUwithIn-SystemProgrammableFlashonamonolithicchip,theAtmelAT89S51isapowerfulmicrocontrollerwhichprovidesahighly-flexibleandcost-effectivesolutiontomanyembeddedcontrolapplications.TheAT89S51providesthefollowingstandardfeatures:4KbytesofFlash,128bytesofRAM,32I/Olines,Watchdogtimer,twodatapointers,two16-bittimer/counters,afive-vectortwo-levelinterruptarchitecture,afullduplexserialport,on-chiposcillator,andclockcircuitry.Inaddition,theAT89S51isdesignedwithstaticlogicforoperationdowntozerofrequencyandsupportstwosoftwareselectablepowersavingmodes.TheIdleModestopstheCPUwhileallowingtheRAM,timer/counters,serialport,andinterruptsystemtocontinuefunctioning.ThePower-downmodesavestheRAMcontentsbutfreezestheoscillator,disablingallotherchipfunctionsuntilthenextexternalinterruptorhardwarereset.2PortsPort0isan8-bitopendrainbi-directionalI/Oport.Asanoutputport,eachpincansinkeightTTLinputs.When1sarewrittentoport0pins,thepinscanbeusedashigh-impedanceinputs.Port0canalsobeconfiguredtobethemultiplexedlow-orderaddress/databusduringaccessestoexternalprogramanddatamemory.Inthismode,P0hasinternalpull-ups.Port0alsoreceivesthecodebytesduringFlashprogrammingandoutputsthecodebytesduringprogramverification.Externalpull-upsarerequiredduringprogramverification.Port1isan8-bitbi-directionalI/Oportwithinternalpull-ups.ThePort1outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort1pins,theyarepulledhighbytheinternalpull-upsandcanbeusedasinputs.Asinputs,Port1pinsthatareexternallybeingpulledlowwillsourcecurrent(IIL)becauseoftheinternalpull-ups.1燕京理工学院毕业设计（论文）——外文文献原稿和译文Port1alsoreceivesthelow-orderaddressbytesduringFlashprogrammingandverification.Port2isan8-bitbi-directionalI/Oportwithinternalpull-ups.ThePort2outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort2pins,theyarepulledhighbytheinternalpull-upsandcanbeusedasinputs.Asinputs,Port2pinsthatareexternallybeingpulledlowwillsourcecurrent(IIL)becauseoftheinternalpull-ups.Port2emitsthehigh-orderaddressbyteduringfetchesfromexternalprogrammemoryandduringaccessestoexternaldatamemorythatuse16-bitaddresses(MOVX@DPTR).Inthisapplication,Port2usesstronginternalpull-upswhenemitting1s.Duringaccessestoexternaldatamemorythatuse8-bitaddresses(MOVX@RI),Port2emitsthecontentsoftheP2SpecialFunctionRegister.Port2alsoreceivesthehigh-orderaddressbitsandsomecontrolsignalsduringFlashprogrammingandverification.Port3isan8-bitbi-directionalI/Oportwithinternalpull-ups.ThePort3outputbufferscansink/sourcefourTTLinputs.When1sarewrittentoPort3pins,theyarepulledhighbytheinternalpull-upsandcanbeusedasinputs.Asinputs,Port3pinsthatareexternallybeingpulledlowwillsourcecurrent(IIL)becauseofthepull-ups.Port3receivessomecontrolsignalsforFlashprogrammingandverification.Port3alsoservesthefunctionsofvariousspecialfeaturesoftheAT89S51,asshowninthefollowingtable.3Sp...
