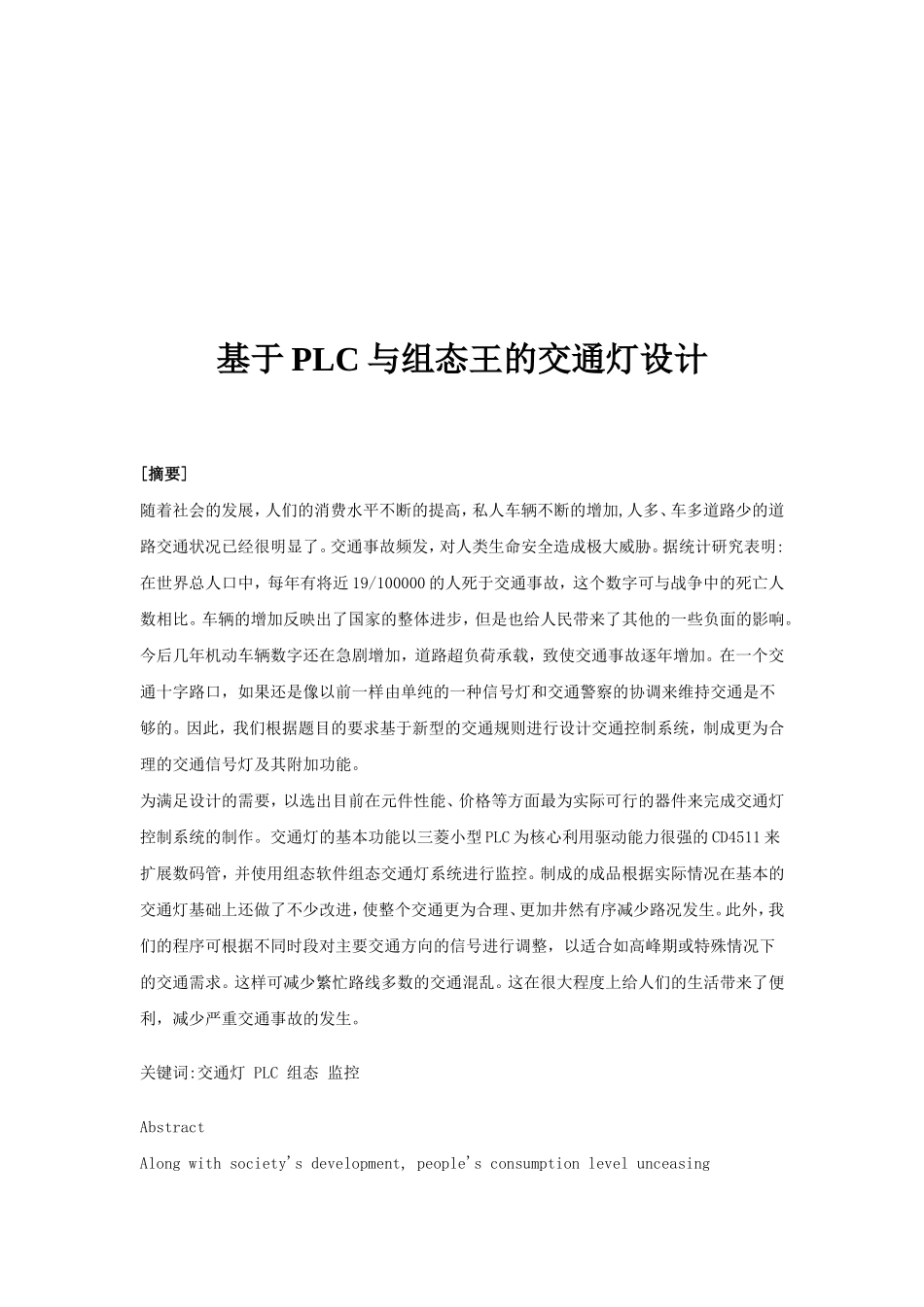

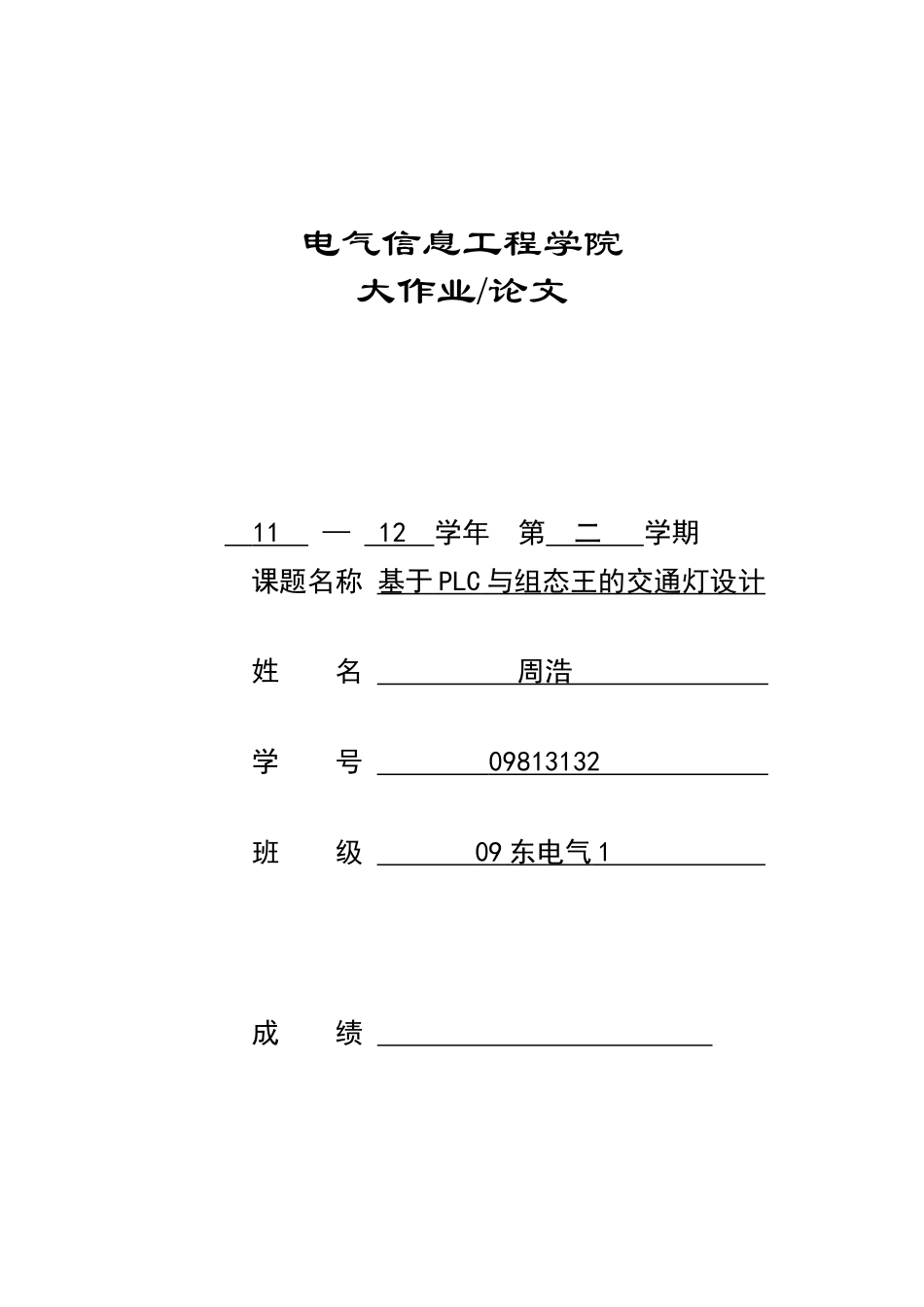

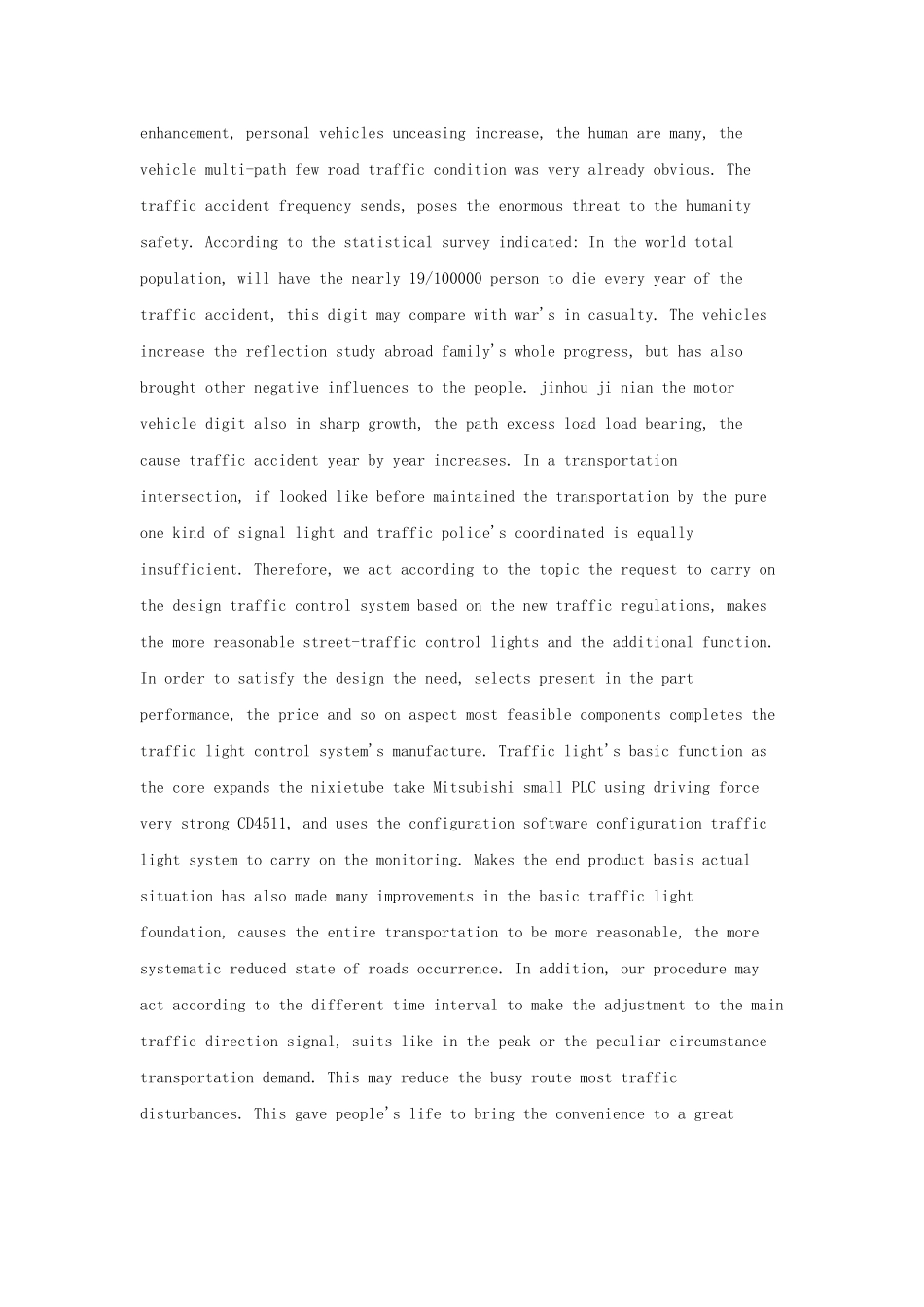

电气信息工程学院大作业/论文11—12学年第二学期课题名称基于PLC与组态王的交通灯设计姓名周浩学号09813132班级09东电气1成绩基于PLC与组态王的交通灯设计[摘要]随着社会的发展,人们的消费水平不断的提高,私人车辆不断的增加,人多、车多道路少的道路交通状况已经很明显了。交通事故频发,对人类生命安全造成极大威胁。据统计研究表明:在世界总人口中,每年有将近19/100000的人死于交通事故,这个数字可与战争中的死亡人数相比。车辆的增加反映出了国家的整体进步,但是也给人民带来了其他的一些负面的影响。今后几年机动车辆数字还在急剧增加,道路超负荷承载,致使交通事故逐年增加。在一个交通十字路口,如果还是像以前一样由单纯的一种信号灯和交通警察的协调来维持交通是不够的。因此,我们根据题目的要求基于新型的交通规则进行设计交通控制系统,制成更为合理的交通信号灯及其附加功能。为满足设计的需要,以选出目前在元件性能、价格等方面最为实际可行的器件来完成交通灯控制系统的制作。交通灯的基本功能以三菱小型PLC为核心利用驱动能力很强的CD4511来扩展数码管,并使用组态软件组态交通灯系统进行监控。制成的成品根据实际情况在基本的交通灯基础上还做了不少改进,使整个交通更为合理、更加井然有序减少路况发生。此外,我们的程序可根据不同时段对主要交通方向的信号进行调整,以适合如高峰期或特殊情况下的交通需求。这样可减少繁忙路线多数的交通混乱。这在很大程度上给人们的生活带来了便利,减少严重交通事故的发生。关键词:交通灯PLC组态监控AbstractAlongwithsociety'sdevelopment,people'sconsumptionlevelunceasingenhancement,personalvehiclesunceasingincrease,thehumanaremany,thevehiclemulti-pathfewroadtrafficconditionwasveryalreadyobvious.Thetrafficaccidentfrequencysends,posestheenormousthreattothehumanitysafety.Accordingtothestatisticalsurveyindicated:Intheworldtotalpopulation,willhavethenearly19/100000persontodieeveryyearofthetrafficaccident,thisdigitmaycomparewithwar'sincasualty.Thevehiclesincreasethereflectionstudyabroadfamily'swholeprogress,buthasalsobroughtothernegativeinfluencestothepeople.jinhoujinianthemotorvehicledigitalsoinsharpgrowth,thepathexcessloadloadbearing,thecausetrafficaccidentyearbyyearincreases.Inatransportationintersection,iflookedlikebeforemaintainedthetransportationbythepureonekindofsignallightandtrafficpolice'scoordinatedisequallyinsufficient.Therefore,weactaccordingtothetopictherequesttocarryonthedesigntrafficcontrolsystembasedonthenewtrafficregulations,makesthemorereasonablestreet-trafficcontrollightsandtheadditionalfunction.Inordertosatisfythedesigntheneed,selectspresentinthepartperformance,thepriceandsoonaspectmostfeasiblecomponentscompletesthetrafficlightcontrolsystem'smanufacture.Trafficlight'sbasicfunctionasthecoreexpandsthenixietubetakeMitsubishismallPLCusingdrivingforceverystrongCD4511,andusestheconfigurationsoftwareconfigurationtrafficlightsystemtocarryonthemonitoring.Makestheendproductbasisactualsituationhasalsomademanyimprovementsinthebasictrafficlightfoundation,causestheentiretransportationtobemorereasonable,themoresystematicreducedstateofroadsoccurrence.Inaddition,ourproceduremayactaccordingtothedifferenttimeintervaltomaketheadjustmenttothemaintrafficdirectionsignal,suitslikeinthepeakorthepeculiarcircumstancetransportationdemand.Thismayreducethebusyroutemosttrafficdisturbances.Thisgavepeople'slifetobringtheconveniencetoagreatextent,reducedtheserioustrafficaccident'soccurrence.keyword:TrafficlightPLCconfigurationmonitoring1、引言组态王软件结构由工程管理器、工程浏览器及运行系统三部分构成。通常情况下,建立一个组态王应用工程大致可...
