10KV高压电缆试验记录VIP免费

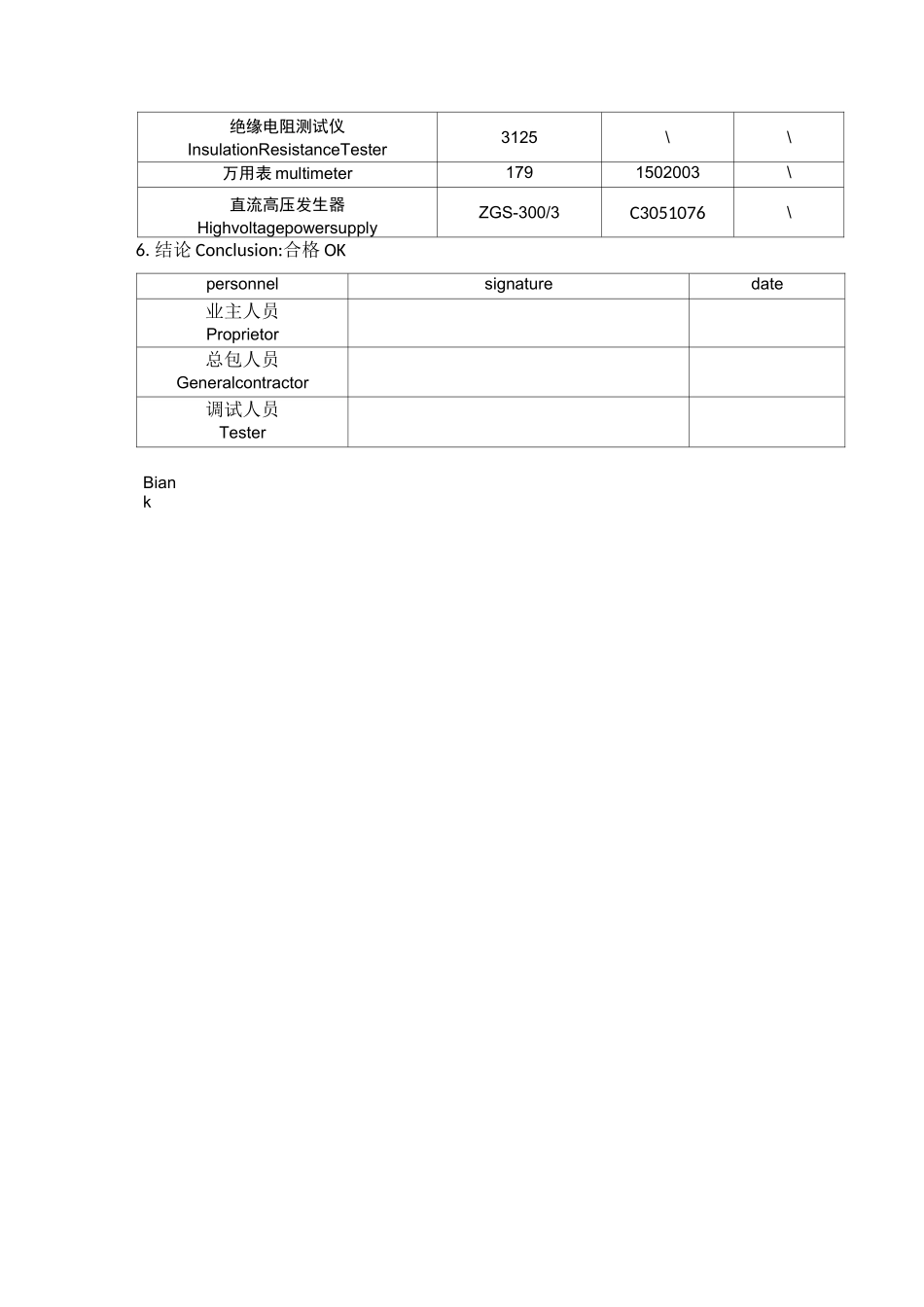

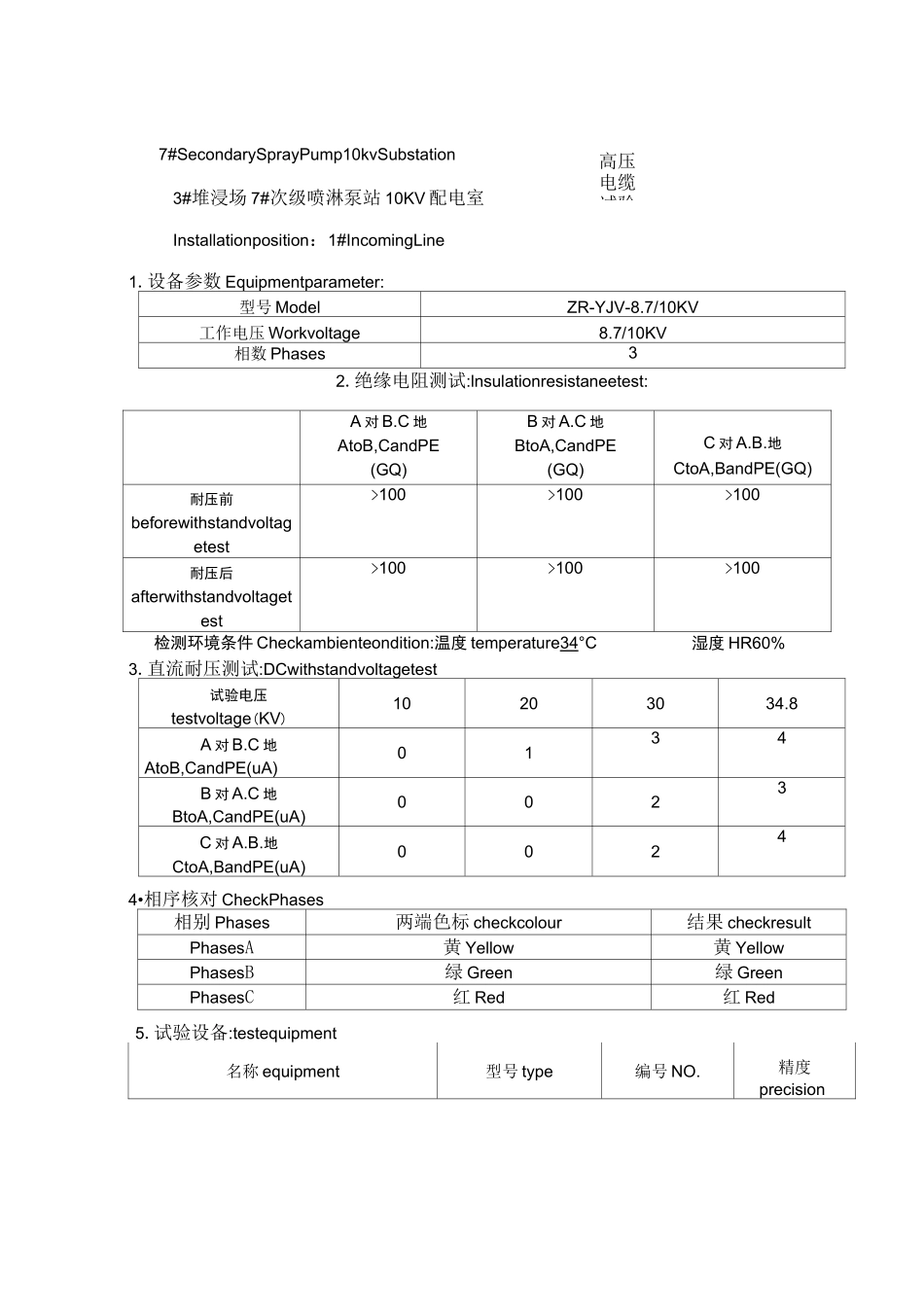

高压电缆试验7#SecondarySprayPump10kvSubstation3#堆浸场7#次级喷淋泵站10KV配电室Installationposition：1#IncomingLine1.设备参数Equipmentparameter:型号ModelZR-YJV-8.7/10KV工作电压Workvoltage8.7/10KV相数Phases32.绝缘电阻测试:lnsulationresistaneetest:A对B.C地AtoB,CandPE(GQ)B对A.C地BtoA,CandPE(GQ)C对A.B.地CtoA,BandPE(GQ)耐压前beforewithstandvoltagetest>100>100>100耐压后afterwithstandvoltagetest>100>100>1003.直流耐压测试:DCwithstandvoltagetest试验电压testvoltage(KV)10203034.8A对B.C地AtoB,CandPE(uA)0134B对A.C地BtoA,CandPE(uA)0023C对A.B.地CtoA,BandPE(uA)00244•相序核对CheckPhases相别Phases两端色标checkcolour结果checkresultPhasesA黄Yellow黄YellowPhasesB绿Green绿GreenPhasesC红Red红Red5.试验设备:testequipment名称equipment型号type编号NO.精度precision检测环境条件Checkambienteondition:温度temperature34°C湿度HR60%Biank绝缘电阻测试仪InsulationResistanceTester3125\\万用表multimeter1791502003\直流高压发生器HighvoltagepowersupplyZGS-300/3C3051076\6.结论Conclusion:合格OKpersonnelsignaturedate业主人员Proprietor总包人员Generalcontractor调试人员Tester高压电缆试验记录HVcabletestrecords7#SecondarySprayPump10kvSubstation3#堆浸场7#次级喷淋泵站10KV配电室Installationposition：2#IncomingLine1.设备参数Equipmentparameter:型号ModelZR-YJV-8.7/10KV工作电压Workvoltage8.7/10KV相数Phases32.绝缘电阻测试:lnsulationresistaneetest:检测环境条件Checkambientcondition:温度temperature34°C湿度HR60%3.直流耐压测试:DCwithstandvoltagetest4•相序核对checkPhases相别Phases两端色标checkcolour结果checkresultPhasesA黄Yellow黄YellowPhasesB绿Green绿GreenPhasesC红Red红Red5.试验设备:testequipment名称equipment型号type编号NO.精度precisionBiank绝缘电阻测试仪InsulationResistanceTester3125\\万用表multimeter1791502003\直流高压发生器HighvoltagepowersupplyZGS-300/3C3051076\6.结论conclusion:合格OKpersonnelsignaturedate业主人员Proprietor总包人员Generalcontractor调试人员Tester高压电缆试验记录HVcabletestrecords7#SecondarySprayPump10kvSubstation3#堆浸场7#次级喷淋泵站10KV配电室Installationposition：Transformer1.设备参数Equipmentparameter:型号ModelZR-YJV-8.7/10KV工作电压Workvoltage8.7/10KV相数Phases32.绝缘电阻测试:lnsulationresistaneetest:检测环境条件Checkambienteondition:温度temperature34°C湿度HR60%A对B.C地AtoB,CandPE(GQ)B对A.C地BtoA,CandPE(GQ)C对A.B.地CtoA,BandPE(GQ)耐压前beforewithstandvoltagetest>100>10087耐压后afterwithstandvoltagetest>100>100>1003.直流耐压测试:DCwithstandvoltagetest试验电压testvoltage(KV)10203034.8A对B.C地AtoB,CandPE(uA)0024B对A.C地BtoA,CandPE(uA)0156C对A.B.地CtoA,BandPE(uA)00254•相序核对checkPhases相别Phases两端色标checkcolour结果checkresultPhasesA黄Yellow黄YellowPhasesB绿Green绿GreenPhasesC红Red红Red5.试验设备:testequipment名称equipment型号type编号NO.精度precisionBiank绝缘电阻测试仪InsulationResistanceTester3125\\万用表multimeter1791502003\直流高压发生器HighvoltagepowersupplyZGS-300/3C3051076\6.结论conclusion:合格OKpersonnelsignaturedate业主人员Proprietor总包人员Generalcontractor调试人员Tester
