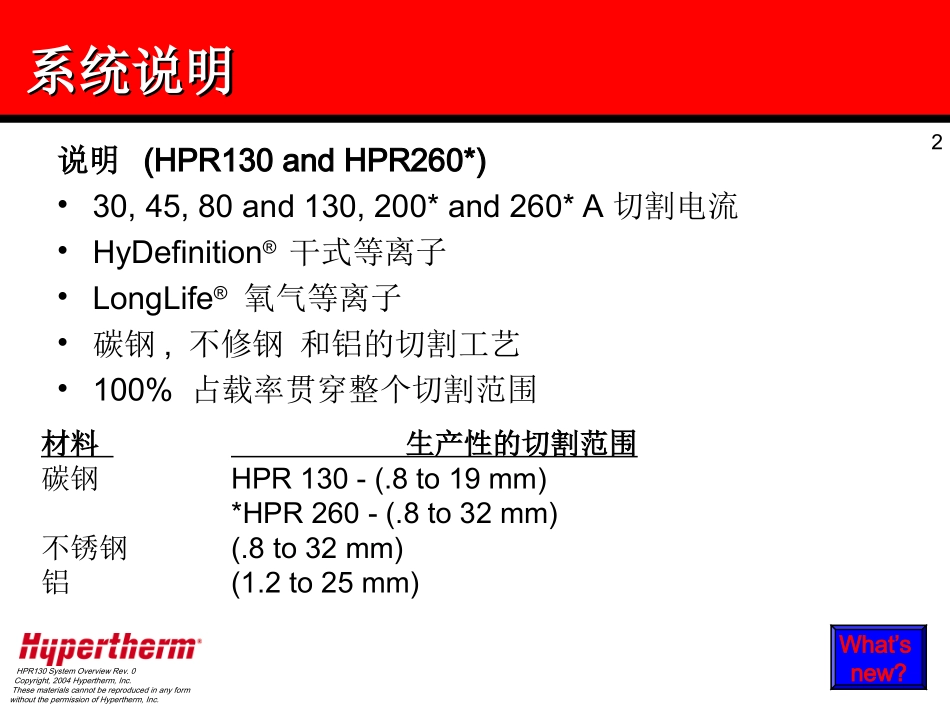

HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.系统概述HyPerformanceHyPerformance™™PlasmaPlasmaHPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.2系统说明系统说明说明(HPR130andHPR260*)•30,45,80and130,200*and260*A切割电流•HyDefinition®干式等离子•LongLife®氧气等离子•碳钢,不修钢和铝的切割工艺•100%占载率贯穿整个切割范围材料生产性的切割范围碳钢HPR130-(.8to19mm)*HPR260-(.8to32mm)不锈钢(.8to32mm)铝(1.2to25mm)What’snew?HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.3LongLifeLongLife长寿命技术长寿命技术Hypertherm通过控制电流和气体的渐升和渐降来改善电极的寿命.LongLife®长寿命技术减少了铪芯在每一次的起弧和断弧中的损耗.HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.4等离子电源标准系统元件标准系统元件HPR130等离子电源带有一个130A,19.5kW的斩波器,用来产生恒定的直流输出,其范围从15A到130A.HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.5等离子电源标准系统元件标准系统元件SystemLayoutHPR260等离子电源带有二个130A,19.5kW的斩波器,用来产生恒定的直流输出,其范围从15A到260A.What’snew?HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.6标准系统元件标准系统元件HPR割枪•水冷.•260A能力.•O2/Air,O2/O2,N2/N2,H35/N2,和F5/N2切割工艺.•HyDefinition®部件.•划线和切割可用同一套易损件.SystemLayoutHPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.7标准系统元件标准系统元件SystemLayout开关阀组件•控制等离子气/保护气的预流/切割流.•同气体控制器相连.•设置在离割枪(1.8M)之内.HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.8手动气体控制器和用户操作界面标准系统元件标准系统元件•系统电源开关.•出错灯和代码.•气体选择和流量设定.•切割电流设定.SystemLayoutHPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.9手动气体控制器标准系统元件标准系统元件•进气连接.•等离子气/保护气的预流/切割流.•压力传感器检测背压SystemLayoutWhat’snew?HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.10自动气体控制器自动气体控制器标准系统元件标准系统元件SystemLayout流量控制器选择气体控制器What’snew?HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.1111选择气体控制器的内部选择气体控制器的内部继电器板Motorizedmeteringvalves电源分配板压力传感器控制板马达混合阀电磁阀组HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.12流量控制器内部流量控制器内部控制板比例阀组电源分配板压力传感器电磁阀(通风)HPR130SystemOverviewRev.0Copyright,2004Hypertherm,Inc.ThesematerialscannotbereproducedinanyformwithoutthepermissionofHypertherm,Inc.13标准系统元件标准系统元件外置高频箱(...
