KTH3三相功率控制器使用说明书VIP免费

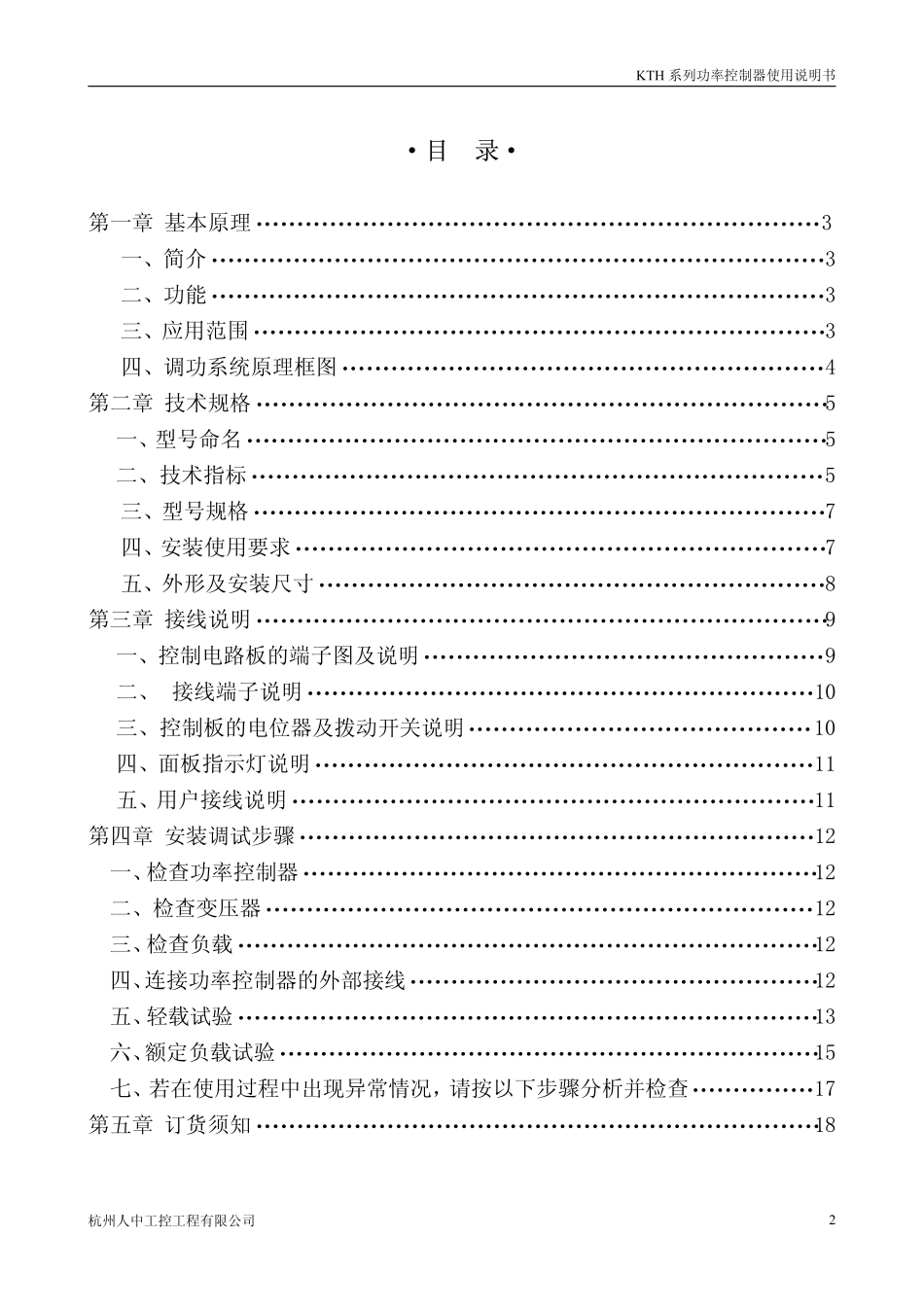

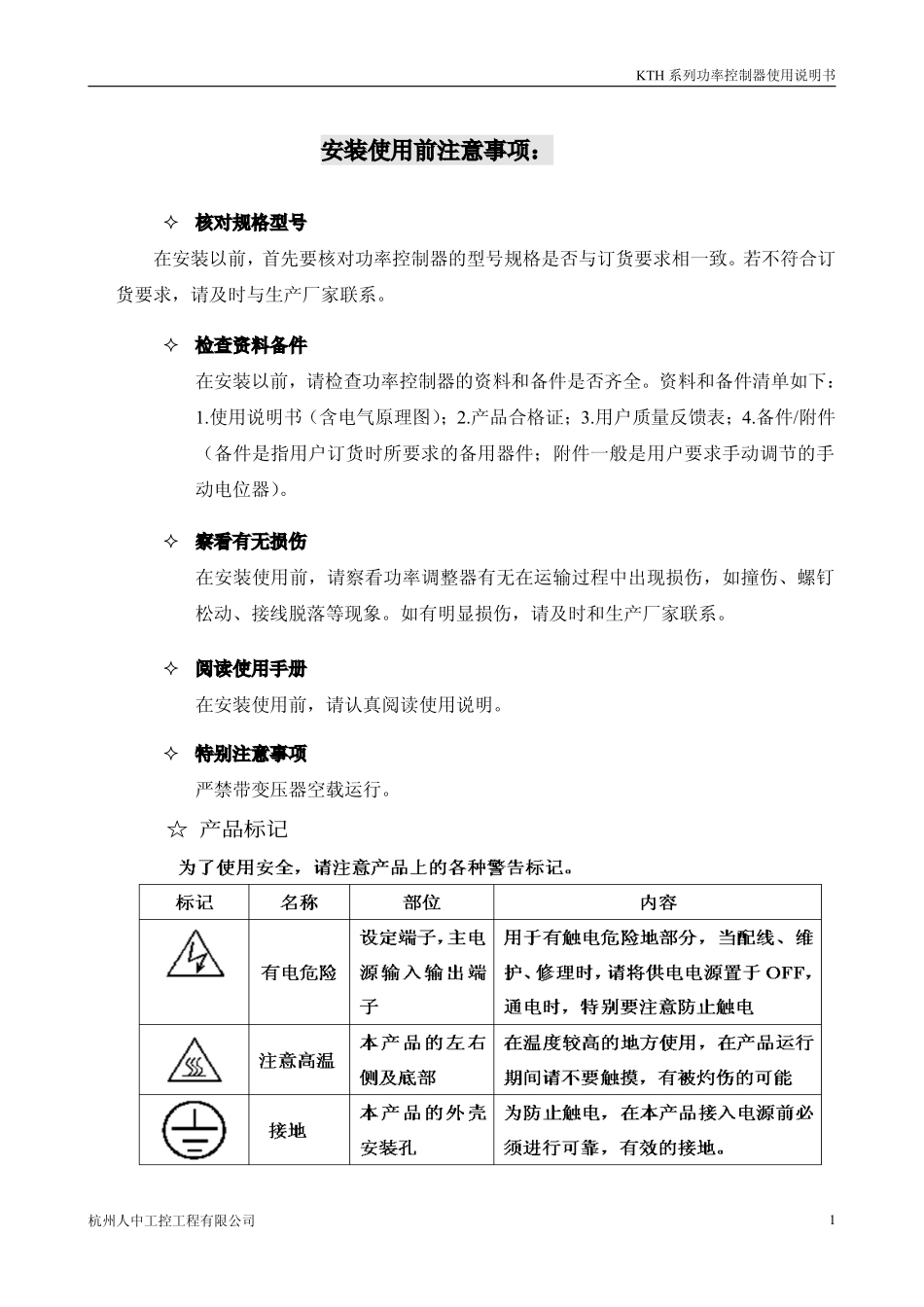

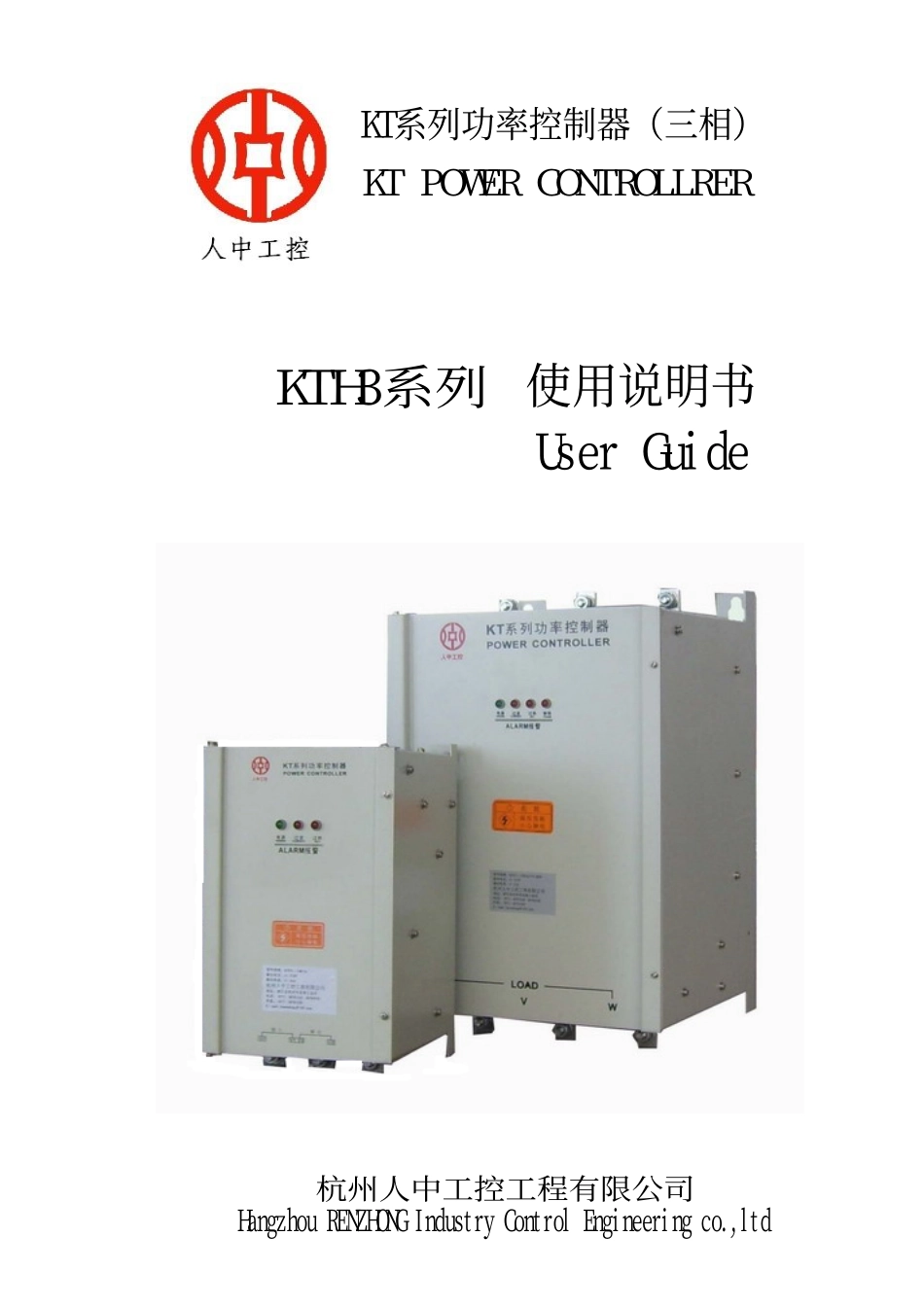

KT系列功率控制器（三相）KTPOWERCONTROLLRER使用说明书UserGuide杭州人中工控工程有限公司HangzhouRENZHONGIndustryControlEngineeringco.,ltdKTH3系列KTH系列功率控制器使用说明书杭州人中工控工程有限公司1安装使用前注意事项：核对规格型号在安装以前，首先要核对功率控制器的型号规格是否与订货要求相一致。若不符合订货要求，请及时与生产厂家联系。检查资料备件在安装以前，请检查功率控制器的资料和备件是否齐全。资料和备件清单如下：1.使用说明书（含电气原理图）；2.产品合格证；3.用户质量反馈表；4.备件/附件（备件是指用户订货时所要求的备用器件；附件一般是用户要求手动调节的手动电位器）。察看有无损伤在安装使用前，请察看功率调整器有无在运输过程中出现损伤，如撞伤、螺钉松动、接线脱落等现象。如有明显损伤，请及时和生产厂家联系。阅读使用手册在安装使用前，请认真阅读使用说明。特别注意事项严禁带变压器空载运行。☆产品标记KTH系列功率控制器使用说明书杭州人中工控工程有限公司2·目录·第一章基本原理·····································································3一、简介···········································································3二、功能···········································································3三、应用范围······································································3四、调功系统原理框图···························································4第二章技术规格······································································5一、型号命名·······································································5二、技术指标······································································5三、型号规格······································································7四、安装使用要求·································································7五、外形及安装尺寸······························································8第三章接线说明······································································9一、控制电路板的端子图及说明·················································9二、接线端子说明······························································10三、控制板的电位器及拨动开关说明··········································10四、面板指示灯说明·····························································11五、用户接线说明·················································...
