常用胆机电源牛制作数据VIP免费

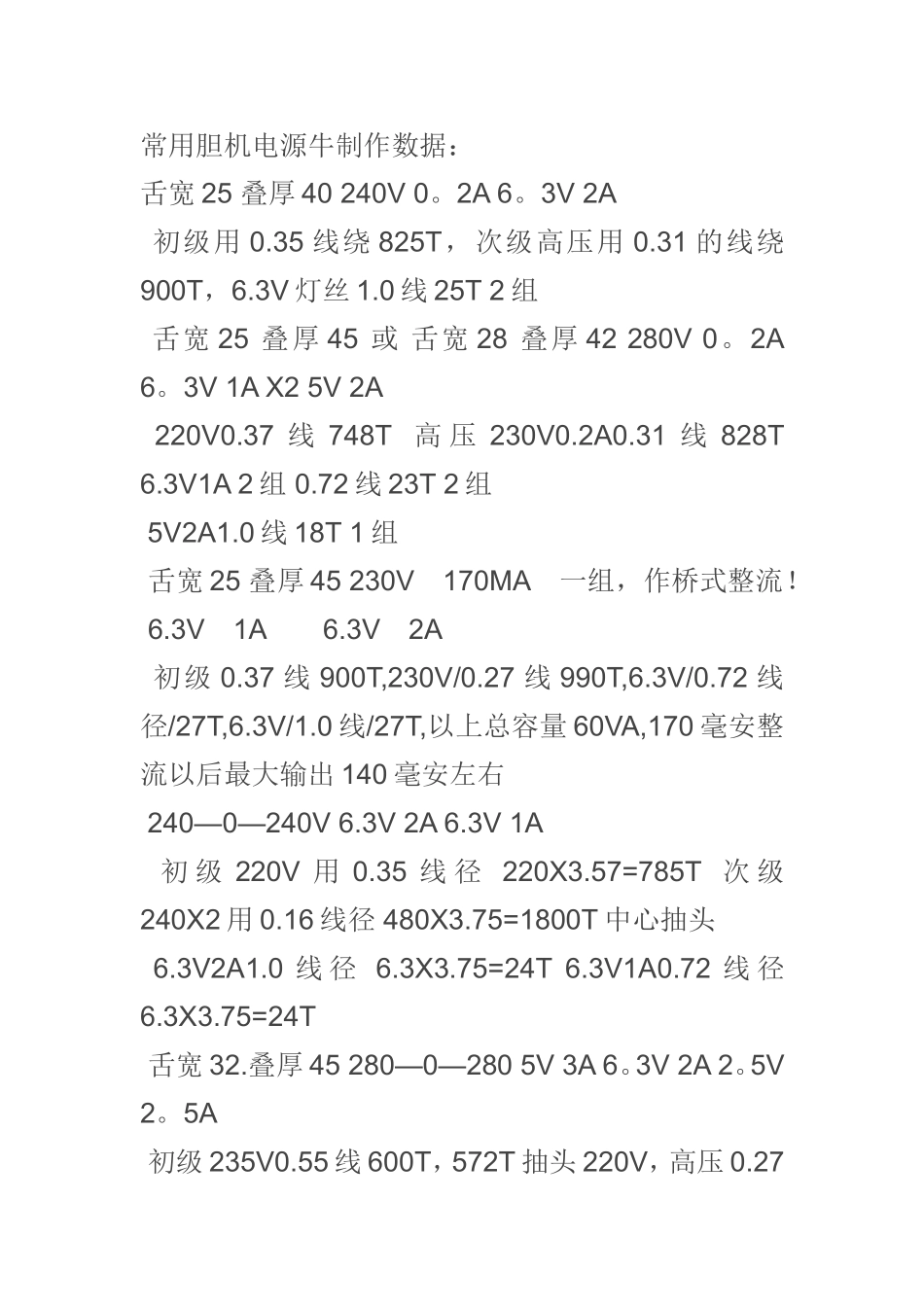

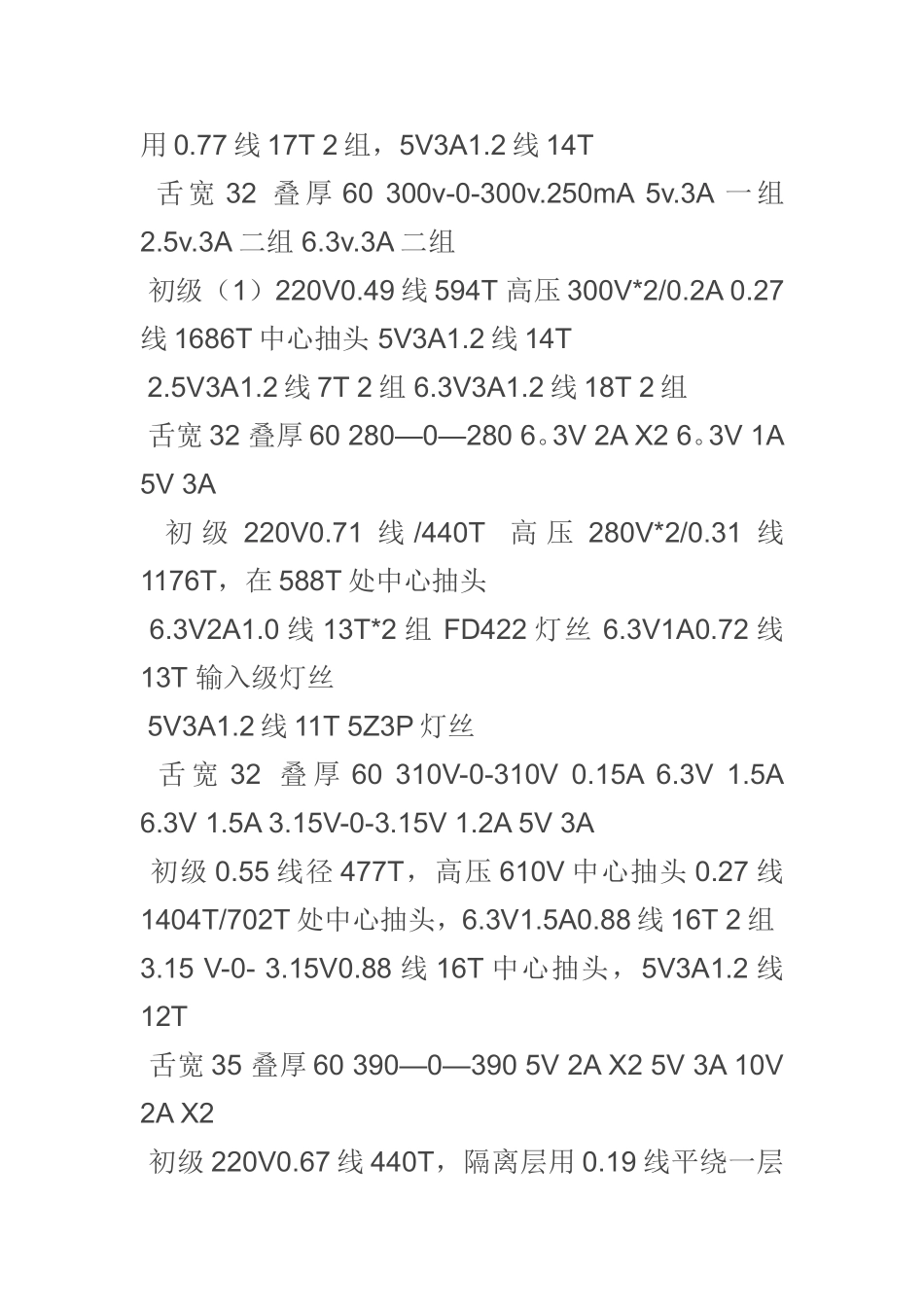

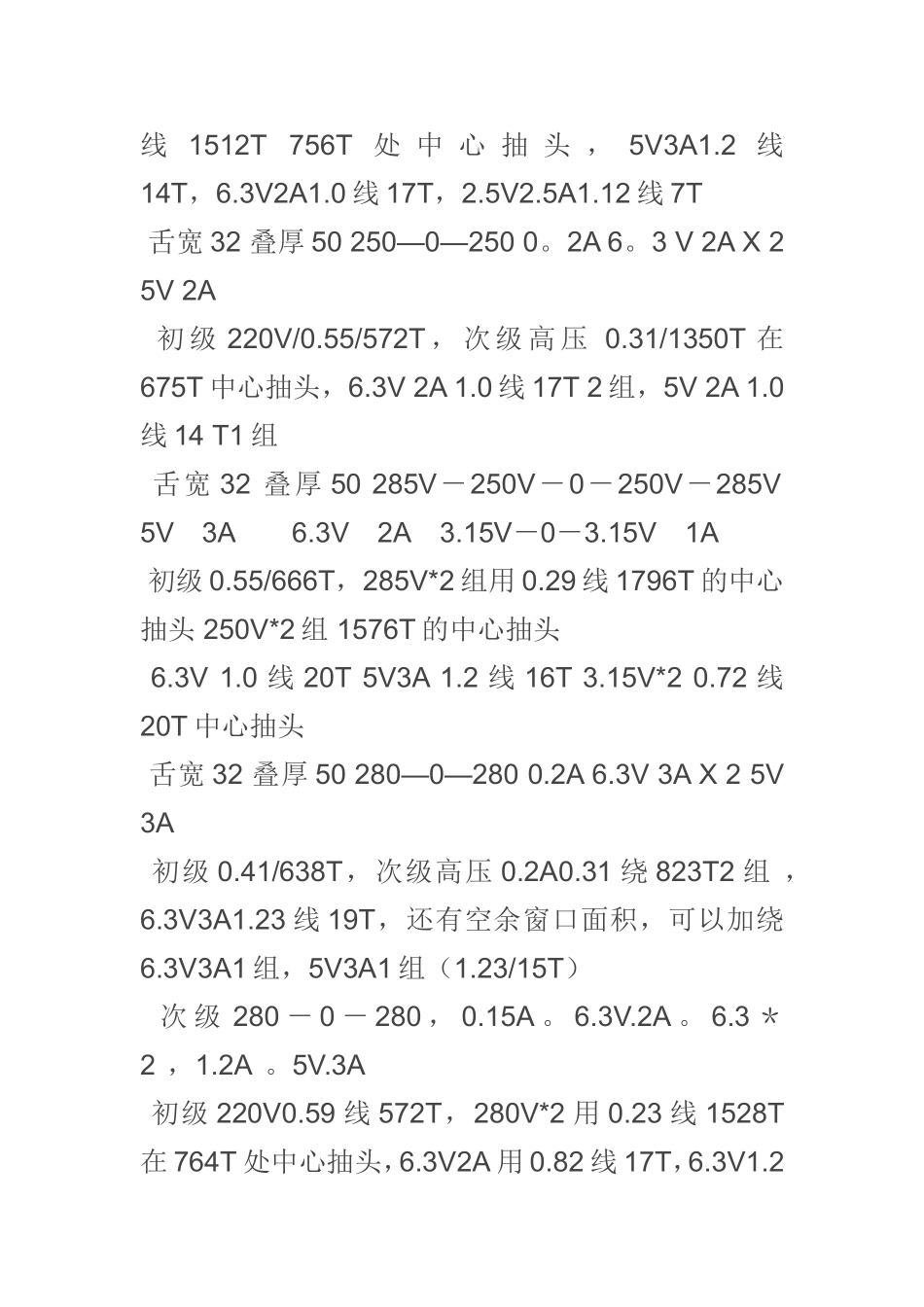

常用胆机电源牛制作数据：舌宽25叠厚40240V0。2A6。3V2A初级用0.35线绕825T，次级高压用0.31的线绕900T，6.3V灯丝1.0线25T2组舌宽25叠厚45或舌宽28叠厚42280V0。2A6。3V1AX25V2A220V0.37线748T高压230V0.2A0.31线828T6.3V1A2组0.72线23T2组5V2A1.0线18T1组舌宽25叠厚45230V170MA一组，作桥式整流！6.3V1A6.3V2A初级0.37线900T,230V/0.27线990T,6.3V/0.72线径/27T,6.3V/1.0线/27T,以上总容量60VA,170毫安整流以后最大输出140毫安左右240—0—240V6.3V2A6.3V1A初级220V用0.35线径220X3.57=785T次级240X2用0.16线径480X3.75=1800T中心抽头6.3V2A1.0线径6.3X3.75=24T6.3V1A0.72线径6.3X3.75=24T舌宽32.叠厚45280—0—2805V3A6。3V2A2。5V2。5A初级235V0.55线600T，572T抽头220V，高压0.27线1512T756T处中心抽头，5V3A1.2线14T，6.3V2A1.0线17T，2.5V2.5A1.12线7T舌宽32叠厚50250—0—2500。2A6。3V2AX25V2A初级220V/0.55/572T，次级高压0.31/1350T在675T中心抽头，6.3V2A1.0线17T2组，5V2A1.0线14T1组舌宽32叠厚50285V－250V－0－250V－285V5V3A6.3V2A3.15V－0－3.15V1A初级0.55/666T，285V*2组用0.29线1796T的中心抽头250V*2组1576T的中心抽头6.3V1.0线20T5V3A1.2线16T3.15V*20.72线20T中心抽头舌宽32叠厚50280—0—2800.2A6.3V3AX25V3A初级0.41/638T，次级高压0.2A0.31绕823T2组，6.3V3A1.23线19T，还有空余窗口面积，可以加绕6.3V3A1组，5V3A1组（1.23/15T）次级280－0－280，0.15A。6.3V.2A。6.3＊2，1.2A。5V.3A初级220V0.59线572T，280V*2用0.23线1528T在764T处中心抽头，6.3V2A用0.82线17T，6.3V1.2用0.77线17T2组，5V3A1.2线14T舌宽32叠厚60300v-0-300v.250mA5v.3A一组2.5v.3A二组6.3v.3A二组初级（1）220V0.49线594T高压300V*2/0.2A0.27线1686T中心抽头5V3A1.2线14T2.5V3A1.2线7T2组6.3V3A1.2线18T2组舌宽32叠厚60280—0—2806。3V2AX26。3V1A5V3A初级220V0.71线/440T高压280V*2/0.31线1176T，在588T处中心抽头6.3V2A1.0线13T*2组FD422灯丝6.3V1A0.72线13T输入级灯丝5V3A1.2线11T5Z3P灯丝舌宽32叠厚60310V-0-310V0.15A6.3V1.5A6.3V1.5A3.15V-0-3.15V1.2A5V3A初级0.55线径477T，高压610V中心抽头0.27线1404T/702T处中心抽头，6.3V1.5A0.88线16T2组3.15V-0-3.15V0.88线16T中心抽头，5V3A1.2线12T舌宽35叠厚60390—0—3905V2AX25V3A10V2AX2初级220V0.67线440T，隔离层用0.19线平绕一层尾引出接地，390V高压0.27线1638T在819T中心抽头，5V2A1.0线11T2组，5V3A1.2线11T1组，10V2A1.0线21T2组舌宽35叠厚50330—0—3300。2A6。3V4AX25V3A初级220V用0.57线550T，高压0.31线1716T中心抽头，6.3V*2用1.4线径34T中心抽头，5V3A1.2线13T舌宽35叠厚50初级220V线径0.67绕484T，高压采用晶体两极管桥式整流，285V线径0.47绕658T1组，6.3V3A线径1.25绕15T2组舌宽35叠厚45250—0—2505V3A6。3V3AX2初级220V0.59线660T，高压0.29线1574T中心787T处抽头，5V3A1.2线16T1组，6.3V3A1.2线20T*2组舌宽35叠厚550—290V—300V—310V0。35A10V0。1A50V0。1A6。3V3A0—6。3V—12。6V2A初级用0.67线519T高压用0.41线765T+26T+26T10V/0.1A用0.21线26T50V/0.1A用0.21线130T6.3V3A用1.2线16T2组12.6V1.0线32T中心16T抽头舌宽38叠厚60500V—0—500V6.3V两组12.6V一组5V一组400VA，220V0.93线418T，1000V中心抽头0.38线径2000T（1000T处抽头）6.3V1.2线径13T2组，12.6V1.2线径25T，5V1.2线径10T330V10V5A6.3V3A220V0.74线495T330V0.47线780T10V5A1.56线24T6.3V3A1.2线15T舌宽38叠厚50250V0.3A6.3V2AX3初级220V0.57线583T250V0.3A0.38线695T6.3V2A1.0线17.5T3组舌宽38叠厚60240—0—2402.5V6AX26.3V3AX26.3V1A220V线径0.74396T240V线径0.44456TX22.5V线径1.75T2组6.3V线径1.2112T2组6.3V0.72线径12T1组舌宽40叠厚75220V线径1.0/374T高压绕组350V0.87A305VA线径0.62/648T805灯丝10V5AX2组100VA线径1.56/18.5T2组推动前级6.3V3AX2组38VA线径1.0/12T2组偏压30VX0.3A0.38/56T1组舌宽44叠厚75400V120V10V4AX26.3V2AX25V3AX2220V初级0.94线308T高压倍压400V0.55线600T805灯丝10V4A1.4线径15T2组6.3V2A1.0线9T2组偏压120...
