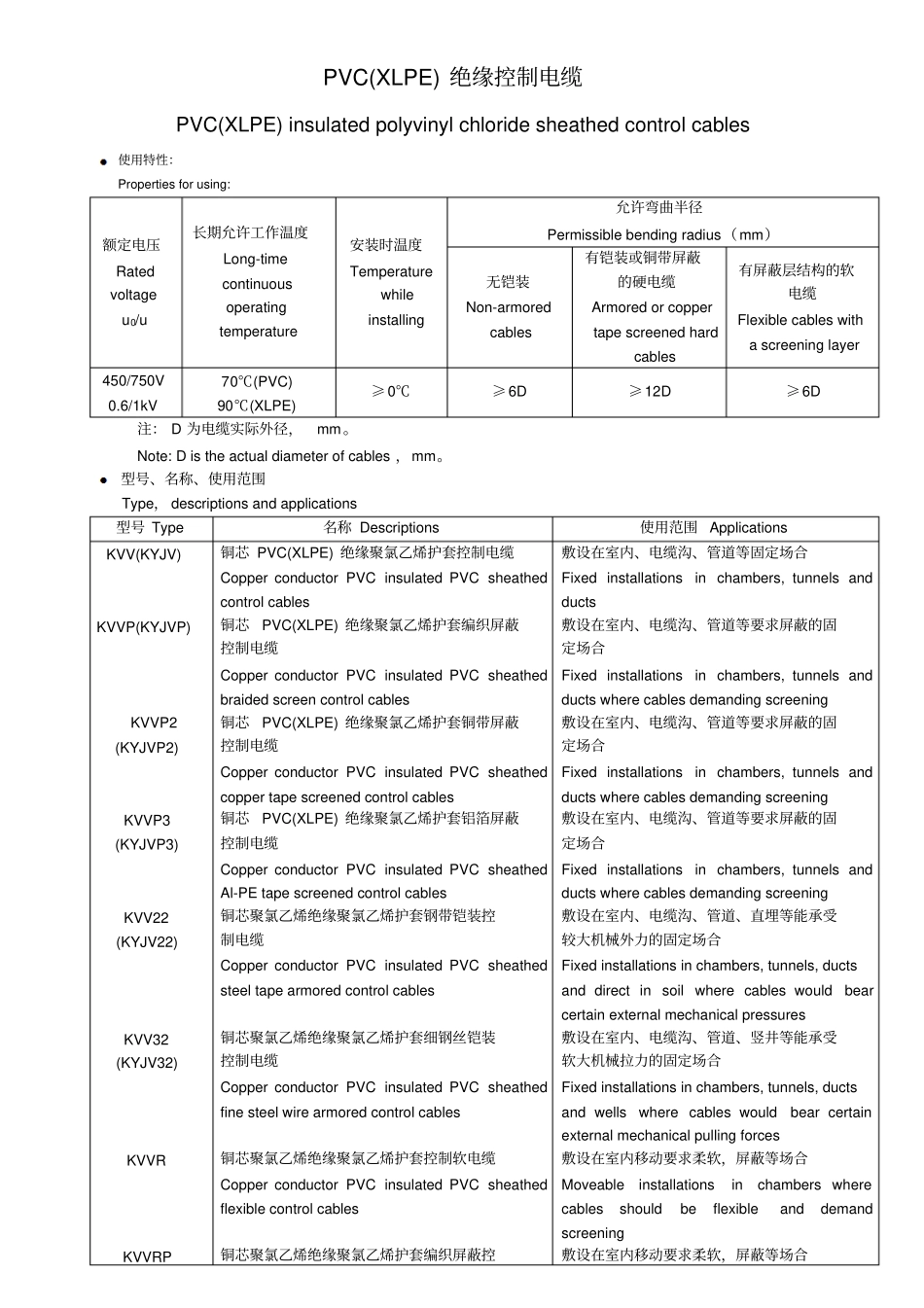

PVC(XLPE)绝缘控制电缆PVC(XLPE)insulatedpolyvinylchloridesheathedcontrolcables使用特性:Propertiesforusing:额定电压Ratedvoltageu0/u长期允许工作温度Long-timecontinuousoperatingtemperature安装时温度Temperaturewhileinstalling允许弯曲半径Permissiblebendingradius(mm)无铠装Non-armoredcables有铠装或铜带屏蔽的硬电缆Armoredorcoppertapescreenedhardcables有屏蔽层结构的软电缆Flexiblecableswithascreeninglayer450/750V0.6/1kV70℃(PVC)90℃(XLPE)≥0℃≥6D≥12D≥6D注:D为电缆实际外径,mm。Note:Distheactualdiameterofcables,mm。型号、名称、使用范围Type,descriptionsandapplications型号Type名称Descriptions使用范围ApplicationsKVV(KYJV)KVVP(KYJVP)KVVP2(KYJVP2)KVVP3(KYJVP3)KVV22(KYJV22)KVV32(KYJV32)KVVRKVVRP铜芯PVC(XLPE)绝缘聚氯乙烯护套控制电缆CopperconductorPVCinsulatedPVCsheathedcontrolcables铜芯PVC(XLPE)绝缘聚氯乙烯护套编织屏蔽控制电缆CopperconductorPVCinsulatedPVCsheathedbraidedscreencontrolcables铜芯PVC(XLPE)绝缘聚氯乙烯护套铜带屏蔽控制电缆CopperconductorPVCinsulatedPVCsheathedcoppertapescreenedcontrolcables铜芯PVC(XLPE)绝缘聚氯乙烯护套铝箔屏蔽控制电缆CopperconductorPVCinsulatedPVCsheathedAl-PEtapescreenedcontrolcables铜芯聚氯乙烯绝缘聚氯乙烯护套钢带铠装控制电缆CopperconductorPVCinsulatedPVCsheathedsteeltapearmoredcontrolcables铜芯聚氯乙烯绝缘聚氯乙烯护套细钢丝铠装控制电缆CopperconductorPVCinsulatedPVCsheathedfinesteelwirearmoredcontrolcables铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆CopperconductorPVCinsulatedPVCsheathedflexiblecontrolcables铜芯聚氯乙烯绝缘聚氯乙烯护套编织屏蔽控敷设在室内、电缆沟、管道等固定场合Fixedinstallationsinchambers,tunnelsandducts敷设在室内、电缆沟、管道等要求屏蔽的固定场合Fixedinstallationsinchambers,tunnelsandductswherecablesdemandingscreening敷设在室内、电缆沟、管道等要求屏蔽的固定场合Fixedinstallationsinchambers,tunnelsandductswherecablesdemandingscreening敷设在室内、电缆沟、管道等要求屏蔽的固定场合Fixedinstallationsinchambers,tunnelsandductswherecablesdemandingscreening敷设在室内、电缆沟、管道、直埋等能承受较大机械外力的固定场合Fixedinstallationsinchambers,tunnels,ductsanddirectinsoilwherecableswouldbearcertainexternalmechanicalpressures敷设在室内、电缆沟、管道、竖井等能承受软大机械拉力的固定场合Fixedinstallationsinchambers,tunnels,ductsandwellswherecableswouldbearcertainexternalmechanicalpullingforces敷设在室内移动要求柔软,屏蔽等场合Moveableinstallationsinchamberswherecablesshouldbeflexibleanddemandscreening敷设在室内移动要求柔软,屏蔽等场合制软电缆CopperconductorPVCinsulatedPVCsheathedbraidedscreenedflexiblecontrolcablesMoveableinstallationsinchamberswherecablesshouldbeflexibleanddemandscreening生产范围Productionrange型号Type额定电压Ratedvoltage(V)标称截面Nominalconductorcrosssection(mm2)标准Standard0.50.751.01.52.54610芯数NumberofcoresKVVKVVP450/750—2~612~142~10GB/T9330.2KVVP2KVVP3—4~614~144~10KVVP22—7~614~614~144~10KVVP2-22—7~614~614~144~10KVVP32—19~617~614~144~10KVVR2~61——KVVRP2~612~48——KYJVKYJYKYJVPKYJYP450/750—2~612~142~10GB/T9330.3KYJVP2KYJVP3KYJYP2KYJYP3—4~614~144~10KYJVP22KYJYP22—7~614~614~144~10KYJVP2-22KYJYP2-22—7~614~614~144~10KVVP32KYJYP32—19~617~614~144~10注:推荐的芯数系列为:2,3,4,5,7,8,10,12,14,19,24,27,30,37,44,48,52和61。Note:Recommendedcorenumbersare2,3,4,5,7,8,10,12,14,19,24,27,30,37,44,48,52and61.此类产品包括阻燃系列、低烟无卤阻燃系列及耐火系列。Thisvarietyofcablesin...
