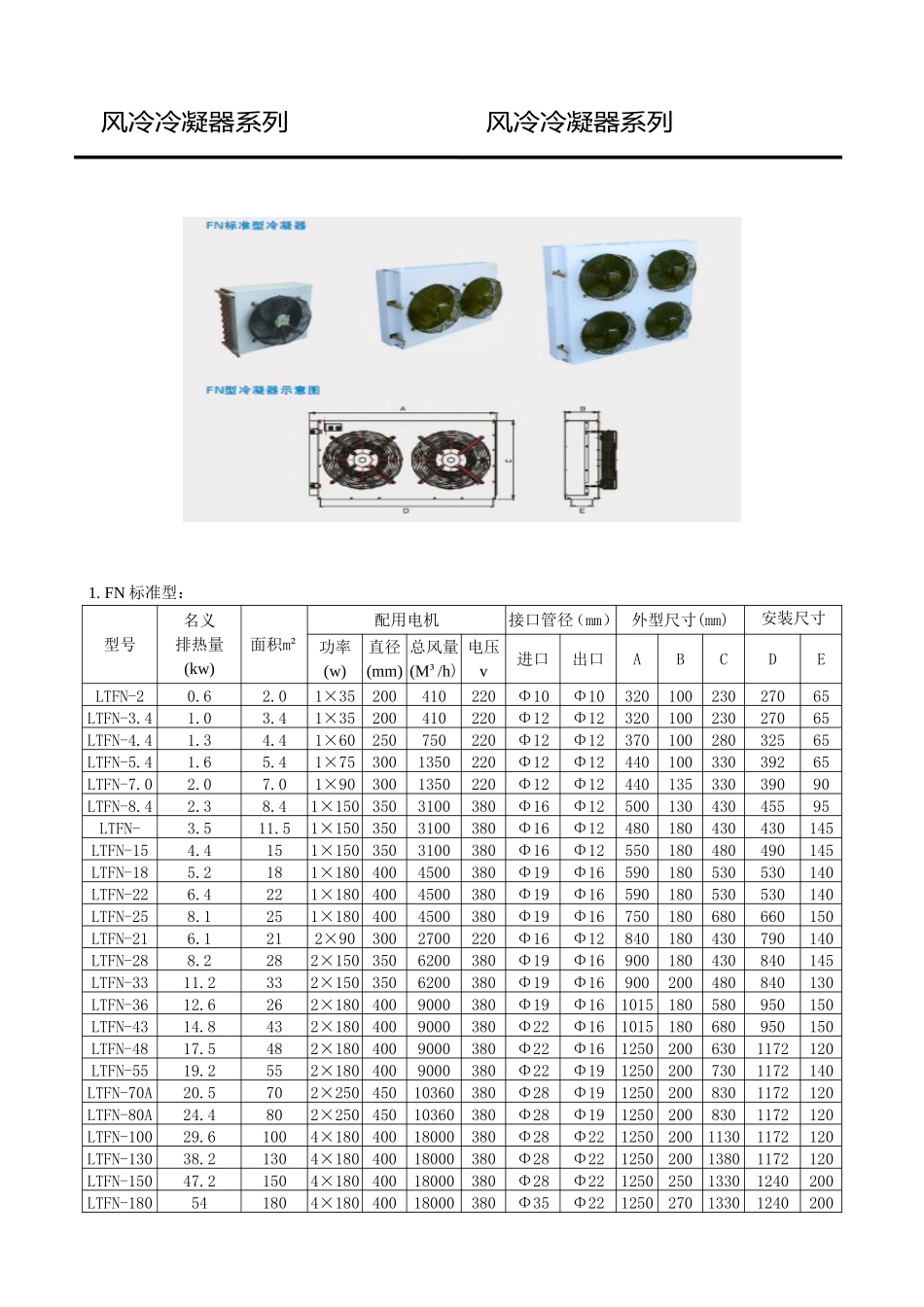

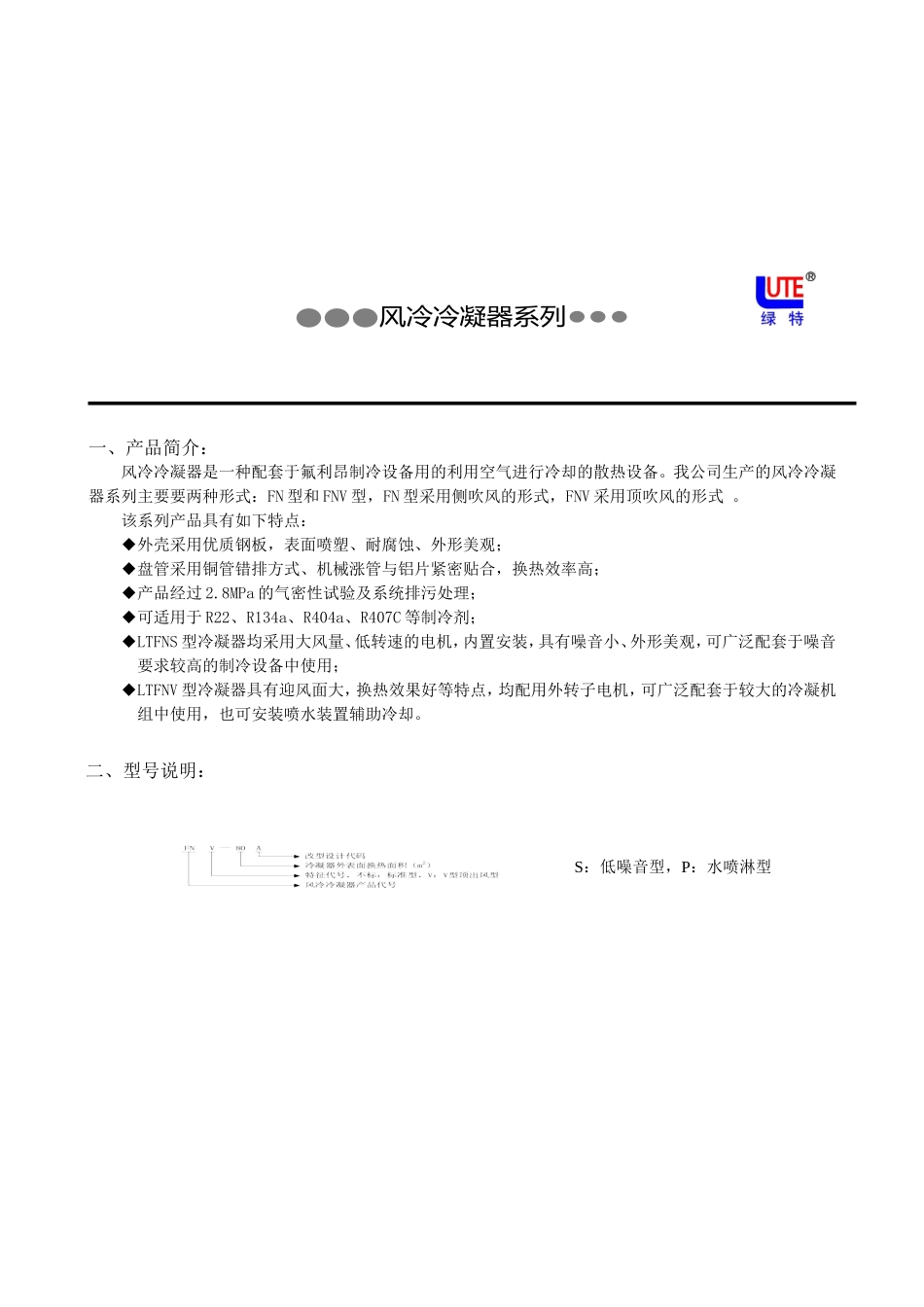

●●●风冷冷凝器系列●●●一、产品简介：风冷冷凝器是一种配套于氟利昂制冷设备用的利用空气进行冷却的散热设备。我公司生产的风冷冷凝器系列主要要两种形式：FN型和FNV型，FN型采用侧吹风的形式，FNV采用顶吹风的形式。该系列产品具有如下特点：◆外壳采用优质钢板，表面喷塑、耐腐蚀、外形美观；◆盘管采用铜管错排方式、机械涨管与铝片紧密贴合，换热效率高；◆产品经过2.8MPa的气密性试验及系统排污处理；◆可适用于R22、R134a、R404a、R407C等制冷剂；◆LTFNS型冷凝器均采用大风量、低转速的电机，内置安装，具有噪音小、外形美观，可广泛配套于噪音要求较高的制冷设备中使用；◆LTFNV型冷凝器具有迎风面大，换热效果好等特点，均配用外转子电机，可广泛配套于较大的冷凝机组中使用，也可安装喷水装置辅助冷却。二、型号说明：S：低噪音型，P：水喷淋型风冷冷凝器系列风冷冷凝器系列1.FN标准型：型号名义排热量(kw)面积m²配用电机接口管径（mm）外型尺寸(mm)安装尺寸(mm)功率(w)直径(mm)总风量(M³/h)电压v进口出口ABCDELTFN-20.62.01×35200410220Φ10Φ1032010023027065LTFN-3.41.03.41×35200410220Φ12Φ1232010023027065LTFN-4.41.34.41×60250750220Φ12Φ1237010028032565LTFN-5.41.65.41×753001350220Φ12Φ1244010033039265LTFN-7.02.07.01×903001350220Φ12Φ1244013533039090LTFN-8.42.38.41×1503503100380Φ16Φ1250013043045595LTFN-3.511.51×1503503100380Φ16Φ12480180430430145LTFN-154.4151×1503503100380Φ16Φ12550180480490145LTFN-185.2181×1804004500380Φ19Φ16590180530530140LTFN-226.4221×1804004500380Φ19Φ16590180530530140LTFN-258.1251×1804004500380Φ19Φ16750180680660150LTFN-216.1212×903002700220Φ16Φ12840180430790140LTFN-288.2282×1503506200380Φ19Φ16900180430840145LTFN-3311.2332×1503506200380Φ19Φ16900200480840130LTFN-3612.6262×1804009000380Φ19Φ161015180580950150LTFN-4314.8432×1804009000380Φ22Φ161015180680950150LTFN-4817.5482×1804009000380Φ22Φ1612502006301172120LTFN-5519.2552×1804009000380Φ22Φ1912502007301172140LTFN-70A20.5702×25045010360380Φ28Φ1912502008301172120LTFN-80A24.4802×25045010360380Φ28Φ1912502008301172120LTFN-10029.61004×18040018000380Φ28Φ22125020011301172120LTFN-13038.21304×18040018000380Φ28Φ22125020013801172120LTFN-15047.21504×18040018000380Φ28Φ22125025013301240200LTFN-180541804×18040018000380Φ35Φ22125027013301240200风冷冷凝器系列风冷冷凝器系列2.FNS低噪音型冷凝器型号名义排热量(kw)面积m²风机接管尺寸外型尺寸（mm）安装尺寸(mm)功率(w)直径(mm)总风量(m3/h)电压(v)进口出口ABCDE1E2E3LTFNS-257.5251804504600380161285543063084525160160LTFNS-3510.5351804504600380161285543063084525160160LTFNS-4012403205006150380161285547073084525175175LTFNS-4513.5456005606800380221285547083084525175175LTFNS-5516.5556005606800380221685547083084525175175LTFNS-6519.5656005606800380221685547093084525175175LTFNS-8024802×3205001230038028161440470830143025175175LTFNS-9027902×6005601360038028221440470930143025175175LTFNS-110331102×6005601360038028221440470930143025175175LTFNS-130391302×6806101640038028221540510930153025195195LTFNS-150451502×680610164003802822154051010301530251951953.FNV型冷凝器：风冷冷凝器系列风冷冷凝器系列4.带喷水辅助冷却的FNP型冷凝器注：1.换热量为不带喷水的名义换热量；2.水压不低于1.5bar.型号名义排热量（Kw）面积m2风机接口管径（mm）外型尺寸(mm)安装尺寸(mm)（mm）功率（w）直径（mm）电压（v）总风量(m3/h)进口(mm)出口(mm)ABCabLTFNV-70A22.4702×450500380130002×Φ222×Φ1614559769521330896LTFNV-105A33.71052×600550380174002×Φ222×Φ1614559769521330896LTFNV-140A44.91402×600550380174002×Φ222×Φ161455976952133089...
