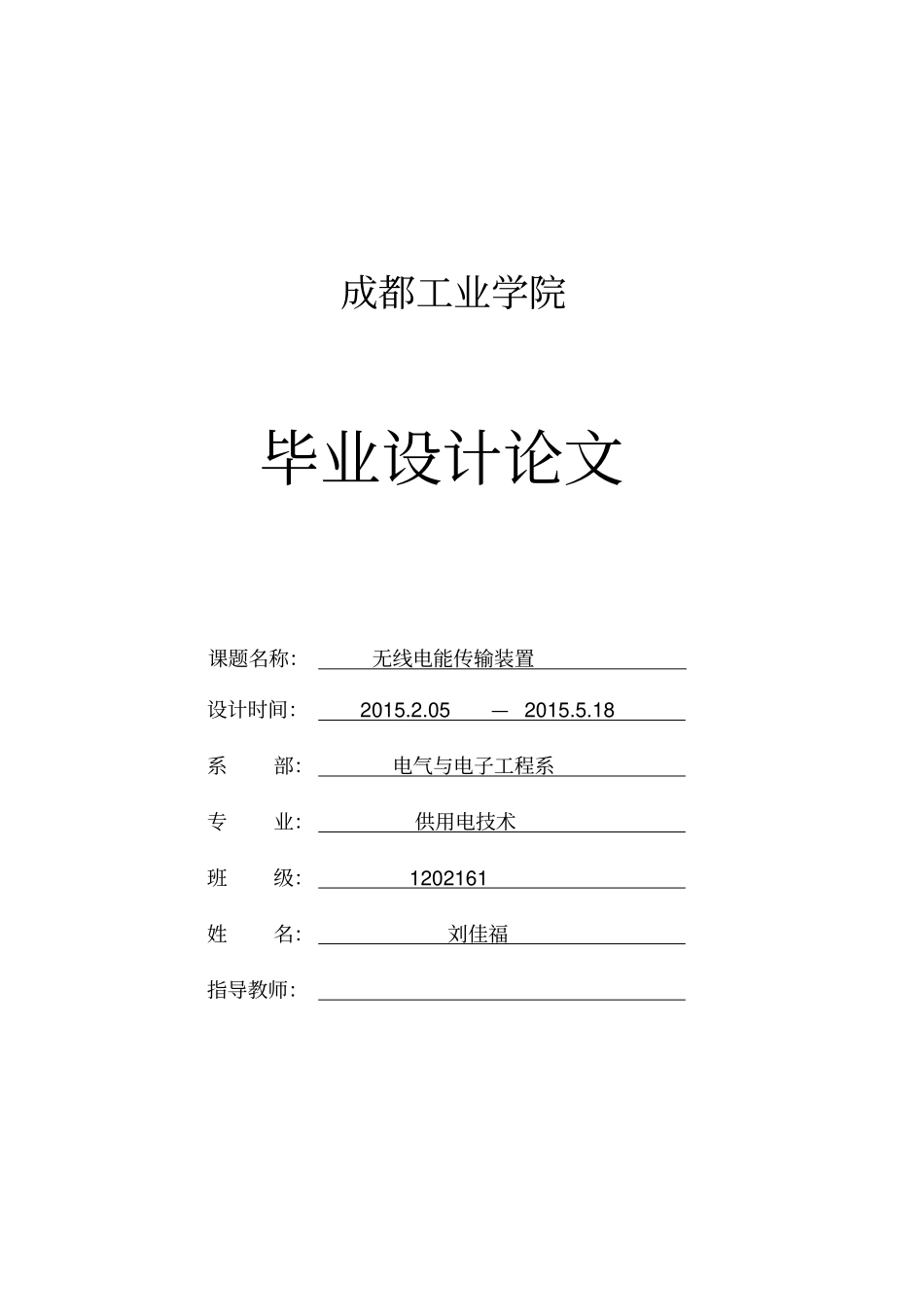

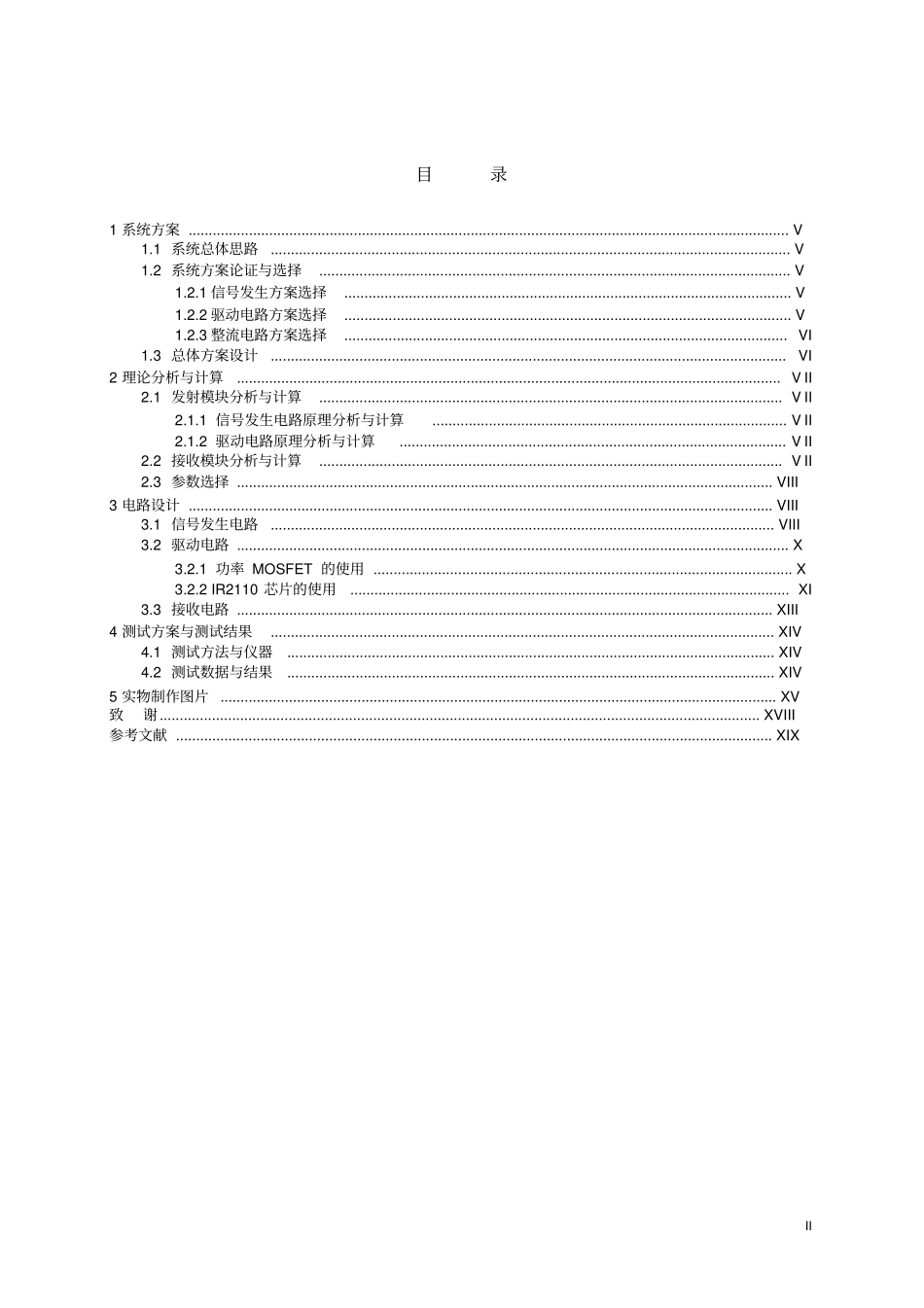

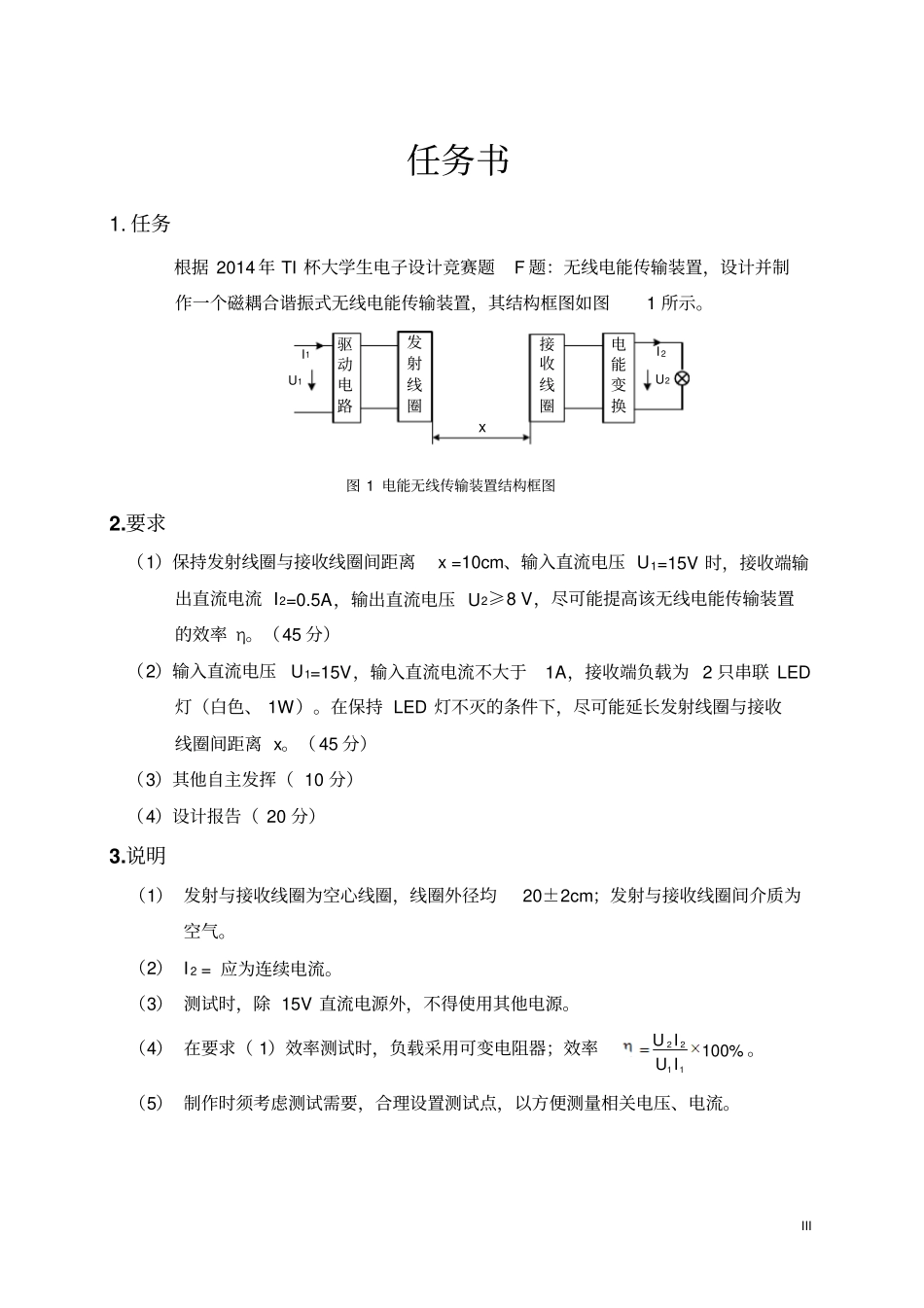

成都工业学院毕业设计论文课题名称：无线电能传输装置设计时间：2015.2.05—2015.5.18系部：电气与电子工程系专业：供用电技术班级：1202161姓名：刘佳福指导教师：II目录1系统方案.....................................................................................................................................................V1.1系统总体思路.................................................................................................................................V1.2系统方案论证与选择.....................................................................................................................V1.2.1信号发生方案选择...............................................................................................................V1.2.2驱动电路方案选择...............................................................................................................V1.2.3整流电路方案选择..............................................................................................................VI1.3总体方案设计................................................................................................................................VI2理论分析与计算.......................................................................................................................................VII2.1发射模块分析与计算...................................................................................................................VII2.1.1信号发生电路原理分析与计算........................................................................................VII2.1.2驱动电路原理分析与计算................................................................................................VII2.2接收模块分析与计算...................................................................................................................VII2.3参数选择.....................................................................................................................................VIII3电路设计.................................................................................................................................................VIII3.1信号发生电路.............................................................................................................................VIII3.2驱动电路.........................................................................................................................................X3.2.1功率MOSFET的使用........................................................................................................X3.2.2IR2110芯片的使用.............................................................................................................XI3.3接收电路.....................................................................................................................................XIII4测试方案与测试结果.............................................................................................................................XIV4.1测试方法与仪器.........................................................................................................................XIV4.2测试数据与结果.........................................................................................................................XIV5实物制作图片.............................................................
