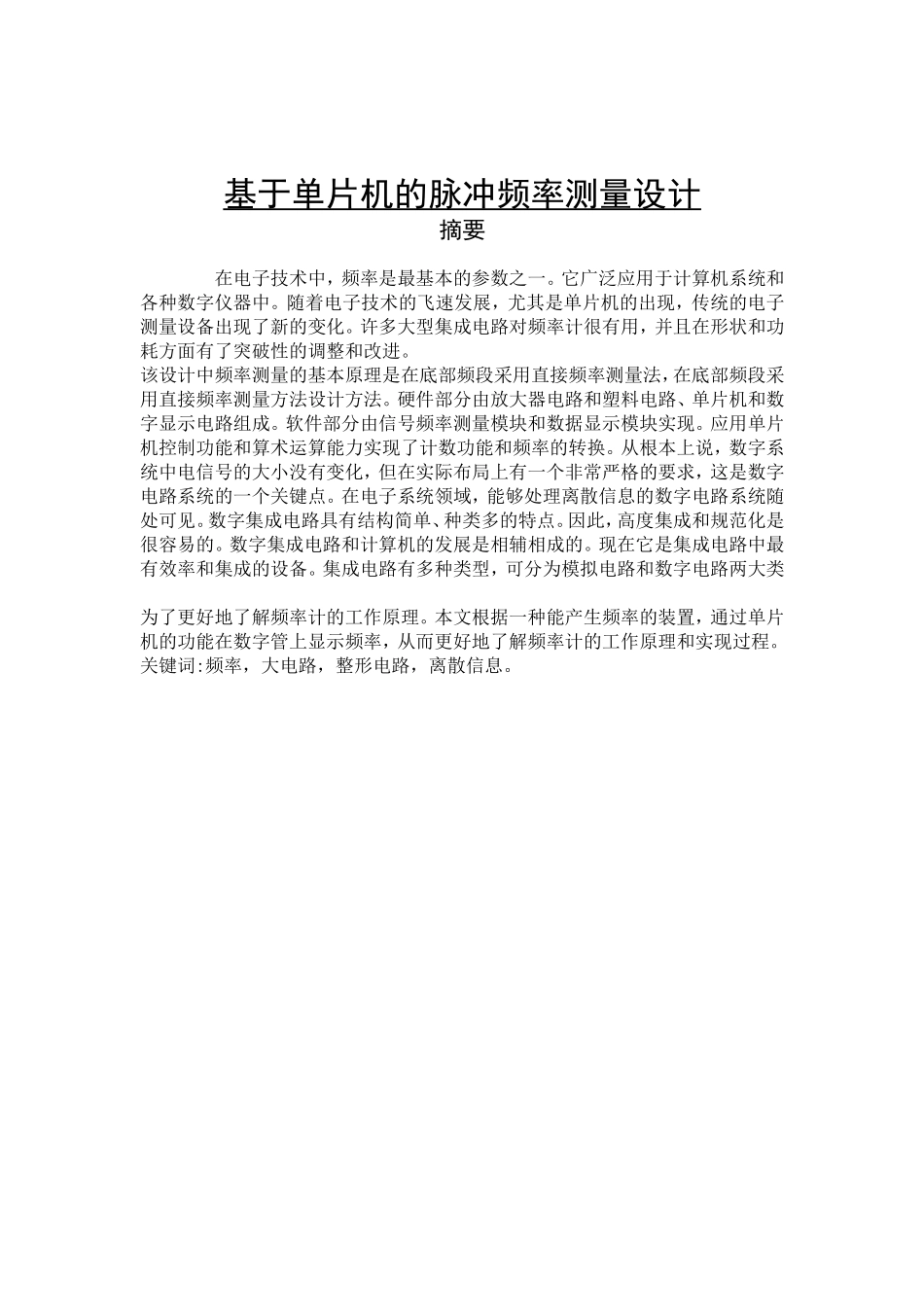

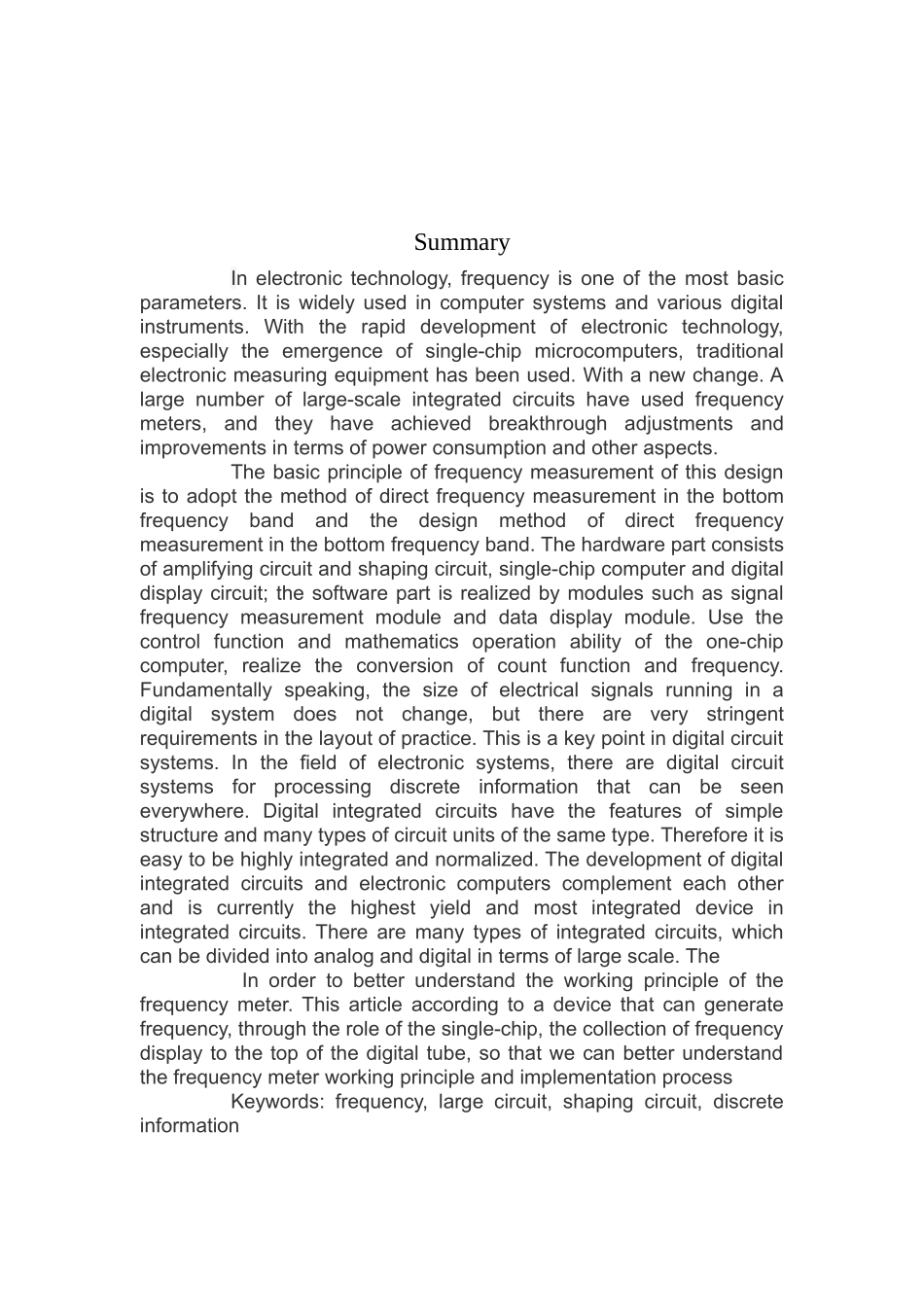

基于单片机的脉冲频率测量设计摘要在电子技术中,频率是最基本的参数之一。它广泛应用于计算机系统和各种数字仪器中。随着电子技术的飞速发展,尤其是单片机的出现,传统的电子测量设备出现了新的变化。许多大型集成电路对频率计很有用,并且在形状和功耗方面有了突破性的调整和改进。该设计中频率测量的基本原理是在底部频段采用直接频率测量法,在底部频段采用直接频率测量方法设计方法。硬件部分由放大器电路和塑料电路、单片机和数字显示电路组成。软件部分由信号频率测量模块和数据显示模块实现。应用单片机控制功能和算术运算能力实现了计数功能和频率的转换。从根本上说,数字系统中电信号的大小没有变化,但在实际布局上有一个非常严格的要求,这是数字电路系统的一个关键点。在电子系统领域,能够处理离散信息的数字电路系统随处可见。数字集成电路具有结构简单、种类多的特点。因此,高度集成和规范化是很容易的。数字集成电路和计算机的发展是相辅相成的。现在它是集成电路中最有效率和集成的设备。集成电路有多种类型,可分为模拟电路和数字电路两大类为了更好地了解频率计的工作原理。本文根据一种能产生频率的装置,通过单片机的功能在数字管上显示频率,从而更好地了解频率计的工作原理和实现过程。关键词:频率,大电路,整形电路,离散信息。SummaryInelectronictechnology,frequencyisoneofthemostbasicparameters.Itiswidelyusedincomputersystemsandvariousdigitalinstruments.Withtherapiddevelopmentofelectronictechnology,especiallytheemergenceofsingle-chipmicrocomputers,traditionalelectronicmeasuringequipmenthasbeenused.Withanewchange.Alargenumberoflarge-scaleintegratedcircuitshaveusedfrequencymeters,andtheyhaveachievedbreakthroughadjustmentsandimprovementsintermsofpowerconsumptionandotheraspects.Thebasicprincipleoffrequencymeasurementofthisdesignistoadoptthemethodofdirectfrequencymeasurementinthebottomfrequencybandandthedesignmethodofdirectfrequencymeasurementinthebottomfrequencyband.Thehardwarepartconsistsofamplifyingcircuitandshapingcircuit,single-chipcomputeranddigitaldisplaycircuit;thesoftwarepartisrealizedbymodulessuchassignalfrequencymeasurementmoduleanddatadisplaymodule.Usethecontrolfunctionandmathematicsoperationabilityoftheone-chipcomputer,realizetheconversionofcountfunctionandfrequency.Fundamentallyspeaking,thesizeofelectricalsignalsrunninginadigitalsystemdoesnotchange,butthereareverystringentrequirementsinthelayoutofpractice.Thisisakeypointindigitalcircuitsystems.Inthefieldofelectronicsystems,therearedigitalcircuitsystemsforprocessingdiscreteinformationthatcanbeseeneverywhere.Digitalintegratedcircuitshavethefeaturesofsimplestructureandmanytypesofcircuitunitsofthesametype.Thereforeitiseasytobehighlyintegratedandnormalized.Thedevelopmentofdigitalintegratedcircuitsandelectroniccomputerscomplementeachotherandiscurrentlythehighestyieldandmostintegrateddeviceinintegratedcircuits.Therearemanytypesofintegratedcircuits,whichcanbedividedintoanaloganddigitalintermsoflargescale.TheInordertobetterunderstandtheworkingprincipleofthefrequencymeter.Thisarticleaccordingtoadevicethatcangeneratefrequency,throughtheroleofthesingle-chip,thecollectionoffrequencydisplaytothetopofthedigitaltube,sothatwecanbetterunderstandthefrequencymeterworkingprincipleandimplementationprocessKeywords:frequency,largecircuit,shapingcircuit,discreteinformation目录第一章绪论...............................................................................................................................51.1选题目的和意义..............................................................................
