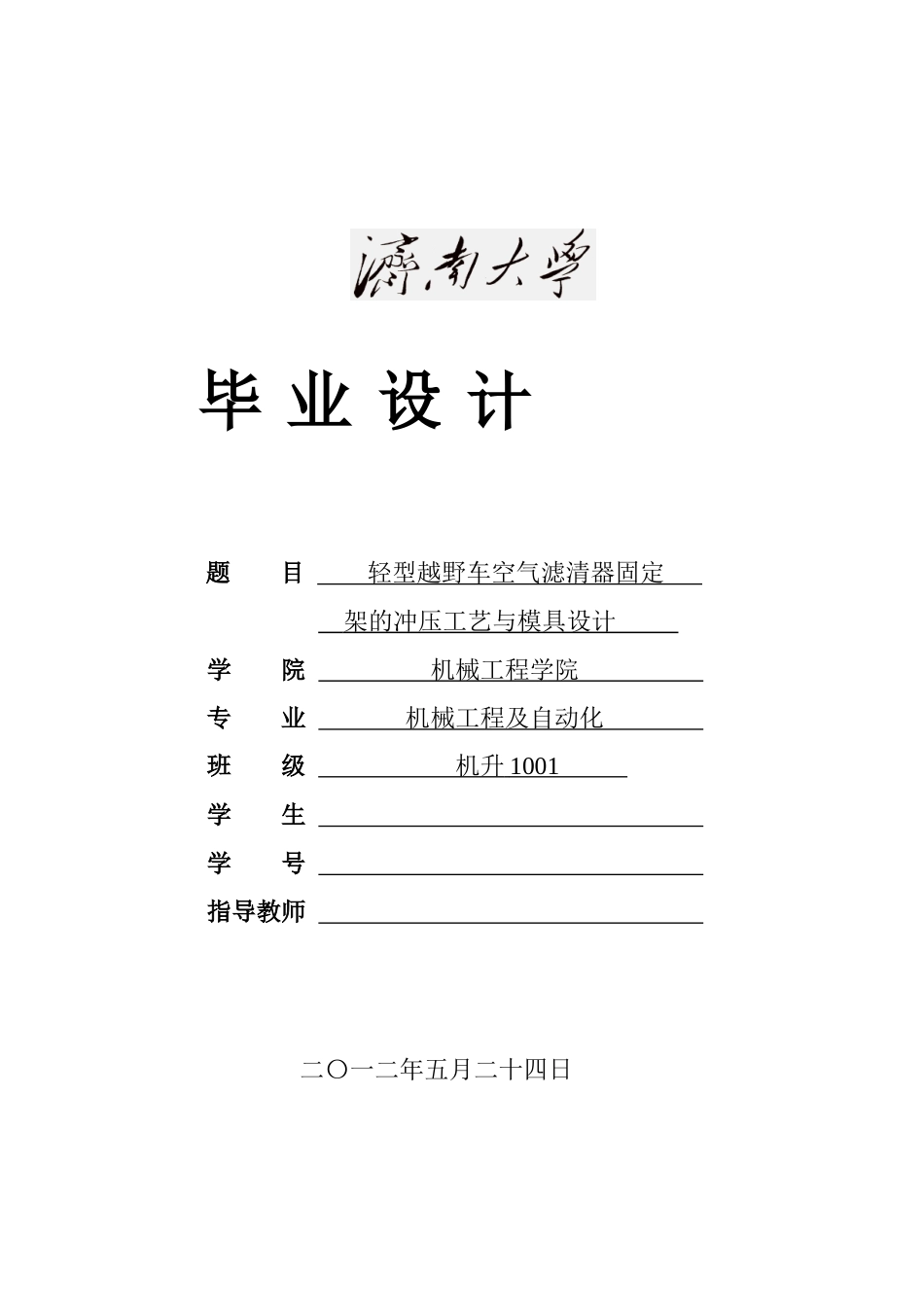

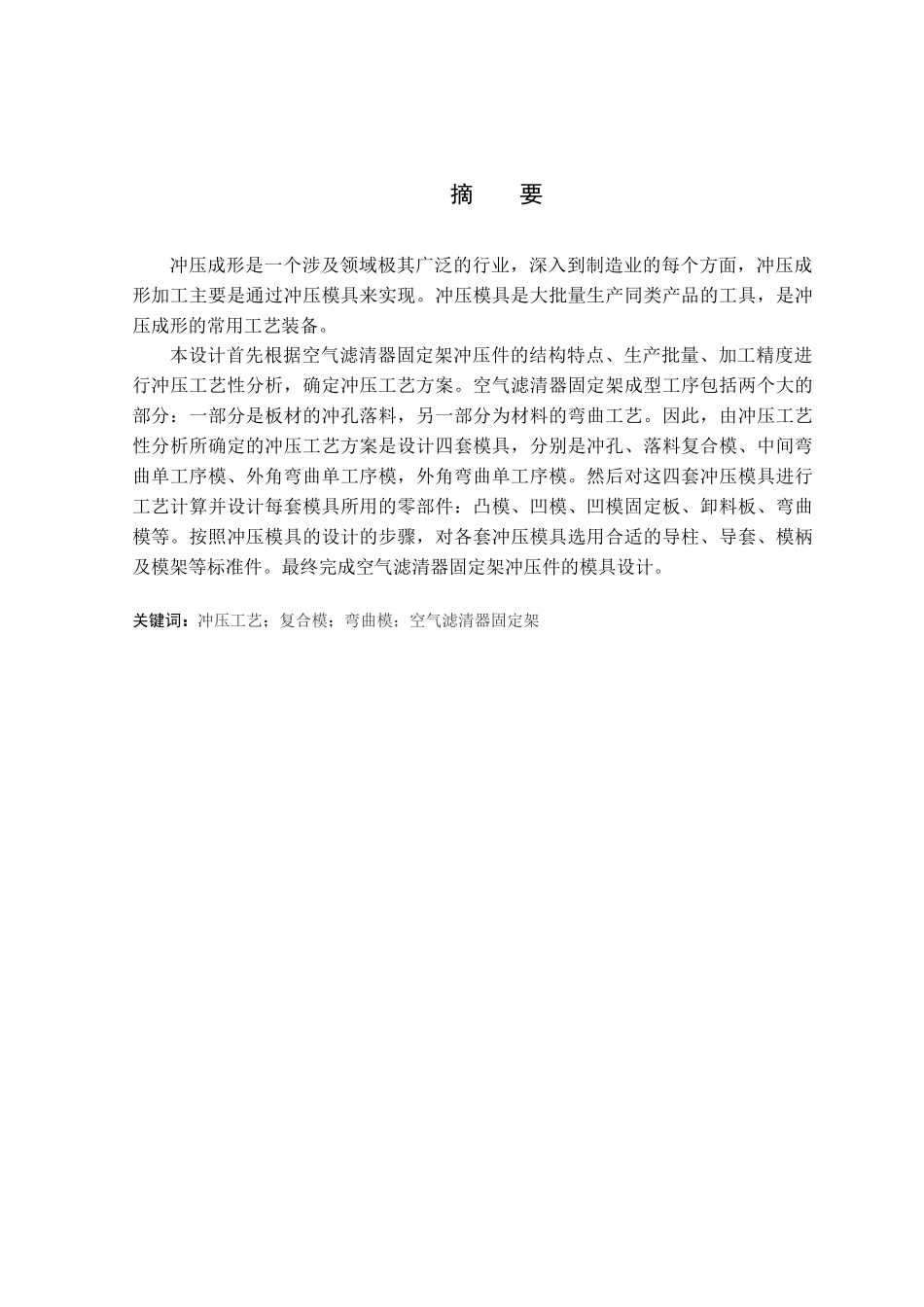

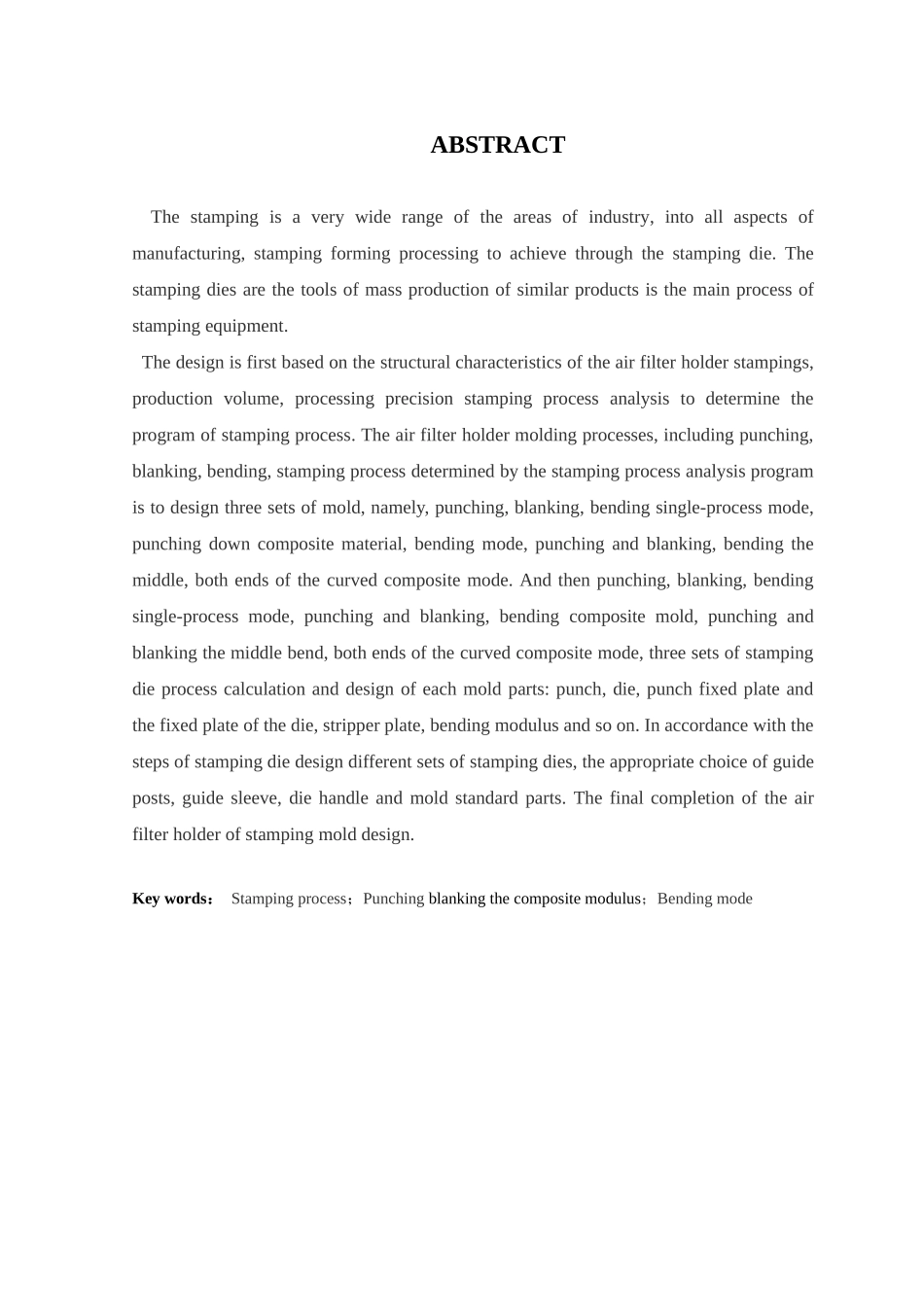

毕 业 设 计题 目 轻型越野车空气滤清器固定 架的冲压工艺与模具设计 学 院 机械工程学院 专 业 机械工程及自动化 班 级 机升 1001 学 生 学 号 指导教师 二〇一二年五月二十四日摘 要冲压成形是一个涉及领域极其广泛的行业，深入到制造业的每个方面，冲压成形加工主要是通过冲压模具来实现。冲压模具是大批量生产同类产品的工具，是冲压成形的常用工艺装备。本设计首先根据空气滤清器固定架冲压件的结构特点、生产批量、加工精度进行冲压工艺性分析，确定冲压工艺方案。空气滤清器固定架成型工序包括两个大的部分：一部分是板材的冲孔落料，另一部分为材料的弯曲工艺。因此，由冲压工艺性分析所确定的冲压工艺方案是设计四套模具，分别是冲孔、落料复合模、中间弯曲单工序模、外角弯曲单工序模，外角弯曲单工序模。然后对这四套冲压模具进行工艺计算并设计每套模具所用的零部件：凸模、凹模、凹模固定板、卸料板、弯曲模等。按照冲压模具的设计的步骤，对各套冲压模具选用合适的导柱、导套、模柄及模架等标准件。最终完成空气滤清器固定架冲压件的模具设计。关键词：冲压工艺；复合模；弯曲模；空气滤清器固定架ABSTRACTThe stamping is a very wide range of the areas of industry, into all aspects of manufacturing, stamping forming processing to achieve through the stamping die. The stamping dies are the tools of mass production of similar products is the main process of stamping equipment. The design is first based on the structural characteristics of the air filter holder stampings, production volume, processing precision stamping process analysis to determine the program of stamping process. The air filter holder molding processes, including punching, blanking, bending, stamping process determined by the stamping process analysis program is to design three sets of mold, namely, punching, blanking, bending single-process mode, punching down composite material, bending mode, punching and blanking, bending the middle, both ends of the curved composite mode. And then punching, blanking, bending single...
