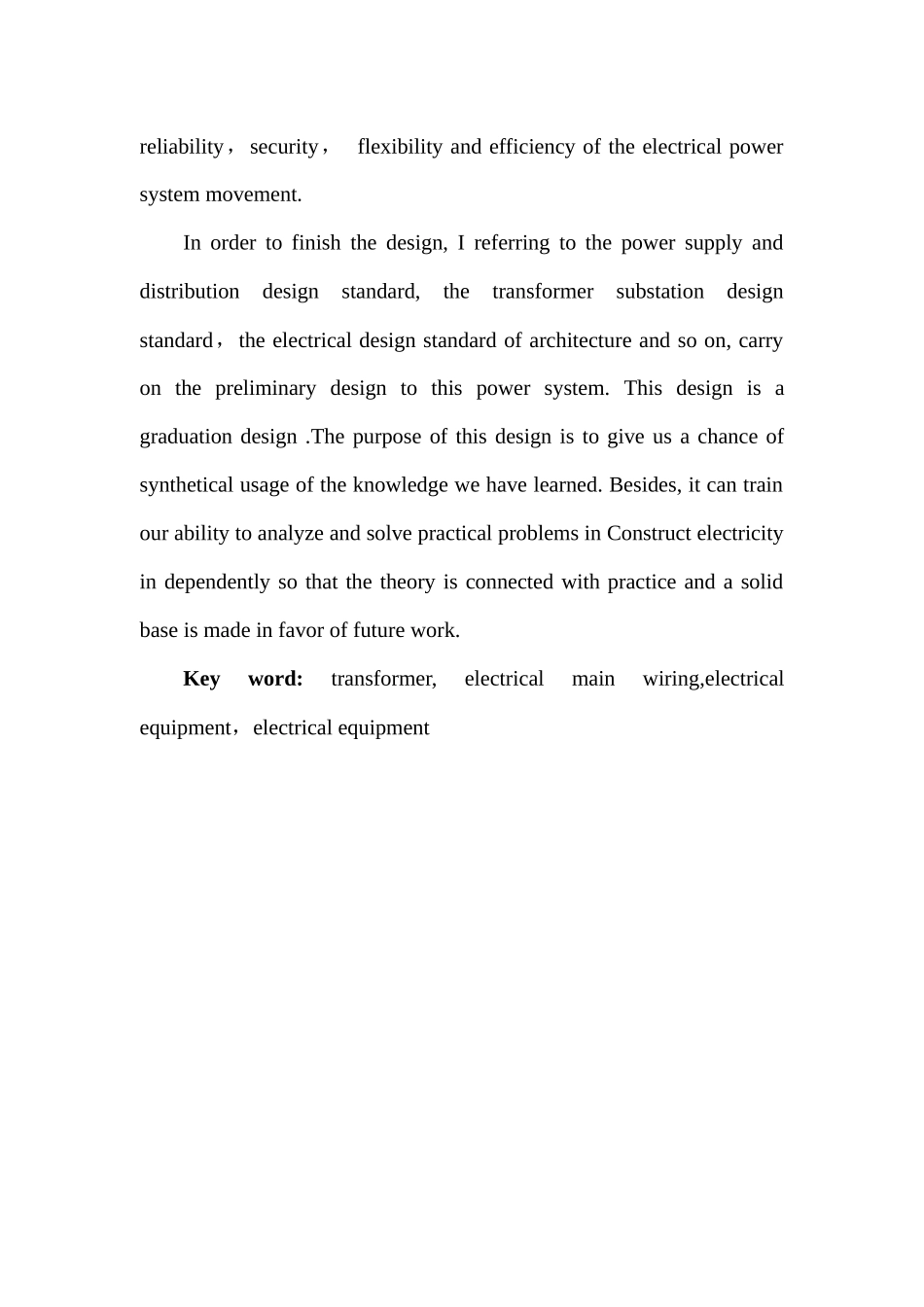

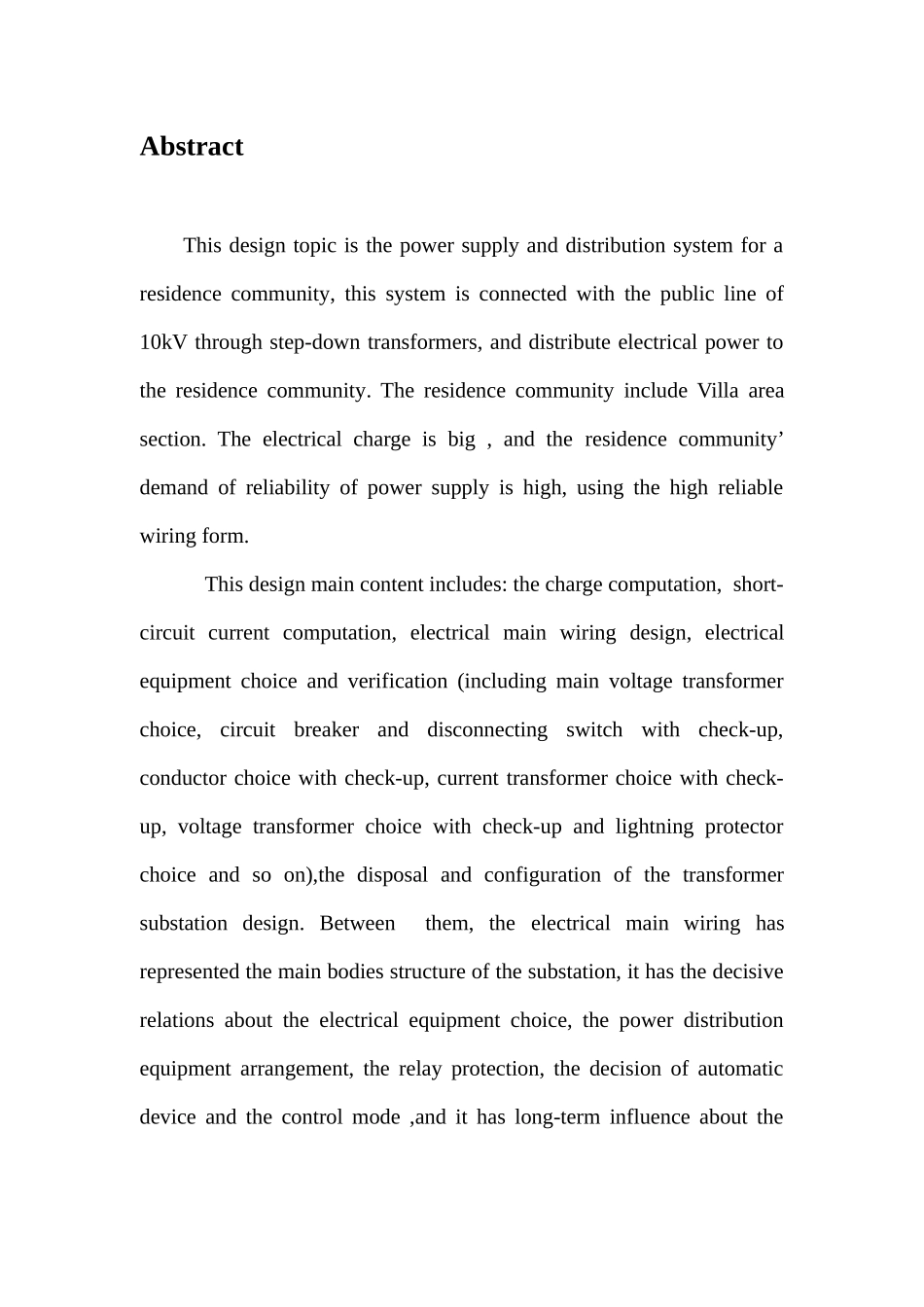

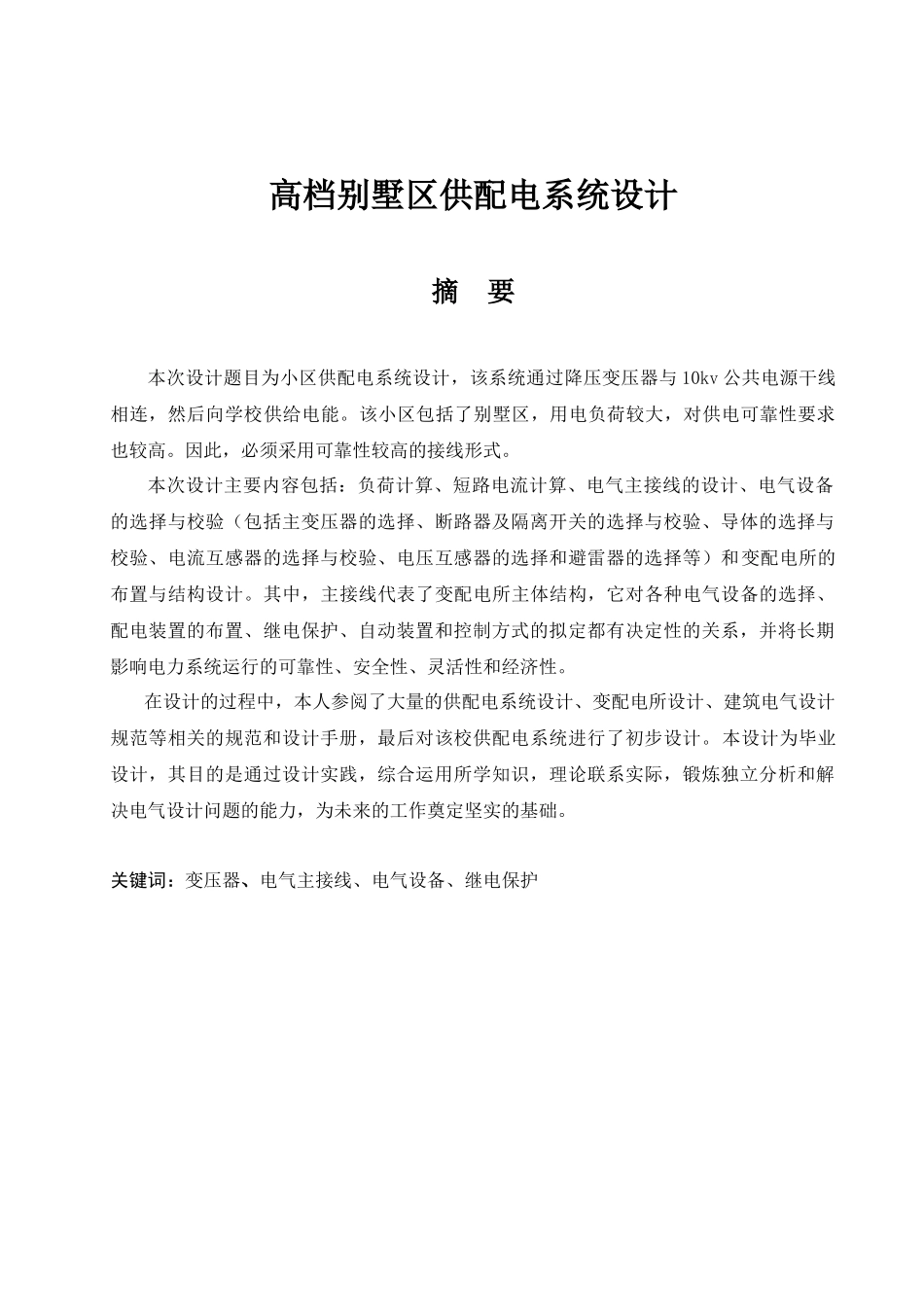

高档别墅区供配电系统设计摘 要本次设计题目为小区供配电系统设计,该系统通过降压变压器与 10kv 公共电源干线相连,然后向学校供给电能。该小区包括了别墅区,用电负荷较大,对供电可靠性要求也较高。因此,必须采用可靠性较高的接线形式。本次设计主要内容包括:负荷计算、短路电流计算、电气主接线的设计、电气设备的选择与校验(包括主变压器的选择、断路器及隔离开关的选择与校验、导体的选择与校验、电流互感器的选择与校验、电压互感器的选择和避雷器的选择等)和变配电所的布置与结构设计。其中,主接线代表了变配电所主体结构,它对各种电气设备的选择、配电装置的布置、继电保护、自动装置和控制方式的拟定都有决定性的关系,并将长期影响电力系统运行的可靠性、安全性、灵活性和经济性。在设计的过程中,本人参阅了大量的供配电系统设计、变配电所设计、建筑电气设计规范等相关的规范和设计手册,最后对该校供配电系统进行了初步设计。本设计为毕业设计,其目的是通过设计实践,综合运用所学知识,理论联系实际,锻炼独立分析和解决电气设计问题的能力,为未来的工作奠定坚实的基础。关键词:变压器、电气主接线、电气设备、继电保护AbstractThis design topic is the power supply and distribution system for a residence community, this system is connected with the public line of 10kV through step-down transformers, and distribute electrical power to the residence community. The residence community include Villa area section. The electrical charge is big , and the residence community’ demand of reliability of power supply is high, using the high reliable wiring form. This design main content includes: the charge computation, short-circuit current computation, electrical main wiring design, electrical equipment choice and verification (including main voltage transformer choice, circuit breaker and disconnecting switch with check-up, conductor choice with check-up, current transformer choice with check-up, voltage transformer choice with check-up and lightning protector choice and so on),the disposal and configuration of...
