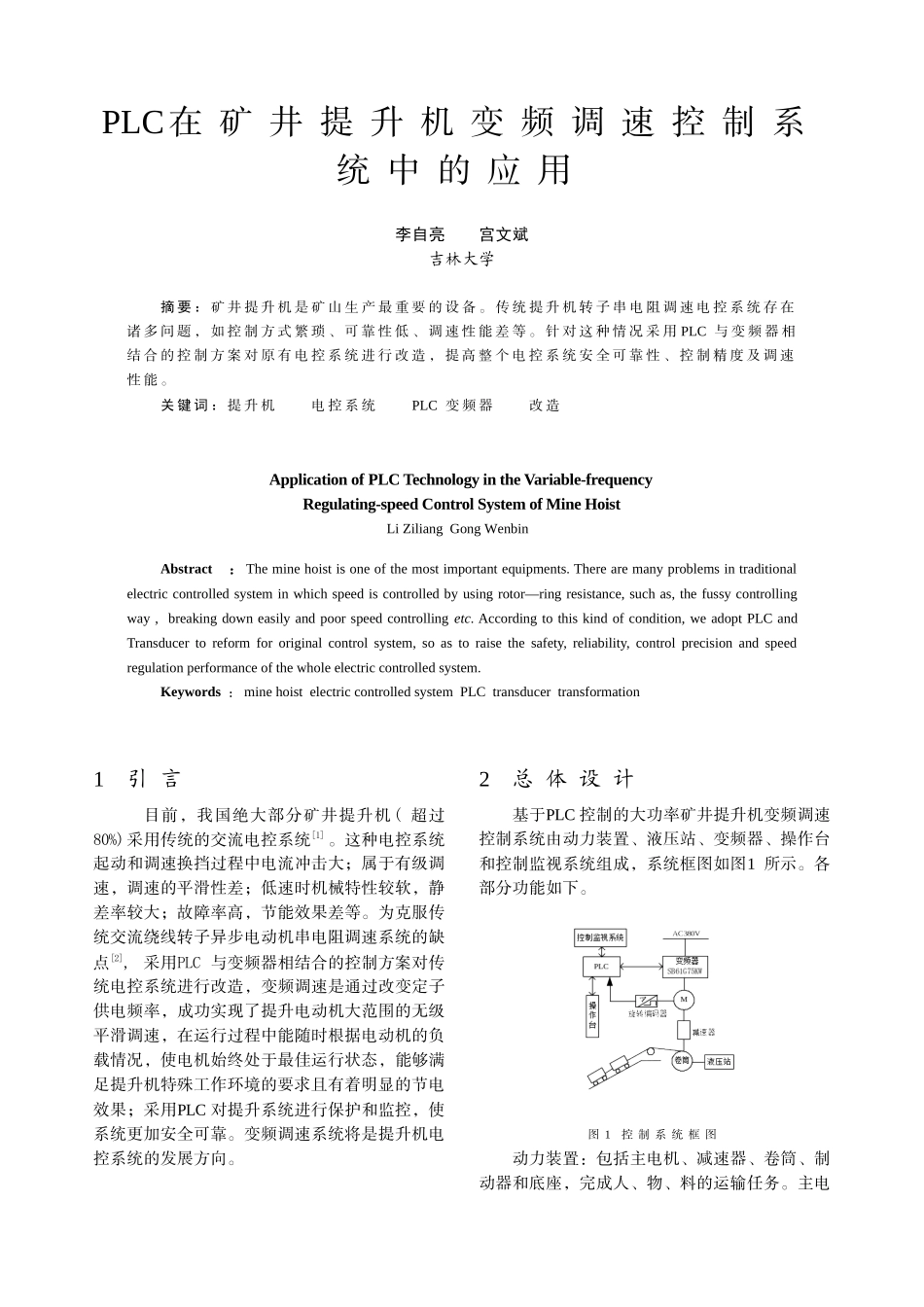

PLC在 矿 井 提 升 机 变 频 调 速 控 制 系统 中 的 应 用李自亮 宫文斌吉林大学摘 要 : 矿 井 提 升 机 是 矿 山 生 产 最 重 要 的 设 备 。 传 统 提 升 机 转 子 串 电 阻 调 速 电 控 系 统 存 在诸 多 问 题 , 如 控 制 方 式 繁 琐 、 可 靠 性 低 、 调 速 性 能 差 等 。 针 对 这 种 情 况 采 用 PLC 与 变 频 器 相结 合 的 控 制 方 案 对 原 有 电 控 系 统 进 行 改 造 , 提 高 整 个 电 控 系 统 安 全 可 靠 性 、 控 制 精 度 及 调 速性 能 。关 键 词 : 提 升 机 电 控 系 统 PLC 变 频 器 改 造Application of PLC Technology in the Variable-frequencyRegulating-speed Control System of Mine Hoist Li Ziliang Gong WenbinAbstract: The mine hoist is one of the most important equipments. There are many problems in traditional electric controlled system in which speed is controlled by using rotor—ring resistance, such as, the fussy controlling way , breaking down easily and poor speed controlling etc. According to this kind of condition, we adopt PLC and Transducer to reform for original control system, so as to raise the safety, reliability, control precision and speed regulation performance of the whole electric controlled system.Keywords : mine hoist electric controlled system PLC transducer transformation1 引 言目前,我国绝大部分矿井提升机 ( 超过80%)采用传统的交流电控系统[1] 。这种电控系统起动和调速换挡过程中电流冲击大;属于有级调速,调速的平滑性差;低速时机械特性较软,静差率较大;故障率高,节能效果差等。为克服传统交流绕线转子异步电动机串电阻调速系统的缺点[2], 采用PLC 与变频器相结合的控制方案对传统电控系统进行改造,变频调速是通过改变定子供电频率,成功实现了提升电动机大范围的无级平滑调速,在运行过程中能随时根据电动机的负载情况,使电机始终处于最佳运行状态,能够满足提升机特殊工作环境的要求且有着明显的节电效果;采用PLC 对提升系统...
