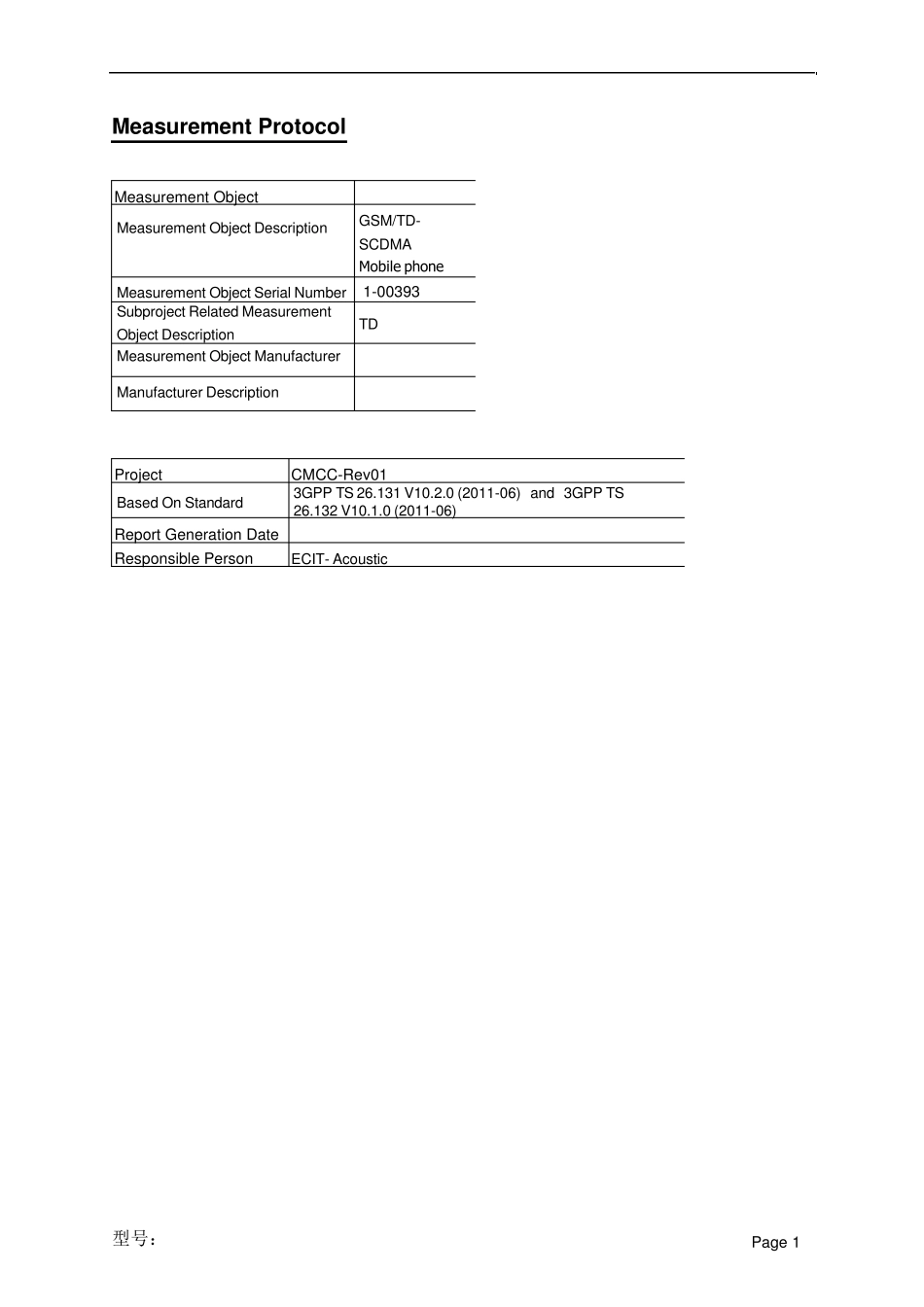

型号： Page 1 Measu rement Protocol Measurement Object Measurement Object Description GSM/TD-SCDMA Mobile phone Measurement Object Serial Number 1-00393 Subproject Related Measurement Object Description TD Measurement Object Manufacturer Manufacturer Description Project CMCC-Rev01 Based On Standard 3GPP TS 26.131 V10.2.0 (2011-06) and 3GPP TS 26.132 V10.1.0 (2011-06) Report Generation Date Responsible Person ECIT- Acoustic 型号： Page 2 Status Overview SMD Status Single Value Description Single Value Object 7.2.2.2a Loudness Rating Receiving, nom.(RLR) P.50 HANB Ok RLR [dB] 1.21 7.5.1.2a Sidetone charact., HATS, Vol. nom., P.50 HANB Ok STMR (unsealed) [dB] 19.83 7.4.2a Sensitivity, frequency character. Rcv. P.50 HANB Ok Min. dist. to tolerance scheme [dB], 300.0 Hz 0.29 7.3.2e Idle channel noise Rcv. nominal Volume, HANB Ok Level [dBPa] -76.48 7.8.2e Distortion Receiving, no activation HANB Ok 7.2.2.1a Loudness Rating Sending (SLR), P.50 HANB Ok SLR [dB] 6.88 7.3.1a Idle channel noise Sending, HANB Ok Level [dBm0] -69.38 7.4.1a Sensitivity frequency charact. Sending P.50 HANB Not Ok Min. dist. to tolerance scheme [dB], 3245.6 Hz -0.09 7.8.1e Distortion Sending 1020 Hz, no activation HANB Ok 2.16 One Way Speech Quality in Sending (TMOS) Ok MOS 3.99 1.19 One Way Speech Quality in Receiving (TMOS) 8N Ok MOS 3.59 3.01 Echo Loss (G.122), Single Talk, Nominal Volume Ok Echo Loss [dB] 64.52 3.05 Echo Level vs. Time, Signal Level -5 dBm0 Ok Min. dist. to tolerance scheme [dB], 5.735 s 0.99 3.06 Echo Level vs. Time, Signal Level -25 dBm0 Ok Min. dist. to tolerance scheme [dB], 7.835 s 0.26 3.07 Spectral Echo Attenuation Ok Min. dist. to tolerance scheme [dB], 1013.7 Hz 14.75 4.01 ITU-T P.340 Attenuation RCV -...
