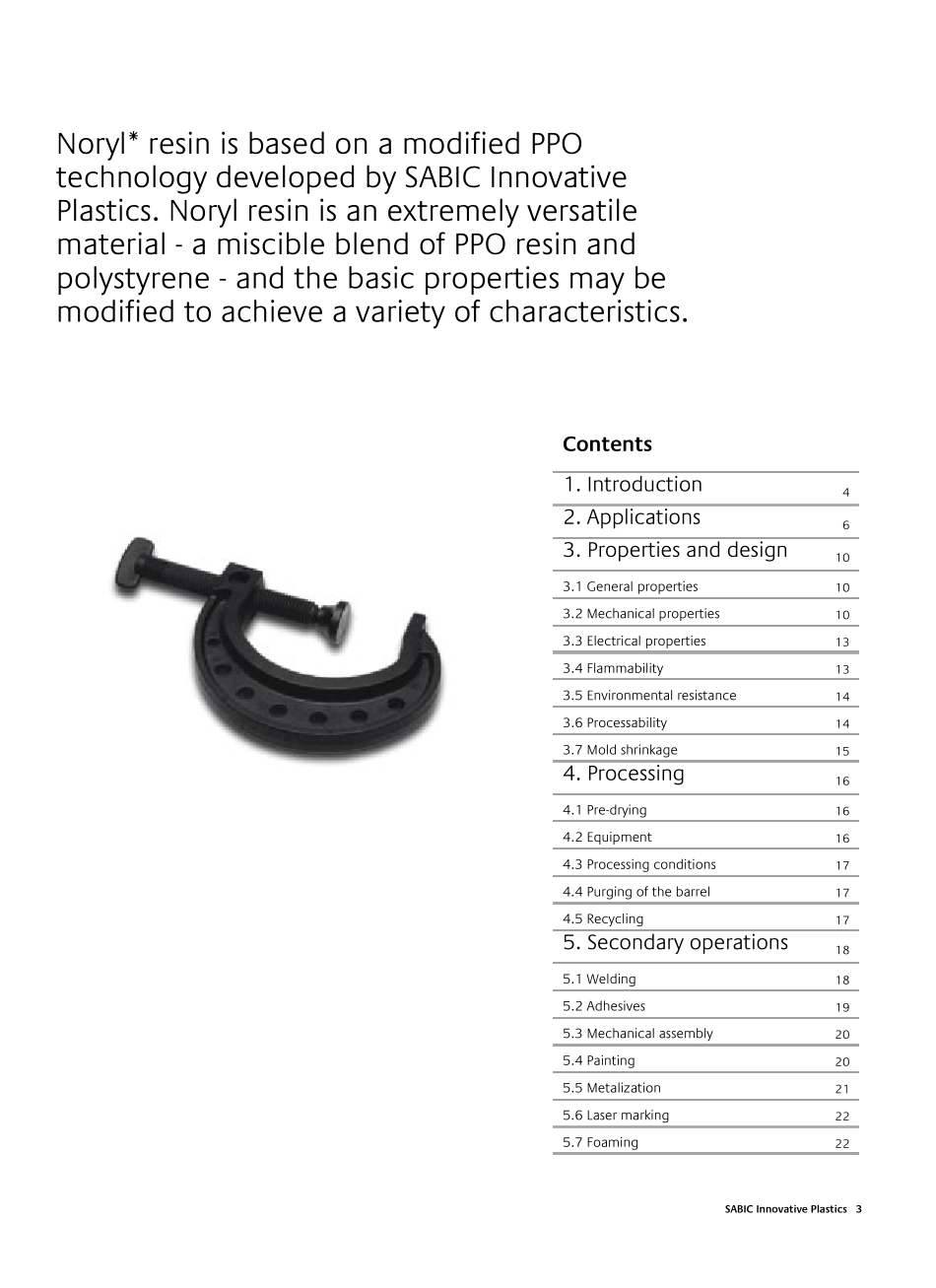

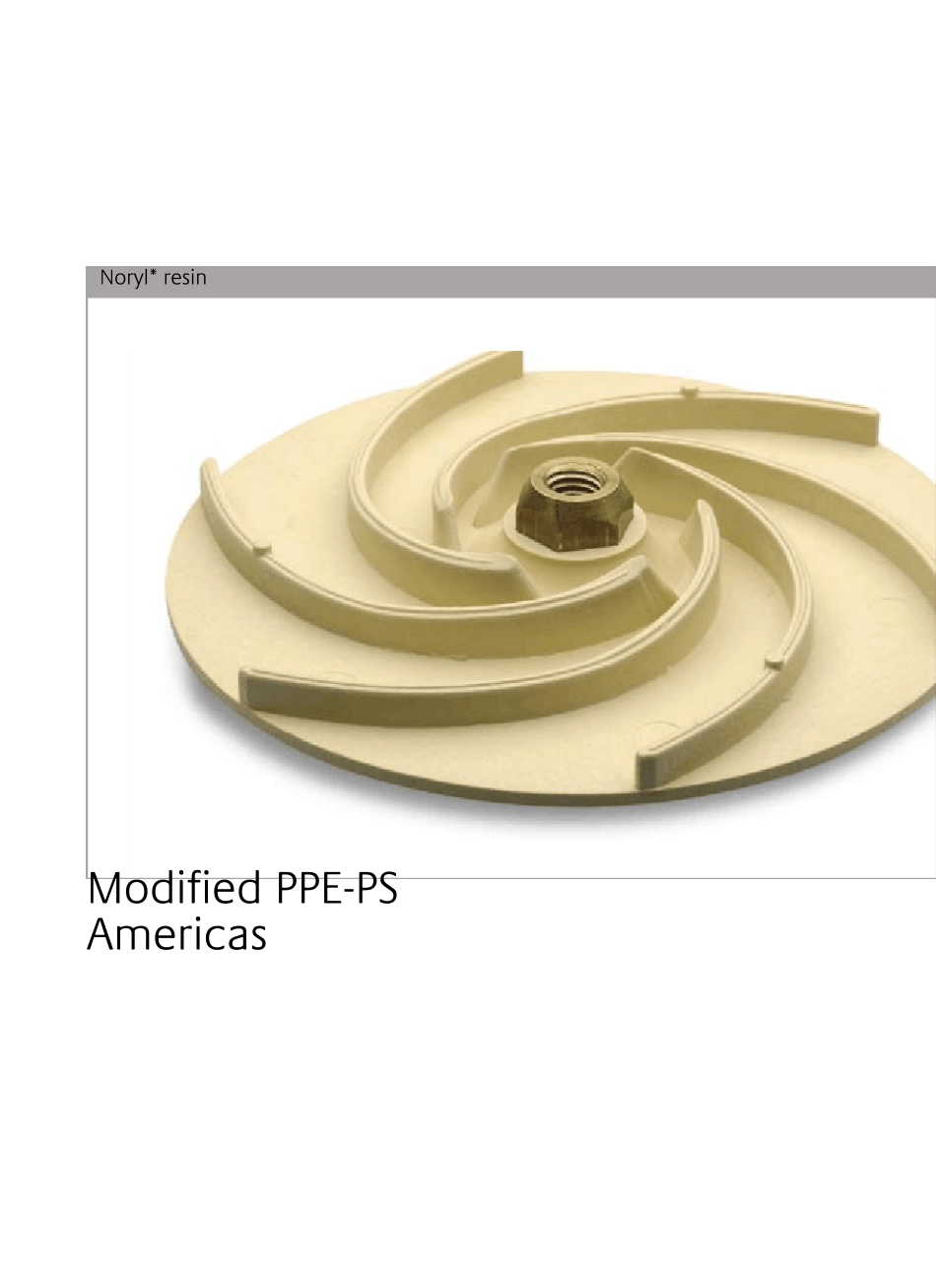

Noryl* resinModified PPE-PSAmericas2 SABIC Innovative PlasticsSABIC Innovative Plastics 3Contents1. Introduction42. Applications63. Properties and design103.1 General properties103.2 Mechanical properties103.3 Electrical properties133.4 Flammability133.5 Environmental resistance143.6 Processability143.7 Mold shrinkage154. Processing164.1 Pre-drying164.2 Equipment164.3 Processing conditions174.4 Purging of the barrel174.5 Recycling175. Secondary operations185.1 Welding185.2 Adhesives195.3 Mechanical assembly205.4 Painting205.5 Metalization215.6 Laser marking225.7 Foaming22Noryl* resin is based on a modified PPO technology developed by SABIC Innovative Plastics. Noryl resin is an extremely versatile material - a miscible blend of PPO resin and polystyrene - and the basic properties may be modified to achieve a variety of characteristics.4 SABIC Innovative PlasticsNoryl* modified PPO resin PPE-PSCharacteristicsTypical characteristics include excellent dimensional stability, low mold shrinkage, low water absorption and very low creep behavior at elevated temperatures. These properties combined with an outstanding hydrolytic stability in hot and cold water, make Noryl resin an excellent potential candidate for fluid engineering, environmental and potable water applications. An outstanding feature of Noryl resin is its retention of tensile and flexural strength, even at elevated temperatures. The gradual reduction in modulus as temperature is increased, is a key advantage of this material. As a result, parts made or molded from Noryl resin may be used with predictable performance over a wide temperature range.Another important advantage of Noryl resin is its predictably low creep behavior, even at elevated temperatures.The family of Noryl resin offers im...
