2025年同步带多楔带规格型尺寸表VIP免费

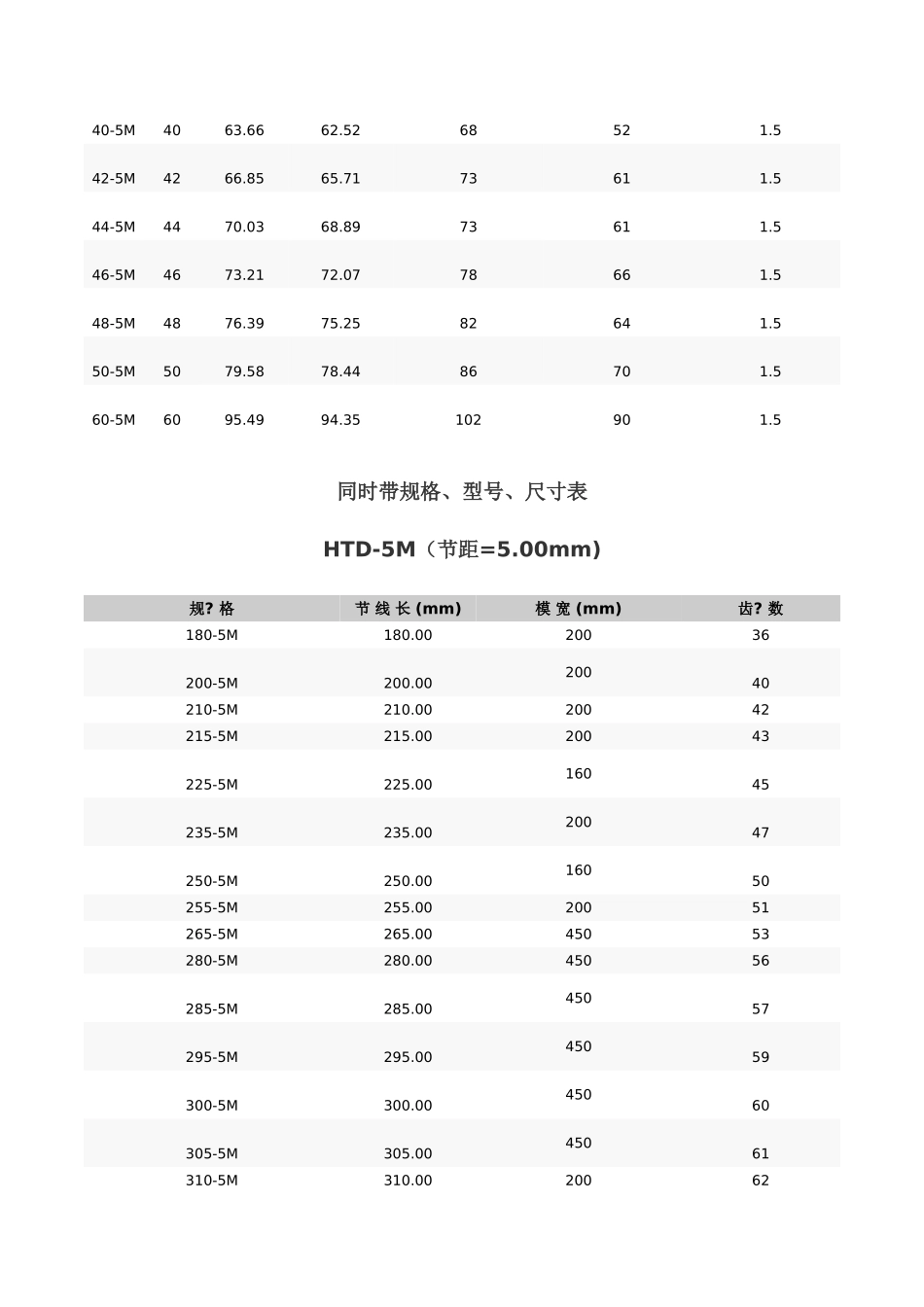

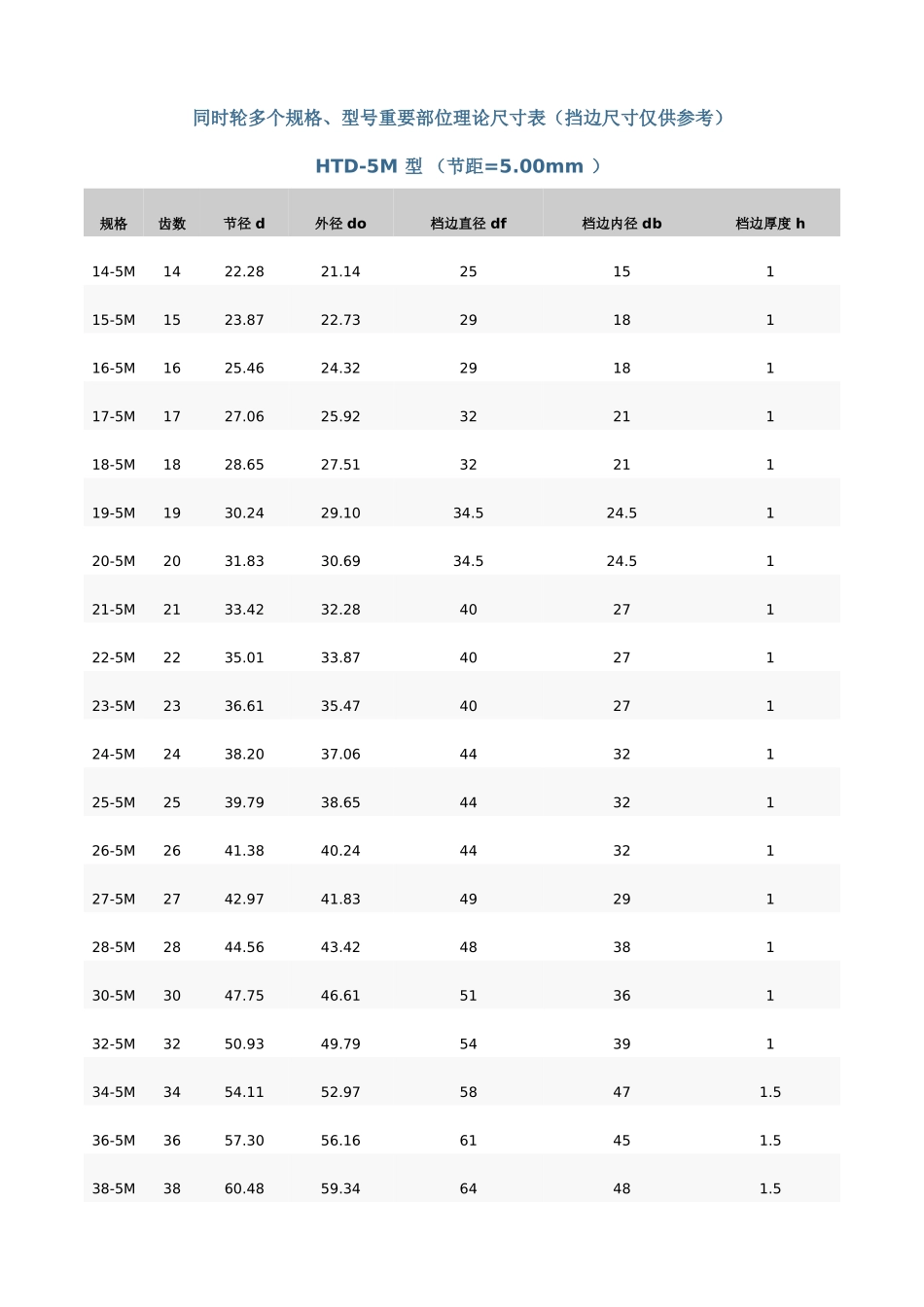

同时轮多个规格、型号重要部位理论尺寸表（挡边尺寸仅供参考）HTD-5M 型 （节距=5.00mm ）规格齿数节径 d外径 do档边直径 df档边内径 db档边厚度 h14-5M1422.2821.142515115-5M1523.8722.732918116-5M1625.4624.322918117-5M1727.0625.923221118-5M1828.6527.513221119-5M1930.2429.1034.524.5120-5M2031.8330.6934.524.5121-5M2133.4232.284027122-5M2235.0133.874027123-5M2336.6135.474027124-5M2438.2037.064432125-5M2539.7938.654432126-5M2641.3840.244432127-5M2742.9741.834929128-5M2844.5643.424838130-5M3047.7546.615136132-5M3250.9349.795439134-5M3454.1152.9758471.536-5M3657.3056.1661451.538-5M3860.4859.3464481.540-5M4063.6662.5268521.542-5M4266.8565.7173611.544-5M4470.0368.8973611.546-5M4673.2172.0778661.548-5M4876.3975.2582641.550-5M5079.5878.4486701.560-5M6095.4994.35102901.5同时带规格、型号、尺寸表HTD-5M（节距=5.00mm)规? 格节 线 长 (mm)模 宽 (mm)齿? 数180-5M180.0020036200-5M200.0020040210-5M210.0020042215-5M215.0020043225-5M225.0016045235-5M235.0020047250-5M250.0016050255-5M255.0020051265-5M265.0045053280-5M280.0045056285-5M285.0045057295-5M295.0045059300-5M300.0045060305-5M305.0045061310-5M310.0020062320-5M320.0045064325-5M325.0020065330-5M330.0020066340-5M340.0045068345-5M345.0045069350-5M350.0020070360-5M360.0045072365-5M365.0020073370-5M370.0045074375-5M375.0045075385-5M385.0045077395-5M395.0045079400-5M400.0045080405-5M405.0045081410-5M410.0045082420-5M420.0045084425-5M425.0045085430-5M430.0045086440-5M440.0045088445-5M445.0045089450-5M450.0020090460-5M460.0045092470-5M470.0045094475-5M475.0045095480-5M480.0045096490-5M490.0045098500-5M500.00450100505-5M501.00450101520-5M520.00450104525-5M525.00450105535-5M535.00450107540-5M540.00450108550-5M550.00450110560-5M560.00450112565-5M565.00200113570-5M570.00450114575-5M575.00450115585-5M585.00450117590-5M590.00450118600-5M600.00200120610-5M610.00450122615-5M615.00200123620-5M620.00450124625-5M625.00200125630-5M630.00450126635-5M635.00200127640-5M640.00450128645-5M645.00450129650-5M650.00450130655-5M655.00450131670-5M670.0045...
