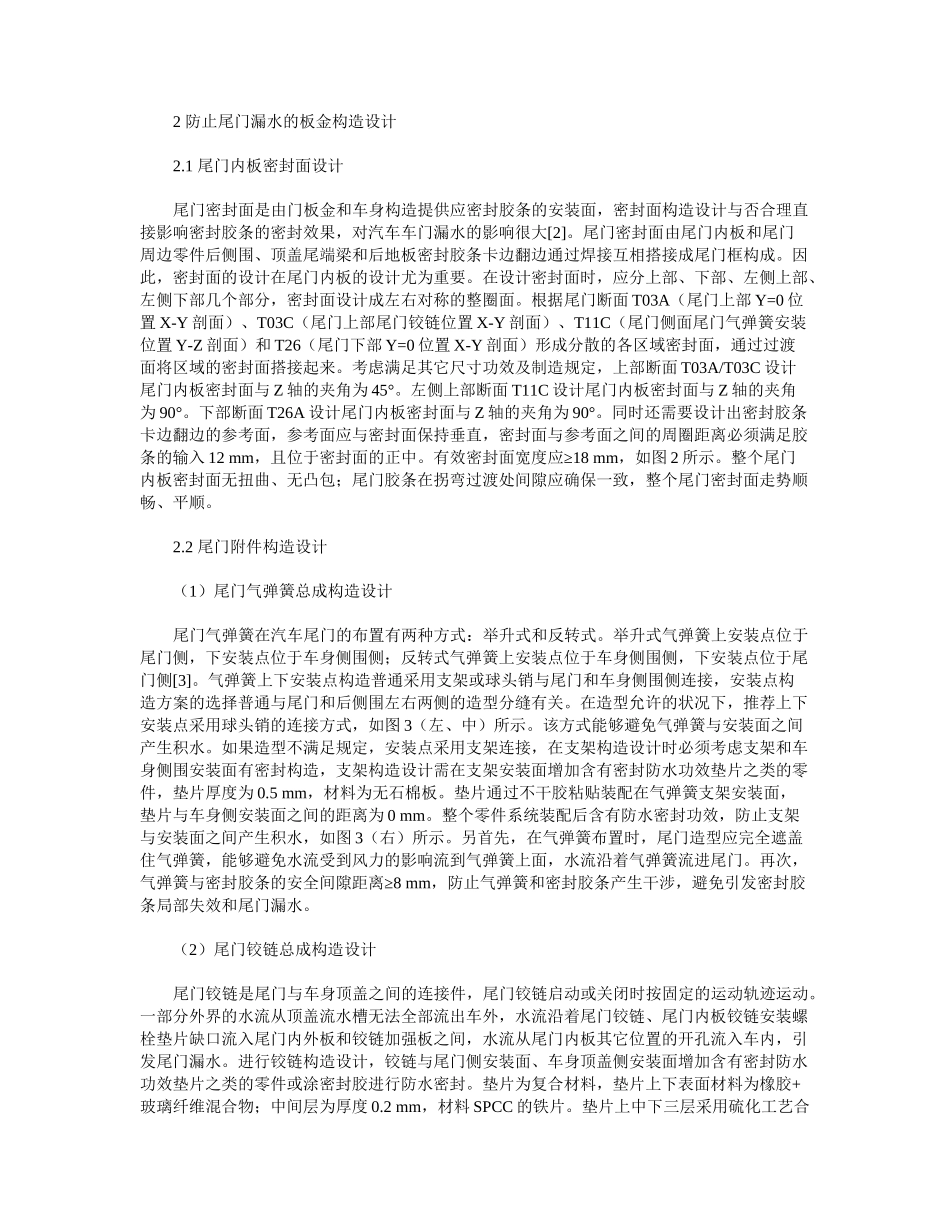

汽车尾门构造设计对尾门漏水的影响分析作者:童秀芹来源:《工业技术创新》第 04 期 摘 要:尾门漏水是尾门设计中需要重点关注的一种问题,尾门漏水会引发质量问题,造成顾客埋怨。本文介绍了防止尾门漏水的尾门构造设计方案,具体分析了构造设计、内板密封面及工艺孔构造等核心要素,提出的构造设计减少了后期问题的发生,提高了产品质量。 核心词:尾门;漏水;构造设计 中图分类号:U260.6 文献标记码: A 文章编号: 2095-8412 () 04-671-05 工业技术创新 URL : http://.com DOI : 10.14103/j.issn.2095-8412..04.024 Abstract : Tail gate leakage is a problem that needs to be focused on in the design of the tail gate. The leakage of the tail gate will cause the quality problems , leading to customer complaints. This paper introduces preventing tail gate leakage tail gate structure design , detailed analysis of the structure design , plate sealing surface and the process of pore structure and key factors , which puts forward the structure design , reduces the later problems and improves the quality of the products. Key words : Tail Gate ; Leakage ; Structure Design 引言 车门漏水是车门设计的一大难题,车门在车辆进行淋雨实验时,通过淋雨线后发现水通过车门渗入进入乘员舱内部。车门漏水现象严重影响整车产品质量,引发客户埋怨,影响公司品牌形象。因此,避免车门漏水是车门设计前期必须考虑的问题。本文重要对影响新车型尾门漏水的尾门构造设计进行介绍。 1 影响尾门漏水的因素 尾门总成系统由尾门板金焊合总成,如图 1 所示。尾门系统普通涉及尾门外板、尾门内板、尾门左右件铰链加强板焊合件、尾门左右窗框加强板焊合件、尾门左右限位器加强板焊合件、尾门锁加强板焊合件、尾门铰链、尾门左右气弹簧总成、尾门左右限位器总成、尾门缓冲块、尾门锁、牌照、左右尾门尾灯总成、拉手饰条总成、牌照灯、摄像头、后挡玻璃总成、后雨刮总成、高位制动灯总成、后扰流板总成零件。尾门板金是整个附件系统的载体,板金既要满足整个尾门强度、刚度规定,又要满足重量目的规定,还要满足附件安装规定、工艺规定、美观性规定、反腐规定和密封规定,因此...
