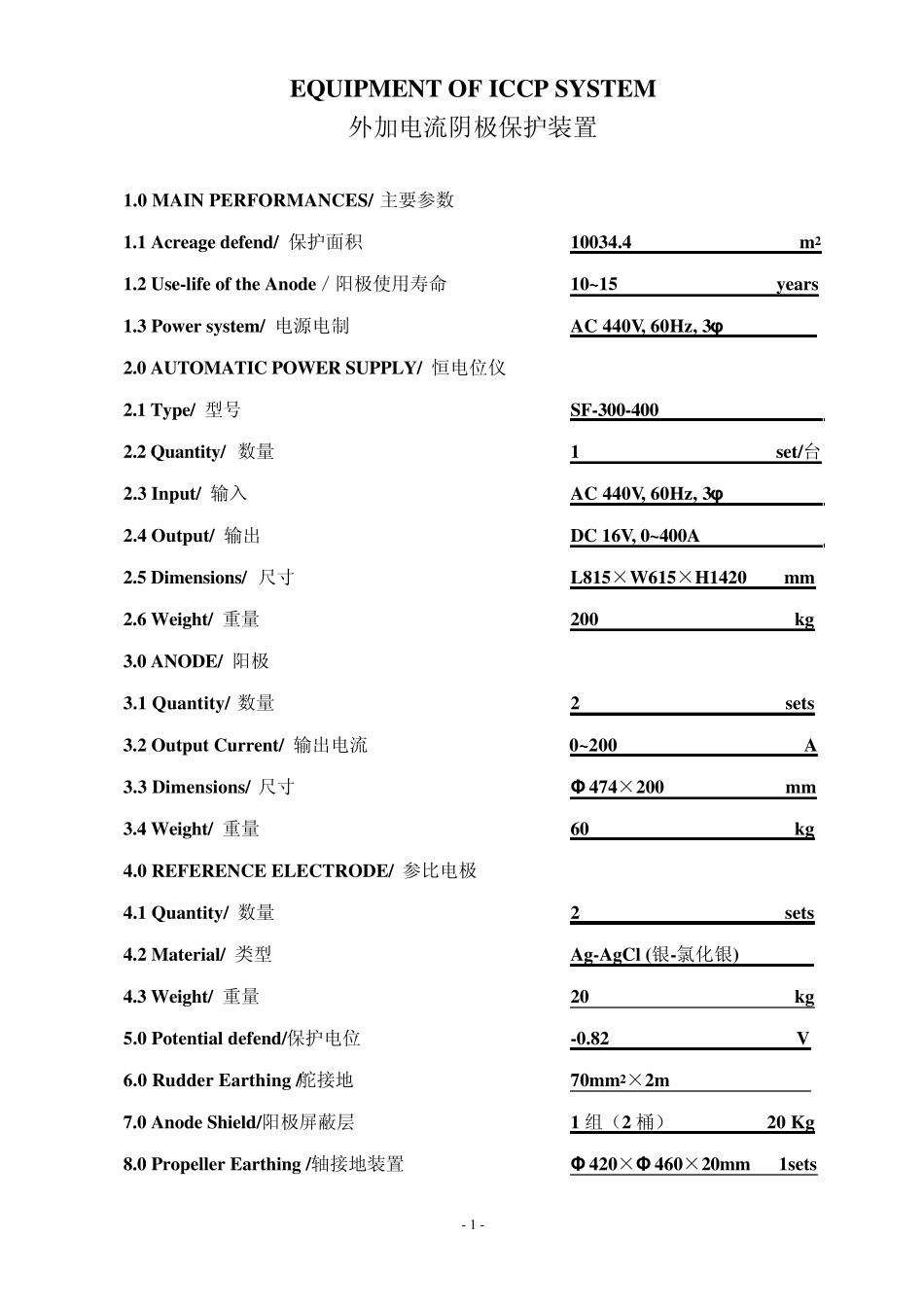

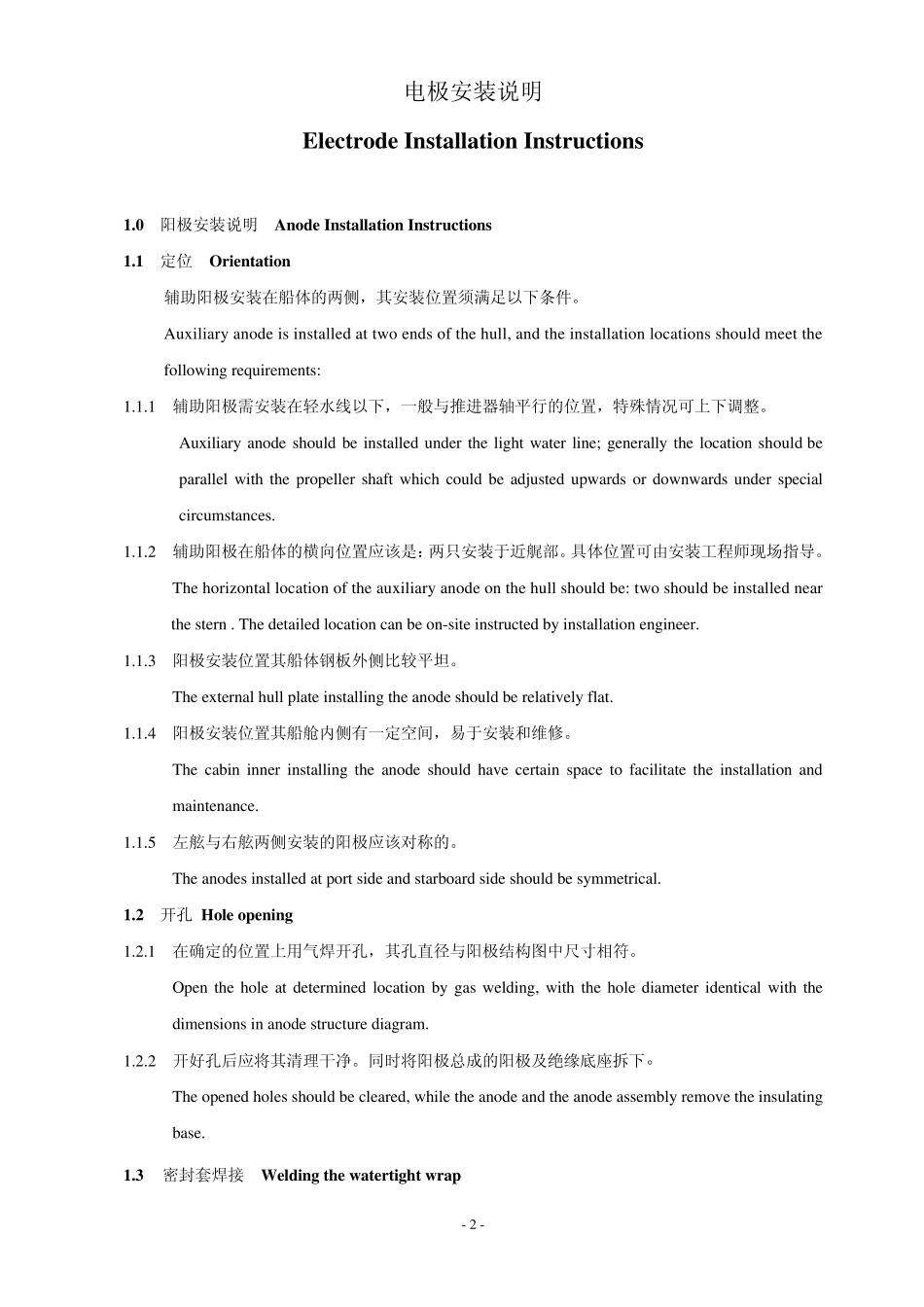

- 1 - EQUIPMENT OF ICCP SYSTEM 外加电流阴极保护装置 1.0 MAIN PERFORMANCES/ 主要参数 1.1 Acreage defend/ 保护面积 10034.4 m2 1.2 Use-life of the Anode／阳极使用寿命 10~15 years 1.3 Power system/ 电源电制 AC 440V, 60Hz, 3φ 2.0 AUTOMATIC POWER SUPPLY/ 恒电位仪 2.1 Type/ 型号 SF-300-400 2.2 Quantity/ 数量 1 set/台 2.3 Input/ 输入 AC 440V, 60Hz, 3φ 2.4 Output/ 输出 DC 16V, 0~400A 2.5 Dimensions/ 尺寸 L815×W615×H1420 mm 2.6 Weight/ 重量 200 kg 3.0 ANODE/ 阳极 3.1 Quantity/ 数量 2 sets 3.2 Output Current/ 输出电流 0~200 A 3.3 Dimensions/ 尺寸 Φ 474×200 mm 3.4 Weight/ 重量 60 kg 4.0 REFERENCE ELECTRODE/ 参比电极 4.1 Quantity/ 数量 2 sets 4.2 Material/ 类型 Ag-AgCl (银-氯化银) 4.3 Weight/ 重量 20 kg 5.0 Potential defend/保护电位 -0.82 V 6.0 Rudder Earthing /舵接地 70mm2×2m 7.0 Anode Shield/阳极屏蔽层 1 组（2 桶） 20 Kg 8.0 Propeller Earthing /轴接地装置 Φ 420×Φ 460×20mm 1sets - 2 - 电极安装说明 Electrode Installation Instructions 1.0 阳极安装说明 Anode Installation Instructions 1.1 定位 Orientation 辅助阳极安装在船体的两侧，其安装位置须满足以下条件。 Auxiliary anode is installed at two ends of the hull, and the installation locations should meet the following requirements: 1.1.1 辅助阳极需安装在轻水线以下，一般与推进器轴平行的位置，特殊情况可上下调整。 Auxiliary anode should be installed under the light water line; generally the location should be parallel with the propeller shaft which could be adjusted upwards or downwards under special circumstances. 1.1.2 辅助阳极在船体的横向位置应该是：两只安装于近艉部。具体位置可由安装工程师现场指导。 The horizontal location of the auxiliary anode on the hull should be: two should be installed near the stern . The detailed location can be on-site instructed by installation engineer. 1.1....
