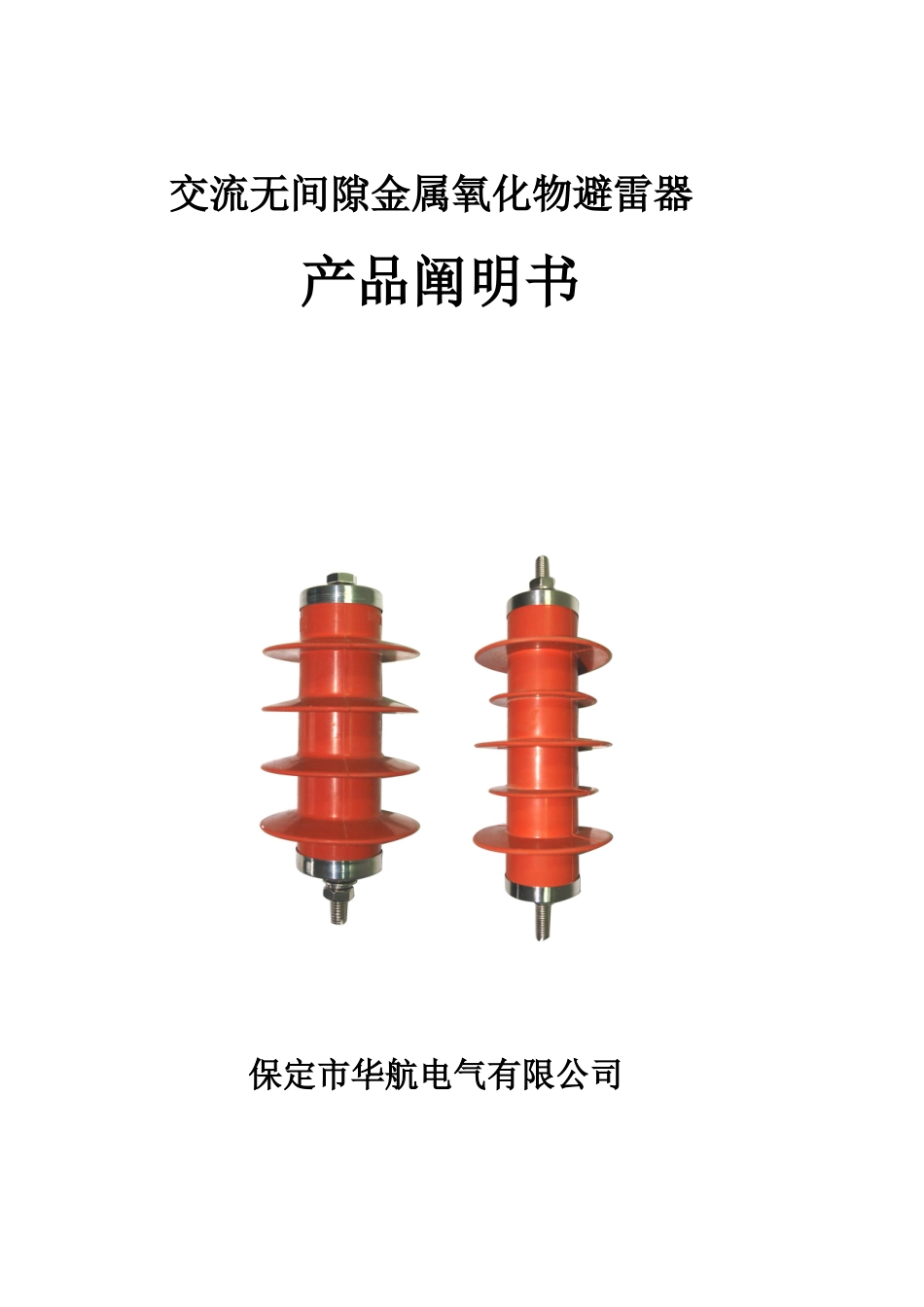

交流无间隙金属氧化物避雷器产品阐明书 保定市华航电气有限公司 无间隙金属氧化物避雷器一、技术参数避雷器使用场合型 号系统标称电压有效值 kV避雷器额定电压有效值kV避雷器持续运行电压有效值kV直流1mA 参考电压 ≥kV标称放电电流 5kA通流容量外形尺寸图陡坡冲击电流残压峰值≤kV雷电冲击电流残压峰值≤kV操作冲击电流残压峰值≤kV2ms 方波冲击电流 ≥Ａ4/10us大电流冲击 ≥kA低压型 HY1.5W-0.28/1.30.220.280.240.60-1.3-5010图 1 HY1.5W-0.5/2.60.380.500.421.20-2.6-5010图 1 HY1.5W-0.58/3.20.480.580.461.4-3.2-7535图 1 HY1.5W-0.62/3.60.520.620.51.6-3.6-7535图 1 HY1.5W-0.8/3.90.660.80.681.8-3.9-7535图 1 HY1.5W-0.9/4.30.690.90.721.9-4.3-7535图 1配电型 HY5WS-5/15354.08.019.615.014.510065图 2 HY5WS-10/306108.015.034.530.025.510065图 2 HY5WS-17/50101713.625.057.550.042.510065图 4线路型 HY5WX-5/15354.08.019.615.014.510065图 2 HY5WX-10/306108.015.034.530.025.510065图 2 HY5WX-17/50101713.625.057.550.042.510065图 4 HY5WX51/134355140.873.0154.0134.0114.0600/80065图 7电站型 HY5WZ-5/13.5354.07.515.513.511.520065图 2 HY5WZ-10/276108.014.431.027.023.020065图 2 HY5WZ-17/45101713.624.051.845.038.320065图 4 HY5WZ-26/66202620.837.076.066.056.040065图 6 HY5WZ-34/85203427.248.075.085.095.040065图 6 HY5WZ-34/95203427.052.084.095.0106.040065图 6 HY5WZ-51/134355140.873.0154.0134.0114.0600/80065图 7二、型号阐明本品根据 GB11032-《交流无间隙金属氧化物避雷器》，以 HY5WS-17/50 为例对其型号阐 HY5WZ-54/134355443.277.0154.0134.0114.0600/80065图 7发电机型 HY5WD-4/9.53.15*43.25.710.79.57.640065图 3 HY5WD-8/18.76.3*86.311.321.018.715.040065图 3 HY5WD-13.5/3110.5*13.510.518.634.731.025.040065图 5 HY5WD-17.5/4013.8*17.513.824.444.840.032.040065图 5电动机型 HY2.5WD-4/9.53.15*43.25.710.79.57.620065图 2 HY2.5WD-8/18.76.3*86.311.321.018.715.020065图 2 HY2.5WD-13.5/3110.5*13.510.518.634.731.025.020065图 2电机中性点型 HY1.5W-2.4/63.15*2.41.93.4-6.05.020065图 2 HY1.5W-4.8/126.3*4.83.86.8-12.01.020065图 2 HY1.5W-8/1910.5*86.411.4-19.015.920065图 2 HY1.5W-10.5/2313....
