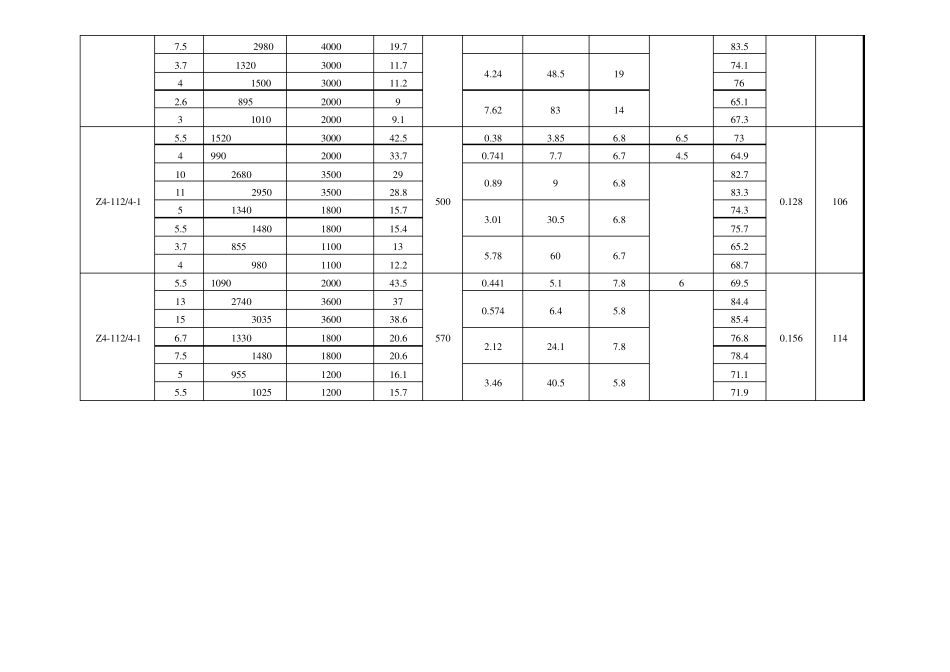

直流电动机技术数据表 型号 Type 额定 功率 Rated Output PN 额定转速 Rated Speed 弱磁转速 Speed With Field Weakened nf 电枢 电流 Arm. Curr. IN 励磁 功率 Field Power PF 电枢回路 电阻 Arm. Circuit Resistance R 电枢回路 电感 Arm.Circuit Resistance LA 磁场电感 Field Inductance LF 外接电感 Somoothing Induct. LR 效率 Eff. 惯量矩 Moment Of Inertia GD² 重量 Wt. 160V 400V 440V KW R/min R/min A W Ω (20℃) mH H mH % Kg.m² kg Z4-100-1 2.2 1490 3000 17.9 315 1.19 11.2 22 15 67.8 0.044 72 1.5 955 2000 13.3 2.17 21.4 13 15 58.5 4 2630 4000 12 2.82 26 18 78.9 4 2960 4000 10.7 80.1 2 1310 3000 6.6 9.12 86 18 68.4 2.2 1480 3000 6.5 70.6 1.4 860 2000 5.1 16.76 163 18 60.3 1.5 990 2000 4.77 63.2 Z4-112/2-1 3 1540 3000 24 320 0.785 7.1 14 20 69.1 0.072 100 2.2 975 2000 19.6 1.498 14.1 13 20 62.1 5.5 2630 4000 16.4 1.933 17.9 17 79.9 5.5 2940 4000 14.7 81.1 2.8 1340 3000 9.1 6 59 17 71.2 3 1500 3000 8.6 72.8 1.9 855 2000 6.9 11.67 110 13 61.1 2.2 965 2000 7.1 63.5 Z4-112/2-2 4 1450 3000 31.3 350 0.576 6.2 14 12 72.6 0.088 107 3 1070 2000 24.8 0.934 10.3 14 10 66.8 7 2660 4000 20.4 1.305 14 19 82.4 7.5 2980 4000 19.7 83.5 3.7 1320 3000 11.7 4.24 48.5 19 74.1 4 1500 3000 11.2 76 2.6 895 2000 9 7.62 83 14 65.1 3 1010 2000 9.1 67.3 Z4-112/4-1 5.5 1520 3000 42.5 500 0.38 3.85 6.8 6.5 73 0.128 106 4 990 2000 33.7 0.741 7.7 6.7 4.5 64.9 10 2680 3500 29 0.89 9 6.8 82.7 11 2950 3500 28.8 83.3 5 1340 1800 15.7 3.01 30.5 6.8 74.3 5.5 1480 1800 15.4 75.7 3.7 855 1100 13 5.78 60 6.7 65.2 4 980 1100 12.2 68.7 Z4-112/4-1 5.5 1090 2000 43.5 570 0.441 5.1 7.8 6 69.5 0.156 114 13 2740 3600 37 0.574 6.4 5.8 84.4 15 3035 3600 38.6 85.4 6.7 1330 1800 20.6 2.12 24.1...
