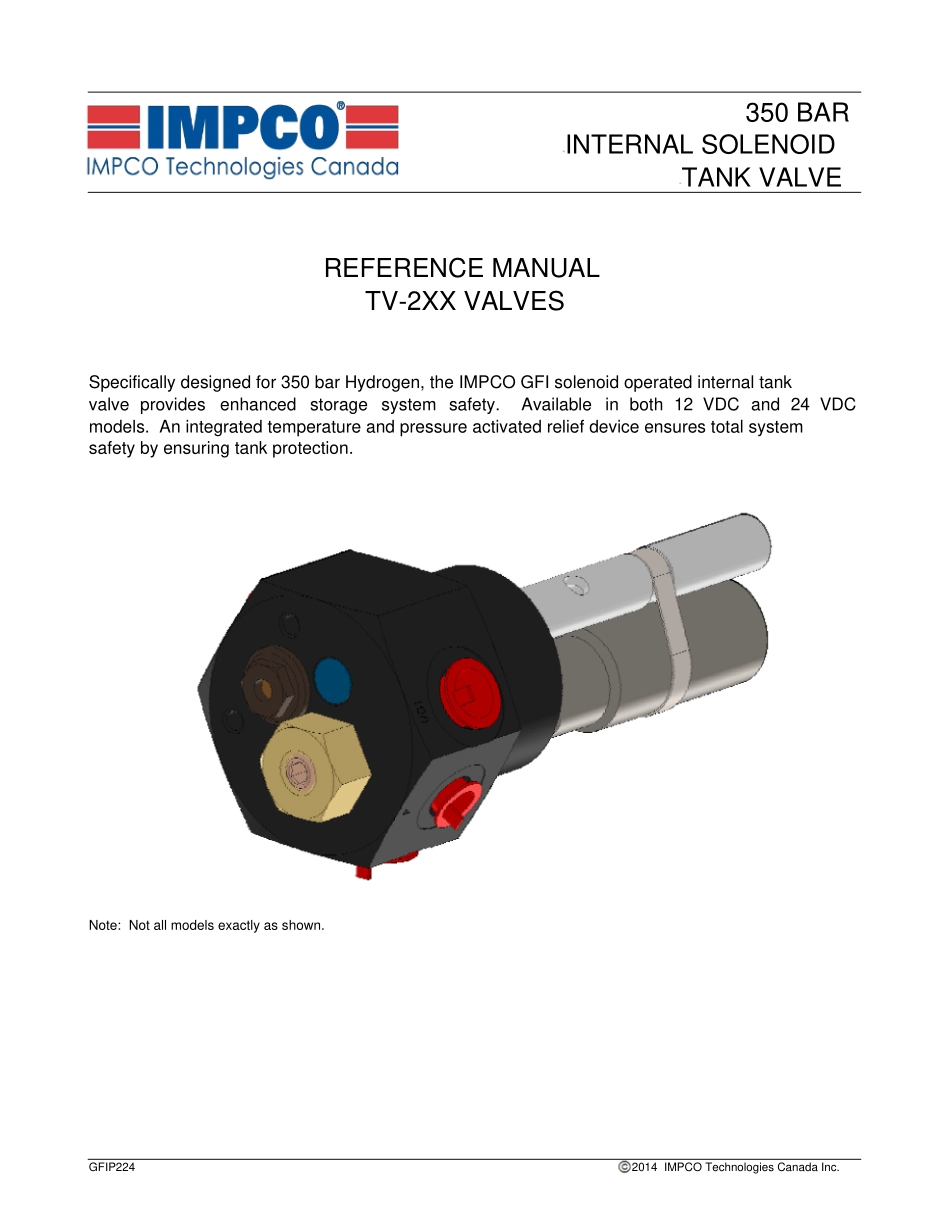

GFIP224 2014 IMPCO Technologies Canada Inc. 350 BAR INTERNAL SOLENOID TANK VALVE REFERENCE MANUAL TV-2XX VALVES Specifically designed for 350 bar Hydrogen, the IMPCO GFI solenoid operated internal tank valve provides enhanced storage system safety. Available in both 12 VDC and 24 VDC models. An integrated temperature and pressure activated relief device ensures total system safety by ensuring tank protection. Note: Not all models exactly as shown. GFI 350 Bar Internal Solenoid Tank Valve GFIP224 2014 IMPCO Technologies. Printed in CanadaCONFIDENTIALITY The information contained in this document is confidential and proprietary to IMPCO Technologies Control Systems. This information cannot be disclosed to other parties without written authorization from IMPCO Technologies. This document is intended only for customers engaged in a current confidentiality agreement with IMPCO Technologies. DISCLAIMER Although every effort has been made to provide complete and accurate information, IMPCO Technologies cannot guarantee performance based solely on this document. Table of Contents PHYSICAL DIMENSIONS ................................................................................... 2GAS SCHEMATIC AND SPECIFICATIONS ....................................................... 4ELECTRICAL SCHEMATIC AND SPECIFICATIONS ........................................ 6TEMERATURE SENSOR .................................................................................... 7OPTIONAL CONNECTOR AND MATING CONNECTOR .................................. 8PRESSURE RELIEF DEVICE (PRD) .................................................................. 9MANUAL LOCKDOWN ....................................................................................... 9DIAGNOSTICS .........................................................
