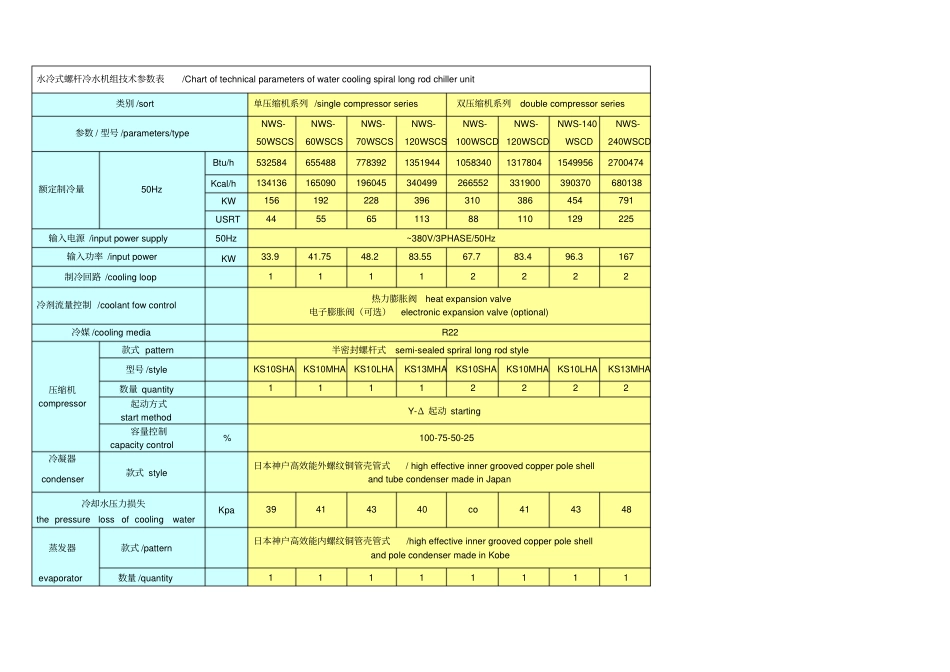

水冷式螺杆冷水机组技术参数表 /Chart of technical parameters of water cooling spiral long rod chiller unit 类别 /sort 单压缩机系列 /single compressor series 双压缩机系列double compressor series 参数 / 型号 /parameters/type NWS- 50WSCS NWS- 60WSCS NWS- 70WSCS NWS- 120WSCS NWS- 100WSCD NWS- 120WSCD NWS-140WSCD NWS- 240WSCD 额定制冷量50Hz Btu/h 532584 655488 778392 1351944 1058340 1317804 1549956 2700474 Kcal/h 134136 165090 196045 340499 266552 331900 390370 680138 KW 156 192 228 396 310 386 454 791 USRT 44 55 65 113 88 110 129 225 输入电源 /input power supply 50Hz ~380V/3PHASE/50Hz 输入功率 /input power KW 33.9 41.75 48.2 83.55 67.7 83.4 96.3 167 制冷回路 /cooling loop 1 1 1 1 2 2 2 2 冷剂流量控制 /coolant fow control 热力膨胀阀heat expansion valve 电子膨胀阀（可选）electronic expansion valve (optional) 冷媒 /cooling media R22 压缩机compressor 款式 pattern 半密封螺杆式semi-sealed spriral long rod style 型号 /style KS10SHA KS10MHA KS10LHA KS13MHA KS10SHA KS10MHA KS10LHA KS13MHA 数量 quantity 1 1 1 1 2 2 2 2 起动方式start method Y-Δ 起动 starting 容量控制capacity control % 100-75-50-25 冷凝器款式 style 日本神户高效能外螺纹铜管壳管式/ high effective inner grooved copper pole shell and tube condenser made in Japan condenser 冷却水压力损失Kpa 39 41 43 40 co 41 43 48 the pressure loss of cooling water 蒸发器款式 /pattern 日本神户高效能内螺纹铜管壳管式/high effective inner grooved copper pole shell and pole condenser made in Kobe evaporator 数量 /quantity 1 1 1 1 1 1 1 1 冷冻水压力损失/the pressure loss of freezing water Kpa 68 65 63 70 59 62 60 78 冷冻水流量 /flow of freezing water m3/h 27 33 39 68 53 66 78 136 溫控器 temperature controller 德国西门子热电偶模块/Germany siemens thermocouple module 安全装置 safty device ...
