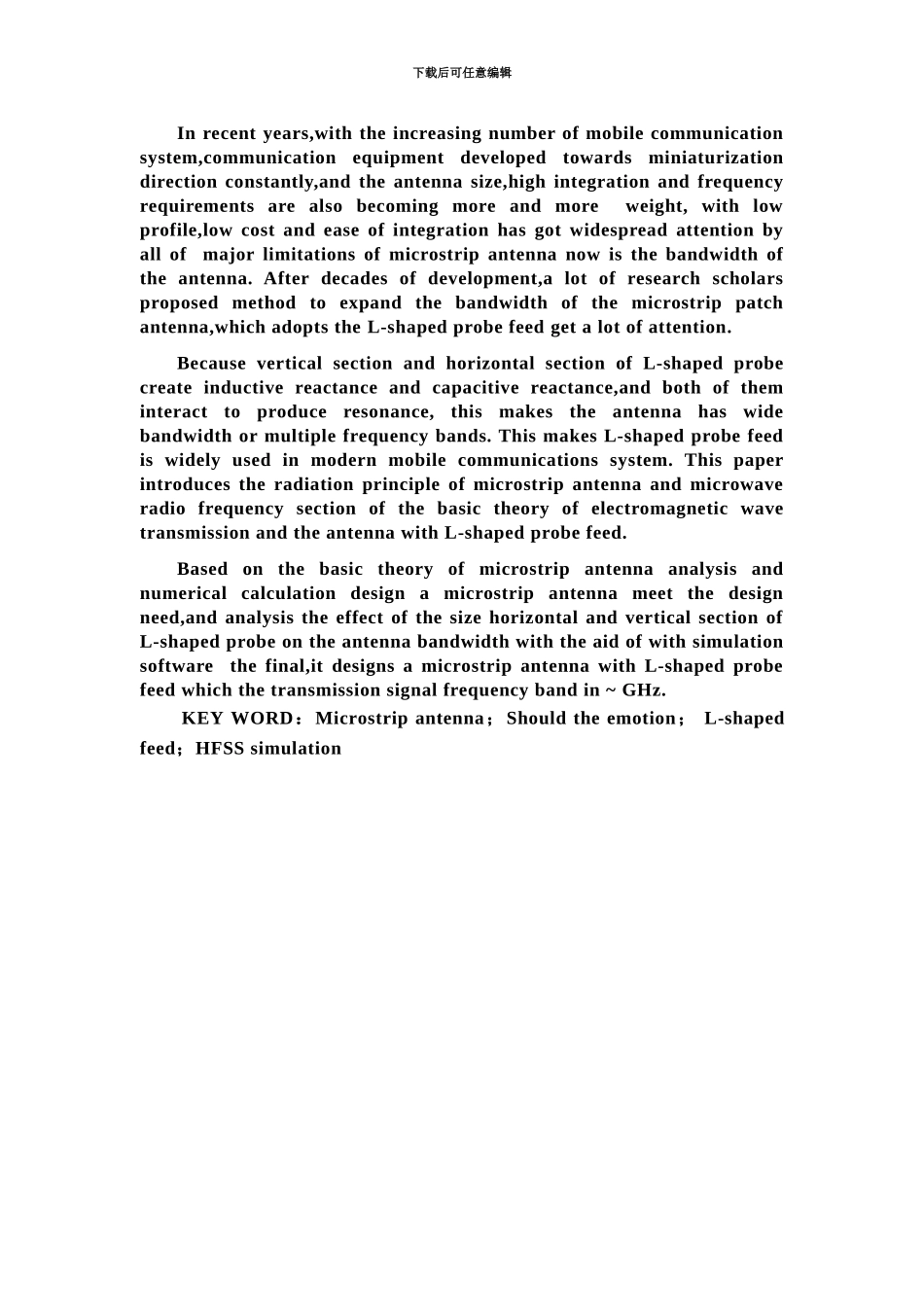

下载后可任意编辑L 型探针馈电的微带天线仿真设计毕业答辩论文终稿下载后可任意编辑L 型探针馈电的微带天线仿真设计中文摘要近年来，随着移动通信系统业务的不断增加，通信设备不断朝着小型化方向进展，同时对天线体积，集成化及工作频段的要求也越来越高。重量轻，剖面低，成本低和易于集成的微带天线，受到大家的广泛的关注。目前微带天线的主要限制还在于天线的狭窄。经过数十年的进展，很多讨论学者提出了拓展微带贴片天线带宽的方法，其中采纳 L 型探针馈电的方式得到了很多关注。由于 L 型探针垂直部分及水平部分和贴片之间产生感抗和容抗，两者相互作用产生谐振，使天线频带拓宽或者呈现多频带。这使得 L 型探针馈电广泛应用于现代移动通信系统中。本文介绍了微带天线的辐射原理及微波射频段电磁波的基本理论及 L 型探针馈电的微带天线。文中依据理论分析以及数值计算相结合的方式设计出满足设计需要的微带天线并借助天线设计软件 HFSS 分析了 L 型探针水平段和竖直端长度对天线带宽的影响，~。关键词：微带天线；容感性；L 型探针馈电；HFSS 仿真The design and Simulation of antenna with L-shaped probe feedAbsract下载后可任意编辑In recent years,with the increasing number of mobile communication system,communication equipment developed towards miniaturization direction constantly,and the antenna size,high integration and frequency requirements are also becoming more and more weight, with low profile,low cost and ease of integration has got widespread attention by all of major limitations of microstrip antenna now is the bandwidth of the antenna. After decades of development,a lot of research scholars proposed method to expand the bandwidth of the microstrip patch antenna,which adopts the L-shaped probe feed get a lot of attention.Because vertical section and horizontal section of L-shaped probe create inductive reactance and capacitive reactance,and both of them interact to produce resonance, this makes the antenna has wide bandwidth or multiple frequency bands. This makes L-shaped probe feed...
