延锋伟世通注塑模具采购标准

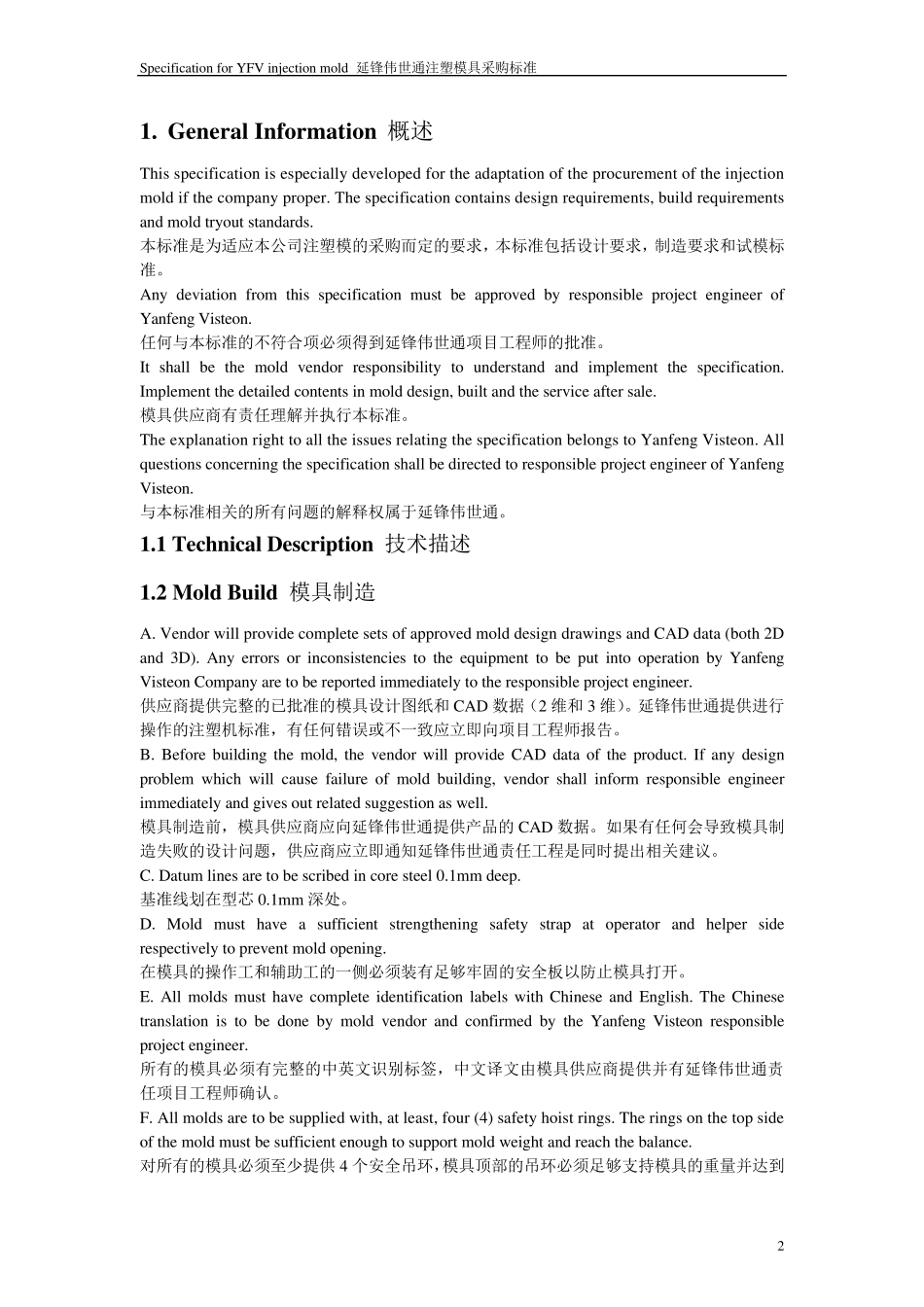

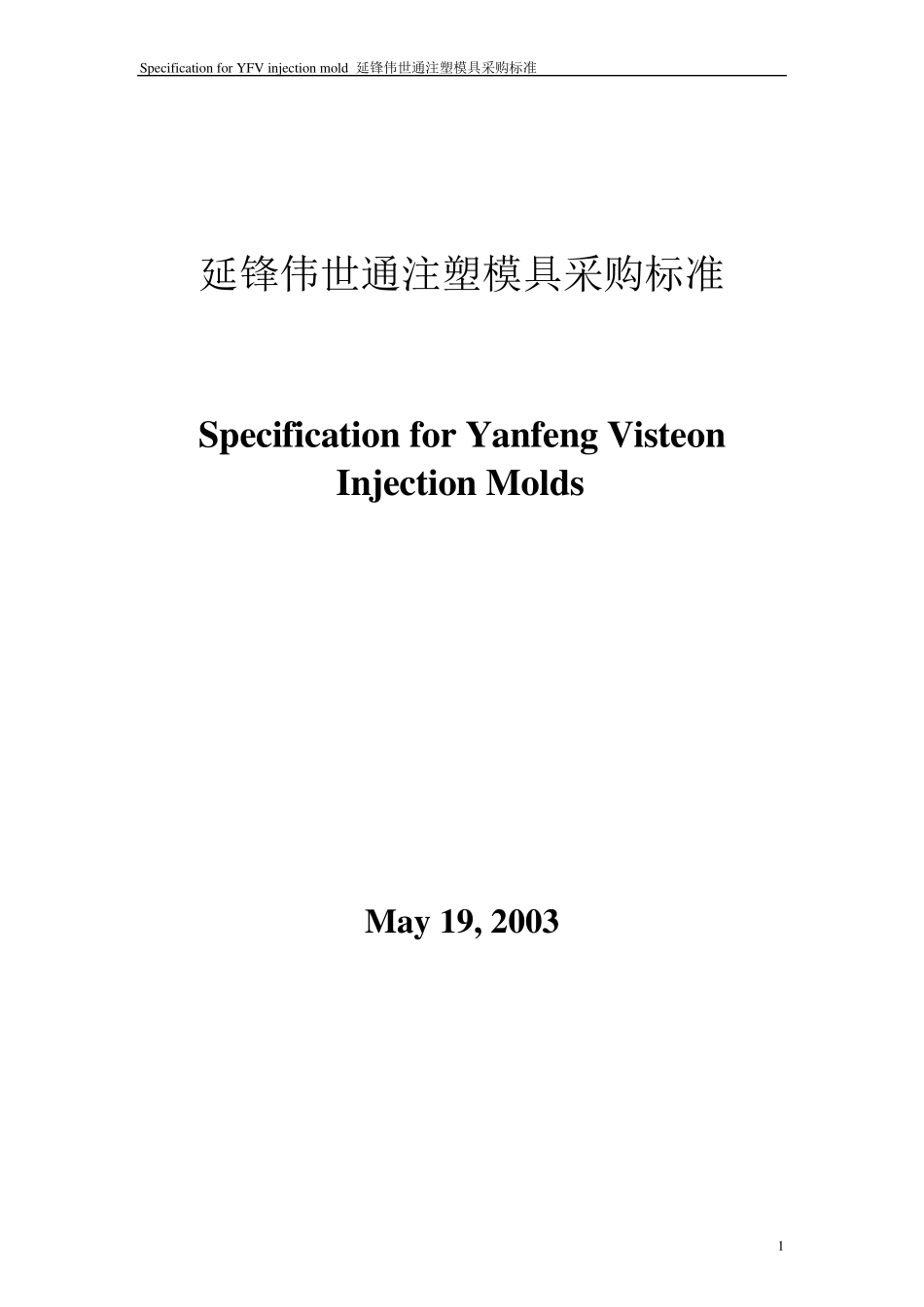

Specification for YFV injection mold 延锋伟世通注塑模具采购标准 1 延锋伟世通注塑模具采购标准 Specification for Yanfeng Visteon Injection Molds May 19, 2003 Specification for YFV injection mold 延锋伟世通注塑模具采购标准 2 1. General Information 概述 This specification is especially developed for the adaptation of the procurement of the injection mold if the company proper. The specification contains design requirements, build requirements and mold tryout standards. 本标准是为适应本公司注塑模的采购而定的要求，本标准包括设计要求，制造要求和试模标准。 Any deviation from this specification must be approved by responsible project engineer of Yanfeng Visteon. 任何与本标准的不符合项必须得到延锋伟世通项目工程师的批准。 It shall be the mold vendor responsibility to understand and implement the specification. Implement the detailed contents in mold design, built and the service after sale. 模具供应商有责任理解并执行本标准。 The explanation right to all the issues relating the specification belongs to Yanfeng Visteon. All questions concerning the specification shall be directed to responsible project engineer of Yanfeng Visteon. 与本标准相关的所有问题的解释权属于延锋伟世通。 1.1 Technical Description 技术描述 1.2 Mold Bu ild 模具制造 A. Vendor will provide complete sets of approved mold design drawings and CAD data (both 2D and 3D). Any errors or inconsistencies to the equipment to be put into operation by Yanfeng Visteon Company are to be reported immediately to the responsible project engineer. 供应商提供完整的已批准的模具设计图纸和CAD 数据（2 维和3 维）。延锋伟世通提供进行操作的注塑机标准，有任何错误或不一致应立即向项目工程师报告。 B. Before building the mold, the vendor will provide CAD data of the product. If any design problem which will cause failure of mold...
