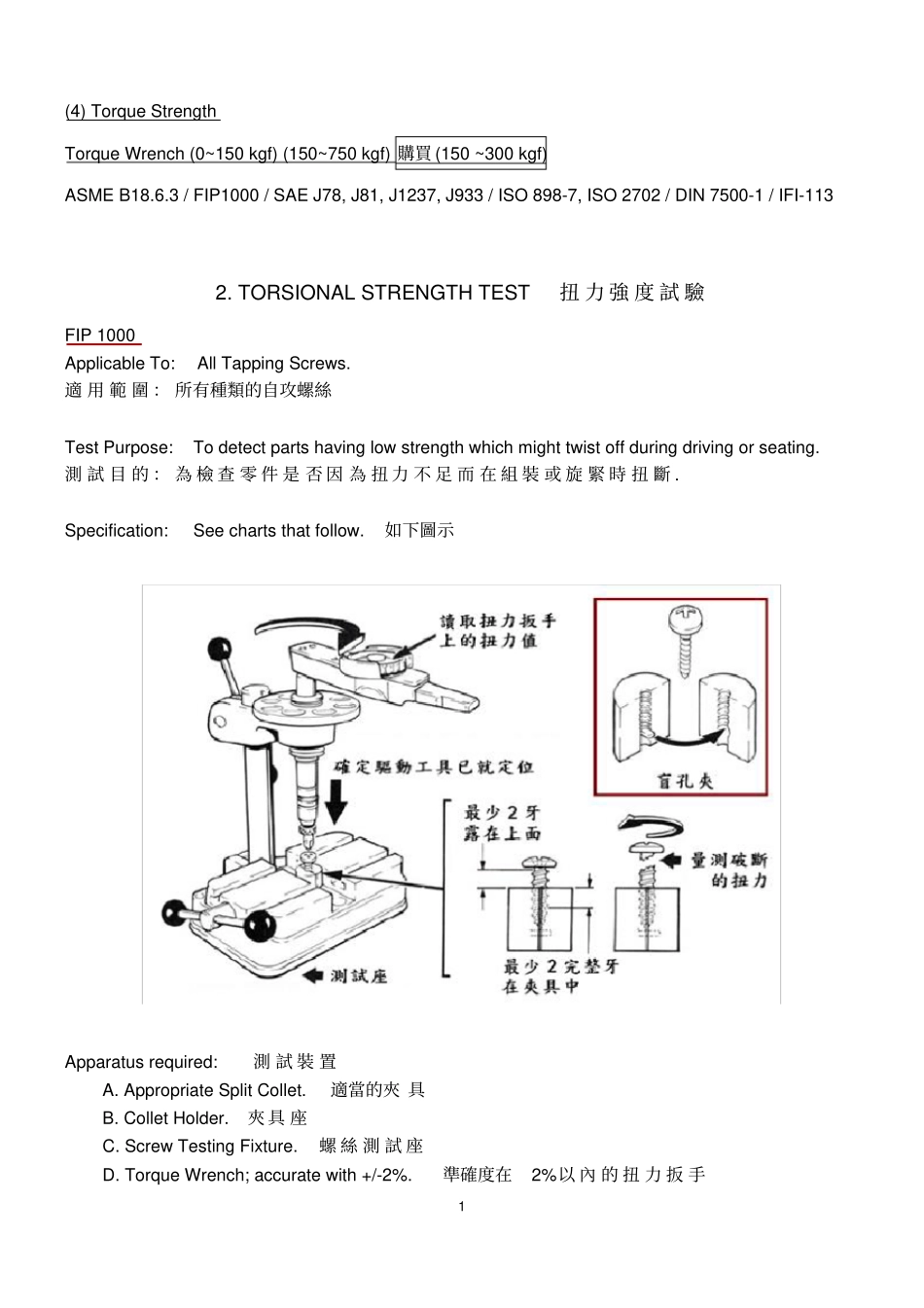

1 (4) Torque Strength Torque Wrench (0~150 kgf) (150~750 kgf) 購買 (150 ~300 kgf) ASME B18.6.3 / FIP1000 / SAE J78, J81, J1237, J933 / ISO 898-7, ISO 2702 / DIN 7500-1 / IFI-113 2. TORSIONAL STRENGTH TEST扭 力 強 度 試 驗FIP 1000 Applicable To: All Tapping Screws. 適 用 範 圍 : 所有種類的自攻螺絲Test Purpose: To detect parts having low strength which might twist off during driving or seating. 測 試 目 的 : 為 檢 查 零 件 是 否 因 為 扭 力 不 足 而 在 組 裝 或 旋 緊 時 扭 斷 .Specification: See charts that follow. 如下圖示Apparatus required: 測 試 裝 置A. Appropriate Split Collet. 適當的夾 具B. Collet Holder. 夾 具 座C. Screw Testing Fixture. 螺 絲 測 試 座D. Torque Wrench; accurate with +/-2%.準確度在2%以 內 的 扭 力 扳 手2 Sample Size(Minimum Recommended):4 pieces per lot; lot size not to exceed 250,000 抽 樣 數 (建 議 最 少 ) : 每 批 4 支 ,每 批 批 量 不 超 過 250M PCS.Procedure: 測 試 程 序A. Place the split collet into the collet holder and screw the fastener into the collet such that a minimum of 2 full threads are in the collet and a minimum of 2 threads are above the collet. 將 螺 絲 置 入 測 試 夾 具 中 再 將 夾 具 放 入 夾 具 座 , 螺 絲 至 少 應 有 兩 個 完 全 牙 在 夾 具中 , 兩 牙 在 夾 具 上 方 .B. Place the collet holder in the screw testing fixture and clamp into place. 將 夾 具 座 固 定 在 螺 絲 測 試 座 上C. Apply torque with a torque wrench until the part twists off. 扭轉扳手直到螺絲扭斷D. Record failure value and compare to the required specification. 記錄破壞值且與規範值比較Failure: Part twists in two at less than specified minimum. 失 效 : 螺 絲 扭 斷 值 小 於 規範值Possible Failure Causes:失 效 可 能 因 素A. Core ...
